MSI GeForce RTX™ 5080 16G INSPIRE 3X

Overview

The GeForce RTX™ 5080 16G INSPIRE 3X is a top-tier graphics card tailored for gamers and creators who require excellent 4K and AI-accelerated performance. Built on NVIDIA’s Blackwell architecture, it comes with advanced features, premium triple-fan cooling, and a robust metal backplate for thermal efficiency and durability.

GPU and Memory
This card features 10,752 CUDA cores and 16GB of ultra-fast GDDR7 memory, running at 30 Gbps on a 256-bit interface, providing superior bandwidth for 4K gaming and creative workloads. The boost clock reaches up to 2617 MHz for peak responsiveness in demanding scenarios.

Cooling System

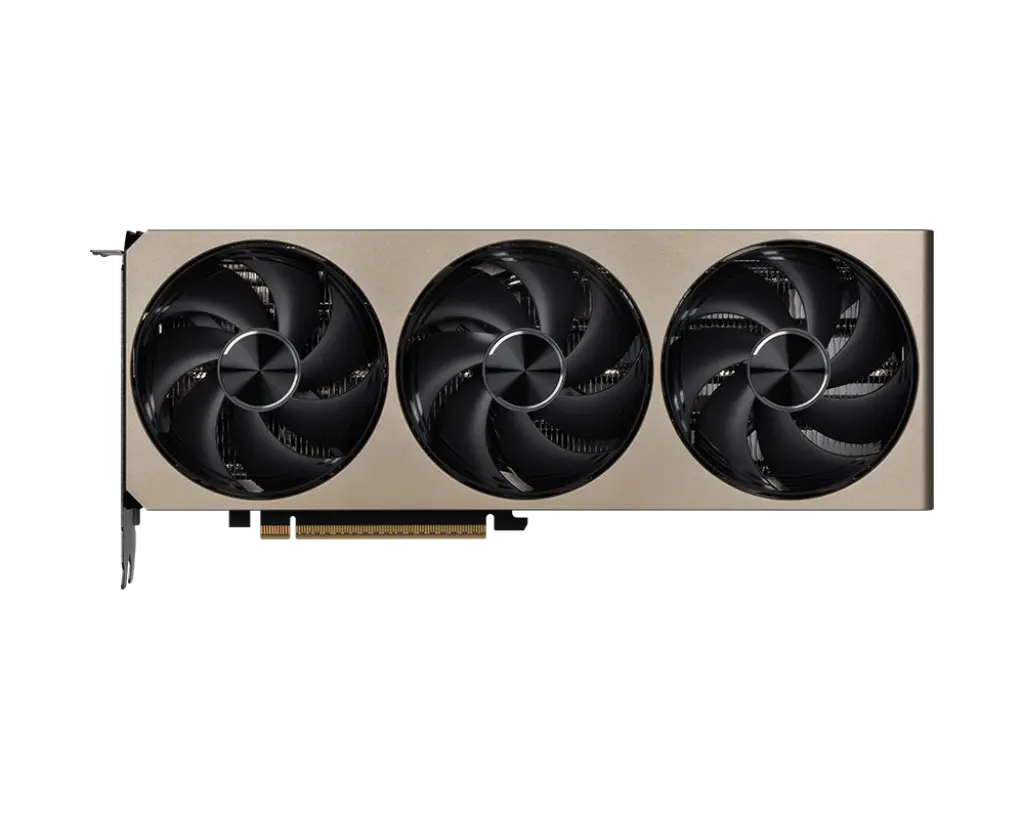

INSPIRE 3X uses a triple-fan (STORMFORCE FAN) configuration, with seven-blade fans, specialized texturing, and a circular arc for optimal airflow and minimal noise. The card employs a nickel-plated copper baseplate and square core pipes for maximum thermal transfer, backed by a robust metal backplate with airflow vents and thermal pads.

Key Features and Technologies

• PCI Express Gen 5.0 x16 interface

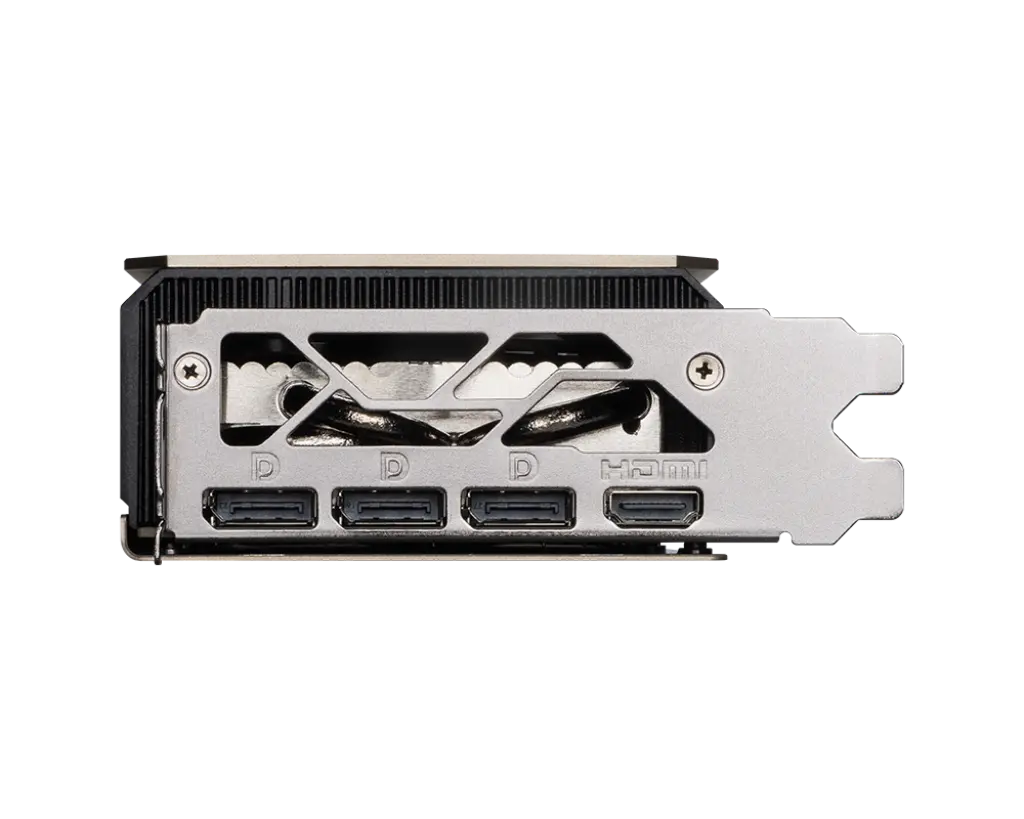

• Display outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b (up to 4K 480Hz or 8K 120Hz)

• Real-time ray tracing, DLSS 4, Multi Frame Generation, Reflex 2, ACE AI-powered graphics

• Maximum resolution: 7680 x 4320; supports up to four displays

• Zero Frozr fans for silent idle operation

• Advanced cooling with Air Antegrade Fin and Wave Curved 3.0 for optimized airflow

• MSI Center for monitoring and optimization; Afterburner for overclocking

• Power: 360W board power, single 16-pin connector; recommended PSU 850W

• Dimensions: 288 x 112 x 50 mm; weight 950g

• DirectX 12 Ultimate and OpenGL 4.6 compatibility

• VR and G-SYNC ready; 3-year warranty

• AIR ANTEGRADE FIN: Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.

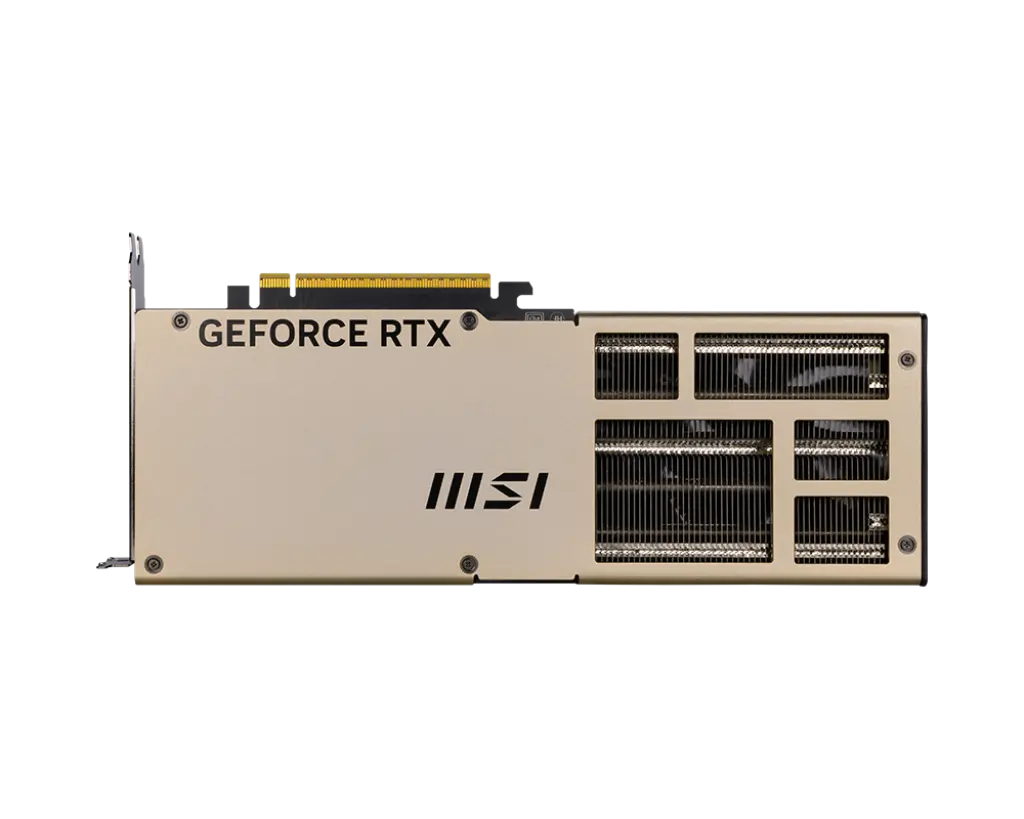

• Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Build Quality and Design
The card features a strong metal backplate, efficient triple-fan cooling system, and premium fit and finish. The design aims for optimal thermal management, quiet operation, and durability for long gaming or creative sessions.

Performance and Compatibility
Optimized for high-fidelity 4K gaming, demanding creative work, and advanced AI workloads, it supports up to four simultaneous displays for diverse setups, excelling in both overclocking and low-temperature operation.

Conclusion
The GeForce RTX™ 5080 16G INSPIRE 3X blends powerful specs, advanced cooling, and premium design—making it a superb choice for users seeking elite performance and stability in professional and enthusiast applications.
