Graphics Cards

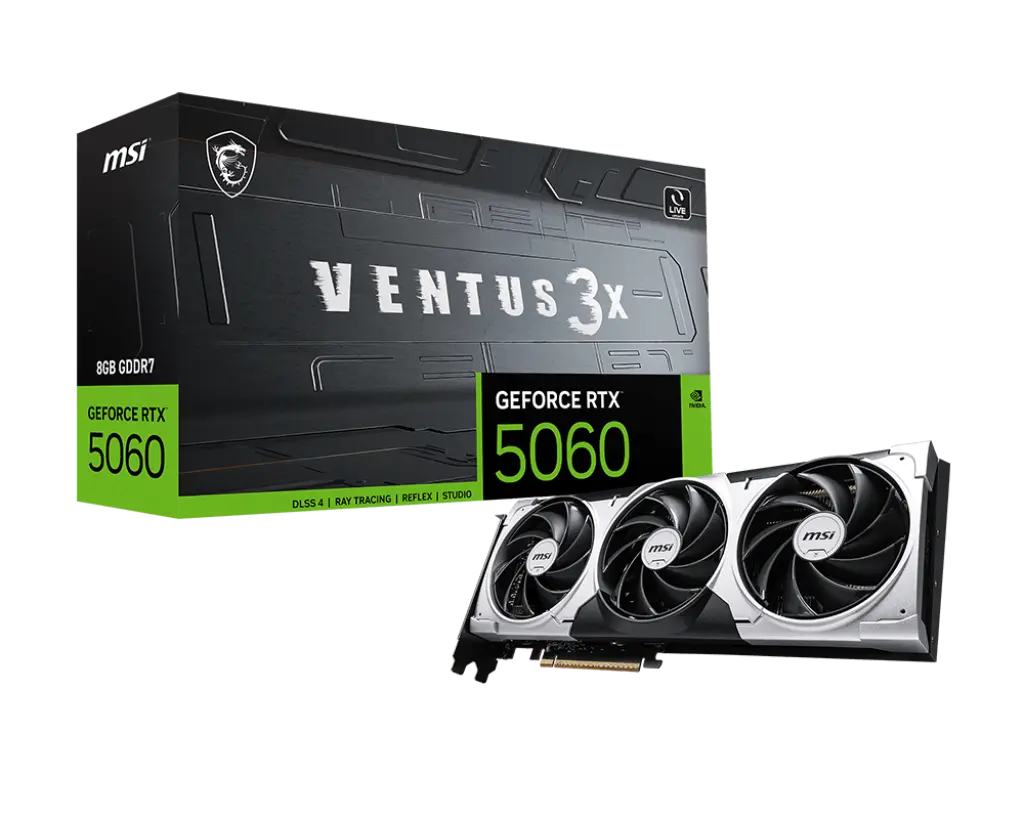

MSI GeForce RTX™ 5060 8G VENTUS 3X

Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clock:
Extreme Performance: 2512 MHz (MSI Center)
Boost: 2497 MHz
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Category: Graphics Cards Brand: MSI

Sales Enquiry

Specification	Details
Marketing Name	GeForce RTX™ 5060 8G VENTUS 3X
Model Name	G5060-8V3
Graphics Processing Unit	NVIDIA® GeForce RTX™ 5060
Interface	PCI Express® Gen 5 x16 (uses x8)
Core Clocks	Extreme Performance: 2512 MHz (MSI Center) Boost: 2497 MHz
CUDA® CORES	3840 Units
Memory Speed	28 Gbps
Memory	8GB GDDR7
Memory Bus	128-bit
Output	DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support	Y
Power consumption	145 W
Power connectors	8-pin x1
Recommended PSU	550 W
Card Dimension (mm)	303 x 121 x 41 mm
Weight (Card / Package)	684 g / 1042 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® technology	Y
Digital Maximum Resolution	7680 x 4320

Overview

The MSI GeForce RTX™ 5060 8G VENTUS 3X is a high-performance graphics card engineered to deliver exceptional gaming and creative performance with a focus on robust cooling and reliable design. It features a sleek, functional aesthetic and is designed to handle demanding 1080p and 1440p workloads with ease.

Performance and Specifications

Built on NVIDIA’s latest Blackwell architecture, the card features 3,840 CUDA cores paired with 8GB of GDDR7 memory running at 28 Gbps on a 128-bit memory bus. It offers a boost clock speed of up to 2,497 MHz, with an Extreme Performance mode that can push clocks to 2,512 MHz via MSI Center. This combination delivers smooth gameplay and efficient rendering, benefiting from DLSS 4 and real-time ray tracing capabilities for enhanced visuals and improved frame rates.

Cooling and Design

The VENTUS 3X incorporates MSI’s TORX Fan 5.0 triple-fan cooling system, which improves airflow by 23% over traditional axial fans through linked fan blades stabilized by ring arcs. A solid baseplate efficiently transfers heat from the GPU to an array of heat pipes for improved thermal performance, while the sturdy metal backplate with airflow vents allows heat to escape more effectively, maintaining lower temperatures and stable operation. The card’s dimensions are 304 x 121 x 44 mm, with a weight of around 860 grams.

Connectivity

It supports three DisplayPort 2.1b ports and one HDMI 2.1b port, enabling up to four displays simultaneously with resolutions up to 8K at 120Hz with Display Stream Compression (DSC). These ports support advanced features such as Gaming VRR and HDR for vibrant and smooth visuals.

Power and Compatibility

The card draws approximately 145 watts of power via a single 8-pin connector, with a recommended 550W power supply for optimal stability. It uses the PCI Express Gen 5 x16 (x8 electrical) interface to ensure compatibility with the latest motherboards and high data bandwidth.

Additional Features

MSI Center software allows users to monitor, tweak, and optimize performance in real-time, while MSI Afterburner enables full overclocking control. The custom PCB features additional fuses for enhanced electrical protection, and DrMos power stages for efficiency and voltage control.
