EPSON WorkForce DS-870 Departmental Business Scanner

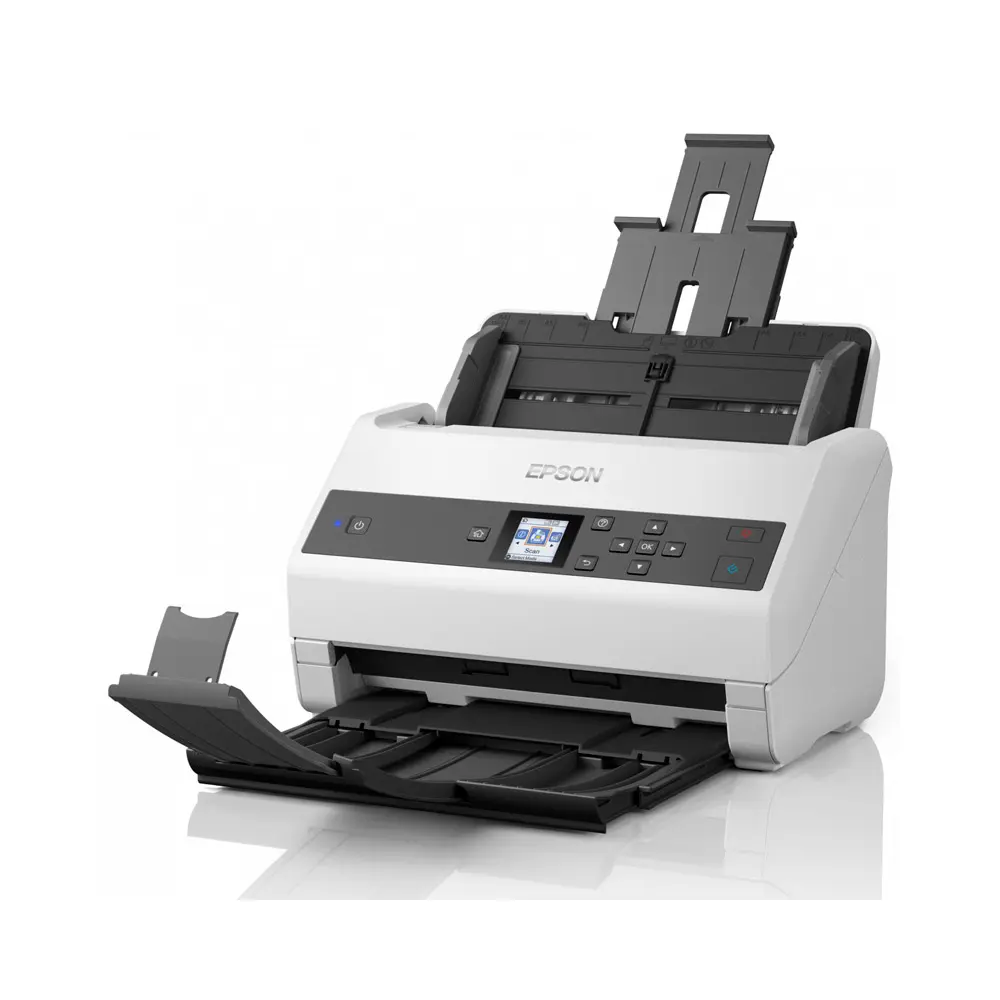

EPSON WorkForce DS-870 Departmental Business Scanner - Image 2

EPSON WorkForce DS-870 Departmental Business Scanner

Fast and efficient scanning: 100-page ADF and 65ppm scanning speed
Low intervention: Active Separation Roller system to prevent double feeding
Optional flatbed scanner: Choose from the conversion kit, or link to DS-5500 (A4) or DS-50000 (A3)
Auto Scan Mode: Quickly process physical documents in manageable amounts.
Optional Network Interface: Easy sharing between users with push scan and pre-defined job profiles

Specification	Details
Maximum Resolution	600 dpi (Optical), 1200 dpi (Interpolated)
Scan Modes	Color, Grayscale, Monochrome
Color Depth	30-Bit (Internal), 24-Bit (External)
Grayscale Depth	30-Bit (Internal), 24-Bit (External)
Image Sensor	2 x Contact Image Sensor (CIS)
Duplex Scanning	Yes
Single Pass Duplex	Yes
Scan Speed – Simplex	65 ppm in Color/Grayscale
Scan Speed – Duplex	130 ipm in Color/Grayscale
Interface	USB 3.0
Wireless	None
Drivers	TWAIN, ISIS
Operating System Support	Windows, macOS/OS X
Operating Temperature	41 to 95°F / 5 to 35°C
Operating Humidity	15 to 80%
Storage Temperature	-13 to 140°F / -25 to 60°C
Storage Humidity	15 to 85%
Control Panel	Color LCD
Power Source	AC Adapter
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	24 VDC at 2 A
Power Consumption	18 W (Maximum)
Certifications	RoHS, as per Manufacturer
Weight	7.9 lb / 3.58 kg
Maximum Media Thickness	0.3 mil / 1.2 mm
Media Handling	Automatic Document Feeder (ADF)
Media Types	Business Card, ID Card, Plain Paper, Plastic ID Card
ADF Capacity	100 Sheets
Multi-Feed Detection	Yes
Daily Duty Cycle	7,000 pages
Dimensions (W x D x H)	11.7 X 6.7 X 6.6 / 29.6 X 16.9 X 16.7 CM
Maximum Scan Size	W: 8.5 X L: 240 / W: 21.6 X L: 609.6 CM

Overview

Departmental sheetfed scanner

High-speed scanning with easy-to-use advanced processing capabilities for effortless and efficient document management. Where high-volume document scanning environments meet the need for document integrity, the WorkForce DS-870 offers performance with easy-to-use features that put you in control of your documents.

VOLUME AND SPEED

With a 100-page ADF, 65ppm/130ipm scanning speed and continuous scanning with automatic feed mode – get through large jobs quickly and efficiently. Scroll through pre-defined jobs easily using the intuitive panel and get your documents to the right place in just a few presses of a button. TWAIN, WIA and ISIS drivers are available for integration with document management systems.

EFFICIENT DOCUMENT PROCESSING

Users can scan a wide variety of documents thanks to media handling from 27gsm to 413gsm, and a long paper scanning mode up to 6096mm. Making it easier to capture fragile or damaged documents Slow Mode decreases speed and document friction to process these pages as part of a wider document. For documents that cannot be scanned via the ADF – three different flatbed solutions up to A3 in size are available.

PAPER PROTECTION

Onboard sensors detect unusual paper behaviour to prevent paper jams and tearing.

DOUBLE FEED DETECTION SKIP (DFDS)

Avoid unnecessary pauses and jams in the scanner – take control of the scanning process and easily process known double paged documents. e.g documents with labels or post it notes

STREAK DETECTION

A proactive feature that alerts users to the presence of dirt on the glass.

The graphical display helps users with a step-by-step cleaning process.

CAPTURE, ENHANCE, AND MANAGE

Download feature-rich software packages that allow administrators to manage jobs, users and devices for an efficient workflow. With preset jobs either on the device or workstation, it gives users an easy scanning experience that maximises productivity.

Product Datasheet
