Contex IQ Quattro X 36 MFP Repro

High-quality document copier with scan to file

CIS technology
4.4 ips in RGB Color
1200 dpi
$$

Category: Document Scanner Brand: Contex

Specification	Details
Technology	CIS Contex CleanScan
Maximum Resolution (interpolated)	9600 dpi (interpolated)
Optical Resolution	1200 dpi
Maximum Scan Width	36 inch (914 mm)
Maximum Media Width	38 inch (965 mm)
Maximum Media Thickness	0.08 in (2 mm) flexible documents
Accuracy	0.1% +/- 1 pixel
Color Space	sRGB, Adobe RGB, Device RGB
File formats	Multipage PDF & TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, and others
Touch panel / screen	22” multi-point wide touchscreen, full HD, TFT, LCD, 1920×1080 pixels
Weight & Dimensions	48.3 lbs (21.1 kg) – 45.7 x 19.3 x 6.3 inch (1160 x 489 x 161 mm)
Operating System	Windows 11 64-bit, Windows 10 64-bit, Windows Server 2022 Standard Edition
Energy Star Compliant	Yes
High stand settings	Right or left side mounting touchscreen and keyboard Supported printer height from 995 to 1195 mm in 25 mm increments (39.2 to 47inches in about 1 inch increments)
Low stand settings	Right or left side mounting touchscreen and keyboard. Working height 834/859/884 mm (32.8/33.8/34.8 inches)
Total number of pixels	54000
200 dpi grayscale/monochrome	17.8 inches/sec
Software compatibility	AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and other image editing / storage applications
Language versions	Chinese, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Russian, Spanish
Contex key CIS technologies	CleanScan, SIGMA, CFR
Power supply	100 V / 230 V / 240 V, 60/50 Hz
Weight	48.3 lbs (21.9 kg)
Dimentions (LxWxH)	45.7×19.3×6.3 in (1160×489×161 mm)
PC platform for CPU and keyboard tray	Max PC size/weight: 490 x 400 x 107 mm, 12kg (19.3 x 15.7 x 4.21in, 26 lbs)
high stand: Designed to fit	HP DesignJet T-series, Z-series, PageWide XL and 500/800 series. Canon TX, TM, PRO and iPF 600/700/900 series. EPSON SC-T series. See full list at contex.com/nextimage-supported-printers
Low stand: additional printers, side-by-side	EPSON STYLUS PRO, Océ, Mutoh and some HP printers. See full list at contex.com/nextimage-supported-printers
Features	Scan to email/copy/file
Recommended PC (not included)	“Slimline” desktop PC, 2.0 GHz Intel Core 2 Duo, 2GB RAM or better
Scanner stand (optional)	Low and high stand available
Included software	Full-featured Nextimage Repro (incl. TWAIN driver)
Certifications/ Energy Star Compliant	CE, cUL, Customs Union, VCCI, FCC Class A, RoHS and ENERGY STAR® certified
Scan speed (200 dpi RGB color)	4.4 inches/sec
Connectivity	USB 2, Ethernet

Contex IQ Quattro X 36 MFP Repro

Overview

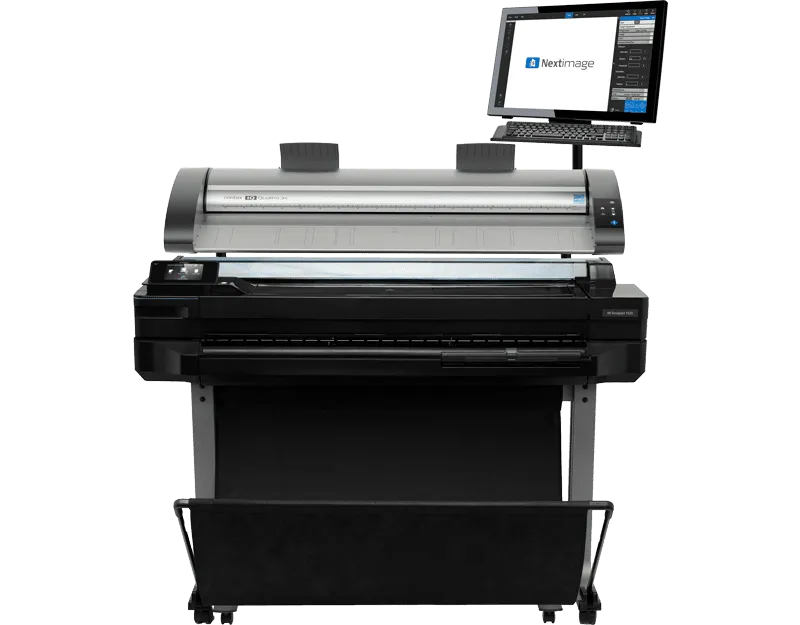

The Contex IQ Quattro X 36 MFP Repro turns your existing large-format printer into a full multifunction station—capable of scanning, copying, archiving, and printing wide documents—all in one compact footprint. It is ideal for environments that need a walk-up scanning and repro solution without adding a separate scanner and workflow terminal.

Key Features & Benefits

True Multifunction Operation
Combines scanning, copying, and printing in one integrated system. You can scan and send directly to your printer, to file, to email, or to cloud storage—all from the same device.
36-Inch Wide Format
Designed to support media up to 36 inches wide, enabling scanning and copying of architectural drawings, engineering plans, maps, and wide-format documents.
Advanced CIS Imaging
Uses Contex CleanScan CIS technology with Color Fringe Removal (CFR) to produce clean, accurate scans—even on line drawings and technical originals.
Intuitive Touchscreen Interface
A 22-inch multitouch screen lets you control scan and copy jobs directly from the device—no need to walk to a separate PC.
Seamless Integration with Printers
Supports compatibility with most major wide-format printer brands. Scanned files can be automatically routed to the printer via network or USB, as well as sent to folders, email, or archive systems.
Smart Workflow Controls
Preset profiles, auto crop/deskew, real-time enhancement, and naming templates simplify repeat tasks and reduce operator errors.
Compact & Flexible Design
With options for a high or low stand, and the ability to mount the touchscreen on the left or right side, the unit fits many printer setups without consuming extra floor space.
Support for Standard File Formats
Outputs to PDF, PDF/A, TIFF, JPG and more—ensuring compatibility with CAD, GIS, document management, and repro systems.

Ideal Use Cases & Target Users

Architecture, engineering, and construction offices needing in-house scanning and copying
Copy shops or reprographic centers that want to add wide-format scanning without a separate scanner
GIS and mapping departments that process wide maps, plots, and layouts
Offices wanting a streamlined solution for scanning and reproducing large documents
Institutions and organizations digitizing large-format originals and needing direct print workflows
