VIEWSONIC VPC27-S53-01-1B

VPC27-S53-O1-1B Slot-in PC for ViewBoard®

  • Powerful Intel® 10th Core Processors
  • Improved System Stability
  • Security, & Thermal Control
  • 16GB DDR4 memory
Sales Enquiry
Core
CPU Intel Core i7-10700T 2.0GHz Turbo boost 4.5GHz, (TPM 2.0 support)
Graphics Integrated Intel® UHD graphic 630 Intel H510 chipset
Memory
Capacity 16GB DDR4
Software
Operating System UEFI Shell
Storage
Dimension M.2 2280 (22 x 80 mm)
Capacity 256GB SSD
Interface M.2 2280 NVMe PCIe Gen3 SSD
Input
Microphone x1
Output
DisplayPort x 1 (1.2, resolution 3840×2160@60Hz)
HDMI x 1 (1.4, resolution 3840×2160@60Hz)
Audio x 1 Line out
LAN
RJ45 GbE LAN Port
Wireless / Bluetooth
Module Intel AX200 WiFi 6 + BT5.2 Module dual band
Power
Voltage DC in +12V~+19V @ 3.42A
Consumption 65 W (Typical)
Operating Conditions
Temperature -5~45°C
Humidity 20% ~ 80% R.H. Non-Condensing
Dimensions (W x H x D)
Physical 7.95” x 4.69” x 1.18” / 202 x 119 x 30 mm
Packaging 10.00” x 7.72” x 3.03” / 254 x 196 x 77 mm
Weight
Net 2.205 lb / 1 kg
Gross 2.646 lb / 1.2 kg
Regulations
cTUVus, FCC-B w/ ICES003, FCC ID+SDOC, CA IC, IC VOC, NOM, COFETEL, CE EMC, CE RED, CE LVD, CB, RoHS, REACH, WEEE, BSMI, NCC, BIS, WPC, RCM, MIC, VCCI, VNTA, CCC, SRRC
Package Contents
1. VPC OPS
2. Quick Start Guide
3. Screw x 2

OVERVIEW

Seize the power to get more done when you sync your ViewBoard® interactive displays and wireless presentation display with the ViewSonic VPC27-S53-O1-1B slot-in PC. Integrated with exceptional performance from Intel® 10th Gen Core™ processors, 16GB DDR4 memory, and up to 256GB of SSD storage, experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, DP1.2, USB 3.2, and Gigabit LAN RJ45 for faster workflows.​

Tap into a productivity powerhouse​

Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 10th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.2, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.

Tap into a productivity powerhouse​ 1

Stability in every lesson

Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPC27-S53-O1-1B intuitively detects and recovers from system malfunctions seamlessly to maximize productivity.​

Stay cool and blaze through classes​

Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons. ​

Boot up with total security​

Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorized personnel from accessing PC settings. ​

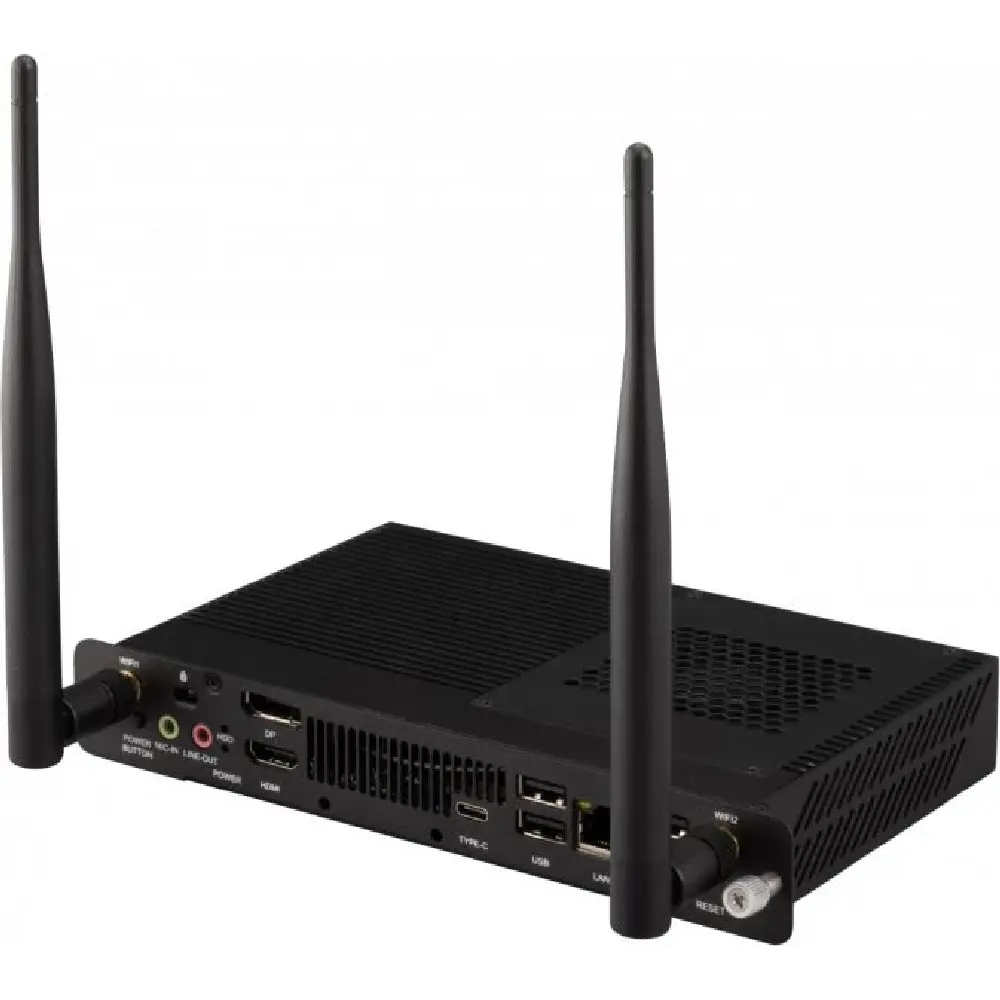

I/O Port
