ViewSonic VPC12-WPO-11

Core
CPU	Intel® Core™ i5-7200U with vPro and TPM function
Graphics	Intel® HD Graphics 620 Total Available Graphics Memory: 64GB Max Resolution up to 4096×2304@60Hz
Memory
Type	DDR4 SO-DIMM
Capacity	8GB (up to 16GB)
Software
Operating System	Windows 10 Pro
Storage
Dimension	2.5″
Capacity	128GB SSD (up to 512GB)
Interface	SATA3 6GB/sec
Input
MIC	x1
OPS	Yes
Output
HDMI	x1 (max. resolution 4096×2160@24Hz)
Audio	x1 (Line Out)
LAN
RJ45	x1 (Integrated 10/100/1000M Adaption)
Wireless / Bluetooth
Module	Intel® Dual Band Wireless-AC 8260, 802.11 a/b/g/n/ac (2.4GHz/5GHz) / BT4.2 ; BLE
USB
Type A	USB 3.0 x 2, USB 2.0 x 2
Support Media Format
Video format	ASF, WMA, WMV, WM, ASX, WAX, WVX, WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U
Image format	JPG, JPEG, JPE, JFIF, BMP, DIB, PNG, GIF, TIF, TIFF
Audio codec	MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA
Power
Voltage	DC 12/19V
Consumption	60W
Operating Conditions
Temperature	-5°C to 45°C
Humidity	10% ~ 90% non-condensing
Dimensions (W x H x D)
Physical	7.1 x 4.7 x 1.2 in / 180 x 119 x 30 mm
Packaging	10.0 x 7.7 x 3.1 in / 254 x 196 x 77 mm
Weight
Net	1.85 lb / 0.84 kg
Gross	2.31 lb / 1.05 kg
Package Contents
1. VPC12-WPO 2. QSG

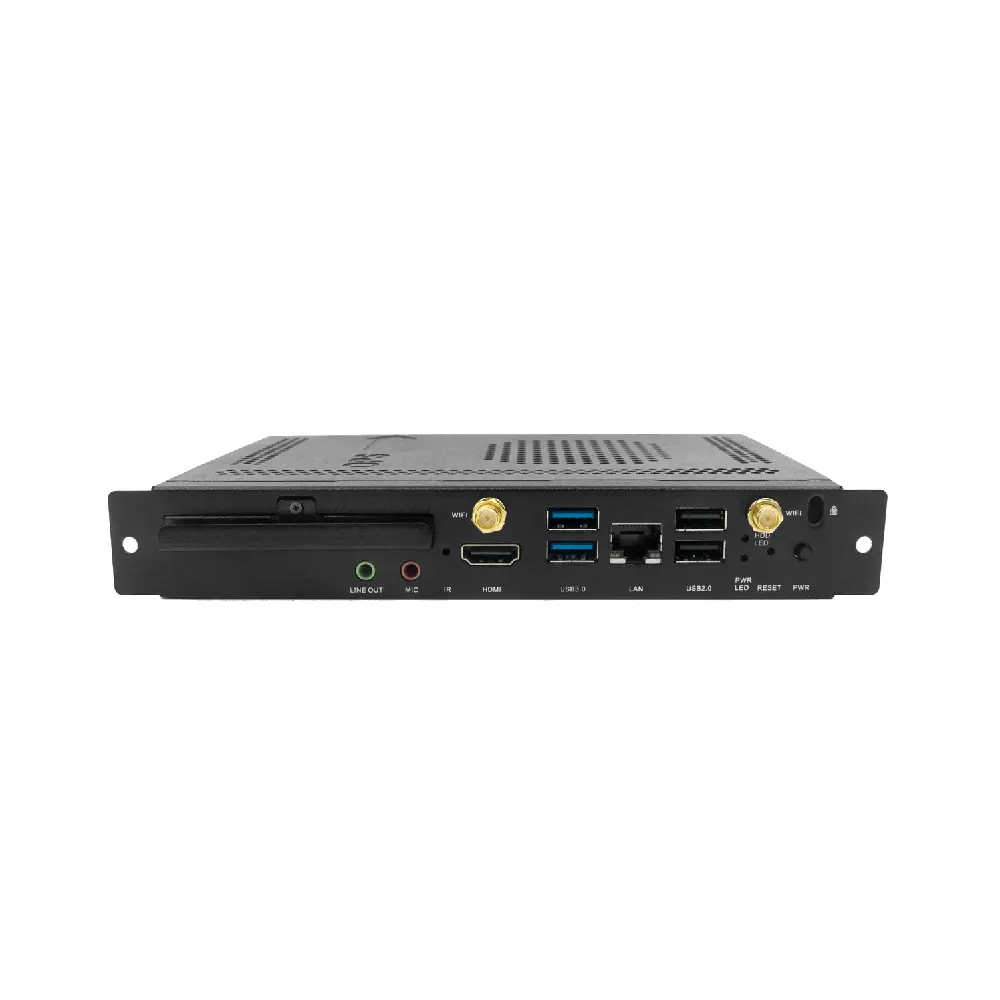

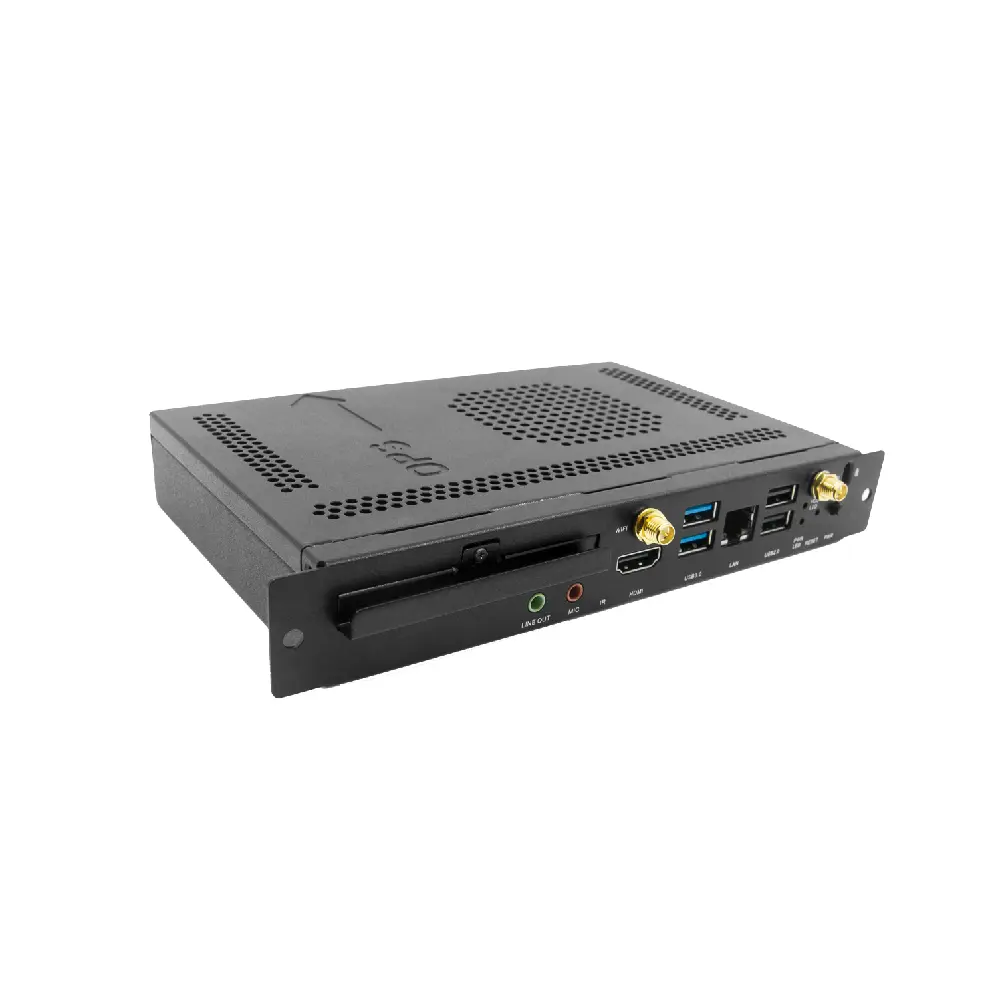

Slot-in PC for the ViewBoard® interactive displays
