Monitor

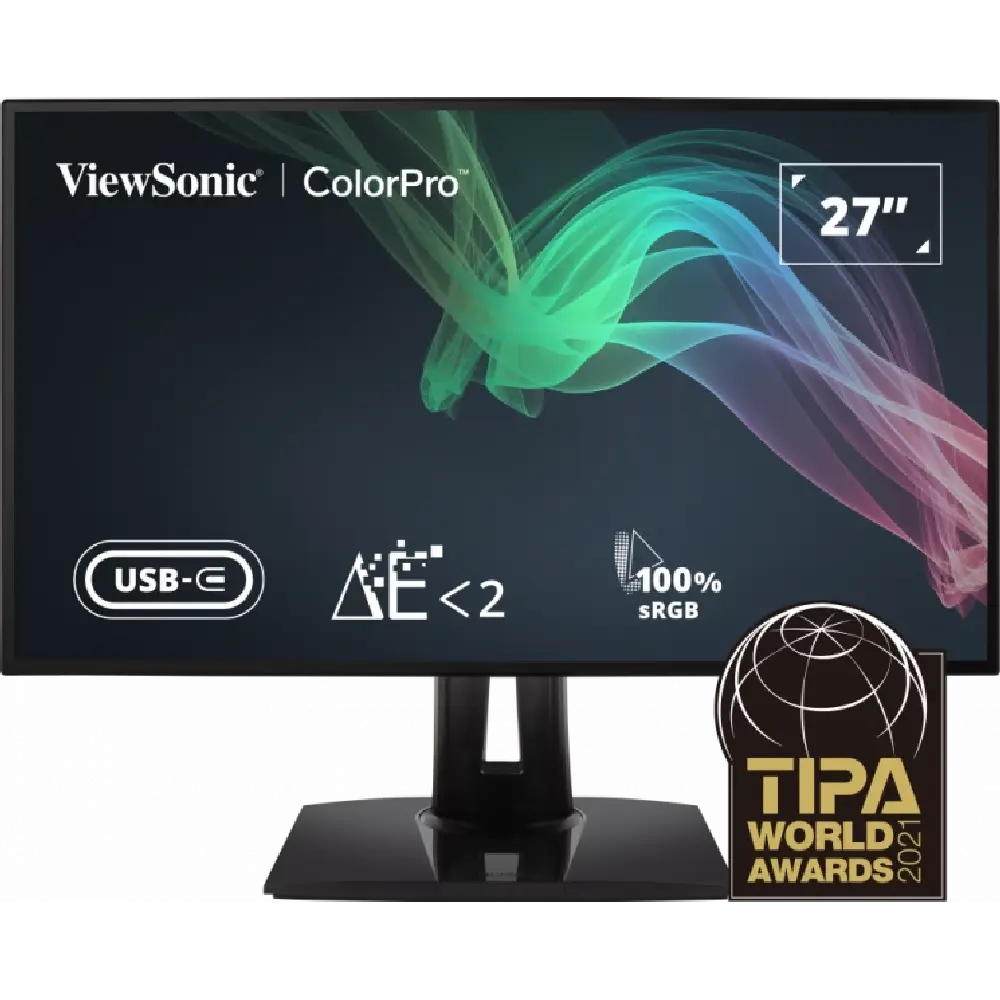

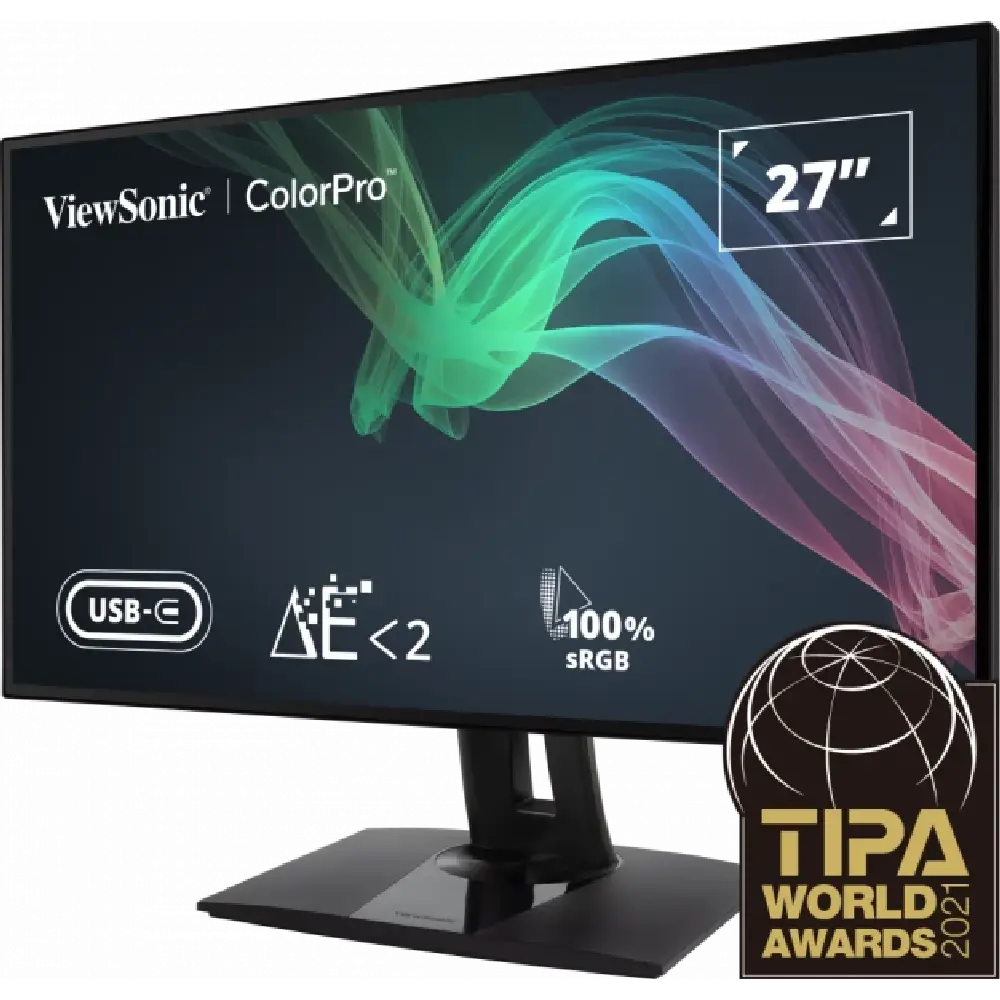

VIEWSONIC VP2768A

Designed to deliver unmatched color accuracy crucial for professional applications, the ViewSonic VP2768a QHD monitor displays your work with the vivid and lifelike color it deserves. With Pantone validated 100% sRGB color coverage, this 2K monitor provides industry standard color accuracy to ensure accurate results. Enjoy reliable and flexible network connectivity with the integrated gigabit Ethernet portwhile the USB-C provides single cable connectivity for connecting and charging all peripherals and accessories.

2K Pantone validated
Monitor with docking station design
Delta E < 2 colour accuracy
Daisy Chain supported

Category: Monitor Brand: Viewsonic

Sales Enquiry

Display
Display Size (in.)	27
Viewable Area (in.)	27
Panel Type	IPS Technology
Resolution	2560 x 1440
Resolution Type	QHD (Quad HD)
Static Contrast Ratio	1,000:1 (typ)
Dynamic Contrast Ratio	20M:1
Light Source	LED
Brightness	350 cd/m² (typ)
Colors	16.7M
Color Space Support	8 bit true
Aspect Ratio	16:9
Response Time (Typical GTG)	5ms
Response Time (GTG w/OD)	5.5ms
Viewing Angles	178º horizontal, 178º vertical
Backlight Life (Hours)	30000 Hrs (Min)
Curvature	Flat
Refresh Rate (Hz)	60
Blue Light Filter	Yes
Flicker-Free	Yes
Color Gamut	Adobe RGB: 84% size / 78% coverage (Typ) DCI-P3: 83% size / 83% coverage (Typ) EBU: 112% size / 98% coverage (Typ) REC709: 113% size / 100% coverage (Typ) SMPTE-C: 122% size / 100% coverage (Typ) NTSC: 80% size (Typ) sRGB: 113% size / 100% coverage (Typ)
Pixel Size	0.233 mm (H) x 0.233 mm (V)
Surface Treatment	Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max)	2560 x 1440
Mac® Resolution (max)	2560 x 1440
PC Operating System	Windows 11 certified; macOS tested
Mac® Resolution (min)	2560 x 1440

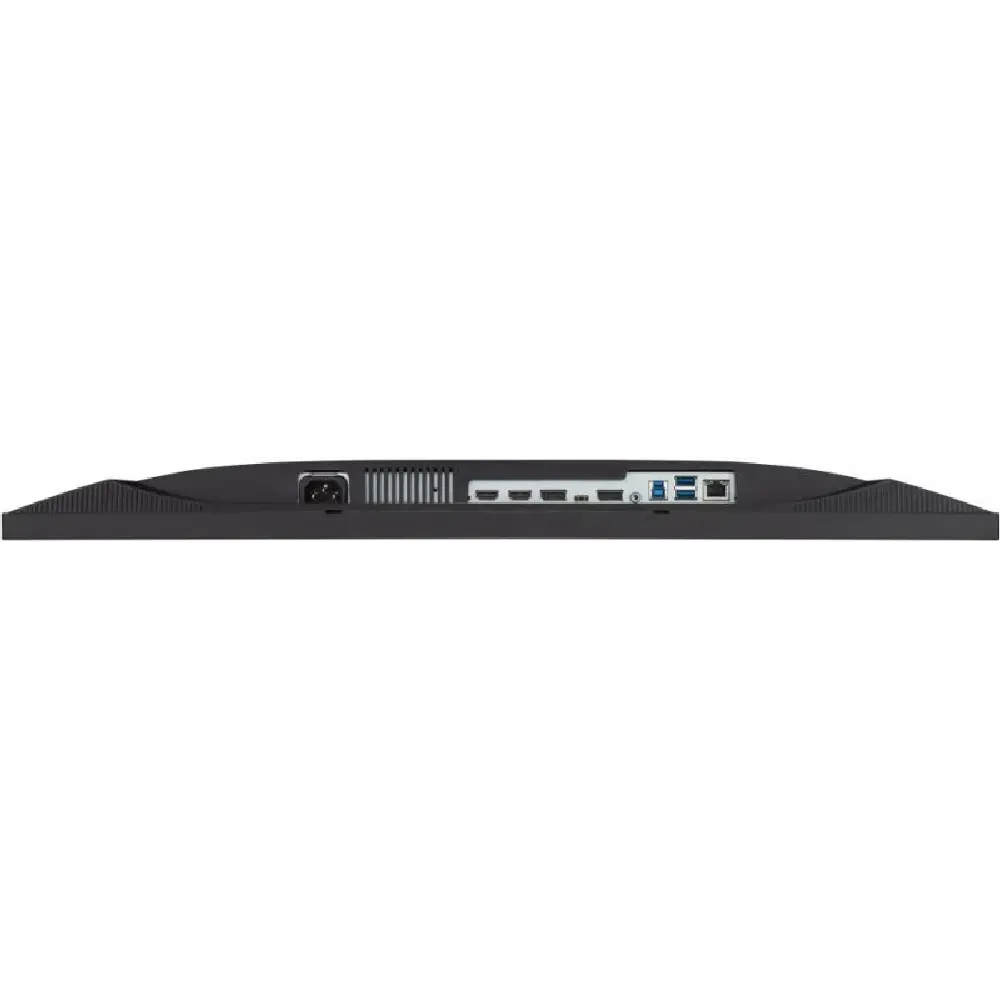

Connector
USB 3.2 Type A Down Stream	2
USB 3.2 Type B Up Stream	1
USB 3.2 Type C Up Stream; DisplayPort Alt mode	1
3.5mm Audio Out	1
HDMI 1.4	2
DisplayPort	1
DisplayPort Out	1
Power in	3-pin Socket (IEC C14 / CEE22)
Ethernet LAN (RJ45)	1
Power
Eco Mode (Conserve)	14.38W
Eco Mode (optimized)	17.36W
Consumption (typical)	20.29W
Consumption (max)	25.6W
Voltage	AC 100-240V
Stand-by	0.5W
Power Supply	Internal Power Supply
Additional Hardware
Kensington Lock Slot	1
Cable Organization	Yes
Controls
Physical Controls	Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display	Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature	32°F to 104°F (0°C to 40°C)
Humidity (non-condensing)	20% to 90%
Wall Mount
VESA Compatible	100 x 100 mm
Input Signal
Frequency Horizontal	15 ~ 90 KHz
Frequency Vertical	24 ~ 61 Hz
Video Input	Digital Sync: TMDS – HDMI (v1.4), PCI-E – DisplayPort (v1.2), Micro-Packet – Type C

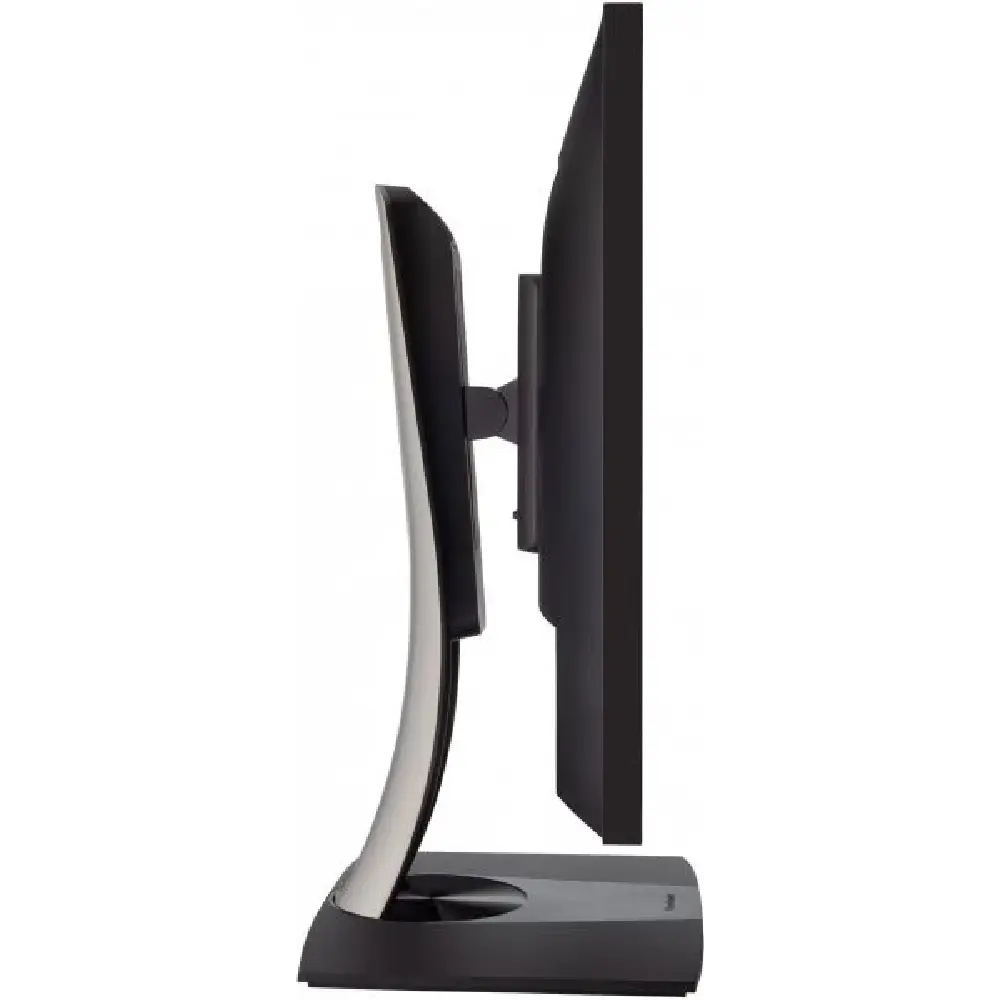

Ergonomics
Height Adjust (mm)	130
Swivel	120º
Tilt (Forward/Back)	-5º / 21º
Pivot (Right/Left)	90º / 90º
Weight
Net (lbs)	15.4
Net Without Stand (lbs)	10.3
Gross (lbs)	22.4
Net (kg)	7
Net Without Stand (kg)	4.7
Gross (kg)	10.1
Dimensions
Packaging (in.)	29.1 x 16.4 x 8.7
Physical (in.)	24.1 x 16.25 ~ 21.36 x 8.5
Physical Without Stand (in.)	24.1 x 13.9 x 2
Packaging (mm)	740 x 417 x 220
Physical (mm)	613 x 412.67 ~ 542.67 x 215
Physical Without Stand (mm)	613 x 353 x 50
General
Regulations	cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, BSMI, RCM, BIS, CCC, China RoHS, China Energy Label, CECP
Package Contents	VP2768A x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal	Please dispose of in accordance with local, state or federal laws.
Warranty	*Warranty offered may differ from market to market
Power Management	Energy Star standards, EPEAT

Begin Your Flawless Creation.

Precise & Beautiful
Color

Efficient &
User-Friendly Experience

Outstanding Color Performance & Image Quality

Future-Proof Connectivity & Quality Control

Precise & Beautiful Color

Industry standard color

Designers depend on color accuracy. The VP2768a covers 100% sRGB and Rec.709 wide color gamut to meet industry-standard and produce color precisely. You can see more realistic, vivid, and accurate results from different production lines and show color at the same levels.

100% sRGB/Rec 709

*Percentages have been rounded to the nearest integer and calculated by using the specifications as provided by the panel makers.

100% sRGB

Pantone® Validated

VP2768a is Pantone Validated evaluated by Pantone, the leading global color authority. This means the ViewSonic VP2768a delivers high display color fidelity in simulating the full range of real-world Pantone Matching System™ colors.

Pantone Validated

PANTONE® Colors generated may not match PANTONE-identified standards.
Consult current PANTONE Publications for accurate color.
PANTONE® and other Pantone trademarks are the property of Pantone LLC.
© Pantone LLC, 2020.

Efficient & User-Friendly Experience

World 1st TÜV SÜD tested color blindness mode

With endorsement by TÜV SÜD testing, ViewSonic has developed and reviewed criteria for color blindness modes for the VP2768a. The ViewSonic VP2768a features two color blindness modes: Simulation and Color Filter. Designers can activate the Simulation feature to review their designs and verify that it is accessible for color blindness. Users who have color blindness can activate the Color Filter feature to better see onscreen details.

*Color Blindness Mode is the feature of vDisplay Manager and the software is free to download

Seamless workflow solution

With advanced connectivity options including RJ45 and USB-C, this all-in-one display expands your laptop functionality and plugs all your devices directly into your docking monitor – VP2768a. Get a charge (that transmits power up to 90W), data, video, and audio with a single cable connected to the USB-Cport. The built-in Ethernet port provides an extra fast and stable network option.

USB-C

Ethernet

KVM Switch,USB Type-C

Enhanced productivity with dual monitor setup

With the latest USB-Cand DisplayPort output connectivity, this monitor can be easily daisy chained to another monitor for a productivity-boosting desktop setup. Users can daisy chain the VP2768a and other monitors from the Type-C (Type-C in, DP out) and DP port (DP in, DP out). With multiple screens on your desktop, you can design smarter, faster, and more efficiently.

Daisy chain
