| Display | |
|---|---|
| Display Size (in.) | 27 |
| Viewable Area (in.) | 27 |
| Panel Type | IPS Technology |
| Resolution | 1920 x 1080 |
| Resolution Type | FHD (Full HD) |
| Static Contrast Ratio | 1,000:1 (typ) |
| Dynamic Contrast Ratio | 80M:1 |
| Light Source | LED |
| Brightness | 300 cd/m² (typ) |
| Colors | 16.7M |
| Color Space Support | 8 bit (6 bit + Hi-FRC) |
| Aspect Ratio | 16:9 |
| Response Time (Typical GTG) | 5ms |
| Response Time (GTG w/OD) | 5ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Backlight Life (Hours) | 30000 Hrs (Min) |
| Curvature | Flat |
| Refresh Rate (Hz) | 60 |
| Blue Light Filter | Yes |
| Flicker-Free | Yes |
| Color Gamut | Adobe RGB: 76% size / 74% coverage (Typ), NTSC: 72% size (Typ), sRGB: 102% size / 95% coverage (Typ) |
| Pixel Size | 0.311 mm (H) x 0.311 mm (V) |
| Surface Treatment | Anti-Glare, Hard Coating (3H) |
| Compatibility | |
| PC Resolution (max) | 1920×1080 |
| Mac® Resolution (max) | 1920×1080 |
| PC Operating System | Windows 10/11 certified; macOS tested |
| Mac® Resolution (min) | 1920×1080 |
| Connector | |
| VGA | 1 |
| USB 3.2 Type A Down Stream | 3 |
| USB 3.2 Type B Up Stream | 1 |
| 3.5mm Audio In | 1 |
| 3.5mm Audio Out | 1 |
| HDMI 1.4 | 1 |
| DisplayPort | 1 |
| Power in | 3-pin Socket (IEC C14 / CEE22) |
| Audio | |
| Internal Speakers | 2Watts x2 |
| Power | |
| Eco Mode (Conserve) | 16.6W |
| Eco Mode (optimized) | 20.77W |
| Consumption (typical) | 26.14W |
| Consumption (max) | 32.5W |
| Voltage | AC 100-240V |
| Stand-by | 0.5W |
| Power Supply | Internal Power Supply |
| Additional Hardware | |
| Kensington Lock Slot | 1 |
| Webcam | 2.0M pixel |
| Cable Organization | Yes |
| Microphone | Yes |
| Controls | |
| Physical Controls | Key 1 (volume down), Key 2, Key 3, Key 4, Key 5, Key 6 (power) |
| On Screen Display | Input Select, Audio/Mic, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| Operating Conditions | |
| Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing) | 20% to 90% |
| Wall Mount | |
| VESA Compatible | 100 x 100 mm |
| Input Signal | |
| Frequency Horizontal | RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz |
| Frequency Vertical | RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz, DisplayPort (v1.2): 50 ~ 75Hz |
| Video Input | |
| Digital Sync | TMDS – HDMI (v1.4), PCI-E – DisplayPort (v1.2) |
| Analog Sync | Separate/Composite/SOG – RGB Analog |
| Ergonomics | |
| Height Adjust (mm) | 130 |
| Swivel | 120º |
| Tilt (Forward/Back) | -5º / 40º |
| Pivot (Right/Left) | 90º / 90º |
| Weight (imperial) | |
| Net (lbs) | 15.9 |
| Net Without Stand (lbs) | 10.6 |
| Gross (lbs) | 22.5 |
| Weight (metric) | |
| Net (kg) | 7.2 |
| Net Without Stand (kg) | 4.8 |
| Gross (kg) | 10.2 |
| Dimensions (imperial) (wxhxd) | |
| Packaging (in.) | 27.2 x 17.9 x 8.6 |
| Physical (in.) | 24.4 x 16.76~21.93 x 8.1 |
| Physical Without Stand (in.) | 24.4 x 15.3 x 2.1 |
| Dimensions (metric) (wxhxd) | |
| Packaging (mm) | 692 x 455 x 218 |
| Physical (mm) | 621 x 425.64~557.04 x 206 |
| Physical Without Stand (mm) | 621 x 389 x 55 |
| General | |
| Regulations | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, TCO 8.0, EAC, UkrSEPRO, UKCA, RCM, GEMS |
| PACKAGE CONTENTS | VG2740V x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 |
| Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
| Warranty | *Warranty offered may differ from market to market |
| Power Management | Energy Star standards, EPEAT |

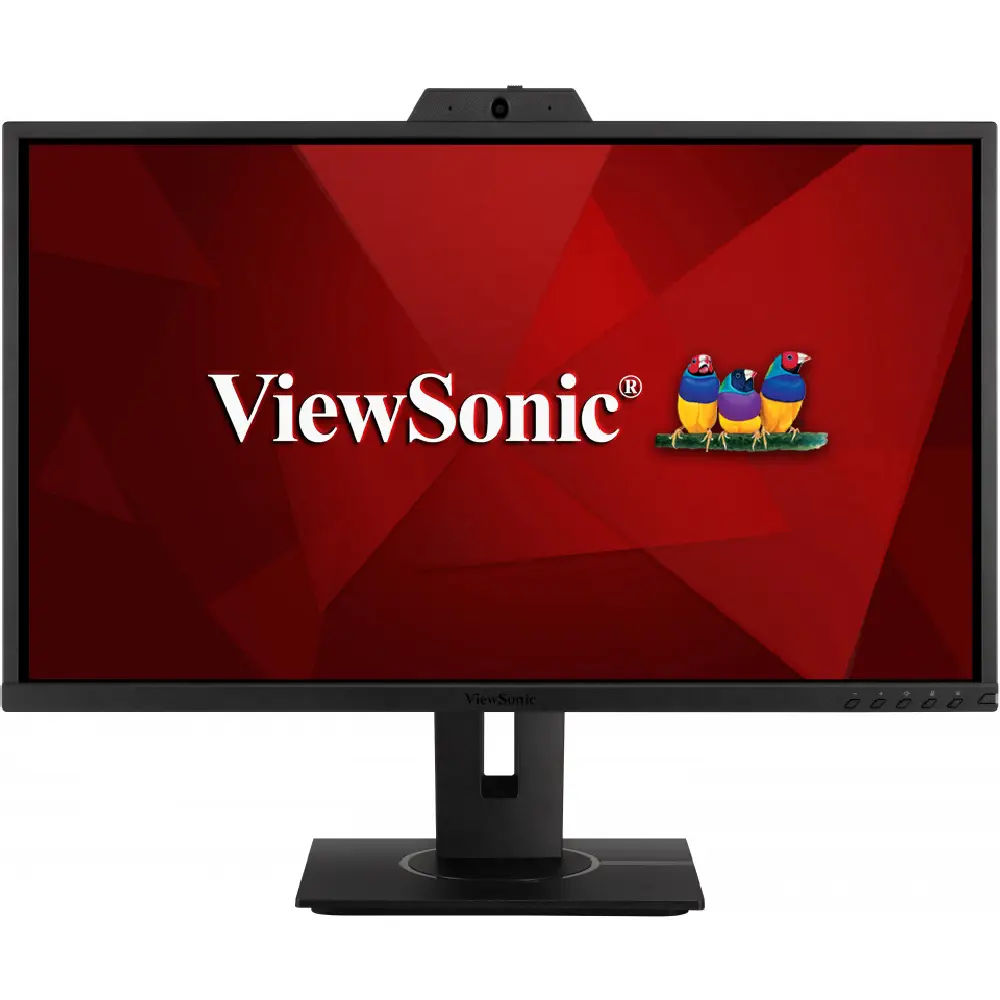

ViewSonic VG2740V
- Built-in Full HD webcam and microphone
- Adjustable vertical angles for greater frame control
- Webcam slide cover ensures total security and privacy
- Ergonomic flexibility with quick release stand
- Minimized Total Cost of Ownership
Overview
The ViewSonic VG2740V is a 27” Full HD video conferencing monitor designed to deliver out-of-the-box video conferencing and high-quality live streaming capability. The built-in Full HD webcam allows you to easily adjust the vertical angles to better frame yourself during VC calls and create more engaging content through varied camera angles, while the easy-to-use cover slide ensures total privacy and security when not in use. Providing the full spectrum of ergonomic flexibility, the VG2740V can tilt, swivel, pivot, and height adjust to adapt to any setup or workflow, and the exceptional inbuilt microphones and dual 2W speakers ensure you can hear and be heard with absolute clarity and professionalism. Combined with the vDisplay Manager productivity software for efficient multi-tasking and streamlined on-screen display control, the VG2740V is the complete solution for anybody looking for a professional live streaming or video communication experience.
An All-in-one Video Conferencing and Live Streaming Setup
Complete with a built-in Full HD webcam, microphone, dual 2W speakers, and supporting software, the VG2740V delivers high-quality, out-of-the-box video conferencing and streaming capability.
Built-in Full HD Webcam
More Control Over How You’re Seen
Easily adjust the vertical angles of the webcam up to 5 degrees both ways to ensure you, your team, or your content is perfectly framed every time.
Adjustable Vertical Angle
Simple Slide Cover Ensures Privacy and Security
The built-in webcam includes an easy-to-use slide cover to ensure complete privacy and security when not in use. Slide it open when the camera is on and simply slide it shut when you’re done.
Webcam Cover Slide
Complete Ergonomic Flexibility
Effortlessly swivel the display up to 120 degrees, tilt up to 40 degrees, raise the display up to 130mm, or pivot 90 degrees for portrait viewing. The VG2740V offers the full range of ergonomic flexibility for every task and workflow.
Swivel, Tilt, Pivot and Height
Crisp Audio for All Through Built-in Speakers and Microphone
Ensure quality audio in all video calls and live streams with exceptional inbuilt microphones and dual 2W speakers designed to deliver crystal clear sound for you and your listeners.
Dual 2W Speakers
Easy Multi-tasking for Increased Efficiency
Work smart with efficient OSD command and control through vDisplay Manager. Personalize split-screen displays, auto-launch applications, and customize display settings to maximize multi-tasking abilities and overall efficiency.
vDisplay Manager Software
Consistently Impressive from All Angles
SuperClear® IPS panel technology delivers the same top-class image quality from above, below, front, and side for accurate and vivid colors with consistent brightness from any angle.
IPS Panel
Advanced Eye-Care Technology
Eliminate eye strain and fatigue after long periods of use with Flicker-Free technology and a Blue Light Filter. Easily access the settings via vDisplay Manager and preset personalized brightness and contrast levels for different times of the day.
Flicker-Free & Blue Light Filter
Certified Environmental Sustainability
The VG2740V is an ENERGY STAR certified product that can save on energy costs* while reducing greenhouse gases. The display is also TCO 8.0 certified for sustainability and registered as an EPEAT Silver product. *Energy savings may vary based on actual usage and other factors.
EPEAT Silver & ES 8.0 & TCO8.0
Dimension & I/O Ports
Menu Control Panel- VESA Compatible
- (Wall Mount 100 x 100mm)
- AC In
- DP In
- HDMI
- VGA
- USB 3.0 Down Stream (Type A)
- USB 3.0 Down Stream (Type A)
- USB 3.0 Up Stream (Type B)
- HP OUT
- Line In
