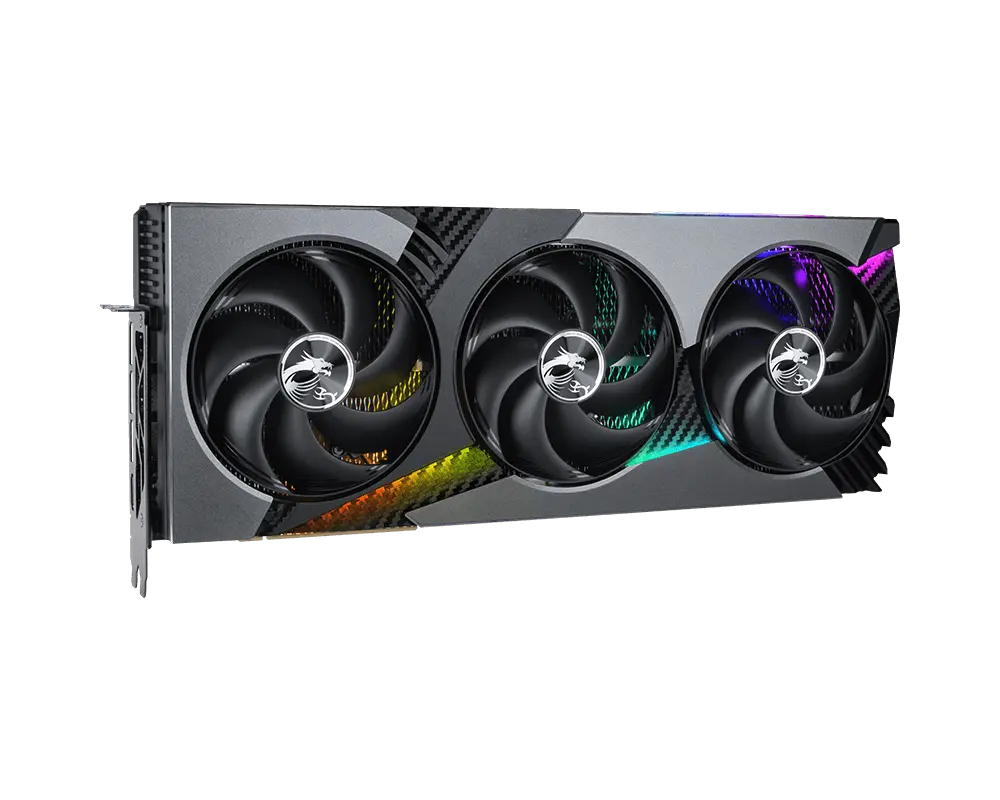

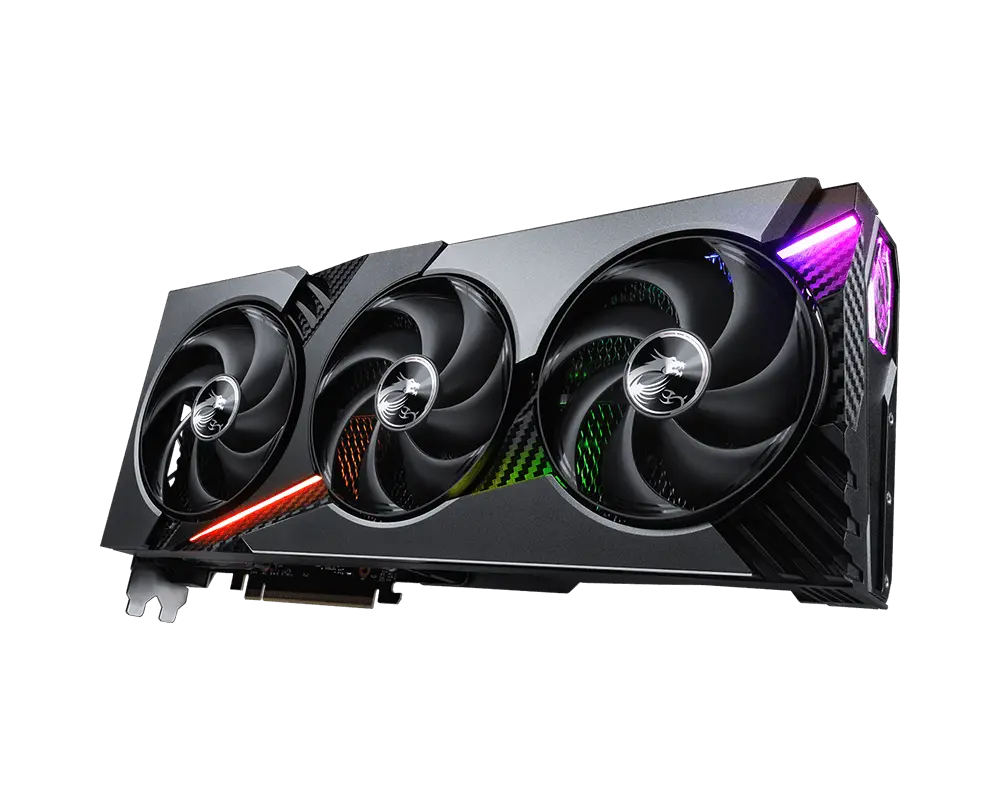

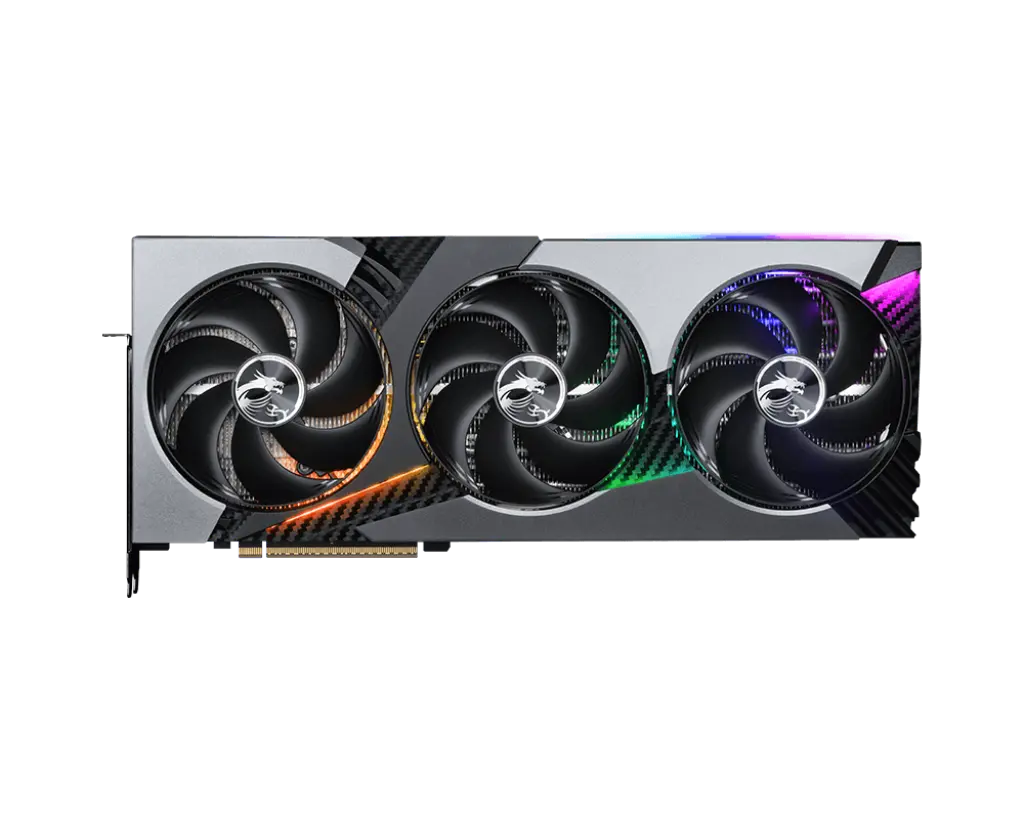

MSI GeForce RTX™ 5080 16G VANGUARD SOC LAUNCH EDITION

  • Powered by the NVIDIA Blackwell architecture and DLSS 4
  • Core Clocks:
    Extreme Performance: 2745 MHz (MSI Center)
    Boost: 2730 MHz (GAMING & SILENT Mode)
  • HYPER FROZR THERMAL DESIGN: An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.
  • STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
  • Advanced Vapor Chamber: Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.
  • Core Pipes: Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
  • Filled Fins: Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.
Category: Brand:
Sales Enquiry
Specification Details
Marketing Name
GeForce RTX™ 5080 16G VANGUARD SOC LAUNCH EDITION
Model Name
G5080-16VGSL
Graphics Processing Unit NVIDIA® GeForce RTX™ 5080
Interface PCI Express® Gen 5
Core Clocks Extreme Performance: 2745 MHz (MSI Center)
Boost: 2730 MHz (GAMING & SILENT Mode)
CUDA® CORES 10752 Units
Memory Speed 30 Gbps
Memory 16GB GDDR7
Memory Bus 256-bit

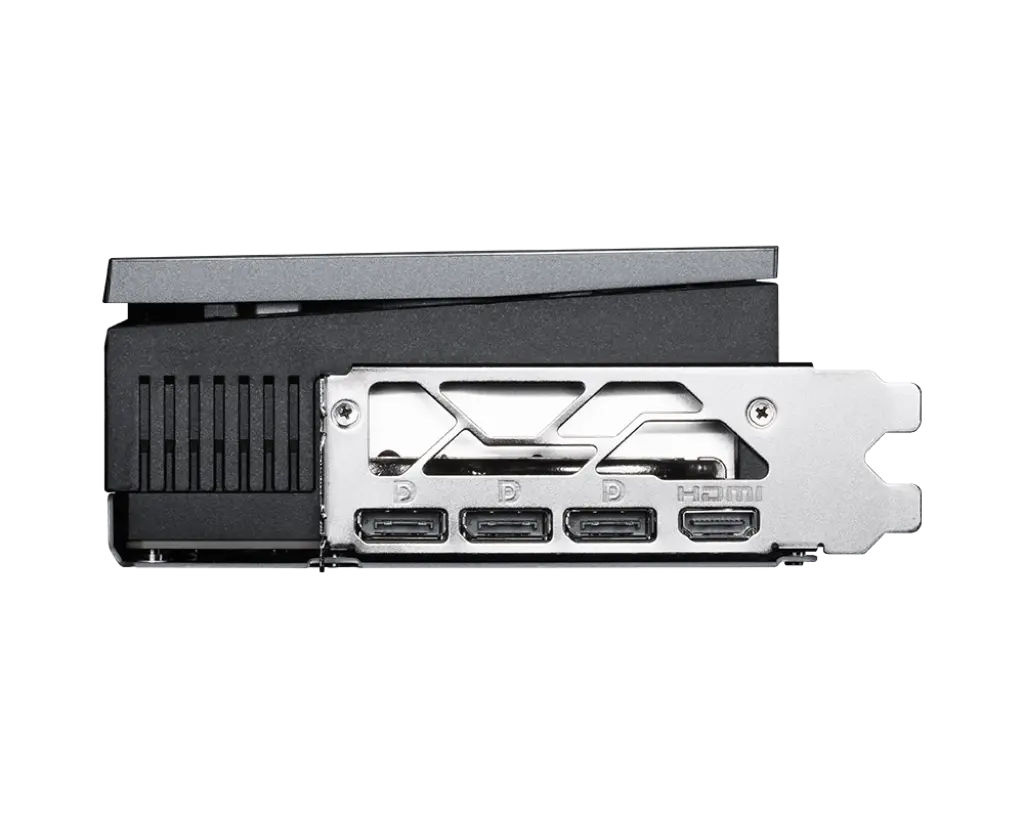

Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 360 W
Power connectors 16-pin x 1 (ATX 3.1 PSU recommended)
Recommended PSU 850 W
Card Dimension (mm)
357 x 151 x 66 mm
Weight (Card / Package)
1945 g / 3991 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320



Overview

GeForce RTX™ 5080 16G VANGUARD SOC LAUNCH EDITION

The GeForce RTX™ 5080 16G VANGUARD SOC LAUNCH EDITION represents the pinnacle of gaming and content creation. As a limited-edition “Launch Edition” variant, this GPU combines factory-tuned Super Overclock (SOC) performance with exclusive styling, premium cooling, and next-generation architecture. Perfect for enthusiasts who demand both performance and prestige.

Next-Gen Performance with Authority

Powered by NVIDIA’s most advanced architecture in the 50-series, the RTX™ 5080 VANGUARD SOC Launch Edition delivers extreme frame rates, instantaneous responsiveness, and seamless rendering across AAA games, virtual production, and professional workloads. With factory SOC clocking, it delivers higher boost speeds out of the box for headroom in overclocking.

16GB GDDR7 High-Bandwidth Memory

Equipped with 16GB of GDDR7 memory, this card offers ultra-wide memory bandwidth, enabling ultra-detailed textures, large datasets, high-resolution rendering, and effortless multitasking. Whether gaming, streaming, or working on 3D production, it handles it all without bottlenecks.

Launch Edition Styling & Build Quality

This Launch Edition variant features exclusive cosmetics: a heritage “Launch Edition” badge, special color accents, and refined shroud elements that distinguish it from standard variants. The reinforced full-metal backplate, sturdy frame, and structural support ensure rigidity and help cool passive heat loads.

SOC Cooling & Thermal Engineering

To match its overclocked performance, the VANGUARD SOC includes an advanced cooling solution: high-static-pressure dual or triple fans (variant dependent), precision heat pipes, and an expansive heatsink array. Dynamic fan curves maintain silence during light loads while ensuring robust cooling during heavy use.

Real-Time Ray Tracing & DLSS 4

Harness the power of real-time ray tracing to produce lifelike lighting, reflections, and shadows. With DLSS 4, AI-driven frame generation allows ultra-smooth performance at high resolutions while maintaining visual fidelity.

Tech Stack for Gamers & Creators
  • NVIDIA Reflex reduces input latency for competitive gaming

  • NVIDIA Broadcast enhances streaming with AI audio/video processing

  • NVIDIA Studio optimizes creative applications with driver-level acceleration

Key Features
  • Factory Super Overclock (SOC) clock speeds

  • 16GB GDDR7 memory with high bandwidth

  • Advanced cooling system with precision fans and heat pipes

  • Reinforced metal backplate and structural support

  • Special Launch Edition design and branding

  • Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.

  • Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

  • Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.

  • Dual BIOS: Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.

  • MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

  • Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.

  • Real-time ray tracing & DLSS 4 for immersive visuals

  • NVIDIA Reflex, Broadcast & Studio integration
