Graphics Cards

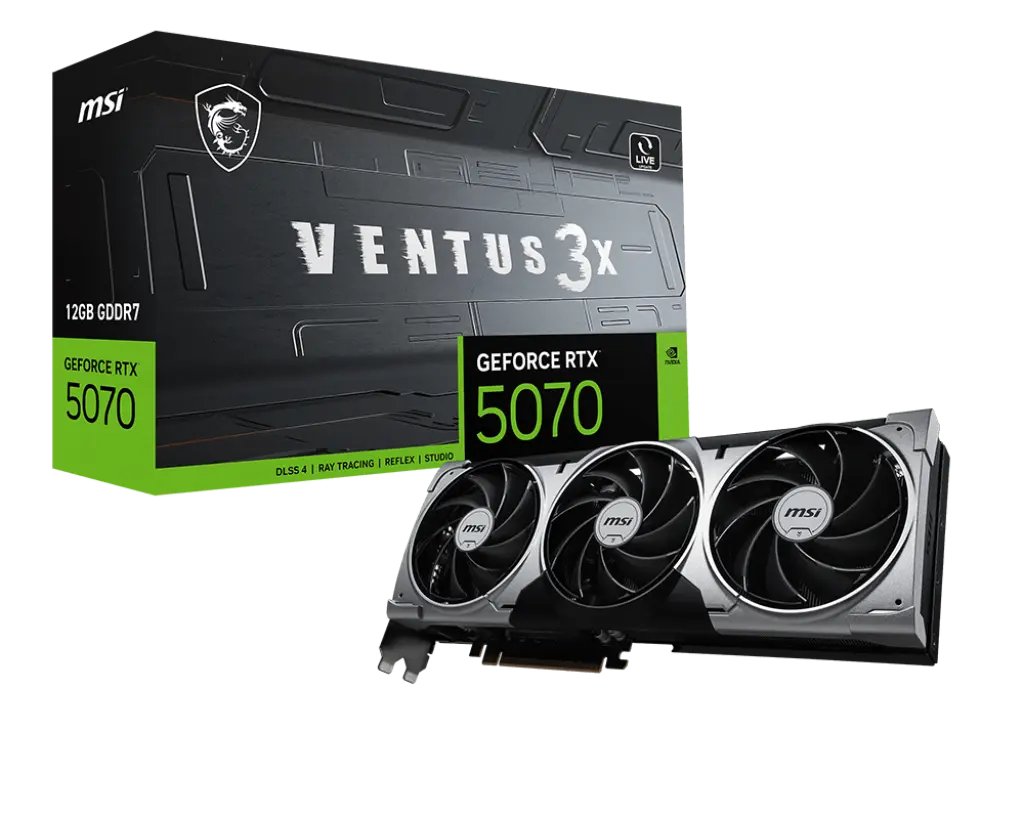

MSI GeForce RTX™ 5070 12G VENTUS 3X

Powered by the NVIDIA Blackwell architecture and DLSS 4
SFF-Ready Enthusiast GeForce Card.
Core Clock:
Extreme Performance: 2527 MHz (MSI Center)
Boost: 2512 MHz

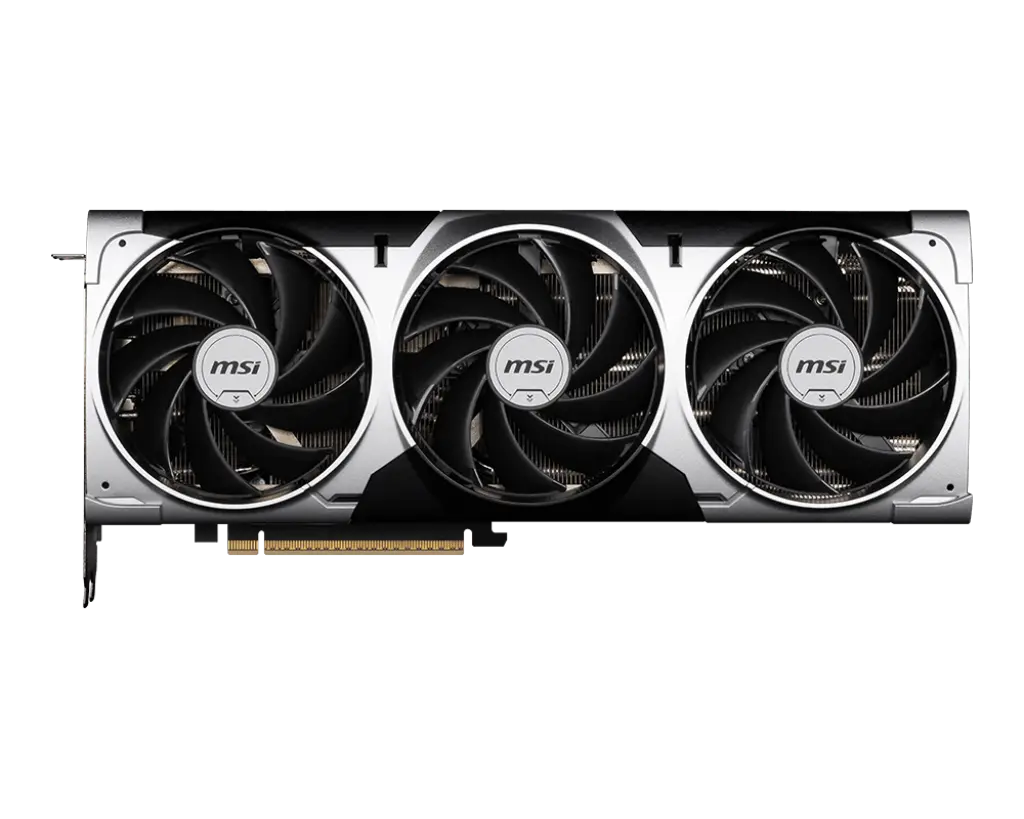

TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

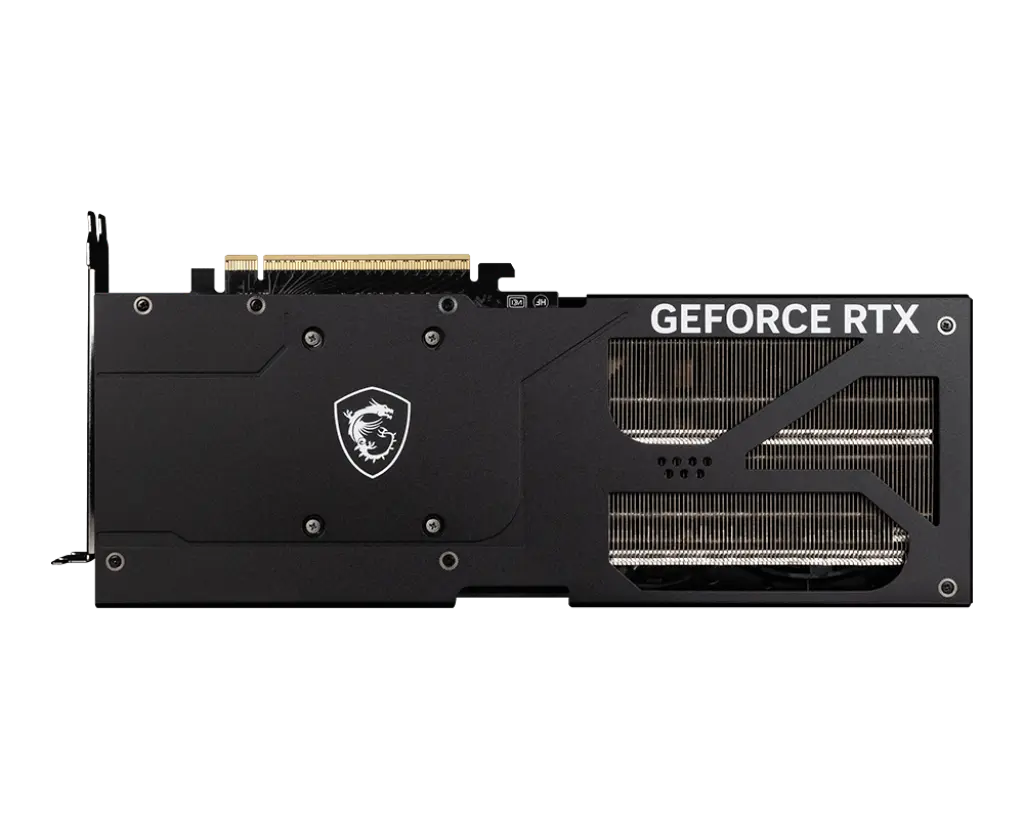

Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.

Category: Graphics Cards Brand: MSI

Sales Enquiry

Specification	Details
Marketing Name	GeForce RTX™ 5070 12G VENTUS 3X
Model Name	G5070-12V3
Graphics Processing Unit	NVIDIA® GeForce RTX™ 5070
Interface	PCI Express® Gen 5
Core Clocks	Extreme Performance: 2527 MHz (MSI Center) Boost: 2512 MHz
CUDA® CORES	6144 Units
Memory Speed	28 Gbps
Memory	12GB GDDR7
Memory Bus	192-bit
Output	DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support	Y
Power consumption	250 W
Power connectors	16-pin x 1 (ATX 3.1 PSU recommended)
Recommended PSU	650 W
Card Dimension (mm)	302 x 121 x 49 mm
Weight (Card / Package)	1002 g / 1440 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® technology	Y
Digital Maximum Resolution	7680 x 4320

Overview

GeForce RTX™ 5070 12G VENTUS 3X

The GeForce RTX™ 5070 12G VENTUS 3X delivers high-performance graphics, reliable cooling, and a professional design — engineered for gamers and creators seeking power, efficiency, and durability. With NVIDIA’s Ada Lovelace architecture, this GPU provides next-generation performance for immersive gaming and smooth creative workflows.

Next-Generation Performance
Built on the Ada Lovelace architecture, the RTX™ 5070 VENTUS 3X delivers advanced ray tracing, AI-accelerated rendering, and high-speed graphics processing. Enjoy ultra-smooth gameplay and responsive performance across AAA games and demanding creative applications.

12GB GDDR6 High-Speed Memory
Equipped with 12GB of GDDR6 memory, this GPU offers ample bandwidth for high-resolution gaming, large textures, and intensive creative tasks. It ensures fast load times, seamless multitasking, and consistent performance in every scenario.

VENTUS 3X Triple-Fan Cooling System
Stay cool under pressure with the VENTUS 3X cooling solution, featuring three precision fans, an optimized heatsink, and heat pipes that efficiently dissipate heat. Zero Frozr technology keeps fans off during idle or light workloads for whisper-quiet operation.

Durable, Minimalist Design
The VENTUS 3X features a reinforced metal backplate to prevent PCB sag and aid passive cooling. Its clean and understated design makes it suitable for any system, from gaming rigs to professional workstations.

Realistic Graphics with Ray Tracing & DLSS 3.5
Experience lifelike lighting, shadows, and reflections with real-time ray tracing, while DLSS 3.5 leverages AI frame generation to boost performance and maintain crisp visuals for smooth, immersive gameplay.

Optimized for Gamers and Creators
With NVIDIA Reflex for low-latency gaming, NVIDIA Broadcast for professional streaming, and NVIDIA Studio for accelerated creative workflows, the RTX™ 5070 VENTUS 3X is versatile enough to handle both gaming and production needs.

Key Features:

NVIDIA Ada Lovelace Architecture
12GB GDDR6 High-Speed Memory
Triple-Fan VENTUS 3X Cooling System
Zero Frozr Silent Cooling Technology
Reinforced Metal Backplate for Durability
Real-Time Ray Tracing & DLSS 3.5 Support
NVIDIA Reflex, Broadcast & Studio Ready
Clean, Professional Design

The GeForce RTX™ 5070 12G VENTUS 3X — efficient, durable, and high-performing, delivering reliable next-gen performance for both gaming and creative pursuits.
