Graphics Cards

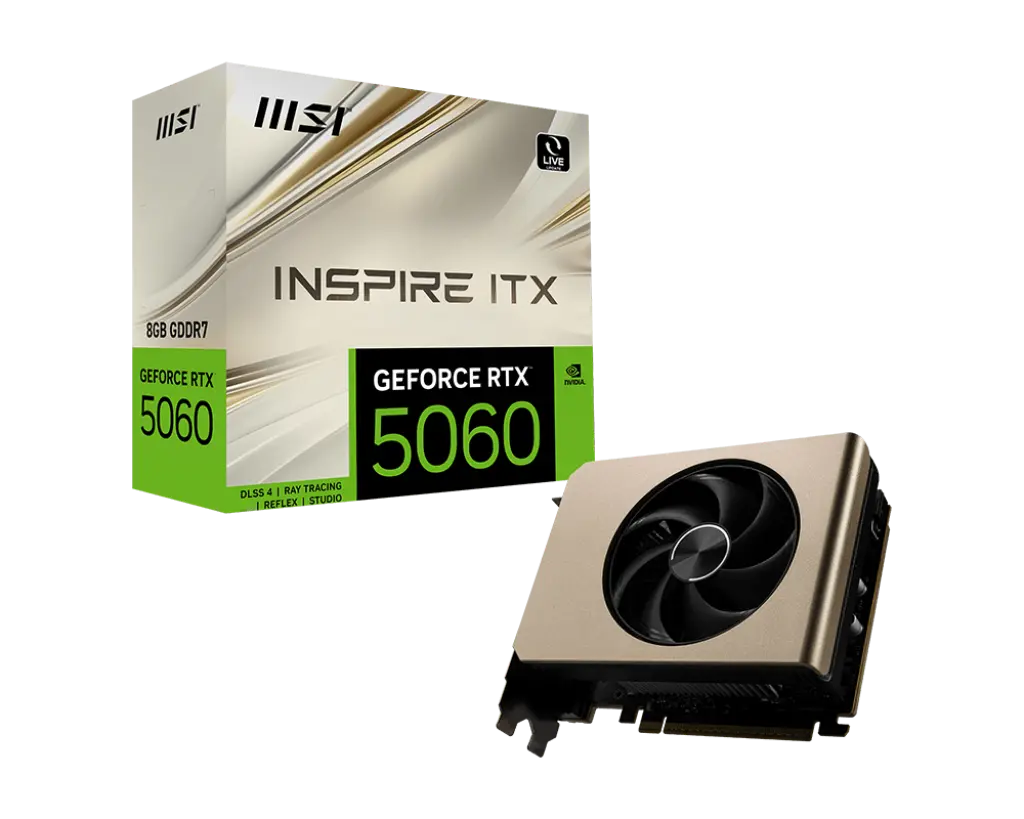

MSI GeForce RTX™ 5060 8G INSPIRE ITX

Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clock:
Extreme Performance: 2512 MHz (MSI Center)
Boost: 2497 MHz
STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Copper-Core Sunflower Radiator Heatsink features a high-conductivity copper core within a sunflower-style aluminum radiator for efficient, consistent thermal performance.
Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
MSI Center gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Category: Graphics Cards Brand: MSI

Sales Enquiry

Specification	Details
Marketing Name	GeForce RTX™ 5060 8G INSPIRE ITX
Model Name	G5060-8II
Graphics Processing Unit	NVIDIA® GeForce RTX™ 5060
Interface	PCI Express® Gen 5 x16 (uses x8)
Core Clocks	Extreme Performance: 2512 MHz (MSI Center) Boost: 2497 MHz
CUDA® CORES	3840 Units
Memory Speed	28 Gbps
Memory	8GB GDDR7
Memory Bus	128-bit
Output	DisplayPort x 3 (v2.1b) HDMI™ x 1 (Supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support	Yes
Power consumption	145 W
Power connectors	8-pin x 1
Recommended PSU	550 W
Card Dimension (mm)	145 x 120 x 45 mm
Weight (Card / Package)	581 g / 913 g
DirectX Version Support	12 Ultimate
OpenGL Version Support	4.6
Maximum Displays	4
G-SYNC® technology	Yes
Digital Maximum Resolution	7680 x 4320

Overview

The MSI GeForce RTX™ 5060 8G INSPIRE ITX is the smallest RTX 5060 model to date, combining compact design with powerful performance. Designed for small form factor PCs and mini-ITX builds, it delivers robust 1080p and 1440p gaming and creative workloads without compromising on size or cooling efficiency. This makes it ideal for users seeking a high-performance GPU that fits in tight spaces.

Performance and Specifications

Powered by the NVIDIA Blackwell architecture, the card features 3,840 CUDA cores and 8GB of ultra-fast GDDR7 memory on a 128-bit bus, running at 28 Gbps. It clocks up to a boost speed of approximately 2,497 MHz, ensuring smooth gameplay and efficient rendering. Supporting DLSS 4 and Multi Frame Generation technology, it provides enhanced frame rates and visuals with ray tracing capabilities, making demanding games and creative applications more immersive.

Cooling and Design

Despite its tiny footprint of around 145 x 120 x 45 mm (5.71 x 4.72 x 1.77 inches), the INSPIRE ITX uses MSI’s STORMFORCE cooling technology. It has a single silent fan with a specially designed sunflower copper core that efficiently cools the GPU while maintaining quiet operation. The fan uses a zero-frozr feature to stop spinning at low loads, eliminating noise when idle. The card also includes a sturdy metal backplate with airflow vents, which strengthens the card and improves heat dissipation.

Connectivity

The card provides versatile connection options with three DisplayPort 2.1b ports and one HDMI 2.1b port, allowing multi-monitor setups and support for resolutions up to 8K at 60Hz. These ports support high refresh rates and advanced features like VRR for smooth gaming visuals.

Power and Compatibility

The RTX 5060 INSPIRE ITX requires a single 8-pin power connector and draws about 145 watts, with a recommended PSU of 550W. Its efficient power design and small size make it suitable for compact gaming rigs, workstations, and small PC builds without needing large power supplies or excessive cooling.

Ideal Use Cases

This model is perfect for gamers, creatives, and IT enthusiasts who want powerful GPU performance in the smallest possible package. It’s suited for mini-ITX cases, compact workstations, or living room PCs where space and cooling capacity are limited but performance cannot be compromised.
