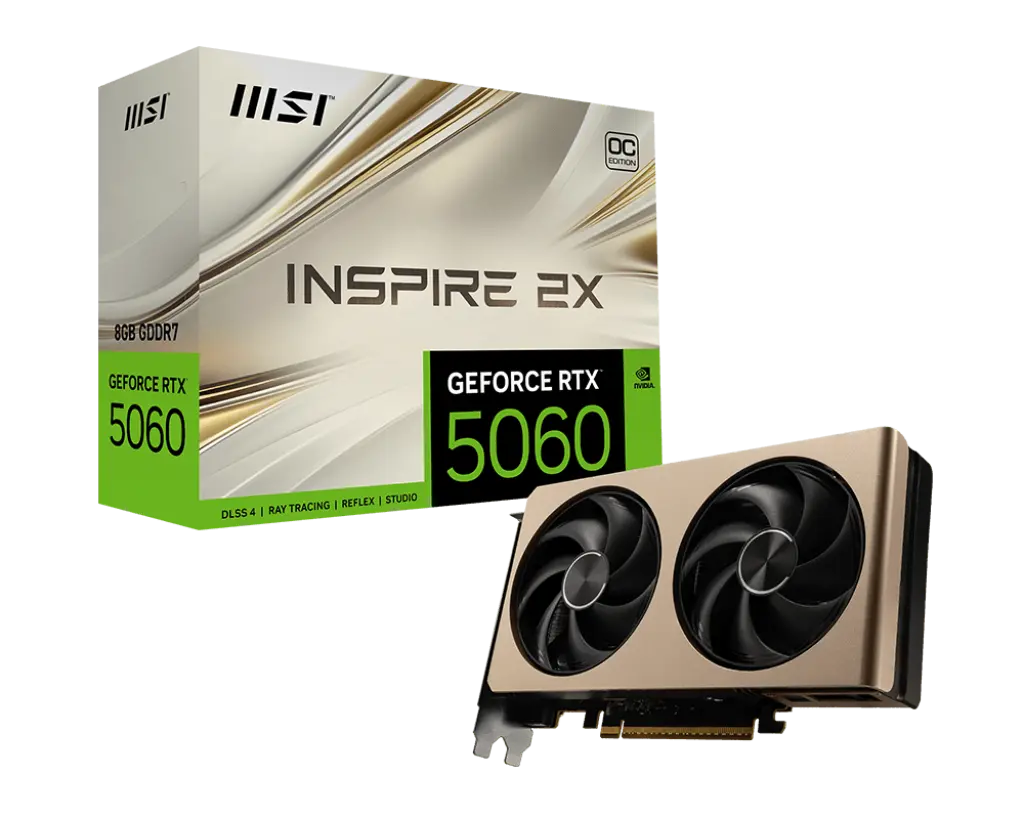

MSI GeForce RTX™ 5060 8G INSPIRE 2X OC

Overview

The MSI GeForce RTX™ 5060 8G INSPIRE 2X OC is a compact and high-performance graphics card designed for creative professionals and gamers who need powerful capabilities in a small form factor. Powered by the advanced NVIDIA Blackwell architecture, it blends performance and efficiency to deliver excellent results in gaming, content creation, and professional workloads.

Performance and Specifications

The card features 3,840 CUDA cores with 8GB of speedy GDDR7 memory operating at 28 Gbps on a 128-bit memory interface. It reaches a boost clock speed of up to 2,535 MHz in standard mode, with an Extreme Performance mode pushing clocks to 2,550 MHz through MSI Center. This combination allows for smooth gameplay and efficient rendering with support for NVIDIA DLSS 4 and real-time ray tracing, enhancing frame rates and in-game visuals.

Cooling and Design

The INSPIRE 2X OC employs a dual-fan STORMFORCE cooling system that features seven blades with a claw texture and a circular arc design to concentrate airflow, optimizing cooling efficiency while minimizing noise. The Zero Frozr technology stops the fans entirely at low temperatures to eliminate noise during light loads. Thermal management is further enhanced by a nickel-plated copper baseplate and core pipes designed for efficient heat transfer. The card includes a sturdy metal backplate with airflow vents and thermal pads to improve heat dissipation and structural strength.

Connectivity

This model supports up to four displays through three DisplayPort 2.1b ports and one HDMI 2.1b port, capable of resolutions up to 8K at 120Hz with Display Stream Compression. It supports advanced features including G-SYNC, HDR, and Variable Refresh Rate (VRR) for smooth, tear-free gameplay and vivid media playback.

Power and Compatibility

The RTX 5060 INSPIRE 2X OC draws 145 watts via a single 8-pin power connector, with a recommended 550W power supply to ensure stable operation. The compact dimensions of 204 x 117 x 41 mm make it suitable for multiple PC cases, especially compact or creative builds.

Software and Features

MSI Center software allows real-time performance tuning and mode switching between silent and gaming profiles, while MSI Afterburner provides comprehensive overclocking and monitoring tools. Additional features include enhanced power delivery with DrMOS and more robust electrical safeguards with reinforced PCB fusing.
