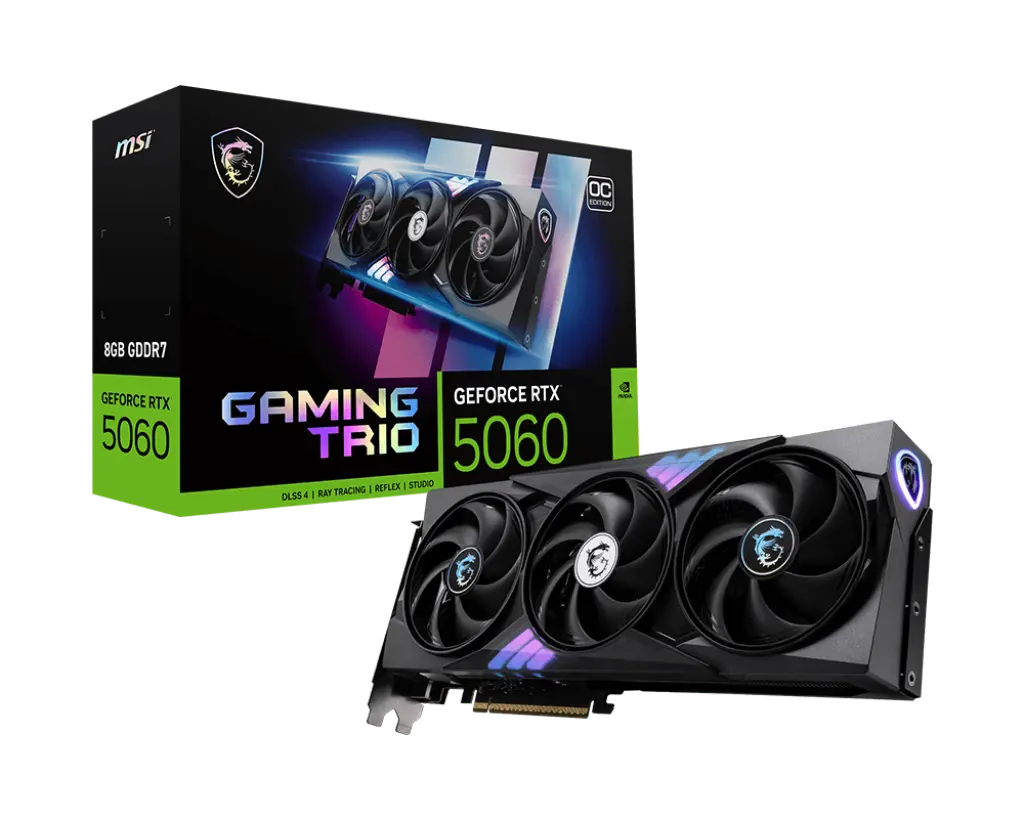

MSI GeForce RTX™ 5060 8G GAMING TRIO OC

Overview

The MSI GeForce RTX™ 5060 8G GAMING TRIO OC is a high-performance graphics card engineered for serious gamers and content creators who demand peak power combined with superior cooling. This model blends bold aesthetics with cutting-edge thermal technology and powerful specs to deliver a competitive edge in gaming and creative workflows.

Features:

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clocks:
  Extreme Performance: 2640 MHz (MSI Center)
  Boost: 2625 MHz
• TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.

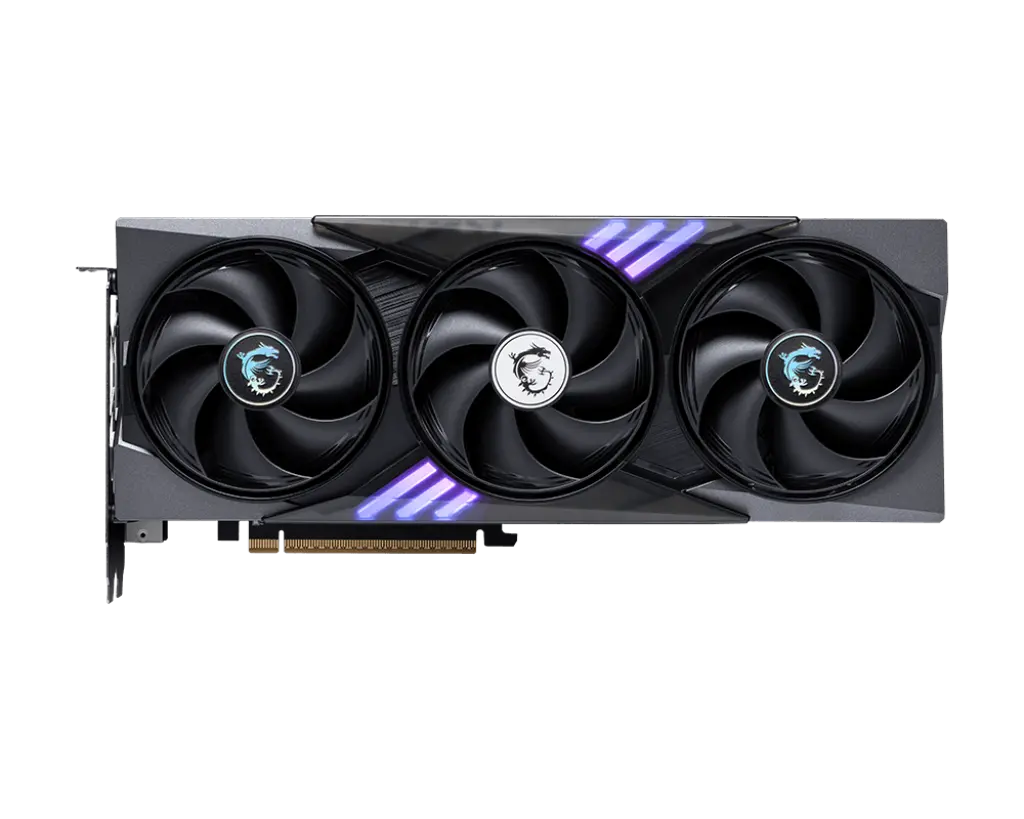

• STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

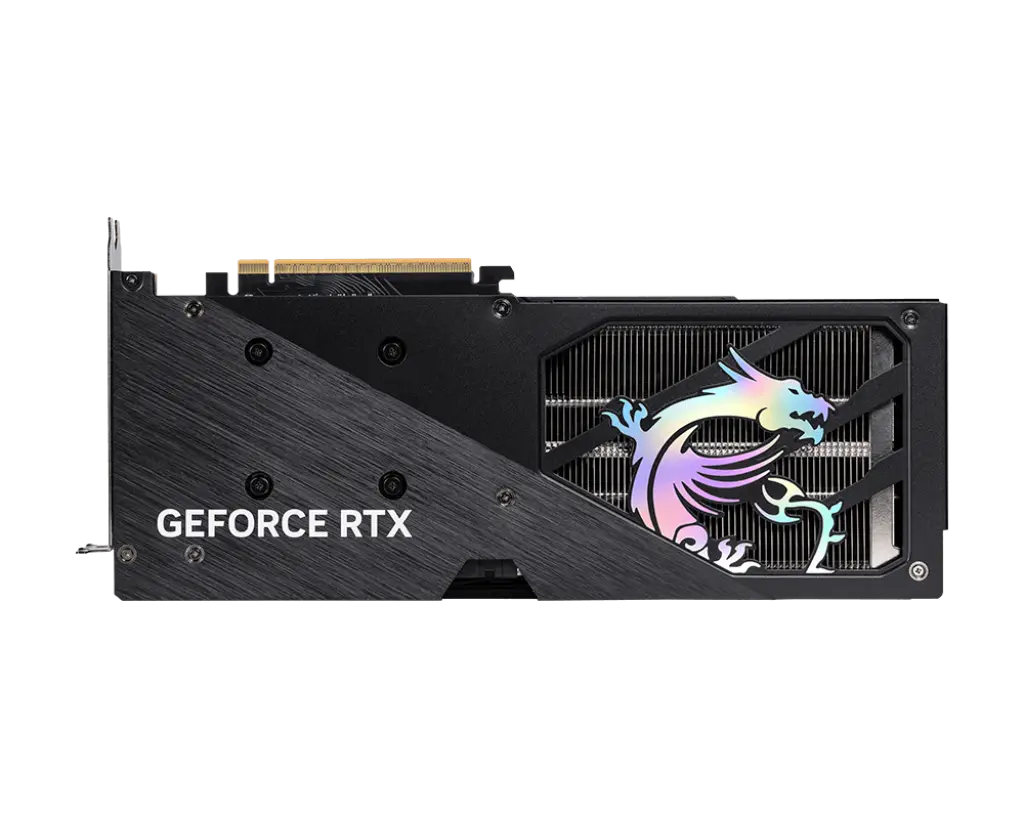

• Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
• Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
• Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Performance and Specifications

Powered by NVIDIA’s latest Blackwell architecture, the GAMING TRIO OC version features 3,840 CUDA cores and 8GB of GDDR7 memory running at 28 Gbps on a 128-bit interface. The card achieves a boost clock speed of 2,625 MHz, with an extreme performance mode clock of 2,640 MHz via MSI Center, enabling smooth and high frame rate gaming across demanding titles. DLSS 4 and ray tracing support enhance visual fidelity and performance.

Cooling and Design

The GAMING TRIO OC features MSI’s advanced TRI FROZR 4 thermal design, which includes upgraded fans and enhanced airflow control for superior cooling and quieter operation. The card uses STORMFORCE fans with seven fan blades, claw texturing, and circular arcs designed to optimize airflow with minimal noise. A nickel-plated copper baseplate efficiently absorbs and transfers heat, complemented by core pipes with a square design maximizing contact with the GPU baseplate. The metal backplate with airflow vents and thermal pads further enhances heat dissipation, while the Wave Curved 4.0 and Air Antegrade Fin 2.0 fin designs boost airflow efficiency and reduce turbulence.

Connectivity

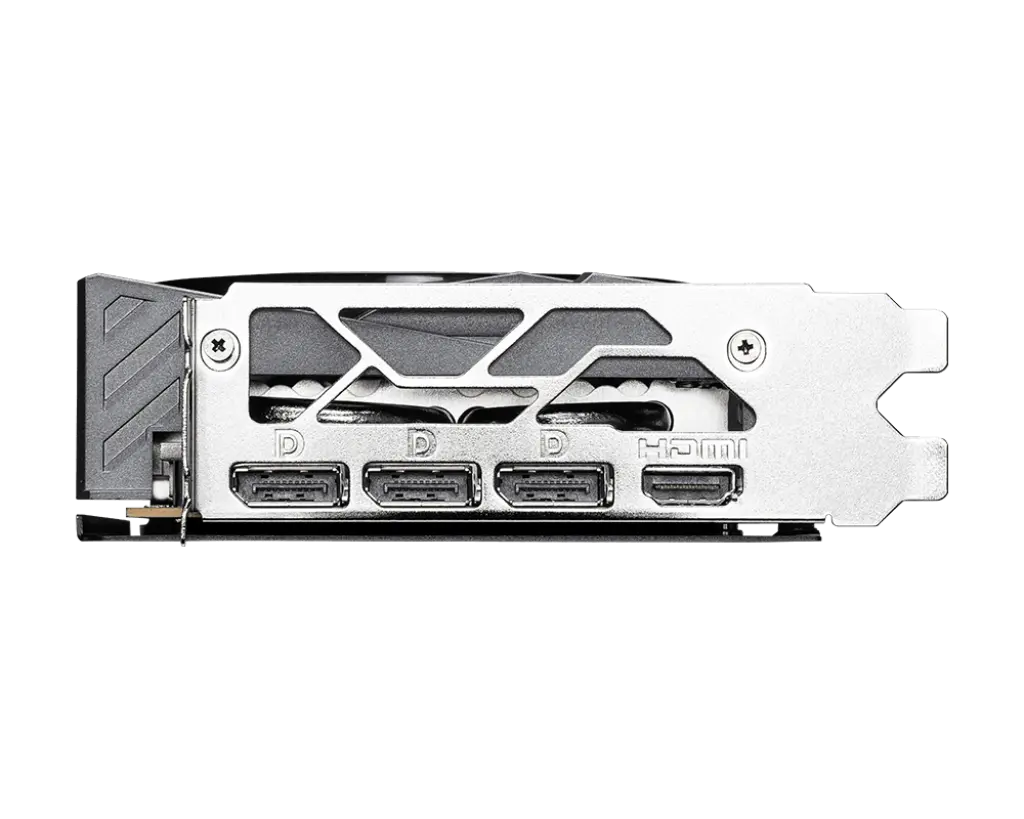

It offers versatile display outputs including three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting up to four simultaneous displays with resolutions up to 8K (7680 x 4320) at 120Hz. HDMI supports features like Gaming VRR and HDR for an enhanced gaming and media experience.

Power and Compatibility

With a power consumption of 155W, the card requires a single 8-pin power connector and a recommended 550W PSU for stable operation. It measures 300 x 125 x 44 mm and weighs 797 grams, fitting comfortably in mid-tower gaming cases and larger builds. The card supports PCIe Gen 5 x16 (x8 electrical) interface.

Ideal Use

The RTX 5060 8G GAMING TRIO OC is perfect for gamers and creators who want powerful performance paired with advanced cooling solutions and customizable software control. It is designed to handle demanding modern games and creative workloads with reliability and style.
