MSI GeForce RTX™ 3060 VENTUS 2X XS 12G OC

Specification	Details
Model Name	GeForce RTX™ 3060 VENTUS 2X XS 12G OC
Graphics Processing Unit	NVIDIA® GeForce RTX™ 3060
Interface	PCI Express® Gen 4
Core Clocks	Boost: 1792 MHz
CUDA® CORES	3584
Memory Speed	15 Gbps
Memory	12GB GDDR6
Memory Bus	192-bit
Output	DisplayPort x 3 (v1.4) / HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1)
HDCP Support	Yes
Power consumption	170W
Power connectors	8-pin x 1
Recommended PSU	550W
Card Dimension (mm)	212 x 115 x 43 mm
Weight (Card / Package)	562g / 892g
DirectX Version Support	12 API
OpenGL Version Support	4.6
Maximum Displays	4
VR Ready	Yes
G-SYNC® technology	Yes
Adaptive Vertical Sync	Yes
Digital Maximum Resolution	7680 x 4320

Overview

The GeForce RTX™ 3060 VENTUS 2X XS 12G OC is a compact and powerful graphics card designed for gamers and creators who want strong 1080p and 1440p performance with advanced RTX features in a small form factor. Built on NVIDIA’s Ampere architecture, it combines efficient cooling, silent operation, and enhanced overclocking capabilities.

GPU and Memory
This card is equipped with 3584 CUDA cores and 12GB of GDDR6 memory running at 15 Gbps on a 192-bit memory bus. It offers a boost clock of 1798 MHz, delivering high-speed graphics performance for modern games and productivity tasks.

Cooling System

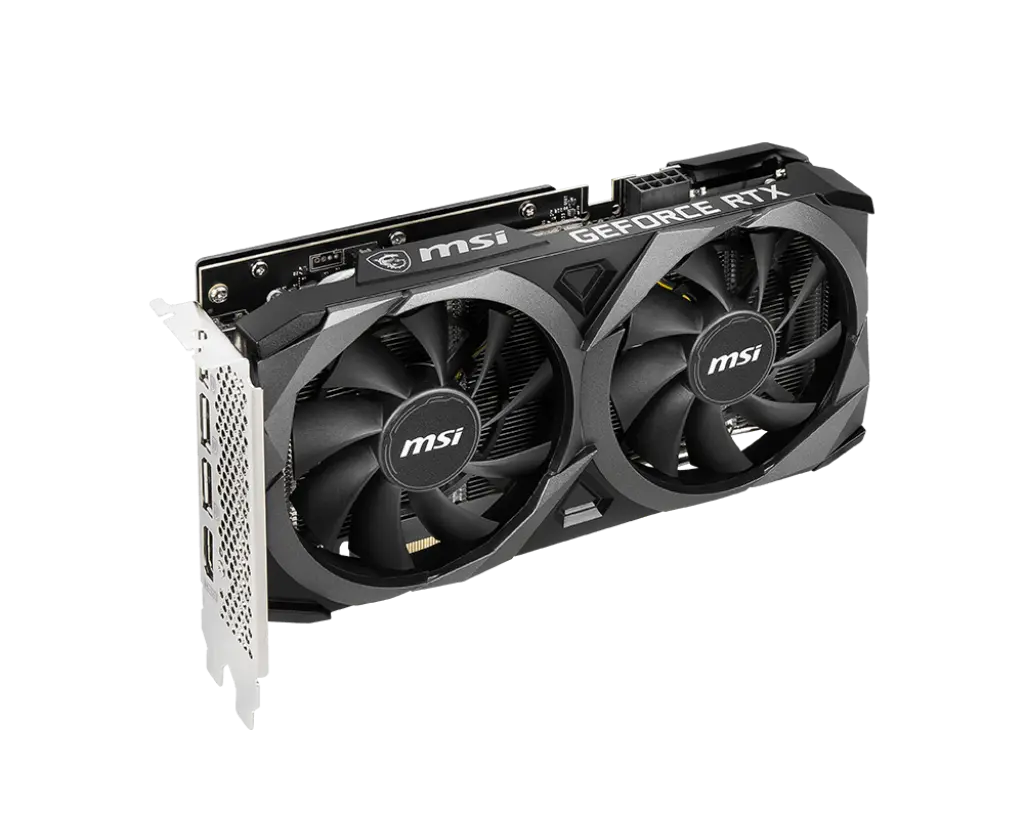

The VENTUS 2X XS 12G OC utilizes MSI’s IceStorm 3.0 cooling system with dual axial fans, large heatsinks, and thermal pads that maximize heat dissipation. Zero Frozr technology halts fans during low temperatures to minimize noise, ensuring a quiet gaming experience.

Key Features and Technologies

PCI Express Gen 4.0 x16 interface

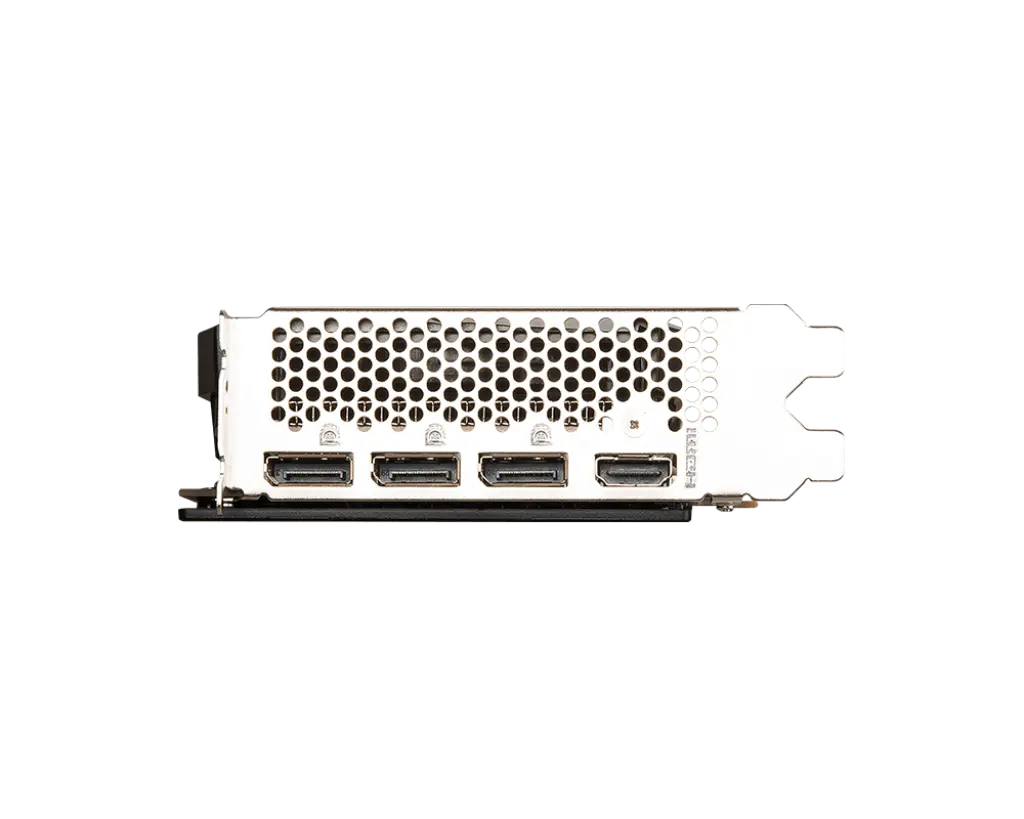

Display outputs: 3 x DisplayPort 1.4a, 1 x HDMI 2.1 (supporting 4K at 120Hz)
Supports real-time ray tracing and NVIDIA DLSS for enhanced visuals and frame rates
Maximum resolution of 7680 x 4320, supporting up to four simultaneous displays
DirectX 12 Ultimate and OpenGL 4.6 compatibility
MSI Center and MSI Afterburner software for real-time hardware monitoring, performance tuning, and overclocking
Recommended PSU of 550W with a single 8-pin power connector
Compact card dimensions: 164.5 mm x 111.2 mm x 36.4 mm
3.5-slot design ensuring efficient heat dissipation

Build Quality and Design

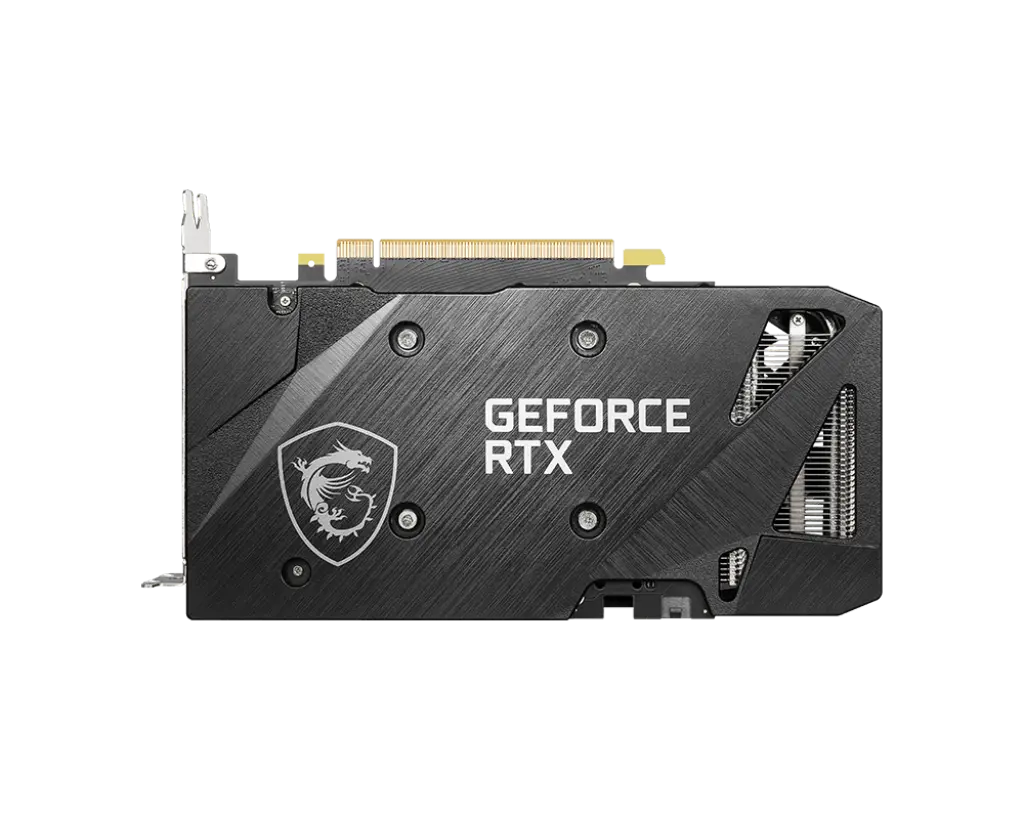

With a compact layout and durable build quality featuring a reinforced backplate, the VENTUS 2X XS 12G OC is suitable for a wide range of PC cases, particularly those with space constraints.

Performance and Compatibility
The card delivers smooth gameplay at high settings in 1080p and decent 1440p performance, with full support for modern RTX features and compatibility with current games and creative applications.

Conclusion
The GeForce RTX™ 3060 VENTUS 2X XS 12G OC blends powerful overclocked performance, advanced cooling, and compact design, making it an excellent choice for gamers and creators seeking an efficient and quiet RTX solution for smaller PC builds.
