Graphics Cards

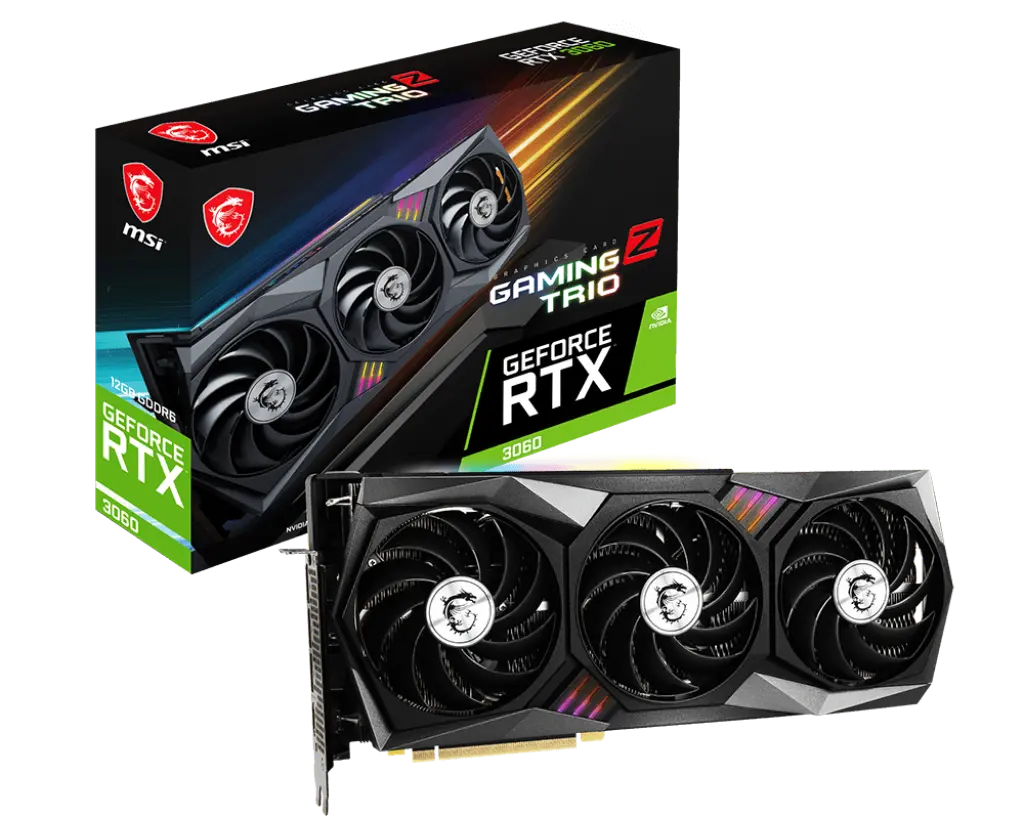

MSI GeForce RTX™ 3060 GAMING Z TRIO 12G

Features:

TRI FROZR 2 Thermal Design

TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

RGB Mystic Light

Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Category: Graphics Cards Brand: MSI

Sales Enquiry

Specification	Details
Model Name	GeForce RTX™ 3060 GAMING Z TRIO 12G
Graphics Processing Unit	NVIDIA® GeForce RTX™ 3060
Interface	PCI Express® Gen 4
Core Clocks	Boost:1867 MHz
CUDA® CORES	3584 Units
Memory Speed	15 Gbps
Memory	12GB GDDR6
Memory Bus	192-bit

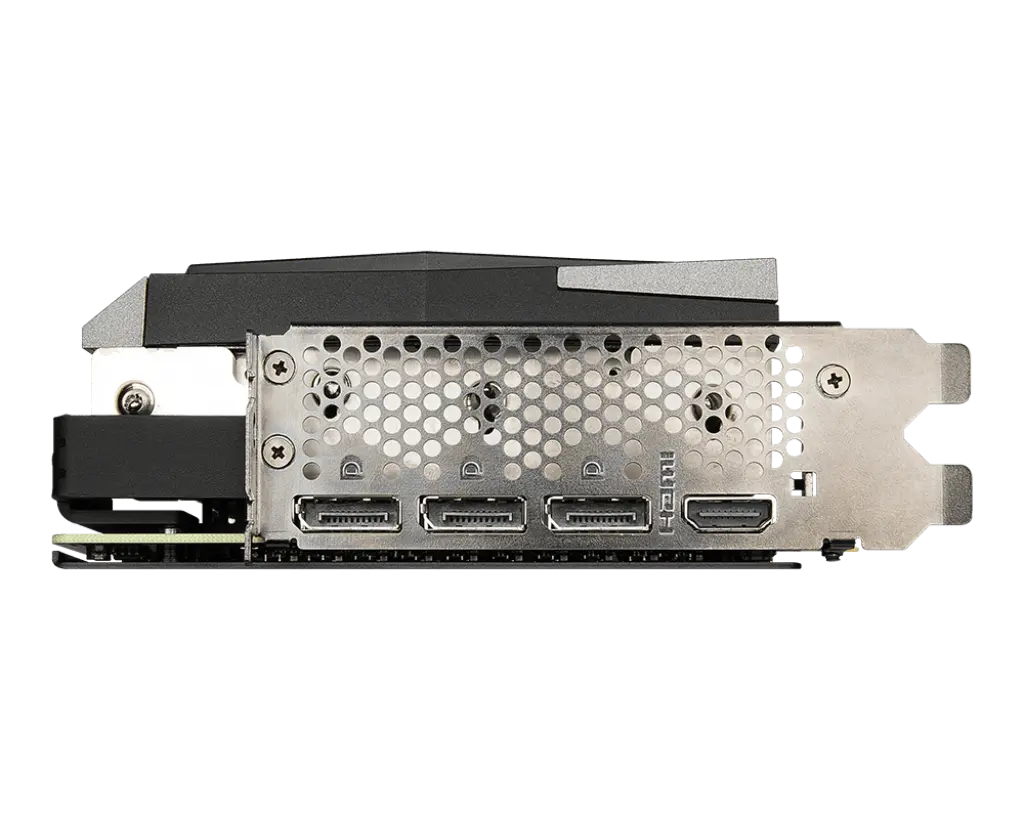

Output	DisplayPort x 3 (v1.4a) / HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1)
HDCP Support	Yes
Power consumption	170W
Power connectors	8-pin x 2
Recommended PSU	550W
Card Dimension (mm)	324 x 140 x 57mm
Weight (Card / Package)	1460 g / 2288 g
DirectX Version Support	12 API
OpenGL Version Support	4.6
Maximum Displays	4
VR Ready	Yes
G-SYNC® technology	Yes
Adaptive Vertical Sync	Yes
Digital Maximum Resolution	7680×4320

Overview

The GeForce RTX™ 3060 GAMING Z TRIO 12G is a high-end graphics card designed for gamers and creators seeking top-tier performance, advanced ray tracing, and AI-powered graphics enhancements. Built on NVIDIA’s Ampere architecture, it delivers smooth 1080p and 1440p gameplay, combined with efficient cooling and a premium triple-fan design.

GPU and Memory
This card features 3584 CUDA cores and 12GB of GDDR6 memory operating at 15 Gbps on a 192-bit memory bus, delivering substantial memory bandwidth of 384 GB/s. It supports a boost clock of up to 1867 MHz for fast and responsive gaming and creative workflows.

Cooling System
The GAMING Z TRIO 12G employs MSI’s TRI FROZR 2 cooling system with three TORX Fan 4.0 blades that optimize airflow and static pressure. The large heatsink and full-length backplate ensure excellent heat dissipation, quiet operation, and increased durability.

Key Features and Technologies

PCI Express Gen 4.0 x16 interface
Display outputs: 3 x DisplayPort 1.4a, 1 x HDMI 2.1 (supports 4K at 120Hz)
Supports real-time ray tracing and NVIDIA DLSS for improved visuals and frame rates
Maximum resolution: 7680 x 4320, with support for up to four simultaneous displays
MSI Mystic Light for customizable RGB lighting synchronization
Compatible with DirectX 12 Ultimate, OpenGL 4.6, NVIDIA G-SYNC, and adaptive sync technologies
Power consumption around 170W, requiring dual 8-pin power connectors
Dimensions: 323 x 140 x 57 mm, occupying three PCIe slots

Build Quality and Design
Featuring a robust triple-slot design with RGB lighting accents and a reinforced backplate, the GAMING Z TRIO 12G is built for high-performance gaming rigs with an emphasis on durability and aesthetics.

Performance and Compatibility
Capable of delivering high frame rates with ray-traced visuals and AI-driven enhancements, this card is optimized for demanding games and creative projects while ensuring reliable and silent operation.

Conclusion
The GeForce RTX™ 3060 GAMING Z TRIO 12G combines superior cooling, powerful specs, and stylish design, making it an excellent choice for users who want uncompromised performance and premium features for next-generation gaming and content creation.

Product Datasheet
