Graphics Cards

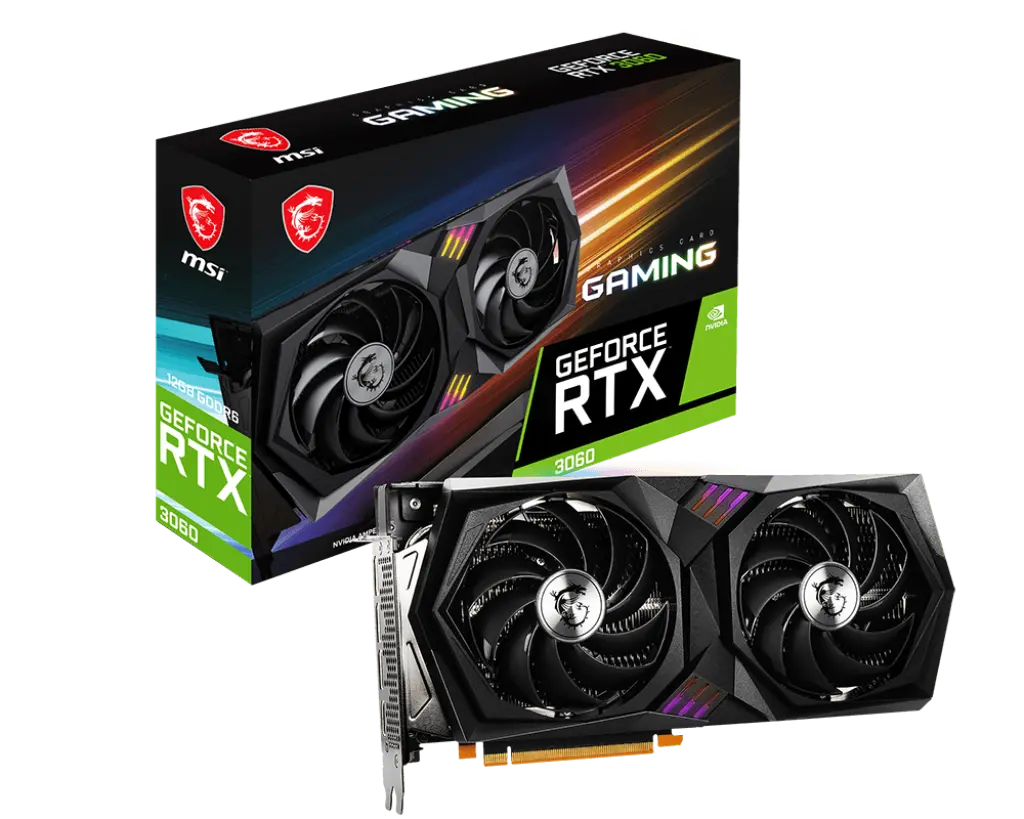

MSI GeForce RTX™ 3060 GAMING 12G

Features:

TWIN FROZR 8 Thermal Design

TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

RGB Mystic Light

Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.

MSI Center

The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.

Category: Graphics Cards Brand: MSI

Sales Enquiry

Specification	Details
Model Name	GeForce RTX™ 3060 GAMING 12G
Graphics Processing Unit	NVIDIA® GeForce RTX™ 3060
Interface	PCI Express® Gen 4
Core Clocks	Boost: 1777 MHz
CUDA® CORES	3584 Units
Memory Speed	15 Gbps
Memory	12GB GDDR6
Memory Bus	192-bit
Output	DisplayPort x 3 (v1.4a), HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1)
HDCP Support	Yes
Power consumption	170 W
Power connectors	8-pin x1 / 6-pin x1
Recommended PSU	550 W
Card Dimension (mm)	276 x 131 x 51 mm
Weight (Card / Package)	996 g / 1567 g
DirectX Version Support	12 API
OpenGL Version Support	4.6
Maximum Displays	4
VR Ready	Yes
G-SYNC® technology	Yes
Adaptive Vertical Sync	Yes
Digital Maximum Resolution	7680×4320

Overview

The GeForce RTX™ 3060 GAMING 12G is a powerful graphics card designed for gamers and content creators seeking smooth 1080p and 1440p performance with advanced ray tracing and AI capabilities. Based on NVIDIA’s Ampere architecture, it delivers high-speed gaming and efficient cooling within a reliable design.

GPU and Memory
This card features 3584 CUDA cores with boost clocks up to 1837 MHz. It is equipped with 12GB of GDDR6 memory running at 15 Gbps across a 192-bit memory interface, offering excellent bandwidth for modern gaming and creative tasks.

Cooling System
Equipped with a dual-fan cooling system, the GAMING 12G maintains efficient heat dissipation while keeping noise levels low. Advanced thermal solutions such as precision-crafted heat pipes and fans with airflow control provide durability and quiet operation under load.

Key Features and Technologies

PCI Express Gen 4.0 interface
Display outputs: 3 x DisplayPort 1.4a, 1 x HDMI 2.1 supporting 4K at 120Hz
Supports real-time ray tracing and NVIDIA DLSS for enhanced graphics and frame rates
Maximum resolution of 7680 x 4320, supporting up to four concurrent displays
Compatible with DirectX 12 Ultimate, OpenGL 4.6, and NVIDIA G-SYNC technologies
MSI Center software for real-time hardware monitoring and optimization
Recommended power supply: 550W; power connectors include one 8-pin and one 6-pin PCIe
Card dimensions: approximately 276 x 131 x 51 mm; weight around 996 grams

Build Quality and Design
The card features a sleek, durable build with a reinforced backplate and premium components. Its efficient cooling design fits most modern gaming PCs, balancing performance and noise control.

Performance and Compatibility
Optimized for modern AAA games, the GAMING 12G delivers smooth visuals with RTX technology and AI acceleration. It also supports demanding creative workloads and multi-display setups for versatile use.

Conclusion
The GeForce RTX™ 3060 GAMING 12G combines powerful performance, advanced features, and efficient cooling in a robust package, ideal for gamers and creators who want reliable, high-quality graphics processing for both play and productivity.
