| Specifications | Details |
|---|---|
| Recommended Daily Volume | Up to 9,000 pages per day |
| Throughput Speeds* | Black-and-white / Grayscale / Color: up to 60 ppm / 120 ipm at 200 and 300 dpi |
| Scanning Technology | Dual CIS; Grayscale output bit depth: 256 levels (8-bit); Color output: 24 bits (8 x 3) |
| Processor | Embedded Dual Core Cortex A15 (1.5 GHz) + Dual DSP (750 MHz) Image Processors with Multiple Cortex M4 Sub-processors |
| Operator Control Panel | 3.5-inch (89 mm) color touchscreen LCD |
| Optical Resolution | 600 dpi |
| Illumination | Dual RGB LEDs |
| Output Resolution | 75 / 100 / 150 / 200 / 240 / 250 / 300 / 400 / 500 / 600 / 1200 dpi |
| Max./Min. Document Size** |
Maximum: 216 mm x 356 mm (8.5 x 14 in.) Minimum: 52 mm x 52 mm (2.08 x 2.05 in.) Long Document Mode: 216 mm x 3,000 mm (8.5 x 118 in.) |
| Paper Thickness & Weight | 27–433 g/m² (7.2–160 lb. cover stock); ID card thickness up to 1.4 mm (0.55 in.) |
| Feeder | Up to 80 sheets (20 lb. / 80 g/m²), supports A8, ID cards, embossed cards, and insurance cards (portrait & landscape) |
| Paper Feeding Detection | Ultrasonic multifeed detection; Intelligent Document Protection |
| Connectivity |

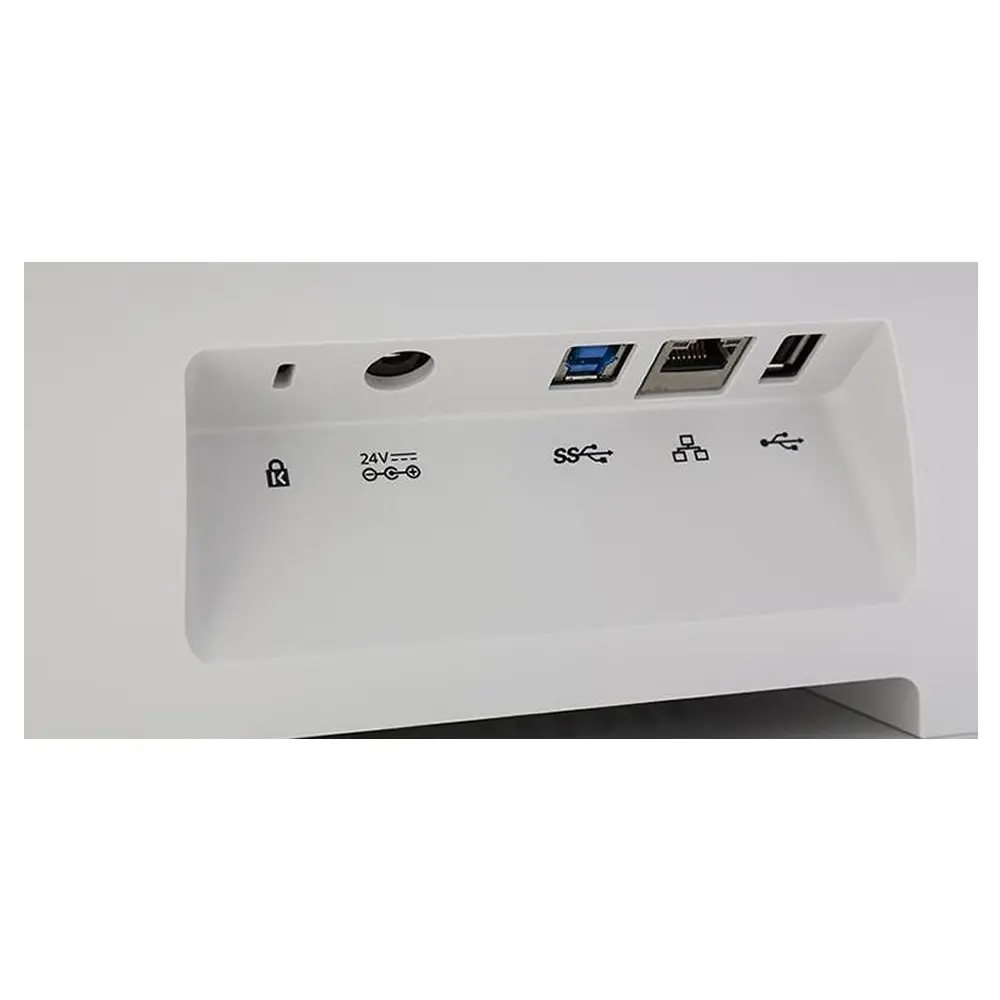

USB 3.2 GEN1 Wireless 802.11 b/g/n 10/100 Ethernet WLAN Security: WEP 64/128, WPA-PSK, WPA2-PSK, MSCHAPv2, EAP-TLS |
| Software Support |
Standard Software: – TWAIN, ISIS, WIA Drivers (Windows) – Alaris Smart Touch – Alaris Capture Pro Software LE (download) Optional Software: |
| Imaging Features |
Barcode reading (10 types, up to 6 per side) Perfect Page Scanning iThresholding; Adaptive threshold Deskew, Autocrop, Relative Crop, Fixed Crop Add/remove border Electronic color dropout Dual stream scanning Enhanced color management & adjustment Brightness/contrast control Auto orientation, Auto color detection Background smoothing Intelligent edge fill Image merge Content-based blank page removal Streak filtering Hole fill (round/rectangular) Sharpness filter Auto brightness Auto white balance All-color & Multicolor dropout Long-document scanning up to 3000 mm (118 in.) Sleeve scanning (A3) B/W segmentation Automatic photo cropping Multiple document output Image split Digital stamping (future availability) |
| File Format Outputs | TIFF (single/multipage), JPEG, RTF, BMP, PDF, Searchable PDF, TXT, PNG, CSV, Word, Excel |
| Accessories (Optional) |
Alaris Carrier Sleeves (5 Pack) Alaris S2000 Feed Roller Kit S2000 Series Stacking Deflector Alaris Passport Flatbed Integrated A4/Legal Flatbed Kodak A3 Flatbed |
| Electrical Requirements | 100–240 V (International); 50–60 Hz |
| Power Consumption | Off: < 0.5 W Sleep: < 5 W Running: < 36 W |
| Environmental Factors |
EPEAT Registered, ENERGY STAR Qualified Operating Temp: 10–35 °C (50–95 °F) Humidity: 15% – 80% RH |
| Acoustical Noise | Off/Ready: < 20 dB(A) Scanning: < 50 dB(A) |
| Recommended PC Configuration | Intel Core i3 or faster, 4 GB RAM+, Windows OS |
| Approvals & Certifications |
AS/NZS CISPR 32 (Class B RCM) CAN/CSA – C22.2 No 60950-1 (TUV C) CSA-CISPR 32 / ICES-003 (Class B) China GB4943.1; GB9254 Class B (CCC) EN55032 (Class B), EN55024 (CE) EN60950-1 (TUV GS) IEC60950-1:2005 Taiwan CNS 13438 (Class B), CNS 14336-1 (BSMI) UL 60950-1 (TUV US) CFR 47 Part 15 (FCC Class B) |
| Consumables | S2000 Feed Roller Kit, Cleaning Pads, Staticide Wipes, Transport Cleaning Sheets, Brillianize Wipes, Carrier Sleeves |
| Dimensions & Weight |
Weight: 3.3 kg (7.2 lbs) Depth: 204 mm (8.0 in.) (without trays) Width: 312 mm (12.3 in.) Height: 182.5 mm (7.2 in.) (without trays) Depth with Input Tray: 269 mm (10.6 in.) Height with Input Tray: 231.6 mm (9.1 in.) |
| Operating Systems Supported |
Windows 7 SP1 (32/64-bit) Windows 8 (32/64-bit) Windows 8.1 (32/64-bit) Windows 10 (32/64-bit) Windows Server 2012 R2 (64-bit) Windows Server 2016 (64-bit) Linux (Intel/AMD x86/x64) Ubuntu (32/64-bit) OpenSUSE 11.3 (i586, 32-bit), Leap 15.1 (64-bit) SUSE Linux Enterprise Desktop 12.2 (64-bit), 15 SP1 (64-bit) NeoKylin (multiple builds: V7 / 6.0 x86 & x64) Citrix Certified |
| Notes |
* Throughput varies by driver, OS, PC, and image features. ** Maximum supported doc size depends on resolution & compression. |
Document Scanner
Sales Enquiry

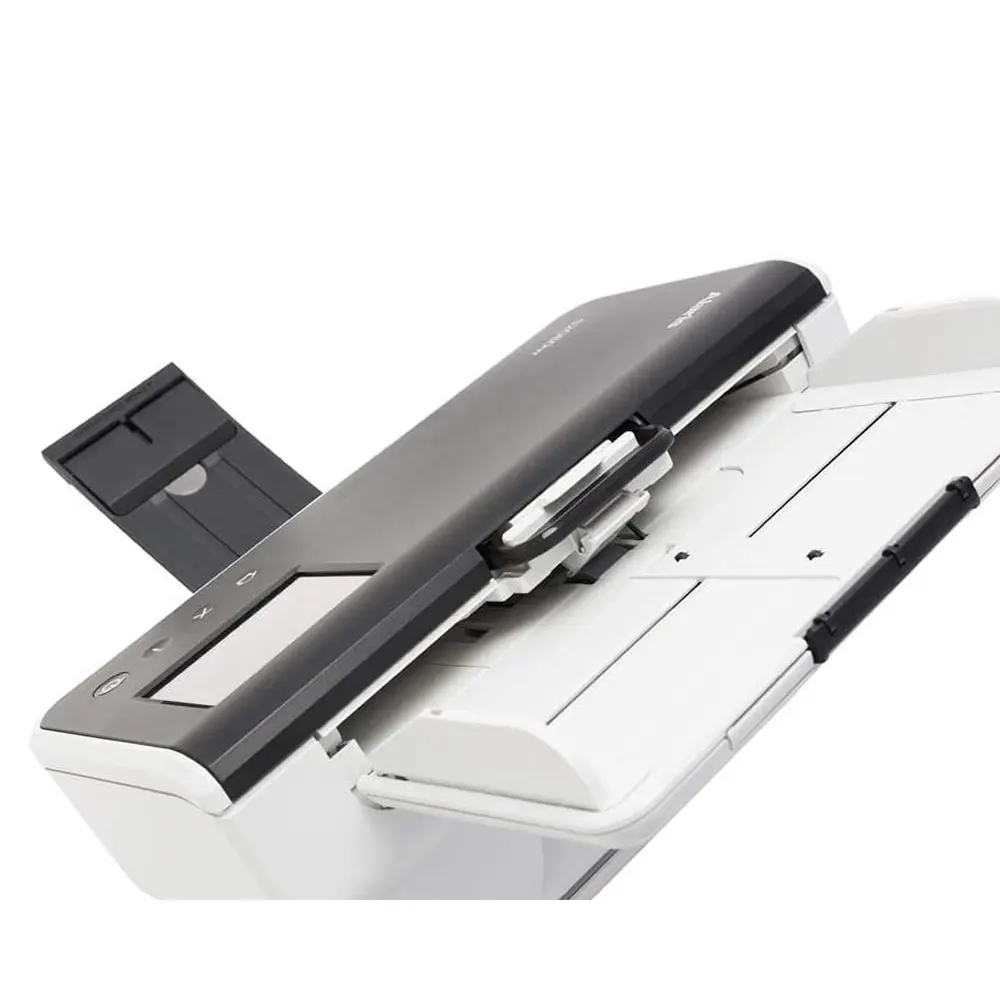

Kodak S2060W Scanner
- RESOLUTION: 600 dpi
- SPEED: 60 ppm | 80 sheets ADF
- DAILY VOLUME: Up to 9,000 pages per day
- CONNECTIVITY: USB 3.2 GEN1, Wireless 802.11 b/g/n, 10/100 Ethernet, WLAN Security: WEP 64/128, WPA-PSK, WPA2-PSK, MSCHAPv2, EAP-TLS
Compatible with optional accessories.
Overview
Capture information at the point of entry with an easy to use network document scanner
The Alaris S2060w scanner with built-in networking lets your team capture the information needed with superior image quality and data accuracy. It is the perfect desktop scanning solution that multiple people can share and get information into your business fast. A easy to use touchscreen delivers quick access to 20 jobs and standard TWAIN and ISIS drivers ensure integration with existing professional document management systems. And, it’s backed by a 3-year limited warranty.
Intuitive User Display
Start up faster and stay productive with ease-of-use features. Install preconfigured settings in seconds using the award-winning Easy Setup feature. The intuitive color displays make scanning quick and easy. Save up to 20 job setups and destinations with one-touch scanning.
Active Feed Technology
Keep working without worrying about jams, thanks to a paper path built for exceptional reliability. Active Feed automatically jogs pages to avoid misfeeds. Maintain maximum uptime with SurePath Paper Handling. Controlled Output stacking neatly places pages in the output tray.
Active Feed Technology
Keep working without worrying about jams, thanks to a paper path built for exceptional reliability. Active Feed automatically jogs pages to avoid misfeeds. Maintain maximum uptime with SurePath Paper Handling. Controlled Output stacking neatly places pages in the output tray.
Embedded Image Processing
Save money at all steps in the scanning process, with innovation that takes out overhead costs. Embedded Image Processing delivers crisp, high-quality images at full speed without depending on a super-powered PC. Intelligent features help reduce manual pre- and post-scan tasks.
Optical Character Recognition
Get the right information the first time, with Optical Character Recognition read rates that are 10% more accurate than competitive devices. Perfect Page technology delivers superior image quality with 30+ enhancements automatically for more accurate image extraction.
Integrate Directly into Business Processes
Deliver information exactly where it needs to go, in the right format. Your documents can go anywhere you need: local or network folders, FTP, cloud destinations like SharePoint, or other ECM systems. Advanced capture software and our partners can help you extract data from documents and integrate it directly into business processes.
Ready for passports or small delicate documents
The S2000 Series is designed to ‘dock’ on top of the Alaris Passport Flatbed Accessory, offering a quick and easy solution for scanning passports, ID cards and other small, fragile documents. You don’t need another power cord or USB port on your host PC. Thanks to seamless TWAIN and ISIS-driver integration there is no need to use multiple scanner drivers.
Fit into any Business Environment
Integrates easily with existing business applications using standard drivers. Or use the RESTful Web API to integrate your business app or application to the scanner directly without the need for a driver.
