Document Scanner

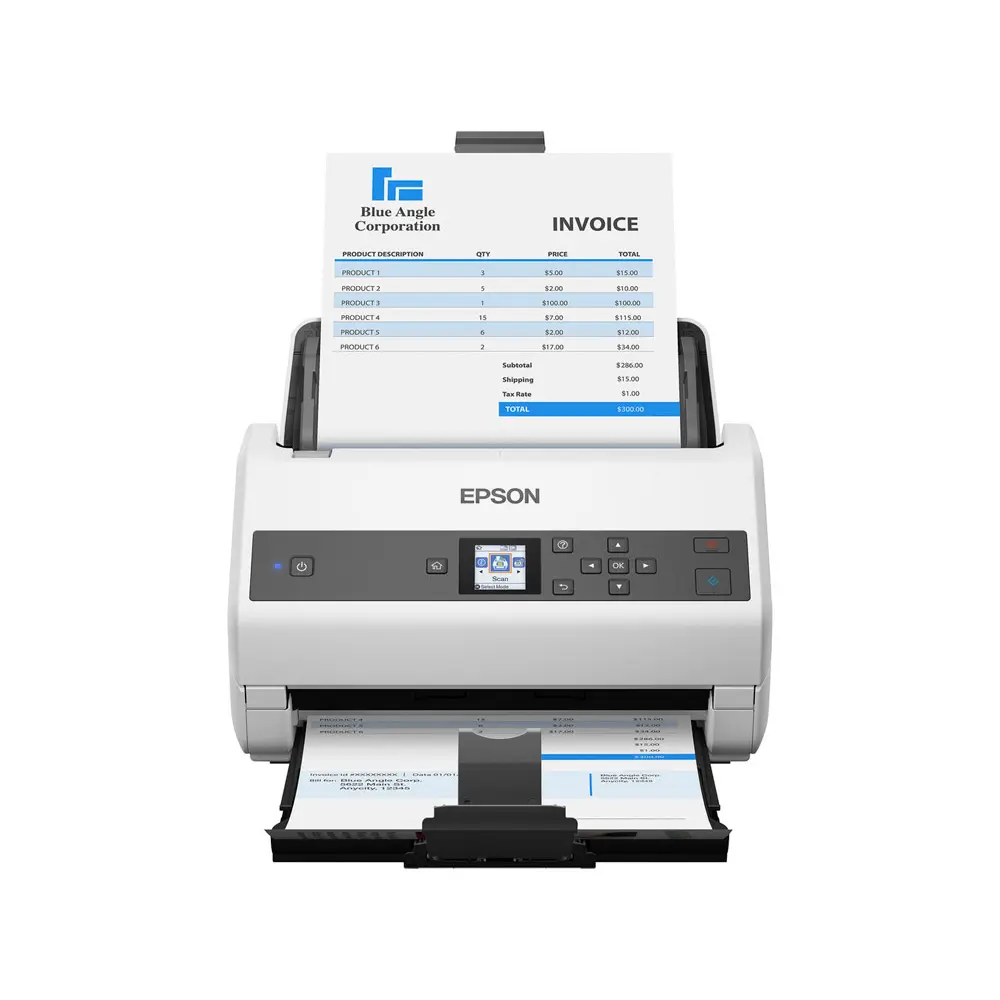

EPSON WORKFORCE DS-970 Departmental Business Scanner

High-speed scanning: 100-page ADF and 85ppm (170ipm) scanning speed
Low intervention: Active Separation Roller system to prevent double feeding
Built-in protection: Ultrasonic and paper protection sensors to detect processing errors
Optional flatbed scanner: Choose from the conversion kit, or link to DS-5500 (A4) or DS-50000 (A3)
Optional Network Interface: Enable device sharing in a department. Create pre-defined job profiles

Category: Document Scanner Brand: Epson

Sales Enquiry

Specification	Details
Maximum Resolution	600 dpi (Optical), 1200 dpi (Interpolated)
Scan Modes	Color, Grayscale, Monochrome
Color Depth	30-Bit (Internal), 24-Bit (External)
Grayscale Depth	30-Bit (Internal), 24-Bit (External)
Image Sensor	2 x Contact Image Sensor (CIS)
Duplex Scanning	Yes
Single Pass Duplex	Yes
Scan Speed – Simplex	85 ppm in Color/Grayscale
Scan Speed – Duplex	170 ipm in Color/Grayscale
Maximum Media Thickness	0.3 mil / 1.2 mm
Media Handling	Automatic Document Feeder (ADF)
Media Types	Business Card, ID Card, Plastic ID Card
Sheet Capacity	100 Sheets
Multi-Feed Detection	Yes
Media Weight	17 to 250 lb / 27 to 413 gsm
Daily Duty Cycle	200,000 Scans
Daily Life Expectancy	9,000 Sheets
Interface	USB 3.0
Wireless	None
Drivers	TWAIN, ISIS
Operating System Support	Windows, macOS/OS X
Operating Temperature	41 to 95°F / 5 to 35°C
Operating Humidity	15 to 80%
Storage Temperature	-13 to 140°F / -25 to 60°C
Storage Humidity	15 to 85%
Control Panel	Color LCD
Power Source	AC Adapter
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	24 VDC at 2 A
Power Consumption	20 W (Maximum)
Certifications	RoHS, as per Manufacturer
Weight	7.9 lb / 3.58 kg
Maximum Scan Size	W: 8.5 X L: 240 / W: 21.6 X L: 609.6 CM
Dimensions (W x D x H)	11.7 X 6.7 X 6.6 / 29.6 X 16.9 X 16.7 CM

Overview

HIGH-VOLUME SHEET-FED SCANNER

Production-level scanning with easy-to-use advanced processing capabilities for effortless and efficient document management.

Create a better business environment with the support of a global leader in document scanning. When the goal is getting documents to the right place as fast as possible, trust in the WorkForce DS-970 – Epson’s fastest scanner. High performance matched with an endurance with easy-to-use features that put you in control of your documents.

ULTIMATE PERFORMANCE

With a 100-page ADF, 85ppm/170ipm scanning speed and continuous scanning with automatic feed mode – get through large jobs quickly and efficiently. Scroll through pre-defined jobs easily using the intuituve panel and get your documents to the right place in just a few presses of a button. TWAIN, WIA and ISIS drivers are available for integration with document management systems.

EFFICIENT DOCUMENT PROCESSING

Users can scan a wide variety of documents thanks to media handling from 27gsm to 413gsm, and a long paper scanning mode up to 6096mm. Making it easier to capture fragile or damaged documentsm Slow Mode decreases speed and document friction to process these pages as part of a wider document. For documents that cannot be scanned via the ADF – three different flatbed solutions up to A3 in size are available.

PAPER PROTECTION

Onboard sensors detect unusual paper behaviour to prevent paper jams and tearing.

DOUBLE FEED DETECTION SKIP (DFDS)

Avoid unnecessary pauses and jams in the scanner – take control of the scanning process and easily process known double paged documents. e.g documents with labels or post it notes

STREAK DETECTION

A proactive feature that alerts users to the presence of dirt on the glass.

The graphical display helps users with a step-by-step cleaning process.

CAPTURE, ENHANCE, AND MANAGE

Download feature-rich software packages that allow administrators to manage jobs, users and devices for an efficient workflow. With preset jobs either on the device or workstation, it gives users an easy scanning experience that maximizes productivity.
