Contex IQ Quattro X 4490 ScanStationPRO

High-quality and high-speed scanner for bureaus

CIS technology
17.8 ips in 200 dpi RGB Color
1200 dpi
$$

Category: Document Scanner Brand: Contex

Specification	Details
Technology	Contex CleanScan CIS
Maximum Resolution (interpolated)	9600 dpi
Optical Resolution	1200 dpi
Maximum Scan Width	44 inch (1118 mm)
Maximum Media Width	47 inch (1194 mm)
Maximum Media Thickness	0.08 inch (2 mm)
Accuracy	0,1% +/- 1 pixel
Productivity (Batch Scanning, Arch E-size, RGB Color, 200dpi for 60 minutes)	856 documents / hour (monochrome 856 documents/hour)
Color Space	sRGB, Adobe RGB, Device RGB
USB Connection	USB3 with xDTR3
Ethernet Connection	Gigabit with xDTR2.5
File Formats	Multipage PDF & TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, and others
Touch Panel / Screen	22” multi-touch widescreen, full HD TFT LCD, 1920×1080 dpi
Touchscreen Interface	VGA (analog input), DVI-D (digital input), USB (for touch connectivity)
Touchscreen Mounting	Optional, left or right side mounting, VESA mount 100 x 100 mm
Weight & Dimensions	54 lbs (24.5 kg) – 53.1 x 19.3 x 6.3 inches (1349 x 489 x 161 mm)
Operating System	Windows 11 64-bit, Windows 10 64-bit, Windows Server 2022 Standard Edition
Energy Star Compliant	Yes
Upgradable	–
200 dpi Grayscale/Monochrome Speed	17.8 ips
Software Compatibility	AutoCAD®, MicrostationTM, ArcGISTM and all other CAD, GIS and image editing/storage applications
Power Supply	100 V / 230 V / 240 V, 60/50 Hz
Scanner Stand (Optional)	Low stand available
Included Software	Full-featured Nextimage Repro (incl. TWAIN driver)
Power Consumption (ready/sleep/scan)	18W max./<1w/37w (built-in power supply)
Scan Speed (200 dpi RGB color)	17.8 ips

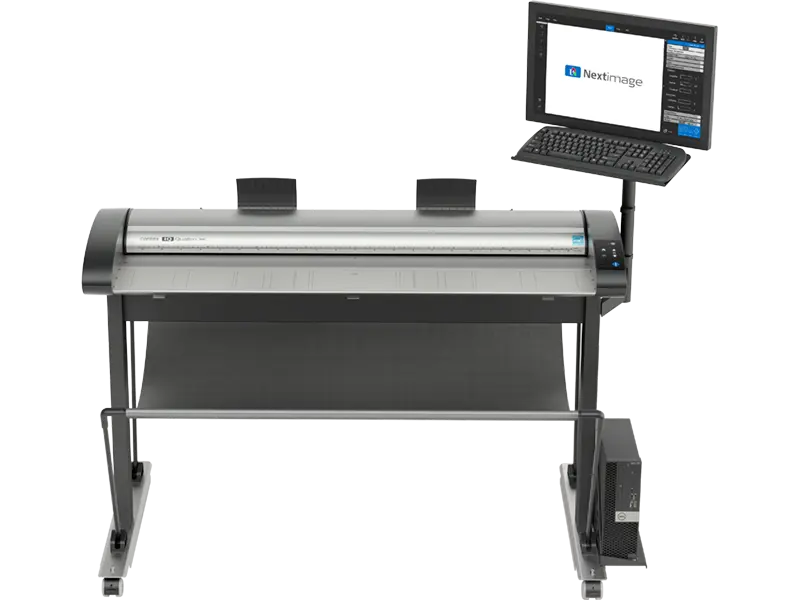

Contex IQ Quattro X 4490 ScanStation PRO

Overview
The Contex IQ Quattro X 4490 ScanStation PRO combines the advanced IQ Quattro X scanner with an integrated touchscreen workstation, creating a complete, standalone scanning solution. It’s designed for technical and professional environments where high-speed, precision scanning and streamlined workflows are essential.

Key Features & Benefits

5th Generation CIS Imaging
Delivers sharp, detailed scans with Color Fringe Removal and advanced image processing, ensuring accurate reproduction of technical drawings and maps.
Live Alignment & Smart Calibration
Maintains perfect sensor alignment for consistent results across large originals, reducing distortions and errors.
High Throughput & Speed
Supports rapid scanning with high data transfer rates, making it suitable for demanding production environments.
Integrated Touchscreen Workflow
A 22-inch multitouch console lets operators preview, crop, and manage scans directly at the scanner. No need for a separate PC, making scanning faster and more efficient.
Optimized Media Handling
Handles technical documents up to 44 inches wide and supports a range of media types, ensuring flexibility in daily operations.
Smart Workflow Tools
Preset scan profiles, auto-naming, folder templates, and intuitive touch gestures simplify operation and reduce operator error.
Energy-Efficient & Reliable
Built with durable components and low power consumption, ensuring cost-effective long-term use.
