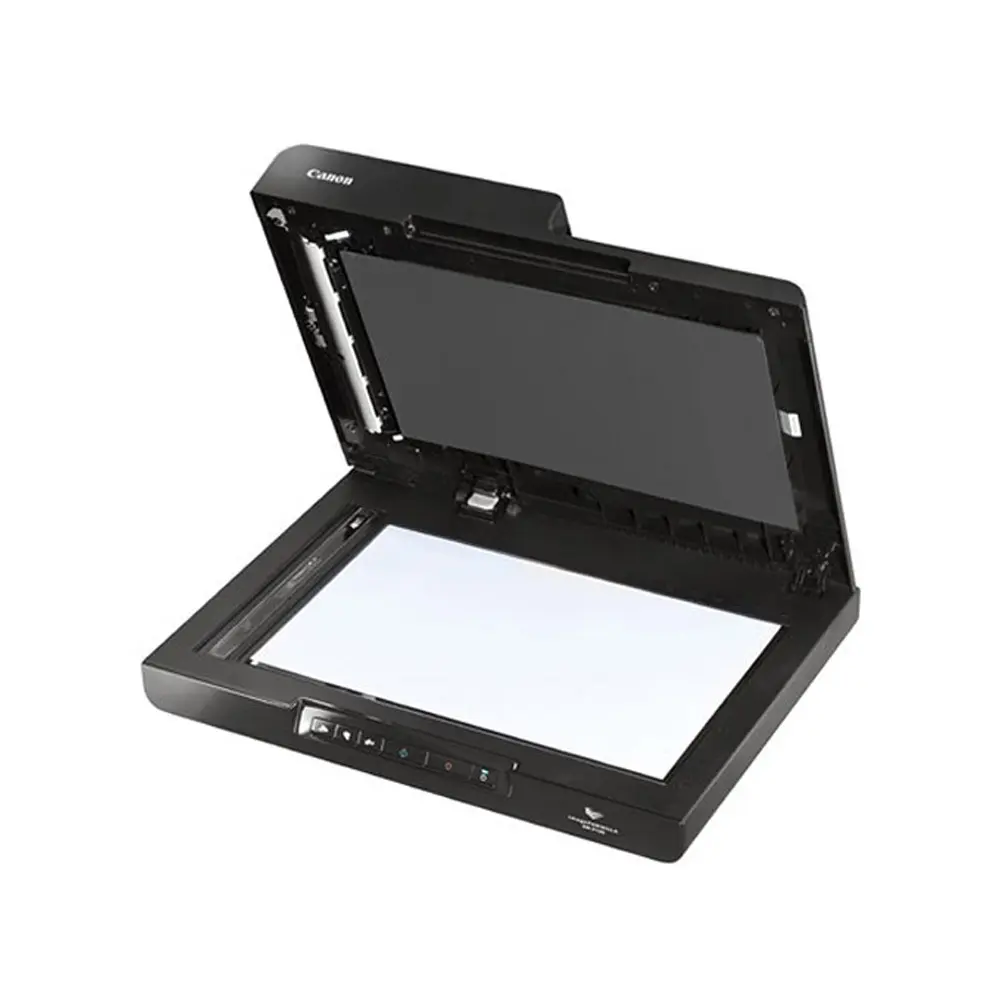

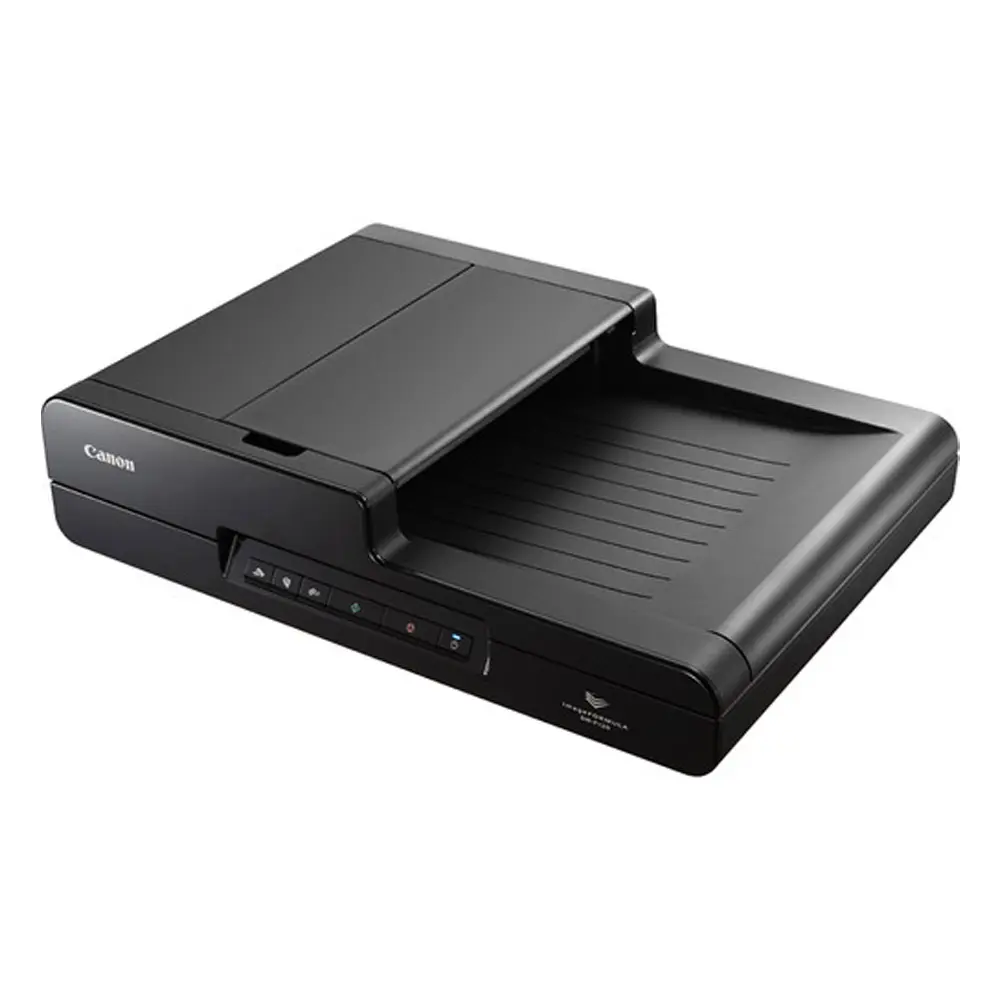

Canon imageFORMULA DR-F120 Document Scanner
Canon imageFORMULA DR-F120 Document Scanner - Image 2
Canon imageFORMULA DR-F120 Document Scanner - Image 3
Canon imageFORMULA DR-F120 Document Scanner - Image 4

Canon imageFORMULA DR-F120 Document Scanner

  • Scans in color at up to 10 ppm and 18 ipm
  • Black & white speeds at up to 20 ppm and 36 ipm
  • Auto detects color, page size, and orientation of text in mixed batches
  • Features to minimize jams and double feeds
  • EMC Captiva Cloud Capture RunTime
  • ENERGY STAR compliant
  • Eu RoHS and EU WEEE compliant
  • ErP Lot 6 directive for energy consumption compliant
  • One-year Advanced Exchange Service
SKU: 61d96fe58202199476b47e11 Category: Brand:
Sales Enquiry

Specifications Details
Type Desktop Type Flatbed Scanner with ADF
Scanning Sensor Unit CMOS CIS 1 Line Sensor
Optical Resolution 600 dpi / 1200 dpi
Light Source RGB LED
Scanning Side Front / Back / Duplex
Interface High speed USB 2.0
Dimensions (W × D × H) Tray Closed: 469 x 335 x 120 mm
Tray Opened: 469 x 335 x 151 mm
Weight Approx. 4.6 kg
Power Consumption Scanning: 19.9 W or less
Sleep Mode: 2.5 W or less
Power Off: Less than 0.5 W
Environmental Compliance RoHS and ENERGY STAR
Black and White (A4, 200 dpi) ADF: 20 ppm / 36 ipm
Colour (A4, 200 dpi) ADF: 10 ppm / 18 ipm
Output Resolution 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1200 x 1200 dpi, 2400 x 2400 dpi
Output Mode Black & White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour
Suggested Daily Duty Cycle Approx. 1,000 scans/day
Special Features Automatic Page Size Detection, Deskew, Auto Colour Detection, Text Enhancement, Skip Blank Page, Text Orientation, MultiStream, Preset Gamma Curve, Prescan, Edge Emphasis, Colour Dropout (RGB), Colour Enhancement (RGB), Moire Reduction, Character Emphasis, Prevent Bleed Through/Remove Background, Remove Shadow, Border Removal, Erase Dot, Erase Notch, Punch Hole Removal, Apply corrections for photos, Double Feed Detection (By Length), Automatic Feeder/Flatbed Detection, Rapid Recovery System
Windows ISIS / TWAIN Driver (Windows XP / VISTA / 7 / 8 / 10 / Server 2008 / Server 2012), CaptureOnTouch, EMC Captiva Cloud Runtime Controls
Consumables Exchange Roller Kit
Width ADF: 51 – 216 mm, Flatbed: up to 216 mm
Length ADF: 89 – 356 mm, Flatbed: up to 356 mm
Thickness ADF: 35 – 128 g/m² (0.05 – 0.15 mm)
Long Document Mode Up to 1000 mm
Card Scanning Width: 51 mm, Length: 89 mm, Thickness: 128 – 209 g/m²
Paper Separation Retard Roller Method
Feeder Capacity 50 sheets (80 g/m²)
Power Requirements AC 220-240V (50/60Hz)
Operating Environment 10 – 32.5 °C (50 – 90.5 °F), Humidity: 20 – 80% RH

Overview

Combining a flatbed with an automatic document feeder, Canon’s DR-F120 imageFORMULA Office Document Scanner will bring versatility to your workplace or home office. It offers an optical resolution of 600 dpi for detailed images and has a maximum scan speed of 20 ppm in black & white or 10 ppm in color. Color fidelity is maintained with a 24-bit depth and by using a duplexing 50-sheet automatic document feeder it can reach speeds of up to 36 ipm in black & white and 18 ipm in color.

Using the flatbed or ADF, you can scan documents up to 8.5 x 14″ Also, a Long Document Mode will allow the scanning of banners up to 39.4″ in length. A suggested daily volume of 800 scans ensures reliability over time and it features USB 2.0 connectivity. Additionally, it comes with Canon CaptureOnTouch software for handling scans and maximizing quality.

CANON CAPTUREONTOUCH SOFTWARE

  • Scans and connects to cloud-based services: Evernote, Microsoft SharePoint, Google Drive, Sugar Sync, OneDrive, Dropbox
  • Full auto mode
  • PDF/A & PPTX format output support

Product Datasheet
