| Display | |
|---|---|
| Display Size (in.) | 27 |
| Viewable Area (in.) | 27 |
| Panel Type | IPS Technology |
| Resolution | 2560 x 1440 |
| Resolution Type | QHD (Quad HD) |
| Static Contrast Ratio | 1,000:1 (typ) |
| Dynamic Contrast Ratio | 50M:1 |
| Light Source | LED |
| Brightness | 250 cd/m² (typ) |
| Colors | 16.7M |
| Color Space Support | 8 bit true |
| Aspect Ratio | 16:9 |
| Response Time (Typical GTG) | 5ms |
| Response Time (GTG w/OD) | 5ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Backlight Life (Hours) | 30000 Hrs (Min) |
| Curvature | Flat |
| Refresh Rate (Hz) | 75 |
| Variable Refresh Rate Technology | Yes |
| Blue Light Filter | Yes |
| Flicker-Free | Yes |
| Color Gamut | NTSC: 72% size (Typ) |
| sRGB | 104% size (Typ) |
| Pixel Pitch | 0.233 mm (H) x 0.233 mm (V) |
| Surface Treatment | Anti-Glare, Hard Coating (3H) |
| Compatibility | |
| PC Resolution (max) | 2560×1440 |
| Mac® Resolution (max) | 2560×1440 |
| PC Operating System | Windows 10/11 certified; macOS tested |
| Mac® Resolution (min) | 2560×1440 |
| Connector | |
| USB 3.2 Type C DisplayPort Alt mode only | 1 (65W power charger) |
| 3.5mm Audio Out | 1 |
| HDMI 1.4 | 1 |
| DisplayPort | 1 |
| Power in: | 3-pin Socket (IEC C14 / CEE22) |
| Audio | |
| Internal Speakers | 2.5Watts x2 |
| Power | |
| Eco Mode (Conserve) | 21W |
| Eco Mode (optimized) | 26W |
| Consumption (typical) | 31W |
| Consumption (max) | 33W |
| Voltage | AC 100-240V |
| Stand-by | 0.5W |
| Power Supply | Internal Power Supply |
| Additional Hardware | |
| Kensington Lock Slot | 1 |
| Cable Organization | Yes |
| Controls | |
| Physical Controls | Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power) |
| On Screen Display | Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu |
| Operating Conditions | |
| Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity (non-condensing) | 20% to 90% |
| Wall Mount | |
| VESA Compatible | 100 x 100 mm |
| Input Signal | |
| Frequency Horizontal | HDMI (v1.4): 31 ~ 115KHz, DisplayPort (v1.4): 31 ~ 115KHz, Type C: 24 ~ 86KHz |
| Frequency Vertical | HDMI (v1.4): 48 ~ 75Hz, DisplayPort (v1.4): 48 ~ 75Hz, Type C: 48 ~ 75Hz |
| Video Input | TMDS – HDMI (v1.4), PCI-E – DisplayPort (v1.4), Micro-Packet – Type C |
| Ergonomics | |
| Height Adjust (mm) | 130 |
| Swivel | 360º |
| Tilt (Forward/Back) | -3.5º / 28º |
| Pivot (Right/Left) | 90º / 90º |
| Weight (imperial) | |
| Net (lbs) | 14.8 |
| Net Without Stand (lbs) | 10.1 |
| Gross (lbs) | 19.3 |
| Weight (metric) | |
| Net (kg) | 6.7 |
| Net Without Stand (kg) | 4.6 |
| Gross (kg) | 8.7 |
| Dimensions (imperial) (wxhxd) | |
| Packaging (in.) | 30.5 x 18.3 x 5.5 |
| Physical (in.) | 24.2 x 16.06~21.18 x 9.2 |
| Physical Without Stand (in.) | 24.2 x 14.4 x 2.1 |
| Dimensions (metric) (wxhxd) | |
| Packaging (mm) | 775 x 465 x 140 |
| Physical (mm) | 614 x 408~538 x 233 |
| Physical Without Stand (mm) | 614 x 366 x 53 |
| General | |
| Regulations | RoHS, WEEE |
| PACKAGE CONTENTS | VG2709-2K-MHDU x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, Quick Start Guide x1 |
| Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
| Warranty | *Warranty offered may differ from market to market |

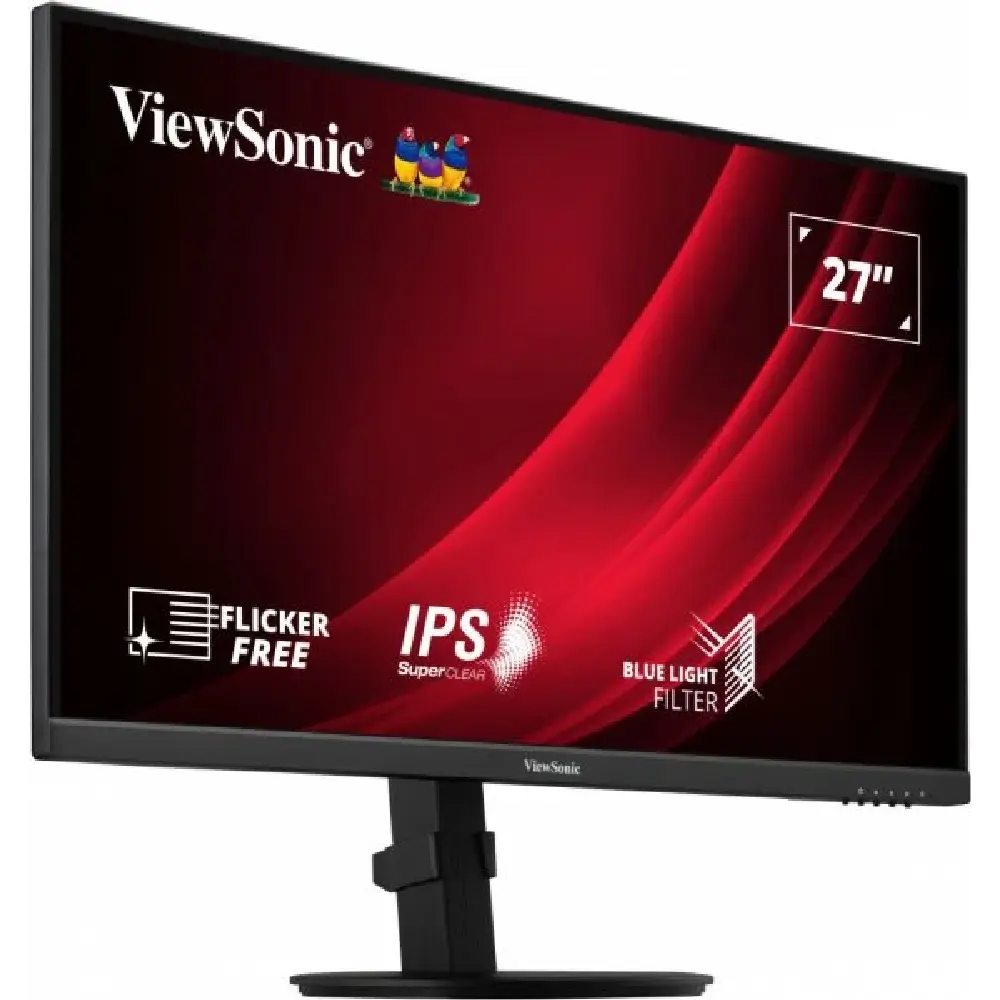

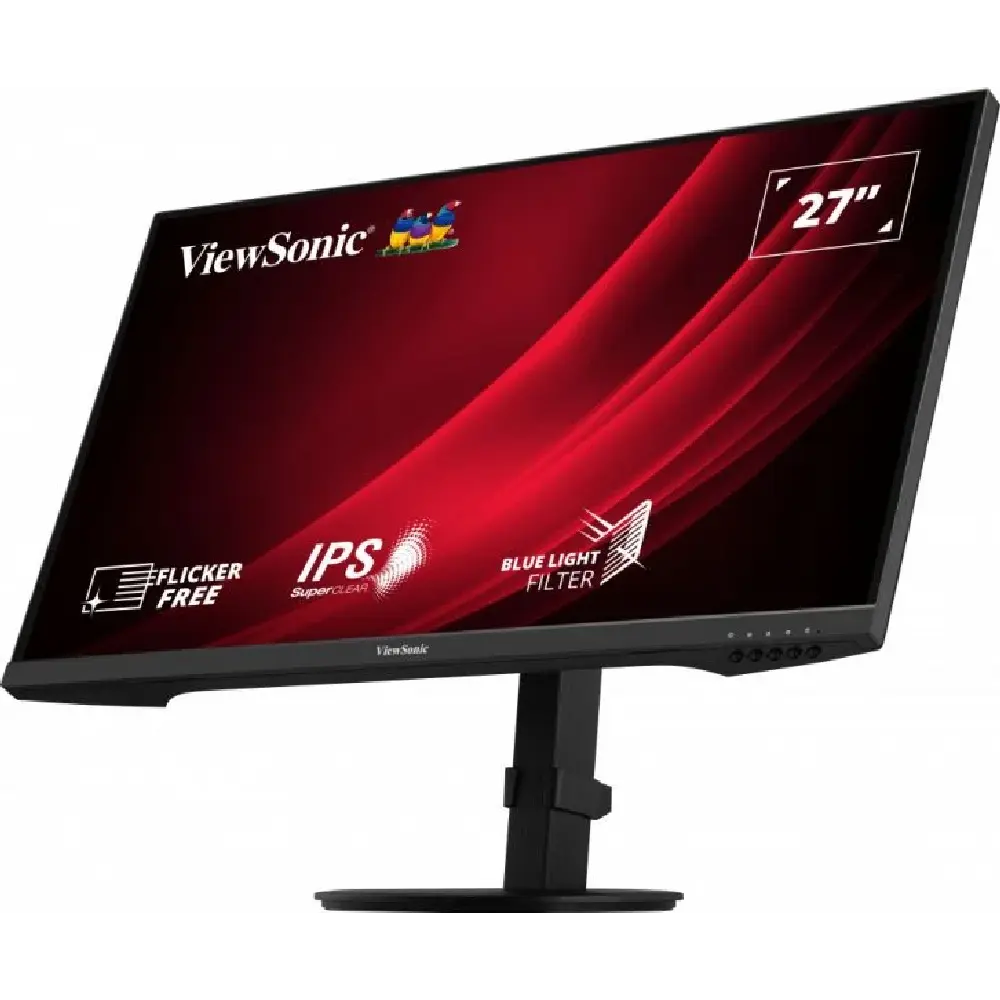

VIEWSONIC VG2709-2K-MHDU
VG2709-2K-MHDU 27” QHD Monitor with Dual Speakers SuperClear® IPS panel with QHD 2560 X 1440 resolution HDMI, Display Port and USB-C inputs for simple connectivity and 65W power delivery Super narrow bezel with dual 2.5W speakers Ergonomic tilt, swivel, pivot and height adjustment capabilities 75Hz Refresh rate for fluid visuals
- SuperClear® IPS panel
- QHD 2560 X 1440 resolution
- Dual 2.5W speakers
- 75Hz Refresh rate
OVERVIEW
The ViewSonic VG2709-2K-MHDU is a 27” QHD monitor featuring HDMI, Display Port and USB-C inputs for business and home use. Simplify your work with just one cable that provides audio and video, 65W power transfer. The variable refresh rate, eye-care technology, and various ViewMode presets cater for optimal screen performance and comfortable viewing without tearing or stuttering. Expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at low energy consumption.
Ergonomic Workstation with One Cable Solution
Discover a monitor to simplify your work, boost your productivity, and provide comfort in your workspace thanks to one cable solution and ergonomic design


Simplify your work with just one cable
The VG2709-2K-MHDU allows for a streamlined workflow and eliminates the need for dongles and plug-in attachments. USB Type-C offers seamless video, audio, and 65W power transfer.
USB Type-C
65W Power Charge
Audiovisual Transfer

Extraordinary Wide-Angle Vision
Enjoy vivid colors with consistent brightness and amazing accuracy no matter the vantage point. SuperClear® IPS monitor features ultra-wide 178-degree vertical and horizontal viewing angles that deliver the same image quality with true color accuracy and consistency from screen to print.
SuperClear® IPS

QHD 2560×1440
This 27” diagonal screen with QHD 2560 X 1440 resolution doubles the number of pixels offered by FHD 1080p, providing unparalleled work quality for detail-minded professionals.
QHD 2560×1440

HDR10 Delivers Stellar Contrast and Color Accuracy
Compatible with the industry-standard HDR10 High Dynamic Range, this monitor delivers highly defined color, brightness, and contrast greatly exceeding the capabilities of ordinary SDR products.
HDR10

Complete Ergonomic Flexibility
Effortlessly swivel the display up to 360° degrees, tilt up to -3.5°~28° degrees, raise up to 130 mm, and pivot up to 180° degrees for portrait viewing. The VG2709-2K-MHDU offers a full range of convenient flexibility for all tasks and workflows.
Swivel, Tilt, Pivot and Height Adjustment

Connection Flexibility
HDMI, Display Port, and USB-C inputs give you the freedom to connect your monitor to a wide range of devices.
DP / HDMI / USB-C

Build-in Speakers
Integrated with dual 2.5-watt stereo speakers as well as incredible screen performance, this monitor provides complete multi-sensory immersion.

Borderless Design for Seamless Viewing
Break free from bulky bezels. The multi-monitor capabilities are housed within a 3-side borderless screen that offers a clean aesthetic.

Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.
Flicker-Free & Blue Light Filter

Variable Refresh Rate Delivers Smooth, Continuous Visuals
Variable Refresh Rate technology eliminates screen tearing and choppy frame rates for smooth and seamless visuals in every scene.
Variable Refresh Rate

Color Rendering Options
ViewSonic’s ViewMode offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver optimized, satisfactory viewing.
ViewMode: Game/Movie/Web/Text/Mono

Low Energy Consumption
Designed with energy efficiency in mind, ViewSonic’s Eco Mode successfully reduces carbon footprint and significantly lowers overhead office costs.
Eco Mode

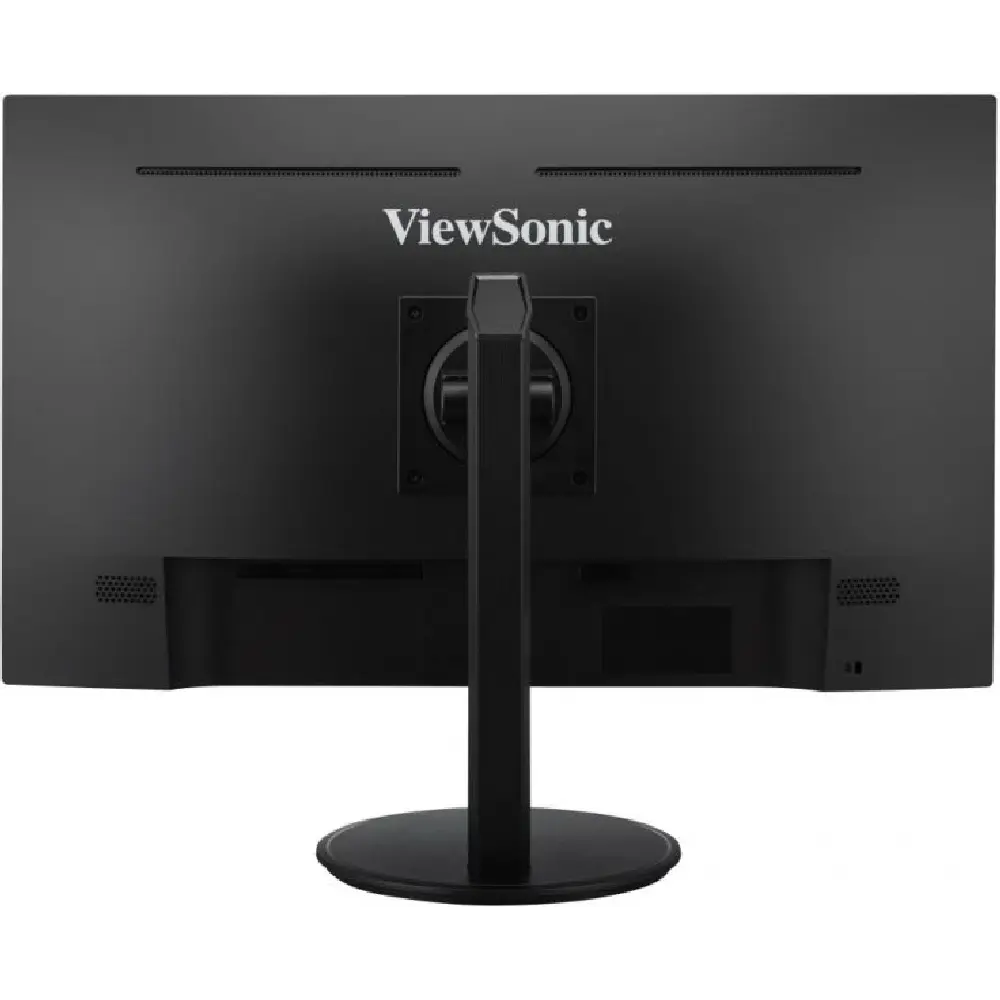

Dimension & I/O Ports
Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.
100mm x 100mm VESA mount

- Menu Control Panel
- VESA Compatible
(Wall Mount 100 x 100mm) - HDMI
- Display Port
- USB Type-C
- Audio Out
- AC In
- Speaker
