| Display | |
|---|---|
| Panel Size | 86″ |
| Panel Type | TFT LCD Module with DLED Backlight |
| Resolution | 4K UHD 3840×2160 (Pixels) |
| Display Area (mm) | 1895.04(H) x 1065.96(V)mm (85.6” diagonal) |
| Aspect Ratio | 16:9 |
| Colors | 1.07B colors (10bit) |
| Brightness | 400 nits (typ.) |
| Contrast Ratio | 4000:1 |
| Response Time | 6.5ms |
| Viewing Angles | H = 178, V = 178 typ. |
| Backlight Life | 30,000 Hours (Min) |
| Surface Treatment | Hardness: 9H Anti-glare coating |
| Orientation | Landscape |
| Performance & Hardware | |
| Processor | ARM quad-core Cortex-A55 |
| RAM | 2GB DDR4 |
| Storage | 16GB |
| Touch | |
| Type/ Tech | Ultra Fine Touch Technology |
| Touch Point | 20 points touch, 2 points writing |
| Input | |
| HDMI | 2.0 x2 (3840×2160 @60Hz) (HDMI2 port support ARC function) |
| RGB / VGA | x1 |
| Audio | x1 (PC audio in) |
| RS232 | x1 |
| OPS | x1 (Optional Intel Standard OPS) |
| WiFi | x1 (Optional VB-Wifi-002) |
| Output | |
| Audio | x1 (Earphone out) |
| Connectivity | |
| LAN | RJ45: x1 |
| USB | Type A: USB2.0 Front x2 (SmartPort™ USB); Rear x2 Type B: x1 for HDMI/VGA touch |
| Audio & Speakers | |
| Speakers | 15W x 2 subwoofers |
| Software | |
| Embedded OS | Android 9 |
| Basic Annotation Software | myViewBoard Whiteboard |
| Pro Annotation Software | myViewBoard Whiteboard for Windows (Embedded in optional Windows Slot-in PC) |
| Wireless Presentation | myViewBoard Display |
| All-in-one USB port | Front “SmartPort™ USB” to all channels. |
| Simple LAN sharing | 10/100M for Android & Slot-in PC |
| Power | |
| Light Sensor | Yes |
| Voltage | 162-240VAC +/- 10% |
| Consumption | On: 314W (typ.) / Off: <0.5W |
| Ergonomics & Environment | |
| Wall Mount (VESA®) | 800×600 |
| Operating Conditions | Temperature: 0°C to 40°C; Humidity: 10% ~ 90% RH non-condensing |
| Dimensions | |
| Physical (inch / mm) | 1957×1160×87 mm / 77×45.7×3.4 in |
| Packaging (inch / mm) | 2112×280×1283 mm / 83.1x11x50.5 in |
| Weight | |
| Net (lb / kg) | 66.7kg / 147 lb |
| Gross (lb / kg) | 84.2kg / 185.6 lb |
| Regulations | |
| Certifications | BIS, CB, CE, LBL |
| Package Contents | |
|
1. Power cable (3 meters) 2. Remote control 3. USB cable (3 meters) 4. Touch pen x 2 5. Quick start guide 6. RS232 adapter 7. Clamp x 5 8. Screw x 8 9. HDMI cable (3 meters) |
|
| Compatible Slot-in PC | |
| VPC12-WPO / VPC25 / VPC2C / VPC27 | |
IFP
Sales Enquiry

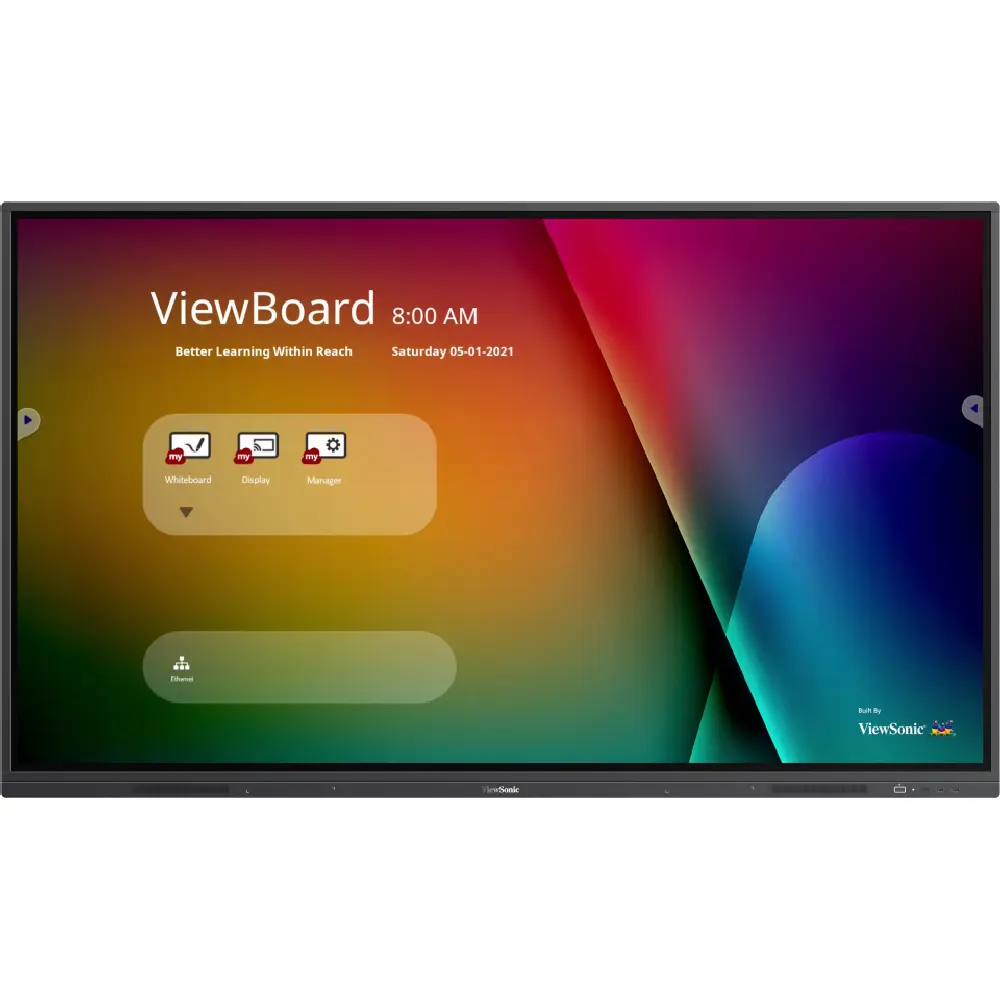

Viewsonic IFP8632
- myViewBoard™ suite with whiteboard, wireless casting and remote device management
- Front-facing dual speakers for better engagement
- Pen-on-paper writing experience with Ultra Fine Touch Technology
- Quad Core CPU powered by Android 9.0 OS
- Low blue light certified
Overview
The ViewBoard® 32 series provides a comprehensive solution for schools and teachers looking to deliver more interactive and engaging lessons. The 4K UHD display features bonding technology for clearer colors and less glare. A 20-point touchscreen interface allows users to collaborate naturally either with a finger or one of the ViewBoard styluses. The built-in access to the myViewBoard suite brings together all of the hardware with a seamless software integration. The display also features Ultra Fine Touch Technology that delivers a paper-like writing experience with instant response and high accuracy, while dual-tip pen support allows you to simultaneously write or draw with two different colors. Users will also enjoy additional connectivity via the SmartPort™ USB and multi I/O ports, including HDMI/VGA, when looking to connect other devices for further classroom support. The included myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools including simple, wireless casting capability with secure single sign-on, innovative collaboration tools, easy conversion of common files, and much more. Additionally, myViewBoard Manager offers a single-point management system capable of simultaneously controlling multiple displays.
Education essentials
Get a full suite of tools designed with educators in mind
_pc.webp)
Quick connection. Simple.
The myViewBoard Display allows wireless mirroring from compatible browsers on any network without cables or apps.
Flexible learning tools
Built-in the myViewBoard WhiteBoard makes collaboration easy.
Efficient in remote management
The myViewBoard Manager for remote device management. Reduce IT workload with scheduled device updates, message broadcast, and system changes applied across multiple devices.
_pc.webp)
Easy collaboration
Designed for sharing ideas and student collaboration, the ViewBoard® 32 series include 20 touchpoints and ultra-fine touch dual-pen function without any setup. Automatically match colors and thicknesses to the pen without switching mode.
*Image shown is for illustration purposes only. Actual product may vary.
Surprising sound
Dual built-in 10W front-facing speakers take multi-media lessons to the next level.
Fully integrated inputs
Expand presentation capabilities and save time with multiple, easy-access HDMI, VGA, and USB ports.
Shared via USB port
SmartPort™ shared front USB ports for internal & external PCs.
A stand-alone computer
Unlock the full functionality of the ViewBoard® 32 series with an optional slot-in PC complete with Intel Core CPU standard OPS. All slot-in PC add-ons come preloaded with myViewBoard Whiteboard for Windows.
Web camera
Optional top-mounted webcam available for remote teaching and learning.
Fast Wireless Transmission
Optional Wifi module for the ViewBoard® 32 series. Support dual frequency 2.4GHz and 5GHz bandwidth, along with 802.11AC standard. It helps run lessons smoothly and get a better student engagement.
