| Display | |
|---|---|
| Panel Size | 86″ |
| Type/Tech | TFT LCD module with DLED backlight |
| Display Area (mm) | 1895.04*1065.94mm |
| Aspect Ratio | 16:9 |
| Native Resolution | 4K60hz |
| Colors | 10 bits |
| Brightness | 400(Typ.) |
| Contrast Ratio | 1200:1 |
| Response Time | 8ms(Typ.) |
| Viewing Angles | H = 178, V = 178 typ. |
| Backlight Life | 30,000hr(min) |
| Surface Treatment | Hardness: 7H, Coating: AG coating |
| Bezel | Slim |
| Orientation | Landscape |
| Platform | |
| Processor | Cortex-A73*2 + Cortex-A53*2 1.5Hz |
| RAM | 3GB DDR4 |
| Storage | 16GB |
| Touch | |
| Type/Tech | IR Recognition |
| Touch Resolution | 32767W*32767D |
| Touch Point | 20 points, 5 writing |
| INPUT | |
| HDMI | Front*1, Rear*2, All ports HDMI2.0 |
| RGB / VGA | 1 |
| DisplayPort | DP1.2*1 |
| Audio | PC audio in (3.5 mm)*1 |
| RS232 | x1 |
| OPS | 1 |
| OUTPUT | |
| HDMI | x1, up to 4K60hz |
| Audio | 3.5mm Earphone Out *1, SPDIF*1 |
| SPDIF | 1(optical) |
| LAN | |
| RJ45 | *2, 10M/100M |
| USB | |
| Type A | USB2.0 *4 (Front:*2 Rear:*2), USB3.0: N/A |
| Type B | For touch (Front*1, Rear*1) |
| Speakers | |
| SPEAKERS | 15W x2 |
| Top Camera Plate | |
| Top Camera Plate | Yes |
| Compatibility | |
| RGB PC/HDMI PC | VGA: 1080p, HDMI: 4K |
| HDMI | 3840×2160 |
| DisplayPort | 3840×2160 |
| Embedded OS | |
| Embedded OS | Android 8.0 |
| Bundle Software | |
| Basic Annotation Software | myViewBoard for Android |
| Pro Annotation Software | myViewBoard for Windows (embedded in VPC12) |
| Wireless Presentation with Touch Feedback | Viewboard Cast: Yes |
| ViewSonic Launcher | Embedded |
| Special Features | |
| All-in-one USB port | Front “SmartPort USB” to all channels |
| LAN Sharing | 10M/100M share to OPS |
| Power | |
| Voltage | PB model: 100-240VAC +/- 10% Wide Range |
| Ergonomics | |
| Wall Mount (VESA®) | 400*700 |
| Operating Conditions | |
| Temperature (ºC) | 0°C to 40°C |
| Humidity | 20% ~ 80% RH Non-Condensing(working) |
| Dimensions (W x H x D) | |
| Physical (inch / mm) | 2006.4*1189.1*118(mm), 79*46.8*4.7(inch) |
| Packaging (inch / mm) | 2140*1340*280(mm), 84.3*52.8*11(inch) |
| Weight | |
| Net (lb / kg) | 176lb / 79.8kg |
| Gross (lb / kg) | 219.4lb / 99.5kg |
| Regulations | |
| Regulations | EMC/CE-EU, CB-EU/IEC62368, RoHS Green BOM & RoSH DoC, REACH, WEEE (Doc & Disassembly report), ErP, EAC(local apply), UKrSEPRO(local apply), RCM |
| ProAV Certificate Readiness | |
| Crestron | On-going |
| Extron | On-going |
| AMX | Self-certificate |
| Package Contents | |
| Contents |
1. US/EU/UK/AU power cord 3M, no PE bag 2. QSG 3. Compliance statement 4. HDMI cable 3M*1 5. Touch USB cable 3M*1 6. Touch PEN *2. Extra tip: Thick*2, thin*1 7. Remote control with AAA batteries (VS version) 8. Webcam plate with screws pack (compatible with Logi CC4000e) 9. Pen tray*1 (two pen, detachable, mount for both side) 10. Wall mount screws |
| Compatible Slot-in PC | |
| Compatible Slot-in PC | VPC12 series |
IFP
Sales Enquiry

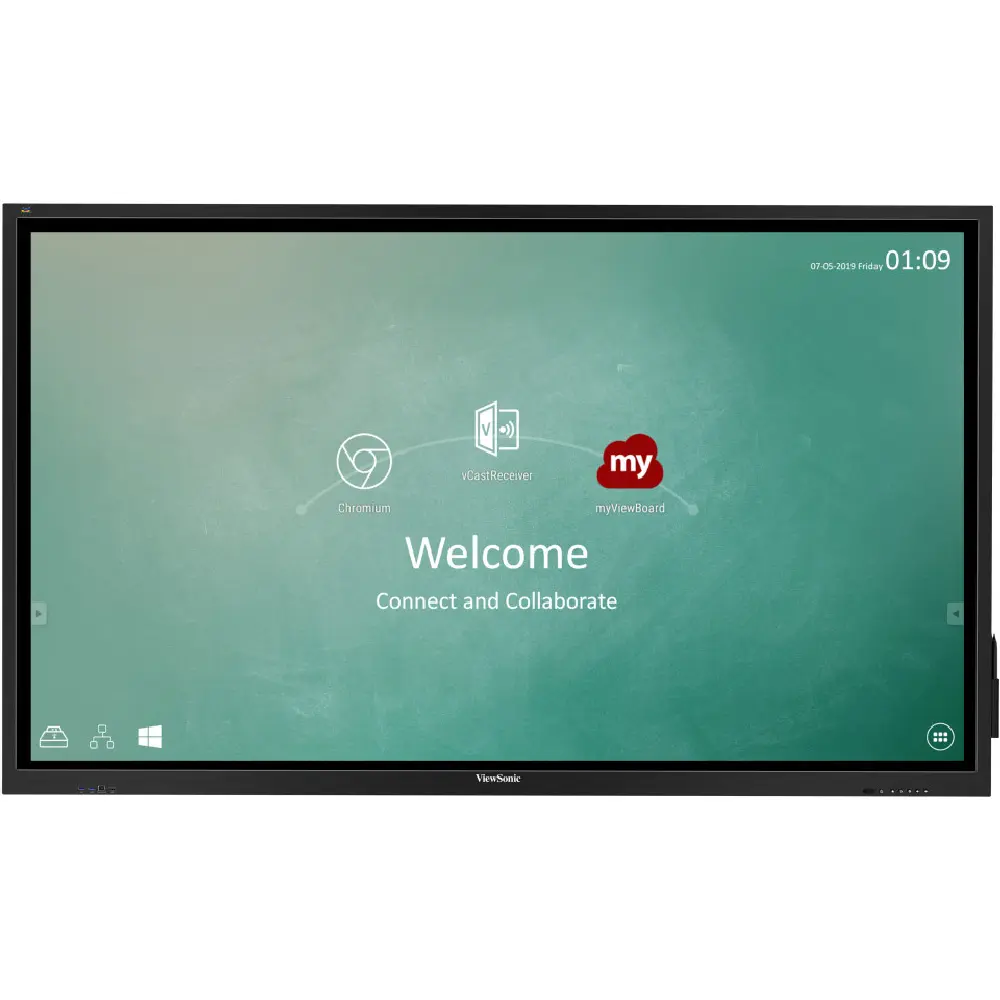

ViewSonic IFP8630
- UFT (Ultra Fine Touch) Technology
- myViewBoard digital whiteboard software
- Dual-pen writing with 3mm/8mm diameter pen tips
- Ambient Light Sensor
- Wireless presentation across devices
Overview
The ViewBoard IFP30 series embraces ultra fine touch technology to offer fine precision writing. It increases the writing accuracy with 2mm height sensitivity while allowing for dual-pen writing with both 3mm & 8mm diameter pens. It’s also very responsive to distinguish the touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard® whiteboarding software to provide more accommodative features such as to collaboration on the go; and it’s further complimented by native casting including Miracast, Airplay, and Chromecast; as well as the front I/O ports including HDMI, Touch USB, and USB for easy access. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.
Ultra Fine Touch Technology
It provides fine precision writing with a 3mm diameter pen tip
Dual-Pen
Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colors and thicknesses
Slot-in PC
Intel OPS PC allows for efficient deployment and easy maintenance (Optional)
I/O Ports
CONTROL PANEL- USB X 2
- TOUCH USB
- HDMI IN
- HDMI OUT
- SPDIF OUT
- TOUCH USB
- USB X 2
- DISPLAY PORT IN
- HDMI IN X 2
- VESA® Wall Mount
- (700 x 400 mm)
- RS232 IN
- AUDIO OUT
- VGA IN
- LAN X 2
- PC AUDIO IN
