Monitor

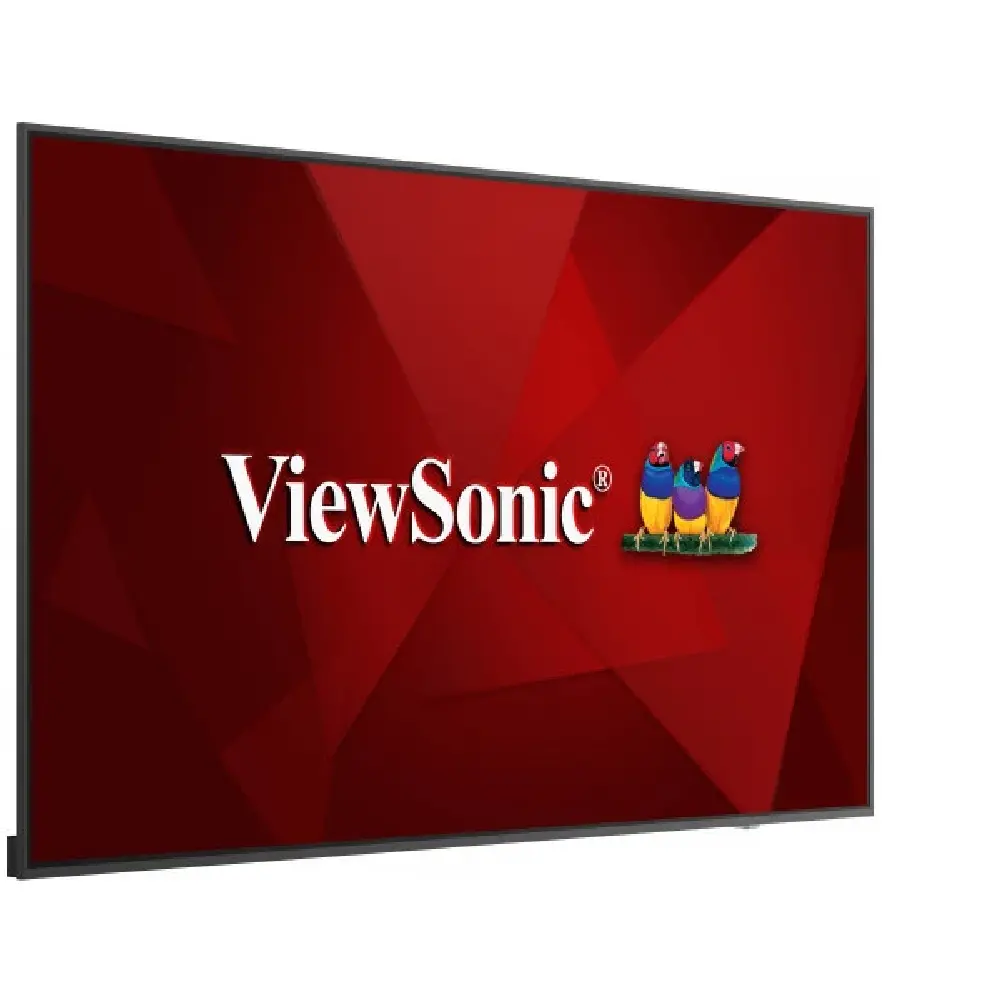

Viewsonic CDE7520

Easy cast function
Wireless presentation across devices and rooms
USB flash drive plug-and-play for photos, music & video
Multitasking with powerful embedded player & OPS PC slot
4K slim bezel presenation display

Category: Monitor Brand: Viewsonic

Sales Enquiry

Display
Panel Size	75″
Type/ Tech	TFT LCD Module. IPS type, DLED backlight
Display Area (mm)	1649.664(H) × 927.936(V) (75″ diagonal)
Native Resolution	3840 x 2160
Aspect Ratio	16:9
Colors	1.07G colors
Brightness	450 nits (typ.)
Contrast Ratio	1200:1 Typ., 5000:1 Max. (DCR enable)
Response Time	8 ms
Viewing Angles	H = 178, V = 178 typ.
Backlight Life	30,000 Hours (min)
Surface Treatment	Anti-glare, 3H hardness, Haze 25%
Bezel	Slim
Orientation	Landscape
Input
HDMI	x2
RGB / VGA	x1
DisplayPort	x1
Audio	x1 (3.5mm)
RS-232	x1
OPS Slot	x1 (Optional Intel OPS VPC12-WPO)
WiFi Slot	x1 (Optional WiFi module LB-WIFI-001)
Output
Audio	x1 (3.5mm)
SPDIF	x1 (Fiber)
Connectivity
LAN	RJ45: x1
USB	Type A: 2.0 Type A : x2 (USB Playback), 3.0 Type A : x1 (USB Playback)
Audio
Speakers	Max. 16W x2
Compatibility
RGB PC/HDMI PC	Up to 1920×1080@60Hz. Refer to timing table
HDMI	480i, 480p, 720p, 1080i, 1080p, 4K2K@60Hz
DisplayPort	480i, 480p, 720p, 1080i, 1080p, 4K2K@60Hz
Android Version	Android 8.0
Power
Voltage	100V-240V, 50/60Hz (AC)
Consumption	Normal 107 W, Max 300 W
Ergonomics
Wall Mount (VESA®)	400×200 mm
Operating Conditions
Temperature (ºC)	0 to 40°C
Humidity	20% ~ 80% non-condensing
Dimensions
Physical (inch / mm)	65.83 x 37.59 x 2.76 in / 1672.0 x 955.0 x 70.0 mm
Packaging (inch / mm)	71.97 x 43.23 x 8.66 in / 1828 x 1098 x 220 mm
Weight
Net (lb / kg)	29.30 kg / 64.60 lbs (w/o stand)
Gross (lb / kg)	41.7 kg / 91.93 lbs
Regulations
cULus, FCC, Energy Star, EPEAT, MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, Custom Union, UkrSEPRO, RCM, MEPS
Package Contents
1. CDE7520 presentation display 2. Remote control with batteries 3. Quick start guide 4. Power cables (1.5M) 5. HDMI cables x2 (1.5M/3M) 6. Wall mount screw 7. RS232 adapter

OVERVIEW

The ViewSonic® CDE7520 is a 75” 4K wireless presentation display. The built-in screen sharing software*, ViewBoard® Cast and Display, myViewBoard enable multiple users, whether on-site or on-line, to participate in conferences and share content with each other simultaneously, transforming the CDE7520 into a dynamic content hub. This reliable presenation display is equipped with a quad-core processor and internal memory, allowing constant multimedia play from internal storage or a USB flash drive. Supporting remote configuration and content management systems, the ViewSonic® CDE7520 is also suitable for diverse signage applications.

*Chrome, Android, Windows, Mac OS, and iOS compliant

*Miracast, Chromecast, and AirPlay support

Instant Casting without Dongle or app Installation

Any laptop with a browser

No setup required, just open a Chrome, Chromium, or Edge browser to share your content.

*built-in myViewBoard Display app to support wireless casting
