| Specification | Details |
|---|---|
| Model | MW3565-U-E2 |
| Panel | |
| Backlight | DLED |
| Panel Size | 65″ |
| Display Size (mm) | 1428.48 × 803.52 |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 1200 : 1 |
| Color Support | 1.07B |
| Response Time (ms) | 8 |
| Viewing Angle (H/V) | 178° / 178° |
| Glass | 4mm single-side anti-glare tempered glass |
| Lifespan (h) | 50000 |
| Pixel Pitch (H × V) (mm) | 0.37 × 0.37 |
| Refresh Rate (Hz) | 60 |
| Color Gamut | 72% |
| Surface Hardness | 9H (7 on the Mohs scale) |
| Haze Value | 25% |
| Touch | |
| Touch Control | Up to 40-point multi-touch (WIN: 40-point, Android: 32-point) |
| Touch Precision (mm) | ±1 |
| Touch Technology | Infrared touch |
| Touch Response Time (ms) | ≤ 2 (frame rate > 500Hz) |
| System | |
| CPU | 4 × A76 (2.4G) and 4 × A55 (1.8G) |
| CPU Frequency | 2.4 GHz |
| RAM / ROM | 8GB / 128GB |
| Operating System | Android 13.0 |
| Interface | |
| Video Input | 2 × HDMI 2.0 video input; 1 × DP video input; 1 × VGA video input; 1 × YPbPr video input; 1 × USB Type-C (Include DP) |
| Video Output | 1 × HDMI video output; 1 × DP video output |
| Audio Input | 1 × PC audio input, 3.5mm interface; 1 × LINE IN, 3.5mm interface; 1 × MIC (3.5mm & EARPHONE shared interface) |
| Audio Output | 1 × Earphone audio output, 3.5mm interface; 1 × LINE OUT, 3.5mm interface; 1 × SPDIF digital audio output (coaxial interface) |
| Other Interfaces | 4 × USB3.0; 1 × USB Type-B; 1 × USB Type-C; 1 × RS232; 1 × TF card slot |
| Network | 2 × RJ45, supports 10M / 100M / 1000M Base-T self-adaptive |
| Front Interfaces | 2 × front USB3.0; 1 × Type-C |
| Audio | |
| Speaker | Left channel: 1 × treble (5W) + 1 × bass (12W) Right channel: 1 × treble (5W) + 1 × bass (12W) |
| Wi-Fi | |
| Wi-Fi Configuration | Wi-Fi 6 + Wi-Fi 5, supports 2.4GHz / 5GHz |
| Wi-Fi Performance | 30m² coverage, 20m transmission distance in open space |
| Bluetooth | |
| Bluetooth Version | 5.2 |
| Bluetooth Performance | 10m transmission distance in open space |
| OSD | |
| Multi-Language | Supports 27 languages including Simplified Chinese, Traditional Chinese, English, Japanese, Arabic, French, Spanish, Portuguese, German, Italian, Dutch, Polish, Korean, Vietnamese, Russian, Thai, Hungarian, Croatian, Romanian, and more. |
| VESA | |
| Wall Mount Hole (mm) | 500 × 400 |
| Wall Mount Screw | 4-M8 screw hole |
| General | |
| Power Supply | AC 100 to 240 V, 50 / 60 Hz |
| Overall Power Consumption (W) | ≤220 (without OPS) |
| Standby Power Consumption (W) | <0.5 |
| Product Dimensions (W × H × D) (mm) | 1498 × 905 × 89 |
| Package Dimensions (W × H × D) (mm) | 1632 × 1081 × 222 |
| Operating Temperature | 0 to 50°C |
| Weight (kg) | Net weight: 40.5 Gross weight: 49.0 |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Temperature | -20 to 60°C |
| Storage Humidity | 0% to 95% (non-condensing) |
| Accessories Included | 1 × Power Cable; 2 × Touch Pen; 1 × Quick Guide; 1 × Infrared Remote Control; 1 × Wall Mount Bracket |
| Certification | |
| Certification | CE-EMC, CE-RED, CB/LVD, FCC, FCC-ID |
IFP
Sales Enquiry

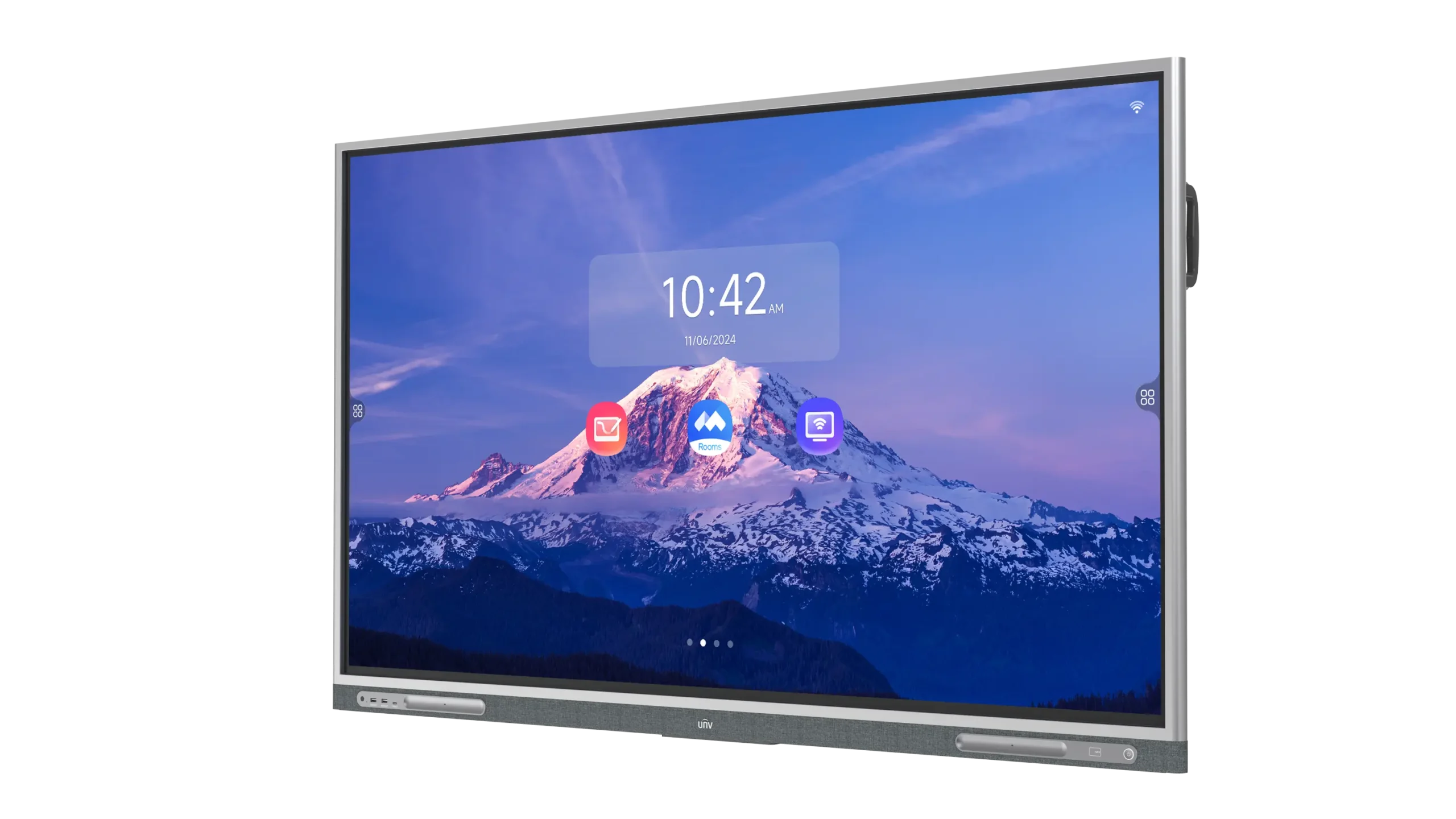

MW3565-U-E2
- 65” Ultra HD 4K display
- 40-point multi-touch support
- Android 13 operating system
- 8GB RAM & 128GB storage
- Wi-Fi 6 & Bluetooth 5.2
- Anti-glare tempered glass
- Multiple connectivity ports
- Built-in stereo speakers
Overview
The UNV MW3565-U-E2 is a next-generation 65-inch 4K interactive display built to enhance collaboration, communication, and productivity in modern educational and professional environments. Designed for classrooms, conference rooms, training centers, and hybrid workspaces, it combines ultra-clear visuals, intelligent touch interaction, wireless collaboration, and powerful system performance into one seamless solution.
With a premium UHD display, advanced multi-touch technology, and smart wireless connectivity, the MW3565-U-E2 transforms meetings and presentations into engaging, highly interactive experiences.
Immersive 4K Interactive Experience
Featuring a 65-inch Ultra HD display with vivid color reproduction and wide viewing angles, the MW3565-U-E2 delivers sharp visuals for presentations, teaching materials, video conferencing, and collaborative discussions. Its anti-glare tempered glass improves visibility while reducing reflections, ensuring comfortable viewing even in brightly lit environments.
The display supports ultra-responsive multi-touch interaction, allowing multiple users to write, annotate, draw, and collaborate simultaneously with smooth and accurate touch performance.
Intelligent Collaboration & Wireless Sharing
The MW3565-U-E2 is designed to simplify teamwork and wireless collaboration. Users can instantly share screens from laptops, smartphones, and tablets, enabling faster idea sharing and more efficient meetings without complicated cable setups.
Built-in whiteboarding tools, annotation support, and real-time collaboration features make brainstorming sessions and classroom discussions more interactive and productive.
Powerful Performance for Modern Workspaces
Powered by an advanced octa-core processor with high-speed memory and storage, the display ensures smooth multitasking and responsive performance during demanding applications. Whether running presentations, educational software, cloud collaboration tools, or video conferencing platforms, the MW3565-U-E2 delivers stable and efficient operation.
The Android-based platform provides an intuitive user interface with quick access to applications, settings, and collaboration tools.
Optimized for Hybrid Meetings & Education
Equipped with extensive connectivity options including HDMI, USB Type-C, Wi-Fi, Bluetooth, and LAN connectivity, the display integrates effortlessly into modern meeting rooms and digital classrooms.
Its compatibility with conferencing platforms and external peripherals makes it ideal for:
- Smart Classrooms
- Corporate Meeting Rooms
- Training & Seminar Halls
- Hybrid Learning Environments
- Conference & Collaboration Spaces
- Presentation & Briefing Centers
Clear Audio & Seamless Communication
Integrated high-performance speakers provide clear and powerful audio for presentations, online meetings, and multimedia playback. Combined with its smooth touch response and wireless collaboration capabilities, the MW3565-U-E2 creates a fully connected communication experience.
Built for Productivity
From interactive teaching and team collaboration to digital presentations and remote communication, the UNV MW3565-U-E2 is engineered to improve workflow efficiency while delivering a modern, professional user experience. Its intelligent features, premium display quality, and powerful connectivity make it an ideal solution for organizations embracing smarter collaboration technologies.
