Motherboards

MSI PRO Z890-P WIFI

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2

Category: Motherboards Brand: MSI

Sales Enquiry

Specification	Details
Chipset	INTEL Z890
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory
Configuration	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support	9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. Overclocking Frequency	– 1DPC 1R Max speed up to 9200+ MT/s – 1DPC 2R Max speed up to 7200+ MT/s – 2DPC 1R Max speed up to 6400+ MT/s – 2DPC 2R Max speed up to 5600+ MT/s
Features	Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Note	– The DIMM slots on this motherboard only have single-sided latches. – Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
Ports	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Note	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
PCIe Configuration	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Configuration	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage
M.2 Configuration	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA	4x SATA 6G
Note	*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Support	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
Ports	1x Thunderbolt4 ports (Rear)
Performance	Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB
Configuration	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN
Ports	Realtek® 8126 5Gbps LAN
Internal IO
Connectors	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Wireless LAN & Bluetooth
Chipset	Intel® Wi-Fi 7
Installation	The Wireless module is pre-installed in the M.2 (Key-E) slot
Performance	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
Notes	* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED Feature
Indicators	4x EZ Debug LED

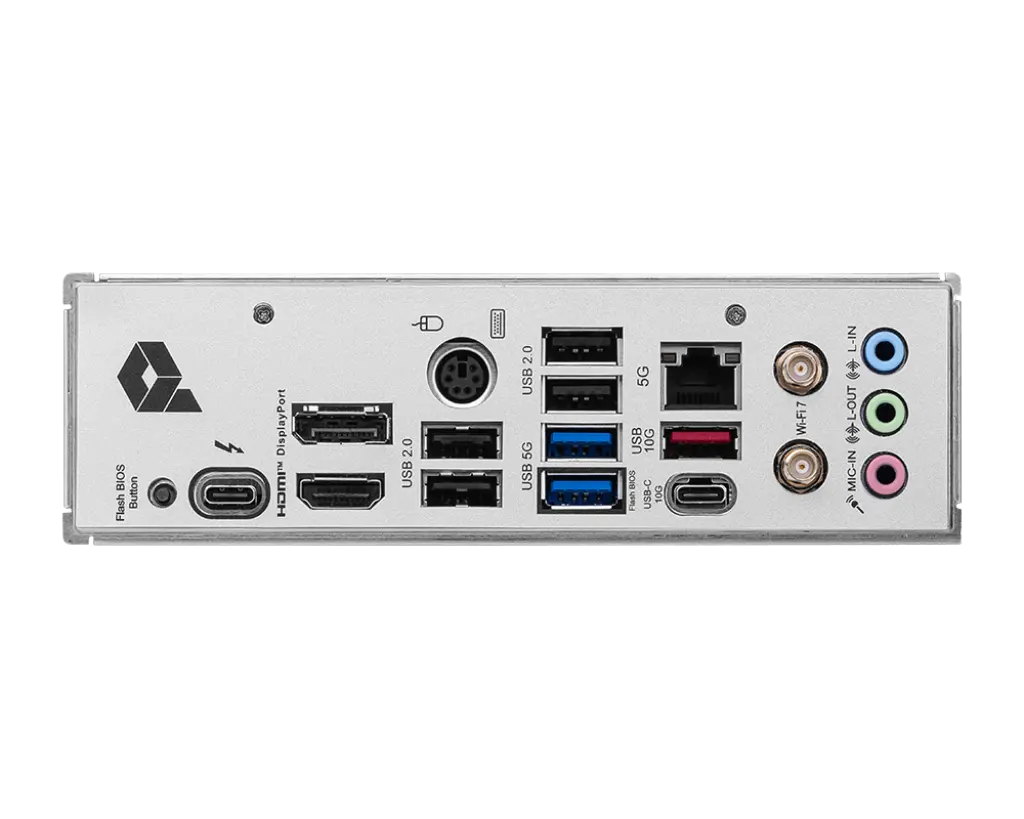

Back Panel Ports
Configuration	DisplayPort Mouse / Keyboard USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button Thunderbolt™ 4 40Gbps (Type-C) HDMI™ USB 2.0 USB 5Gbps Type-A USB 10Gbps Type-C USB 10Gbps Type-A
Operating System
Support	Support for Windows® 11 64-bit
Box Content
INCLUDES
PCB INFO
	ATX 243.84mmx304.8mm

Overview

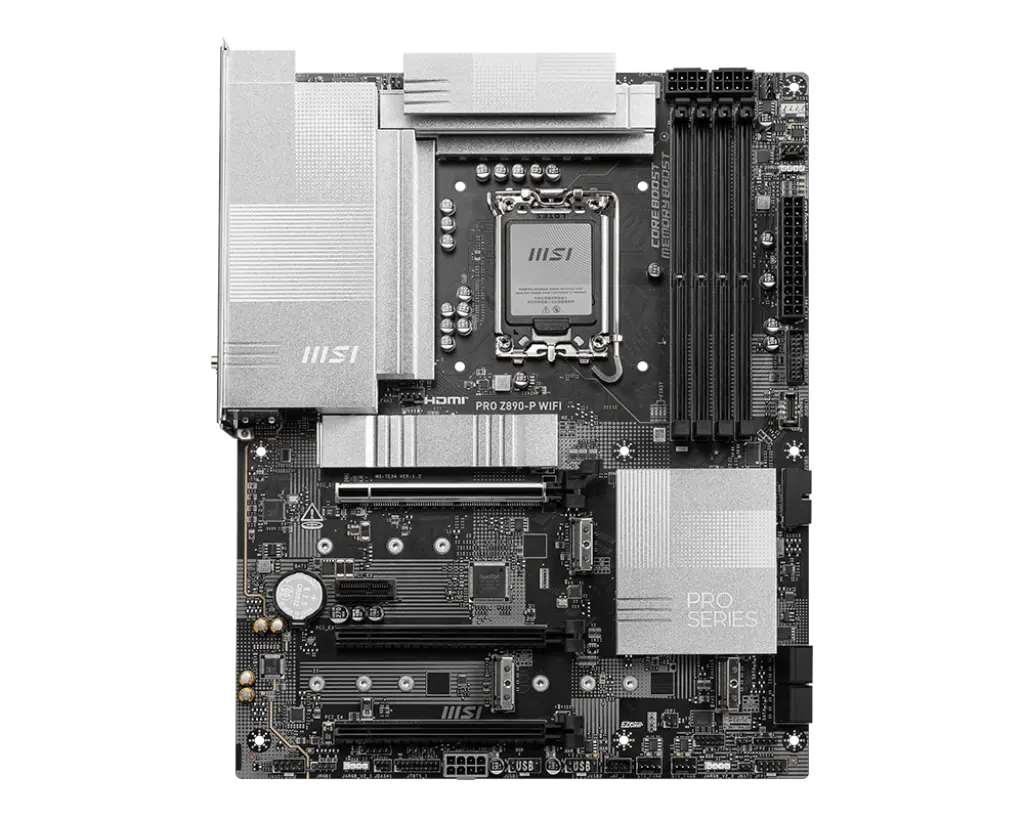

MSI PRO Z890-P WIFI – Efficient, Reliable, and Built for Professionals

The MSI PRO Z890-P WIFI is designed to deliver dependable performance and long-lasting reliability for professionals, creators, and productivity-driven users. Powered by the latest Intel Z890 chipset and LGA 1851 socket, it supports next-generation Intel Core processors, ensuring outstanding speed, stability, and efficiency for work, multitasking, and everyday computing.

Equipped with a durable 14+1+1+1 phase power delivery system, the PRO Z890-P WIFI offers clean and stable power for consistent system performance. Its Frozr AI Cooling technology, extended VRM heatsinks, and M.2 Shield Frozr thermal design maintain excellent temperature control even during heavy workloads.

The board supports DDR5 memory up to 9200+ MHz (OC), providing ultra-fast data transfer and improved responsiveness. With PCIe 5.0 x16 and four M.2 slots (including PCIe 5.0 M.2), it ensures lightning-speed storage and next-gen GPU compatibility, ideal for professionals who rely on high-performance data processing.

Connectivity is modern and future-ready, featuring Wi-Fi 7, 2.5G LAN, and a comprehensive range of USB 4.0 and high-speed ports for seamless networking and device integration. The Audio Boost 6 technology delivers clear, distortion-free sound for calls, media, and editing tasks.

Styled with MSI’s signature professional matte-black design, the PRO Z890-P WIFI reflects sophistication and durability — perfect for clean, minimalist workstations. Built to perform reliably day after day, it provides an ideal foundation for both business-grade and home office setups.

Key Features:

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
