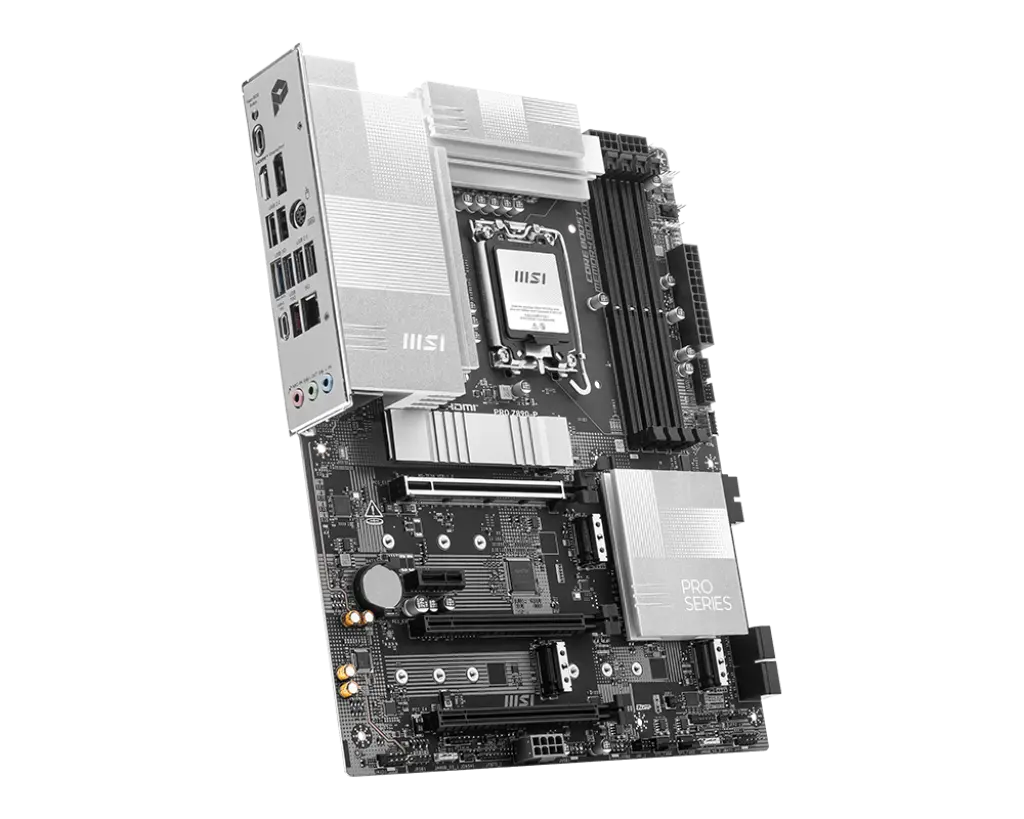

MSI PRO Z890-P

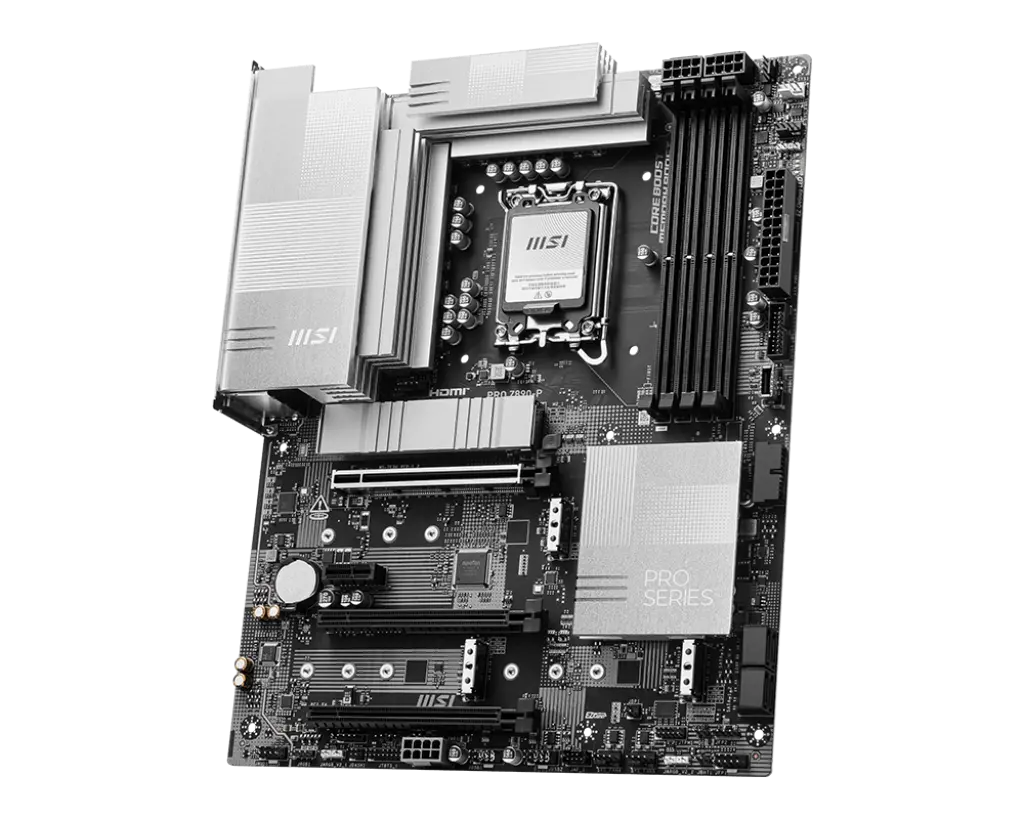

MSI PRO Z890-P - Image 2

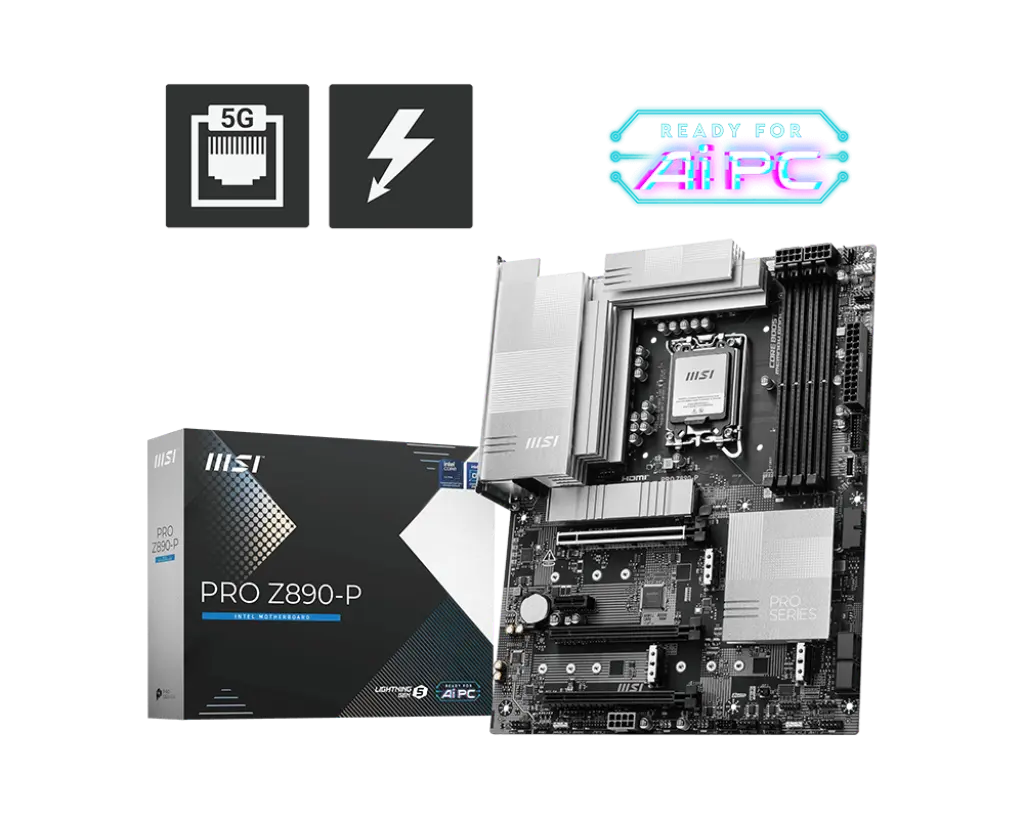

MSI PRO Z890-P - Image 3

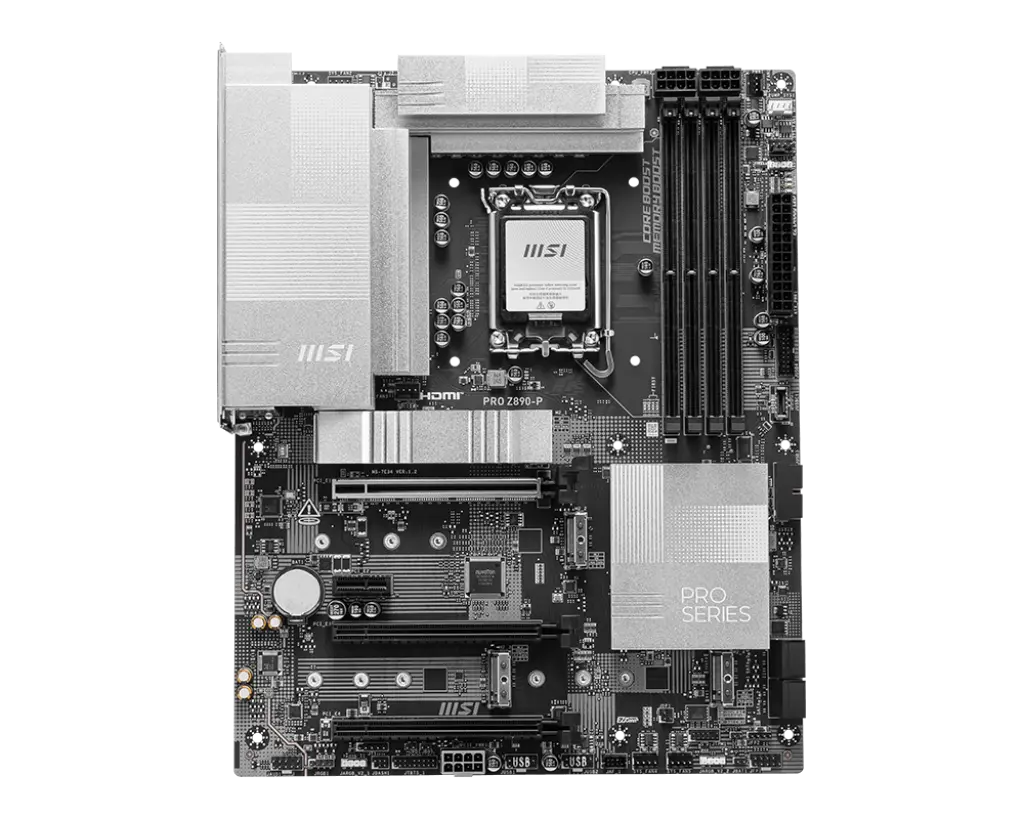

MSI PRO Z890-P - Image 4
MSI PRO Z890-P - Image 5

MSI PRO Z890-P

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
  • Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Category: Brand:
Sales Enquiry
Specification Details
Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory
Configuration 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency – 1DPC 1R Max speed up to 9200+ MT/s
– 1DPC 2R Max speed up to 7200+ MT/s
– 2DPC 1R Max speed up to 6400+ MT/s
– 2DPC 2R Max speed up to 5600+ MT/s
Features Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Note – The DIMM slots on this motherboard only have single-sided latches.
– Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
Ports 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
Configuration 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Configuration Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage
M.2 Configuration 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA 4x SATA 6G
Note *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Support Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
Ports 1x Thunderbolt4 ports (Rear)
Performance Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB
Configuration 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN
Ports Realtek® 8126 5Gbps LAN
Internal IO
Connectors 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
LED FEATURE
Indicators 4x EZ Debug LED

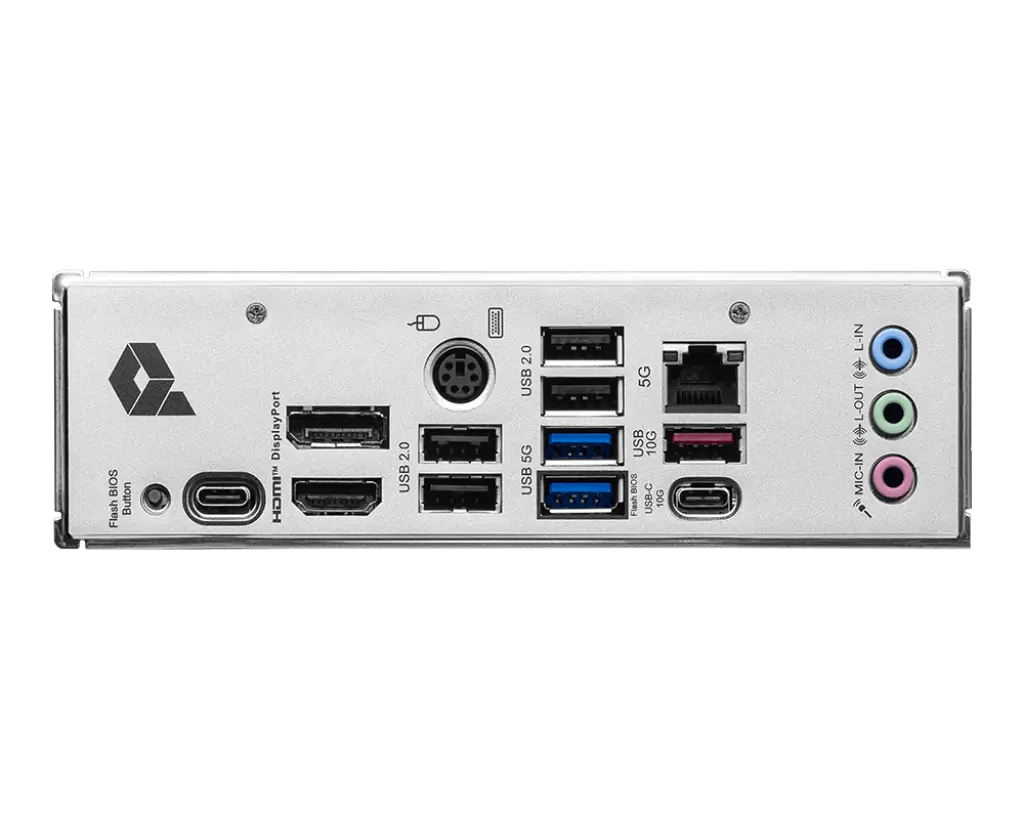

Back Panel Ports
Configuration

  1. DisplayPort
  2. Mouse / Keyboard
  3. USB 2.0
  4. 5G LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. Thunderbolt™ 4 40Gbps (Type-C)
  8. HDMI™
  9. USB 2.0
  10. USB 5Gbps Type-A
  11. USB 10Gbps Type-C
  12. USB 10Gbps Type-A
Operating System
Support Support for Windows® 11 64-bit
Box Content
INCLUDES
PCB INFO
ATX
243.84mmx304.8mm

Overview

MSI PRO Z890-P WIFI – Professional Performance, Built to Deliver

The MSI PRO Z890-P WIFI is a powerfully engineered ATX motherboard designed for professionals, creators, and enthusiasts who demand stability and modern connectivity without compromise. With support for the latest Intel Core processors via the LGA 1851 socket and the Intel Z890 chipset, this platform offers the headroom you need for today’s intensive tasks.

Featuring a robust 14+1+1 power-delivery design and an optimized 6-layer PCB, the PRO Z890-P WIFI keeps power delivery clean and stable under heavy loads. Thermal management is addressed with extended heatsinks and built-in M.2 Shield Frozr covers to ensure your system remains cool and efficient.

Memory support is generous and future-proof: four DDR5 UDIMM slots allow up to 256 GB of RAM with overclocking headroom into speeds well beyond JEDEC standards. Storage and expansion are equally advanced: one PCIe 5.0 x16 slot plus multiple PCIe 4.0 slots, and a range of M.2 and SATA interfaces give you high-speed NVMe storage and flexible build options.

Connectivity is modern and future-ready—integrated Wi-Fi 7, 2.5G LAN, Thunderbolt 4 (USB-C) support, and a comprehensive rear I/O deliver next-generation networking, display and peripheral compatibility. The audio subsystem delivers high-definition 8-channel output via a Realtek codec with Audio Boost enhancements for clear, immersive sound.

With its clean, professional aesthetic in matte black and subtle accents, the PRO Z890-P WIFI is ideal for clean workstation builds and refined PC setups. Whether you’re building for content creation, business tasks, or a capable gaming foundation, this board strikes the right balance between performance, features and value.

Key Highlights:

  • Supports Intel Core processors on LGA 1851 with Intel Z890 chipset

  • 14+1+1 phase VRM power design, 6-layer PCB for stability

  • DDR5 memory support up to 256 GB with high overclocking potential

  • PCIe 5.0 x16 slot, multiple PCIe 4.0 slots, broad storage support (M.2 + SATA)

  • Integrated Wi-Fi 7, 2.5G LAN, Thunderbolt 4 / USB-C connectivity

  • 8-channel HD audio with Audio Boost technology

  • Sleek professional design suited for productivity and workstation-centric builds
