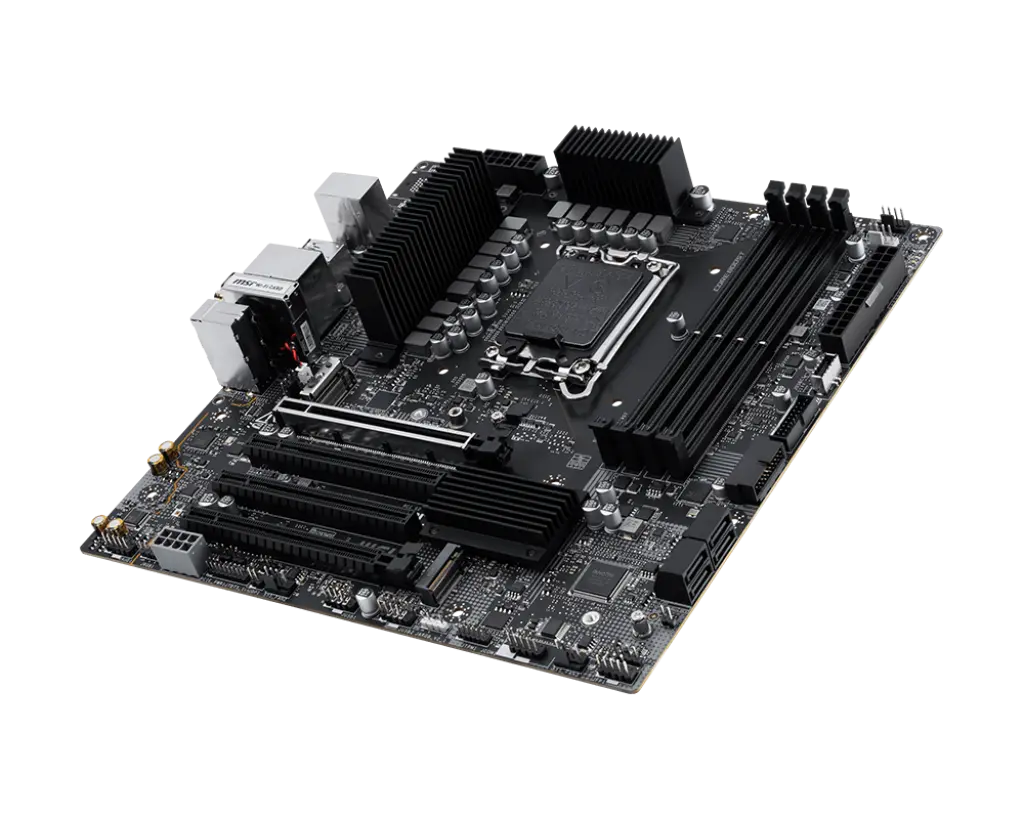

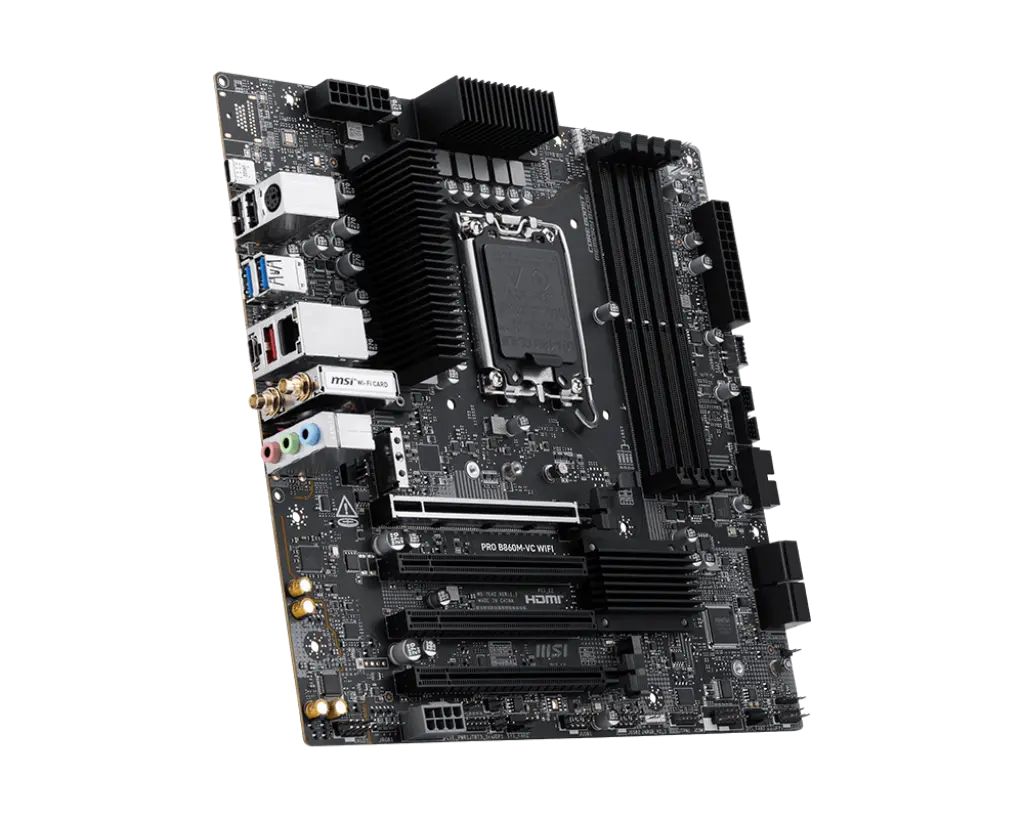

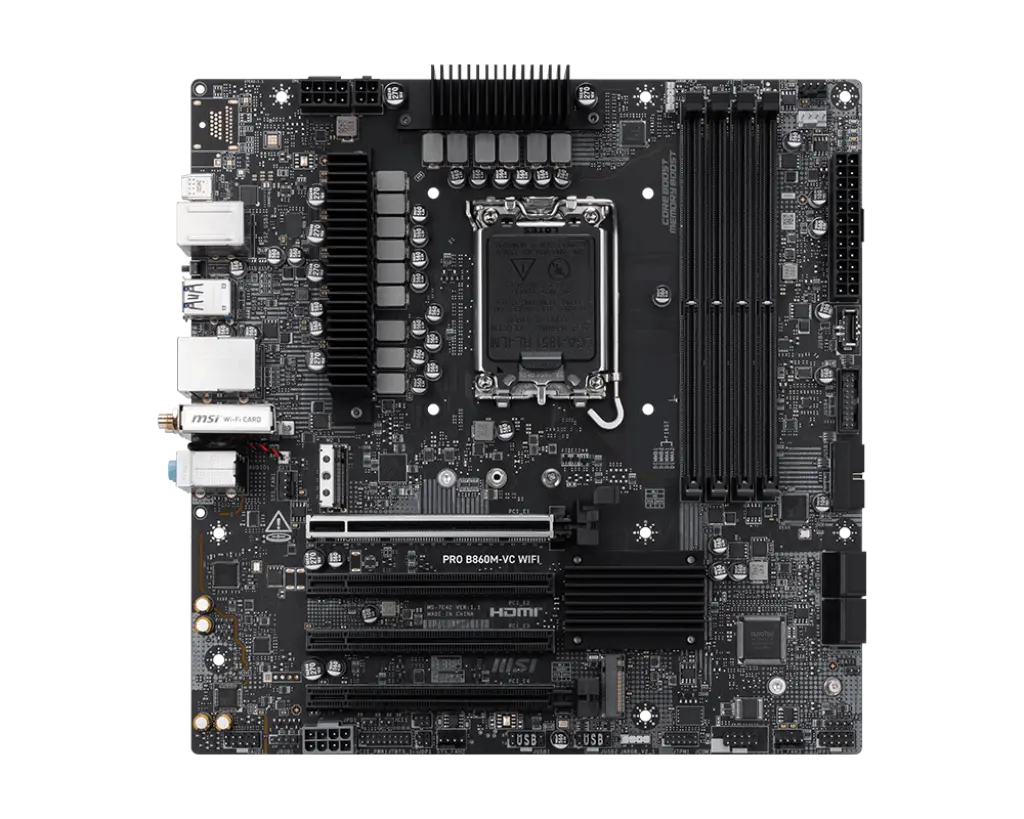

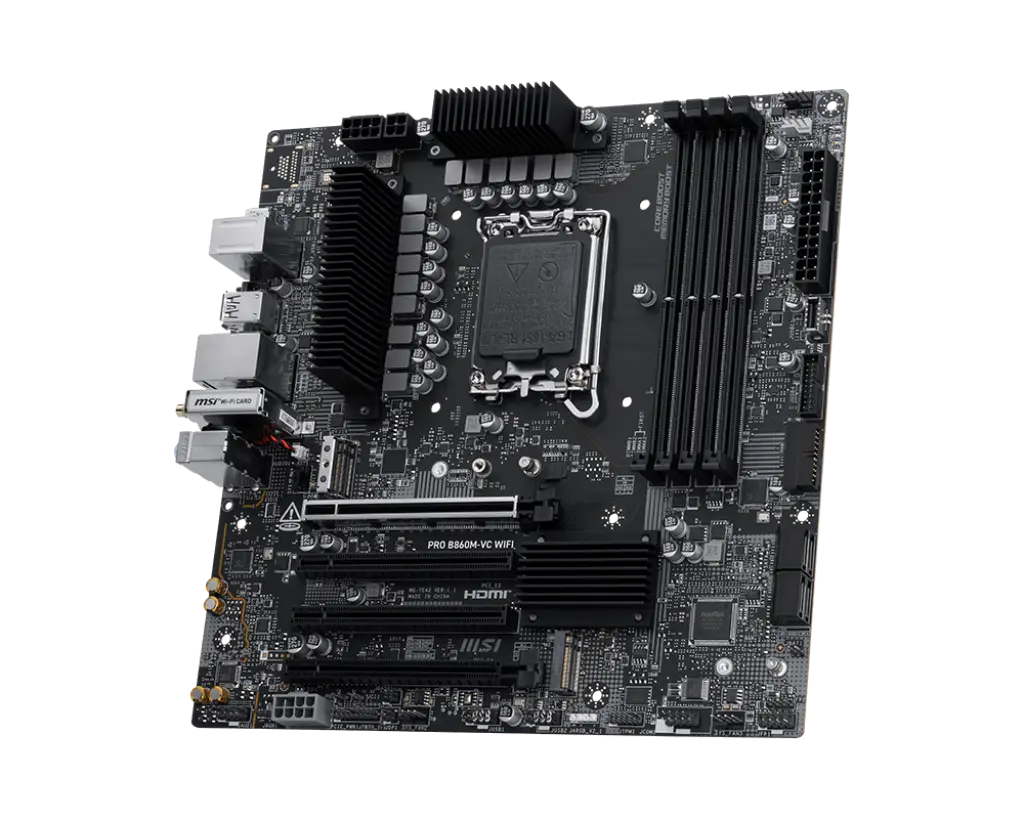

MSI PRO B860M-VC WIFI
MSI PRO B860M-VC WIFI - Image 2
MSI PRO B860M-VC WIFI - Image 3
MSI PRO B860M-VC WIFI - Image 4

MSI PRO B860M-VC WIFI

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard: MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop experience
  • EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
  • Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Category: Brand:
Sales Enquiry
Specification Details
Chipset Intel B860
CPU Supports Intel Core Ultra Processors (Series 2)
Socket LGA 1851
Memory
Configuration 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max Overclocking Frequency 1DPC 1R: Up to 8800+ MT/s
1DPC 2R: Up to 7200+ MT/s
2DPC 1R: Up to 6400+ MT/s
2DPC 2R: Up to 5600+ MT/s
Features Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel Mode
Supports Non-ECC, Un-buffered Memory
Supports CUDIMM
Notes The DIMM slots feature single-sided latches.
Memory compatibility and performance depend on CPU and memory configuration.
For details, visit MSI Support.
Onboard Graphics
Ports 1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
Slots 4x PCI-E x16 Slots
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Codec Realtek ALC897 Codec
Channels 7.1-Channel High Definition Audio
Storage
Configuration 3x M.2
M.2_1 (From CPU): PCIe 5.0 x4, supports 2280/2260/2242 devices
M.2_2 (From Chipset): PCIe 4.0 x4, supports 2280/2260 devices
M.2_3 (From Chipset): PCIe 4.0 x2, supports 2280/2260 devices
4x SATA 6G
Notes * Refer to the manual for M.2 SSD heatsink installation guidelines.
RAID
Support Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Onboard Thunderbolt
Port 1x Thunderbolt 4 Ports (Rear)
Performance Supports up to 40Gbps with Thunderbolt devices
Supports up to 20Gbps with USB4 devices
Supports up to 10Gbps with USB 3.2 devices
Supports 5V/3A (15W) power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display output
USB
Configuration 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type-A (Rear)
1x USB 5Gbps Type-C (Rear)
4x USB 5Gbps Type-A (Front)
1x USB 10Gbps Type-A (Rear)
1x USB 10Gbps Type-C (Front)
LAN
Port Realtek 8126 5Gbps LAN
Internal I/O
Connectors 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C port
Wireless LAN & Bluetooth
Type Intel Wi-Fi 7
Module Pre-installed in the M.2 (Key-E) Slot
Performance Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a / b / g / n / ac / ax / be
Supports Bluetooth 5.4**, MLO, 4KQAM
Notes * 6GHz band support may depend on region; Wi-Fi 7 ready in Windows 11 version 24H2.
** Bluetooth 5.4 supported in Windows 11 version 24H2 (dependent on chipset updates).
LED Features
Indicators 4x EZ Debug LED

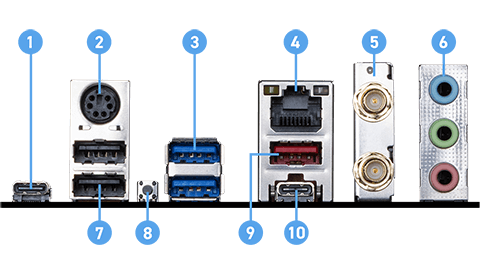

Back Panel Ports
Configuration

  1. Thunderbolt 4 40Gbps (Type-C)
  2. Keyboard / Mouse
  3. USB 5Gbps Type-A
  4. 5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. USB 2.0
  8. Clear CMOS Button
  9. USB 10Gbps Type-A
  10. USB 5Gbps Type-C
Operating System
Support Windows 11 64-bit
PCB Info
Form Factor mATX
Dimensions 243.84mm x 243.84mm

Overview

MSI PRO B860M-VC WIFI

The MSI PRO B860M-VC WIFI is engineered for professionals, creators, and performance-focused users who demand powerful computing in a compact micro-ATX design. Built for the latest Intel® Core™ Ultra (Series 2) processors on the LGA 1851 socket, this motherboard delivers exceptional efficiency, stability, and responsiveness for modern workloads. With support for dual-channel DDR5 memory up to 8800+ MT/s (OC), it ensures ultra-fast data access and superior multitasking, making it ideal for high-performance desktops and productivity systems.

With MSI’s 12+1+1+1 Duet Rail Power System, high-quality P-PAK components, and 8+4-pin CPU power connectors, the board guarantees stable power delivery even during demanding applications or extended workloads. The 6-layer server-grade PCB further enhances heat resistance, signal integrity, and durability—ensuring long-term reliability for enterprise and professional use.

Thermal performance is strengthened by Frozr Guard, equipped with 7W/mK MOSFET thermal pads and additional choke pads to maintain optimal temperatures during heavy processing or high-speed transfers. For easy upgradability, MSI’s EZ PCIe Clip II allows tool-less, one-finger GPU removal, a huge advantage in compact cases with tight spacing.

The motherboard delivers next-generation speed with a PCIe 5.0 slot and Lightning Gen 5 x4 M.2, offering lightning-fast storage access and future-proof compatibility for high-speed NVMe drives and advanced graphics cards. Connectivity is equally impressive with 5G LAN and Wi-Fi 7, providing low-latency, high-bandwidth networking ideal for professional workloads, large file transfers, cloud workflows, and content streaming.

For creators and productivity users, the inclusion of Thunderbolt™ 4 offers true 40 Gb/s data speeds, 8K display support, daisy-chaining, and reliable multi-device workflows—perfect for docking stations, external SSDs, and high-resolution monitors. Completing the experience is MSI’s Audio Boost, delivering clean, studio-grade sound quality for immersive audio whether you’re working, watching content, or gaming.
