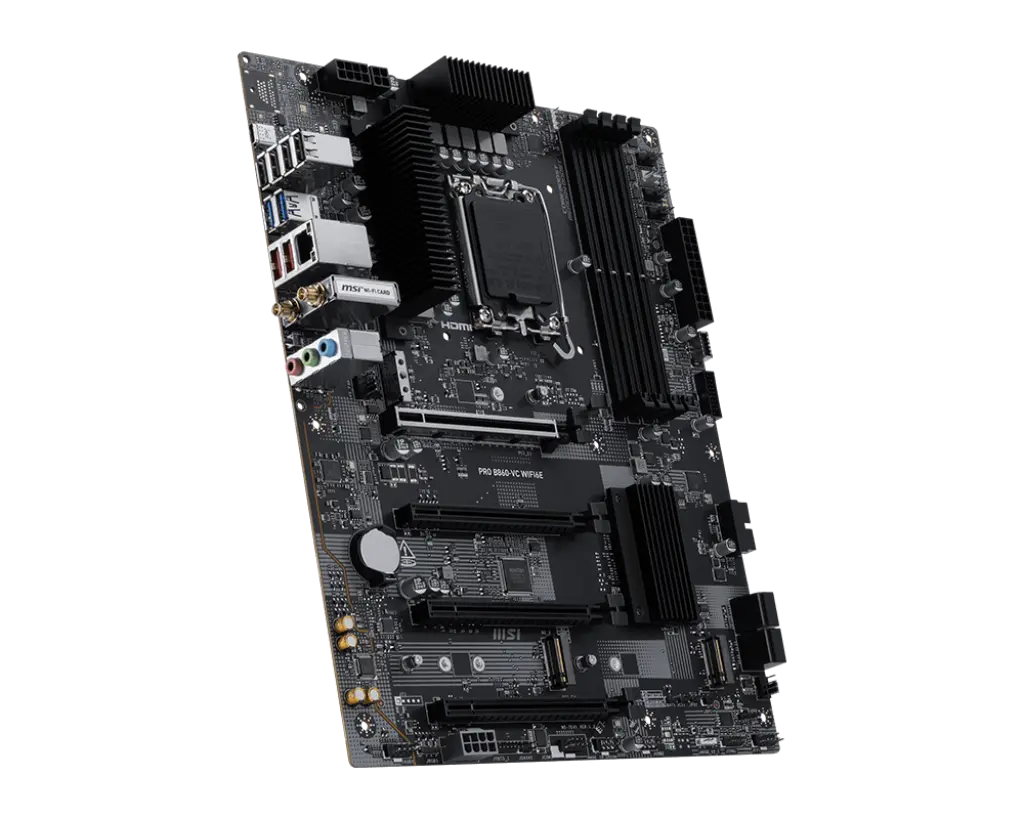

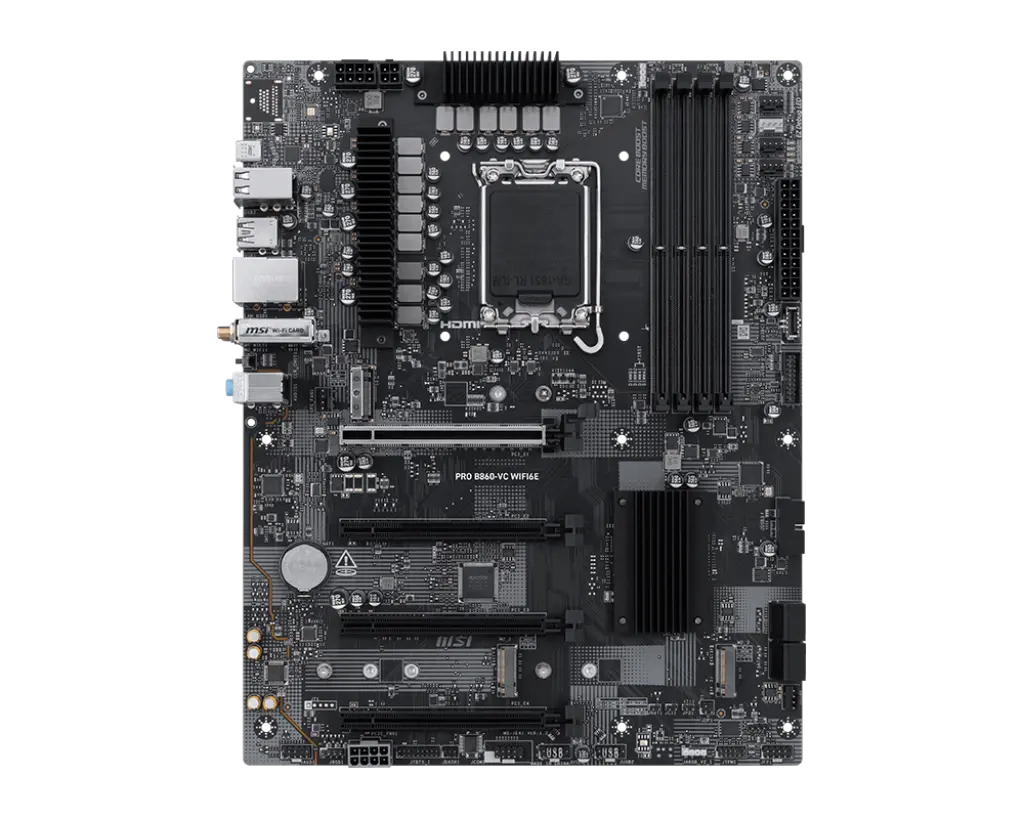

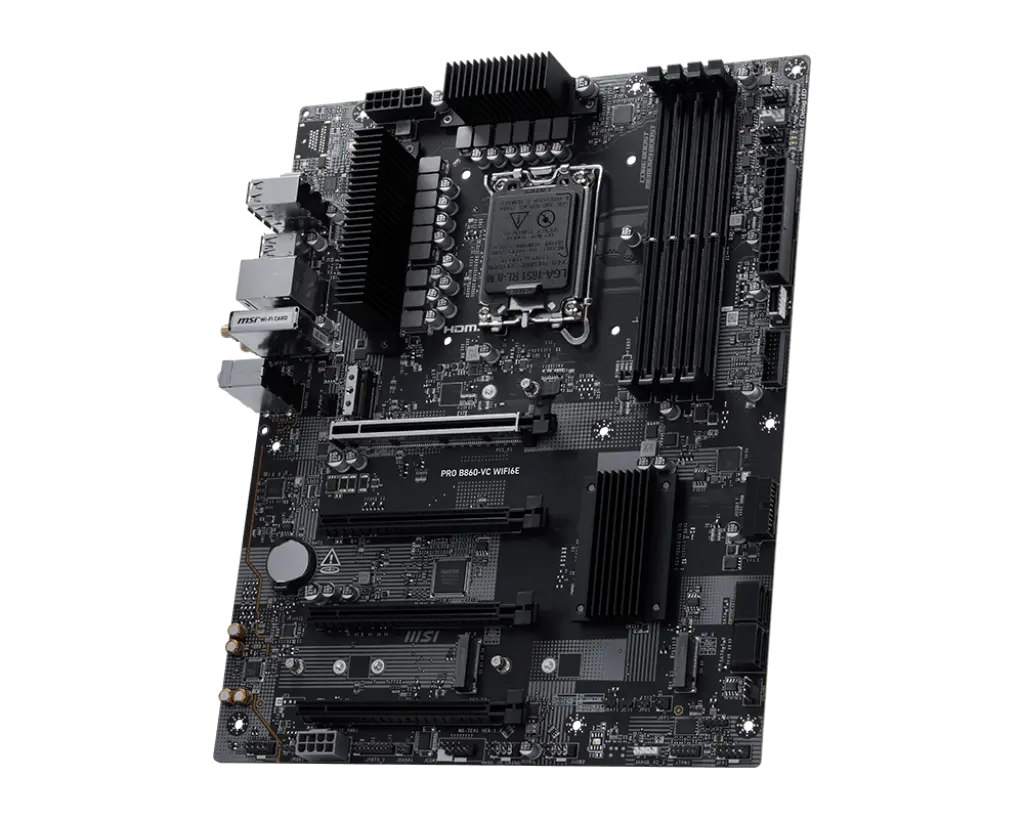

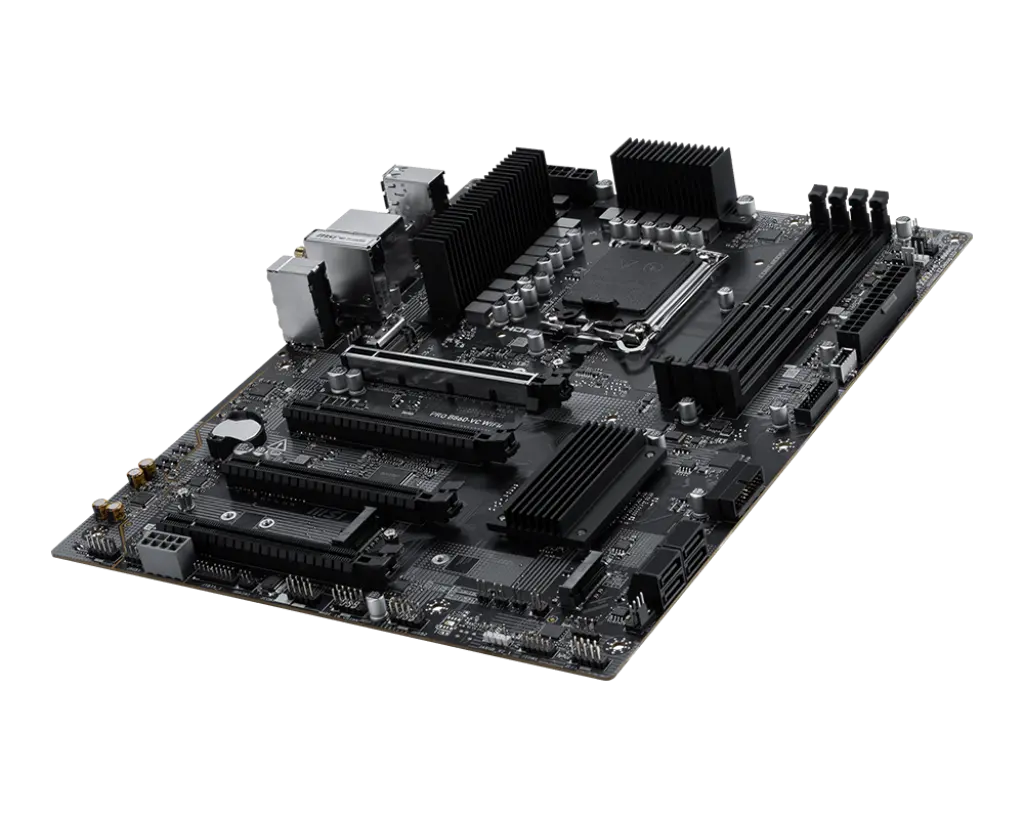

MSI PRO B860-VC WIFI6E

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
Frozr Guard: MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop experience
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Category: Motherboards Brand: MSI

Sales Enquiry

Specification	Details
Chipset	Intel B860
CPU	Supports Intel Core Ultra Processors (Series 2) Socket LGA 1851
Memory
Configuration	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support	DDR5 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max Overclocking Frequency	1DPC 1R: Up to 8800+ MT/s 1DPC 2R: Up to 7200+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 5600+ MT/s
Features	Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel Mode Supports Non-ECC, Un-buffered Memory Supports CUDIMM
Notes	The DIMM slots feature single-sided latches. Memory compatibility and performance may vary depending on CPU and memory configuration. Refer to the Memory Compatibility List on MSI Support for more information.
Onboard Graphics
Ports	1x Type-C DisplayPort Thunderbolt 4 Port supporting DisplayPort 2.1 (UHBR20) over USB Type-C, maximum resolution 4K@120Hz / 8K@60Hz* *Available only on processors with integrated graphics. Graphics specification may vary by CPU.
Expansion Slots
Slots	4x PCI-E x16 Slots PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio
Codec	Realtek ALC897 Codec
Channels	7.1-Channel High Definition Audio
Storage
Configuration	3x M.2 M.2_1 (From CPU): PCIe 4.0 x4, supports 2280/2260 devices M.2_2 (From Chipset): PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 (From Chipset): PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G
Notes	* Refer to the manual for M.2 SSD heatsink and installation guidelines.
RAID
Support	Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA Storage Devices
Onboard Thunderbolt
Port	1x Thunderbolt 4 Port (Rear)
Performance	Up to 40Gbps with Thunderbolt devices Up to 20Gbps with USB4 devices Up to 10Gbps with USB 3.2 devices Supports 5V/3A (15W) power charging Daisy-chains up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices Supports up to 8K display output
USB
Configuration	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type-A (Rear) 4x USB 5Gbps Type-A (Front) 2x USB 10Gbps Type-A (Rear) 1x USB 10Gbps Type-C (Front)
LAN
Port	Realtek 8126 5Gbps LAN
Internal I/O
Connectors	1x Thunderbolt 5 Card Connector (JTBT5, supports RTD3) 1x ATX Power (ATX_PWR) 2x CPU Power (CPU_PWR) 1x PCIe Power (8-pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fans 2x Front Panels (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x Tuning Controller Connector (JDASH) 2x Addressable V2 RGB (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (Supports TPM 2.0) 4x USB 2.0 Ports 4x USB 5Gbps Type-A Ports 1x USB 10Gbps Type-C Port
Wireless LAN & Bluetooth
Type	Intel Wi-Fi 6E Module
Module	Pre-installed in M.2 (Key-E) Slot
Performance	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a / b / g / n / ac / ax Supports Bluetooth 5.3, FIPS, FISMA
Notes	* 6GHz band support may depend on country regulations; Wi-Fi 6E ready for Windows 11. ** Bluetooth 5.3 available on Windows 10 build 21H1 and Windows 11.
LED Features
Indicators	4x EZ Debug LED

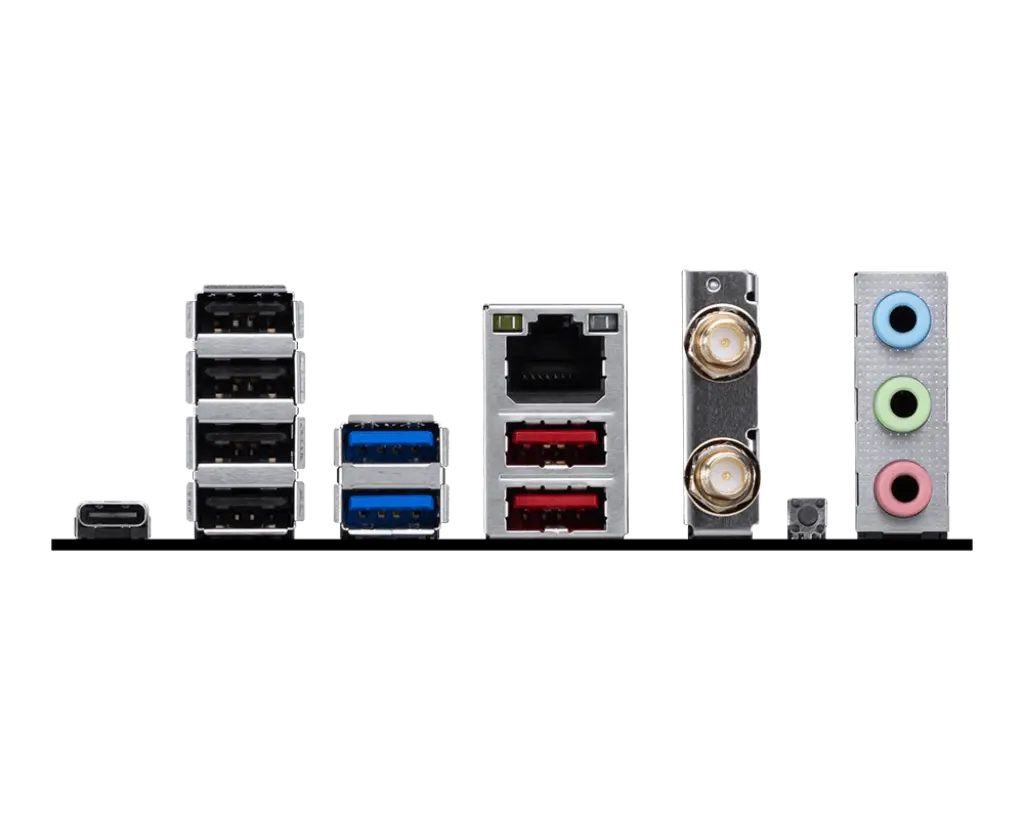

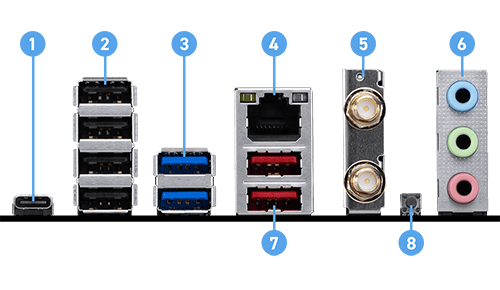

Back Panel Ports
Configuration	Thunderbolt 4 40Gbps (Type-C) USB 2.0 USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors USB 10Gbps Type-A Clear CMOS Button
Operating System
Support	Windows 11 64-bit
PCB Info
Form Factor	ATX
Dimensions	243.84mm x 304.8mm

Overview

MSI PRO B860-VC WIFI6E Motherboard

The MSI PRO B860-VC WIFI6E is crafted for professionals, creators, and performance-focused users who need reliable power, high-speed connectivity, and long-term stability. Designed for the latest Intel® Core™ Ultra (Series 2) processors using the LGA 1851 socket, this motherboard delivers exceptional efficiency and responsiveness across demanding workloads.

High-Speed DDR5 Memory Support

Unlock next-gen memory performance with Dual-Channel DDR5 support up to 8800+ MT/s (OC). MSI’s Memory Boost technology ensures cleaner power delivery and superb stability—ideal for heavy multitasking, rendering, and productivity applications.

Ultra Performance Power Architecture

The motherboard features a reinforced 12+1+1+1 Duet Rail Power System with P-PAK, paired with 8+4-pin CPU power connectors for consistent and efficient power delivery. The 6-layer server-grade PCB ensures improved signal integrity and long-term durability, making the board reliable for intensive usage.

Advanced Thermal Design with Frozr Guard

Built for uninterrupted performance, the PRO B860-VC WIFI6E incorporates 7W/mK MOSFET thermal pads and additional choke thermal pads. This allows the system to maintain safe operating temperatures even during heavy multitasking, extended workloads, and high CPU loads.

EZ PCIe Clip II for Effortless GPU Removal

With EZ PCIe Clip II, installing or upgrading your graphics card becomes simple and stress-free. Its one-finger tail-lock mechanism makes GPU removal effortless—even inside compact PC cases.

Next-Generation Storage & Expansion

Whether for gaming, editing, or multitasking, you get maximum speed through:

PCIe 5.0 x16 slot for the latest GPUs
Lightning Gen 5 x4 M.2 slot for ultra-fast NVMe SSDs

This ensures faster loading times, rapid file access, and smoother workflow performance.

High-Speed Networking with 5G LAN & Wi-Fi 6E

The combination of 5G LAN and Wi-Fi 6E delivers robust, stable, and ultra-fast connectivity. It’s perfect for high-bandwidth workloads, large file transfers, online collaboration, and lag-free wireless performance.

Thunderbolt™ 4 for Professional Connectivity

Experience true 40 Gb/s data transfer speeds with Thunderbolt™ 4 support. The USB-C port enables:

8K display output
Daisy chaining multiple devices
High-speed accessory connectivity

Perfect for creators and professionals who need maximum flexibility and performance.

Studio-Grade Audio Experience

MSI’s Audio Boost enhances clarity, dynamic range, and immersive detail—making it ideal for content creation, professional audio work, and entertainment.

Product Datasheet
