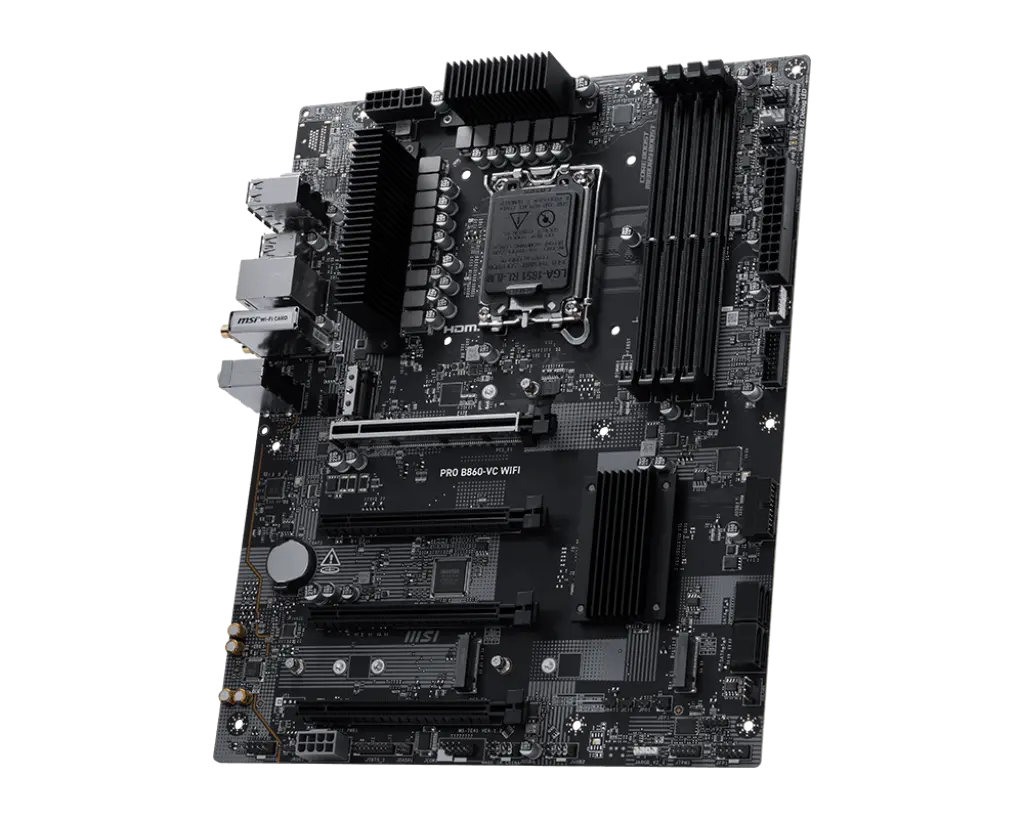

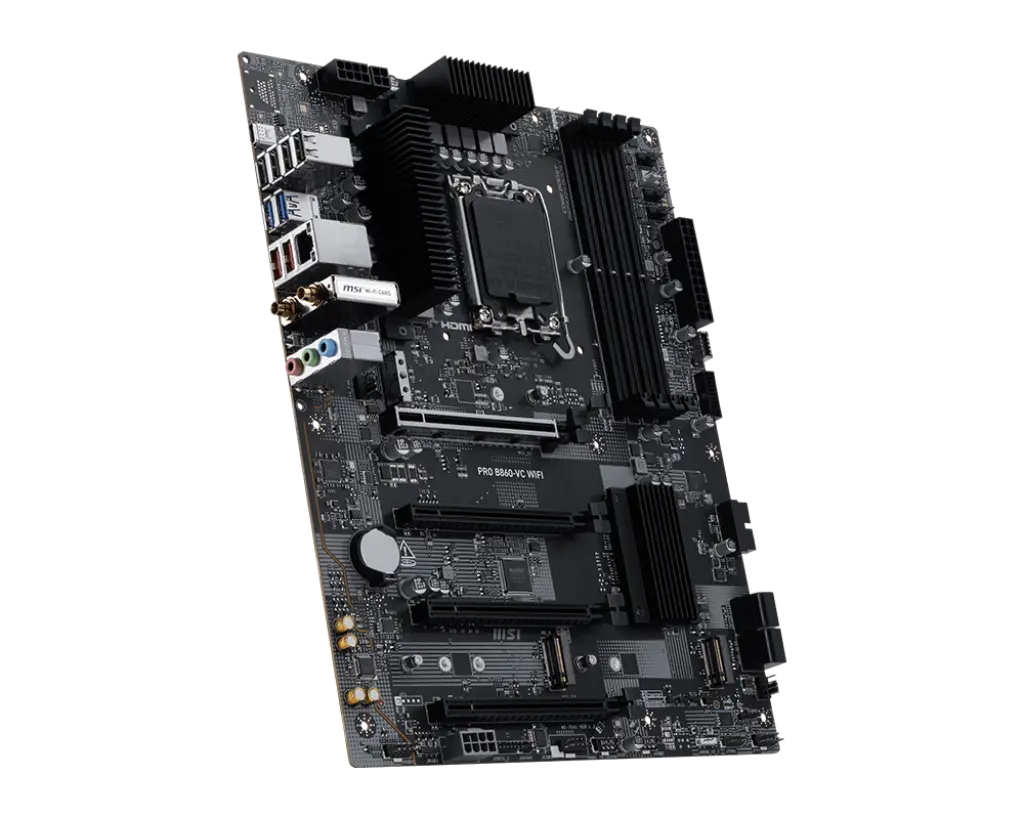

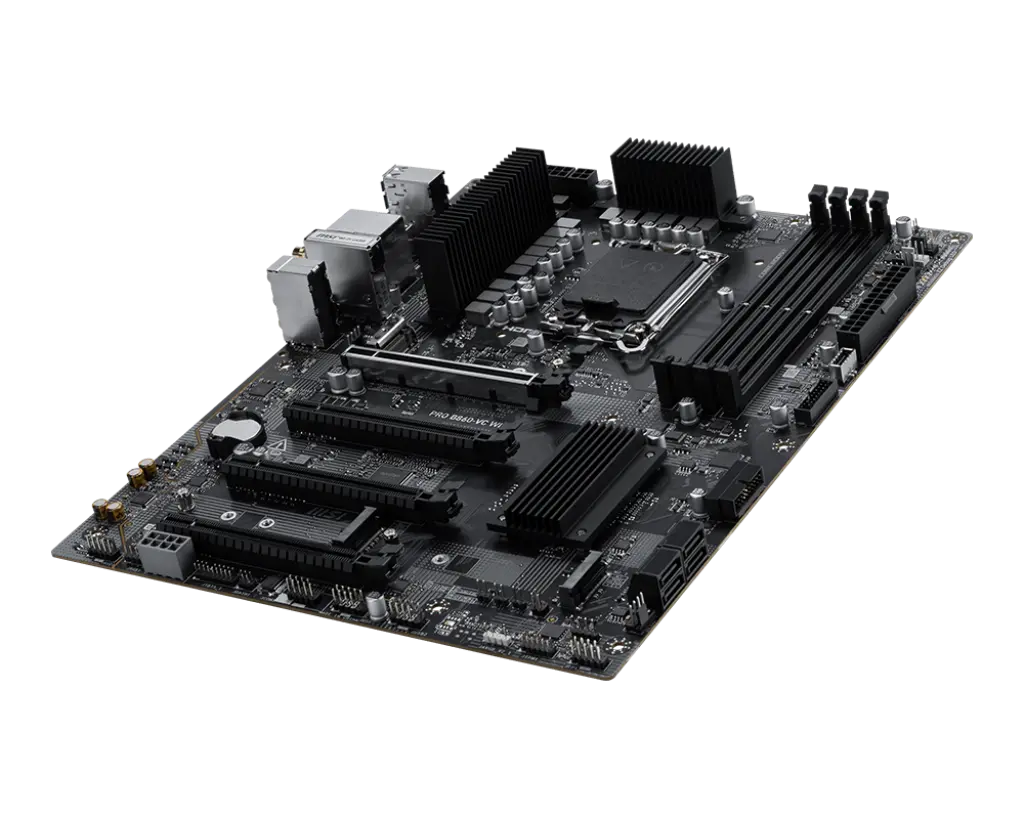

MSI PRO B860-VC WIFI

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
Frozr Guard: MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop experience
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Category: Motherboards Brand: MSI

Sales Enquiry

Specification	Details
Chipset	Intel B860
CPU	Supports Intel Core Ultra Processors (Series 2) Socket LGA 1851
Memory
Configuration	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support	DDR5 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max Overclocking Frequency	1DPC 1R: Up to 8800+ MT/s 1DPC 2R: Up to 7200+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 5600+ MT/s
Features	Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel Mode Supports Non-ECC, Un-buffered Memory Supports CUDIMM
Notes	The DIMM slots have single-sided latches. Memory compatibility and supported speeds depend on the CPU and configuration. For details, refer to the Memory Compatibility List on MSI Support.
Onboard Graphics
Ports	1x Type-C DisplayPort Thunderbolt 4 port supporting DisplayPort 2.1 (UHBR20) over USB Type-C, maximum resolution 4K@120Hz / 8K@60Hz* *Available only on processors with integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
Slots	4x PCI-E x16 Slots PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio
Codec	Realtek ALC897 Codec
Channels	7.1-Channel High Definition Audio
Storage
Configuration	3x M.2 M.2_1 (From CPU): PCIe 4.0 x4, supports 2280/2260 devices M.2_2 (From Chipset): PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 (From Chipset): PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G
Notes	* Refer to the manual for M.2 SSD heatsink restrictions.
RAID
Support	Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Onboard Thunderbolt
Port	1x Thunderbolt 4 Port (Rear)
Performance	Up to 40Gbps with Thunderbolt devices Up to 20Gbps with USB4 devices Up to 10Gbps with USB 3.2 devices Supports 5V/3A (15W) charging Daisy-chain up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices Supports up to 8K display output
USB
Configuration	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type-A (Rear) 4x USB 5Gbps Type-A (Front) 2x USB 10Gbps Type-A (Rear) 1x USB 10Gbps Type-C (Front)
LAN
Port	Realtek 8126 5Gbps LAN
Internal I/O
Connectors	1x Thunderbolt 5 Card Connector (JTBT5, supports RTD3) 1x ATX Power (ATX_PWR) 2x CPU Power (CPU_PWR) 1x PCIe Power (8-pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fans 2x Front Panels (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x Tuning Controller Connector (JDASH) 2x Addressable V2 RGB (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (Supports TPM 2.0) 4x USB 2.0 Ports 4x USB 5Gbps Type-A Ports 1x USB 10Gbps Type-C Port
Wireless LAN & Bluetooth
Type	Intel Wi-Fi 7
Module	Pre-installed in M.2 (Key-E) Slot
Performance	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a / b / g / n / ac / ax / be Supports Bluetooth 5.4**, MLO, 4KQAM
Notes	* 6GHz band support may depend on regional laws; Wi-Fi 7 ready in Windows 11 version 24H2. ** Bluetooth 5.4 version support varies; refer to Wi-Fi chipset vendor’s website.
LED Features
Indicators	4x EZ Debug LED

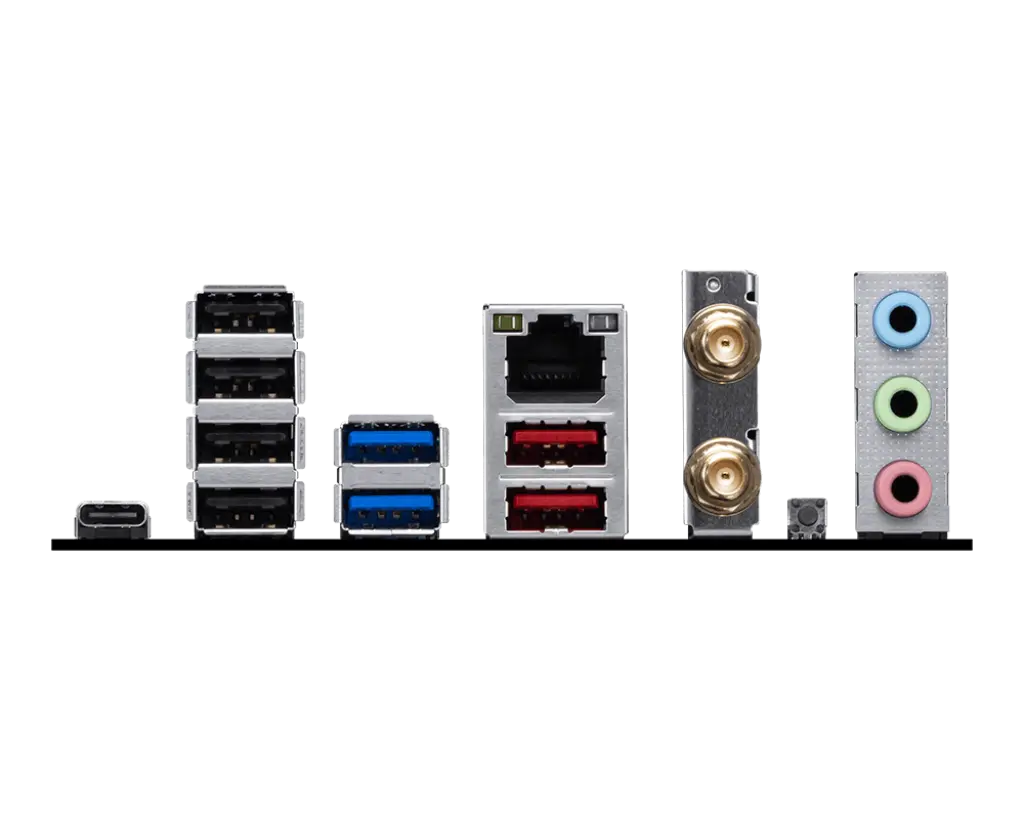

Back Panel Ports
Configuration	Thunderbolt 4 40Gbps (Type-C) USB 2.0 USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors USB 10Gbps Type-A Clear CMOS Button
Operating System
Support	Windows 11 64-bit
PCB Info
Form Factor	ATX
Dimensions	243.84mm x 304.8mm

Overview

MSI PRO B860-VC WIFI Motherboard

The MSI PRO B860-VC WIFI is engineered for professionals, creators, and high-performance users who demand stability, speed, and next-generation connectivity. Powered by support for Intel® Core™ Ultra (Series 2) processors on the latest LGA 1851 socket, this motherboard delivers exceptional reliability and processing power for modern workloads and multitasking environments.

Blazing-Fast DDR5 Memory Support

Experience next-level responsiveness with Dual-Channel DDR5 support up to 8800+ MT/s (OC). MSI’s exclusive Memory Boost ensures signal integrity and stable overclocking, making it ideal for heavy applications, simulations, and creator workflows.

Ultra Performance Architecture

Built on a 6-layer server-grade PCB, the PRO B860-VC WIFI uses a 12+1+1+1 Duet Rail Power System with P-PAK components, ensuring efficient power delivery across all cores. The 8+4-pin CPU power connectors and Core Boost design work together to deliver consistent performance under load.

Enhanced Thermal Reliability with Frozr Guard

Stay cool during long work sessions. The board integrates 7W/mK MOSFET thermal pads and additional choke thermal pads to maintain stable temperatures for nonstop productivity and system longevity.

EZ PCIe Clip II for Hassle-Free Upgrades

Upgrading your GPU is easier than ever. With EZ PCIe Clip II, you can release your graphics card using just one finger—even inside tight PC cases—making maintenance fast and frustration-free.

Next-Gen High-Speed Connectivity

For creators and professionals who rely on fast transfers, the PRO B860-VC WIFI offers:

PCIe 5.0 x16 slot for the latest graphics cards
Lightning Gen 5 x4 M.2 support for ultra-fast NVMe SSDs

This ensures superior load times, smoother workflows, and next-level performance.

Premium Networking: 5G LAN + Wi-Fi 7

Enjoy lightning-fast and secure networking with 5G LAN, ideal for large file transfers and low-latency communication. Paired with Wi-Fi 7, you get seamless wireless freedom with higher bandwidth, improved stability, and future-proof performance.

Thunderbolt™ 4 for Professional Connectivity

Unlock true 40 Gb/s transfer speeds via Thunderbolt™ USB-C. Supports 8K video output, Daisy-Chaining, and multi-device workflows—perfect for editors, streamers, and workstation users who demand ultimate flexibility.
