| Specification | Details |
|---|---|
| Chipset | AMD B850 |
| CPU | Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 |
| Memory | |
| Configuration | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support | DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s |
| Ryzen 9000 Series Max Overclocking Frequency | 1DPC 1R: Up to 8200+ MT/s 1DPC 2R: Up to 6400+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 6000+ MT/s |
| Features | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Notes | * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. – The DIMM slots on this motherboard only have single-sided latches. – Memory compatibility and speeds depend on CPU and configuration. For more details, visit MSI Support. |
| Onboard Graphics | |
| Ports | 1x HDMI Supports HDMI 2.1, maximum resolution 4K 60Hz* 1x DisplayPort Supports DisplayPort 1.4, maximum resolution 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary by CPU. |
| Expansion Slots | |
| Slots | 4x PCI-E x16 Slots PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E1 Slot | – PCIe 5.0 x16 (Ryzen 9000 / 7000) – PCIe 4.0 x8 (Ryzen 8700 / 8600 / 8400) – PCIe 4.0 x4 (Ryzen 8500 / 8300) |
| Audio | |
| Codec | Realtek ALC897 |
| Channels | 7.1-Channel High Definition Audio |
| Storage | |
| Configuration | 3x M.2 M.2_1 (From CPU): PCIe 5.0 x4, supports 2280/2260 devices M.2_2 (From CPU): PCIe 4.0 x4, supports 2280/2260 devices M.2_3 (From Chipset): PCIe 4.0 x2, supports 2280 devices 4x SATA 6G |
| M.2_1 Slot | – PCIe 5.0 x4 (Ryzen 9000 / 7000) – PCIe 4.0 x4 (Ryzen 8000) |
| M.2_2 Slot | – PCIe 4.0 x4 – PCIe 4.0 x2 (Ryzen 8500 / 8300) |
| Notes | * Refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | |
| Support | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices * RAID 5 configuration is only supported by Ryzen 9000 Series Processors. |
| USB | |
| Configuration | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type-A (Rear) 4x USB 5Gbps Type-A (Front) 1x USB 10Gbps Type-A (Rear) 1x USB 10Gbps Type-C (Rear) 1x USB 10Gbps Type-C (Front) |
| LAN | |
| Port | Realtek 8126VB 5G LAN |
| Internal I/O | |
| Connectors | 1x ATX Power (ATX_PWR) 1x CPU Power (CPU_PWR) 1x PCIE Power (8-pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fans 2x Front Panels (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x Tuning Controller Connector (JDASH) 3x Addressable V2 RGB (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (Supports TPM 2.0) 4x USB 2.0 Ports 4x USB 5Gbps Type-A Ports 1x USB 10Gbps Type-C Port |
| Wireless LAN & Bluetooth | |
| Type | Wi-Fi 6E |
| Module | Pre-installed in the M.2 (Key-E) slot |
| Performance | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a / b / g / n / ac / ax Supports Bluetooth 5.3, FIPS, FISMA |
| Notes | * Wi-Fi 6GHz band support may depend on regional regulations and will be available in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.3 version may update; check vendor’s website for details. |
| LED Features | |
| Indicators | 4x EZ Debug LED 1x EZ Memory Detection LED |

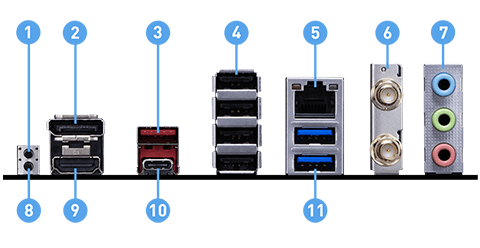

| Back Panel Ports | |
| Configuration |
|
| Operating System | |
| Support | Windows 11 64-bit |
| PCB Info | |
| Form Factor | mATX |
| Dimensions | 243.84mm x 243.84mm |
Motherboards
Sales Enquiry
MSI PRO B850M-VC WIFI6E
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5
- Ultra Performance: Direct 7+2+1 Power System with P-PAK, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK are built for high-performance system and non-stop work
- EZ DIY: EZ PCIe Clip II
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Overview
MSI PRO B850M-VC WIFI6E
The MSI PRO B850M-VC WIFI6E is a high-efficiency micro-ATX motherboard crafted to deliver powerful performance and reliable stability for modern professionals and creators. Supporting the latest AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors, this board provides a robust foundation for productivity and smooth multitasking.
Equipped with dual-channel DDR5 memory support, it ensures exceptional speed and responsiveness for demanding applications. The Direct 7+2+1 Power System with P-PAK, combined with an 8-pin CPU power connector, Core Boost, and Memory Boost technologies, ensures consistent power delivery and optimal CPU performance. Its 6-layer PCB, constructed with 2oz thickened copper and server-grade materials, enhances durability, signal stability, and heat dissipation for long-term reliability.
The Premium Thermal Solution includes MOSFET thermal pads rated at 7W/mK, providing excellent cooling efficiency to maintain peak system performance even under heavy workloads. With EZ PCIe Clip II, upgrading or removing your graphics card is simple and hassle-free, even in tight spaces.
For next-generation connectivity, the motherboard features PCIe 5.0 and Lightning Gen 5 x4 M.2 support, ensuring blazing-fast data transfer speeds for cutting-edge storage devices and graphics cards. Networking is equally advanced with 5G LAN and Wi-Fi 6E, offering ultra-fast, stable, and secure connections ideal for both professional and entertainment use.
Rounding out the experience, Audio Boost technology delivers superior, studio-quality sound for immersive listening—whether gaming, streaming, or editing content.
The MSI PRO B850M-VC WIFI6E perfectly blends performance, stability, and modern connectivity, making it an ideal choice for users seeking a compact yet powerful platform for their next-generation PC build.
