MSI PRO B850-VC WIFI

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
EZ DIY: EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Category: Motherboards Brand: MSI

Sales Enquiry

Specification	Details
Chipset	AMD B850
CPU	Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors Socket AM5
Memory
Configuration	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support	DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen 9000 Series Max Overclocking Frequency	1DPC 1R: Up to 8200+ MT/s 1DPC 2R: Up to 6400+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 6000+ MT/s
Features	Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Notes	* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. – Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. – The DIMM slots on this motherboard have double-sided latches. – Memory compatibility and supported speeds depend on CPU and configuration. Visit https://www.msi.com/support/ for details.
Onboard Graphics
Ports	1x HDMI Supports HDMI 2.1, maximum resolution 4K 60Hz* 1x DisplayPort Supports DisplayPort 1.4, maximum resolution 4K 60Hz* *Available only on processors featuring integrated graphics. Specifications may vary depending on CPU installed.
Expansion Slots
Slots	4x PCI-E x16 Slots PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 Slot	– PCIe 5.0 x16 (Ryzen 9000 / 7000) – PCIe 4.0 x8 (Ryzen 8700 / 8600 / 8400) – PCIe 4.0 x4 (Ryzen 8500 / 8300)
Notes	* PCI_E2, PCI_E3, and PCI_E4 share bandwidth. The PCI_E3 slot will run at x2 speed when devices are installed in PCI_E2 or PCI_E4 slots.
Audio
Codec	Realtek ALC897
Channels	7.1-Channel High Definition Audio
Storage
Configuration	3x M.2 M.2_1 (From CPU): PCIe 5.0 x4, supports 2280/2260 devices M.2_2 (From CPU): PCIe 4.0 x4, supports 22110/2280 devices M.2_3 (From Chipset): PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G
M.2_1 Slot	– PCIe 5.0 x4 (Ryzen 9000 / 7000) – PCIe 4.0 x4 (Ryzen 8000)
M.2_2 Slot	– PCIe 4.0 x4 (Ryzen 9000 / 7000) – PCIe 3.0 x4 (Ryzen 8700 / 8600 / 8400) – PCIe 3.0 x2 (Ryzen 8500 / 8300)
Notes	* Refer to the manual for M.2 SSD heatsink restrictions.
RAID
Support	Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
Configuration	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type-A (Rear) 4x USB 5Gbps Type-A (Front) 1x USB 5Gbps Type-C (Front) 1x USB 10Gbps Type-A (Rear) 2x USB 10Gbps Type-C (Rear)
LAN
Port	Realtek 8126VB 5G LAN
Internal I/O
Connectors	1x ATX Power (ATX_PWR) 2x CPU Power (CPU_PWR) 1x PCIE Power (8-pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x Tuning Controller Connector (JDASH) 3x Addressable V2 RGB (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (Supports TPM 2.0) 4x USB 2.0 Ports 4x USB 5Gbps Type-A Ports 1x USB 5Gbps Type-C Port
Wireless LAN & Bluetooth
Type	Wi-Fi 7
Module	Pre-installed in the M.2 (Key-E) slot
Performance	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a / b / g / n / ac / ax / be Supports Bluetooth 5.4**, MLO, 4KQAM
Notes	* 6GHz band support may depend on country regulations; Wi-Fi 7 enabled in Windows 11 version 24H2. ** Bluetooth version may update; check Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 ready in Windows 11 version 24H2.
LED Features
Indicators	4x EZ Debug LED 1x EZ Memory Detection LED
Back Panel Ports
Configuration	Clear CMOS Button HDMI USB 10Gbps Type-A USB 2.0 5G LAN Audio Connectors Flash BIOS Button USB 10Gbps Type-C USB 5Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth S/PDIF Out
Operating System
Support	Windows 11 64-bit
PCB Info
Form Factor	ATX
Dimensions	243.84mm x 304.8mm

Overview

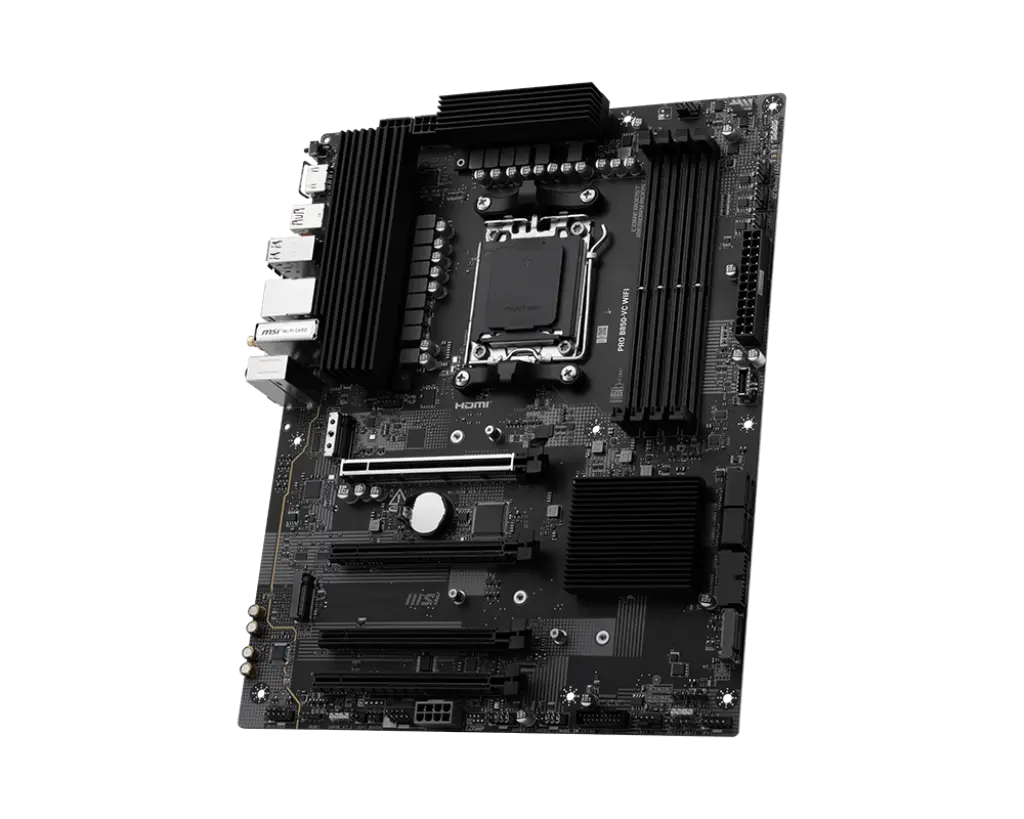

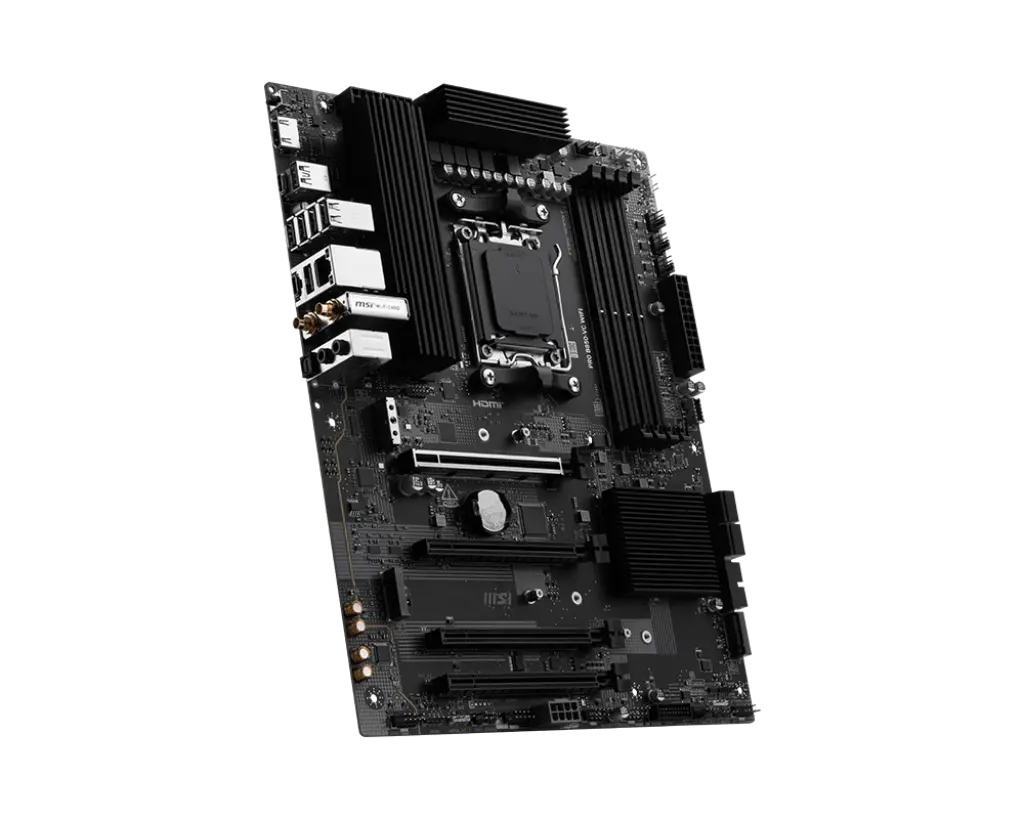

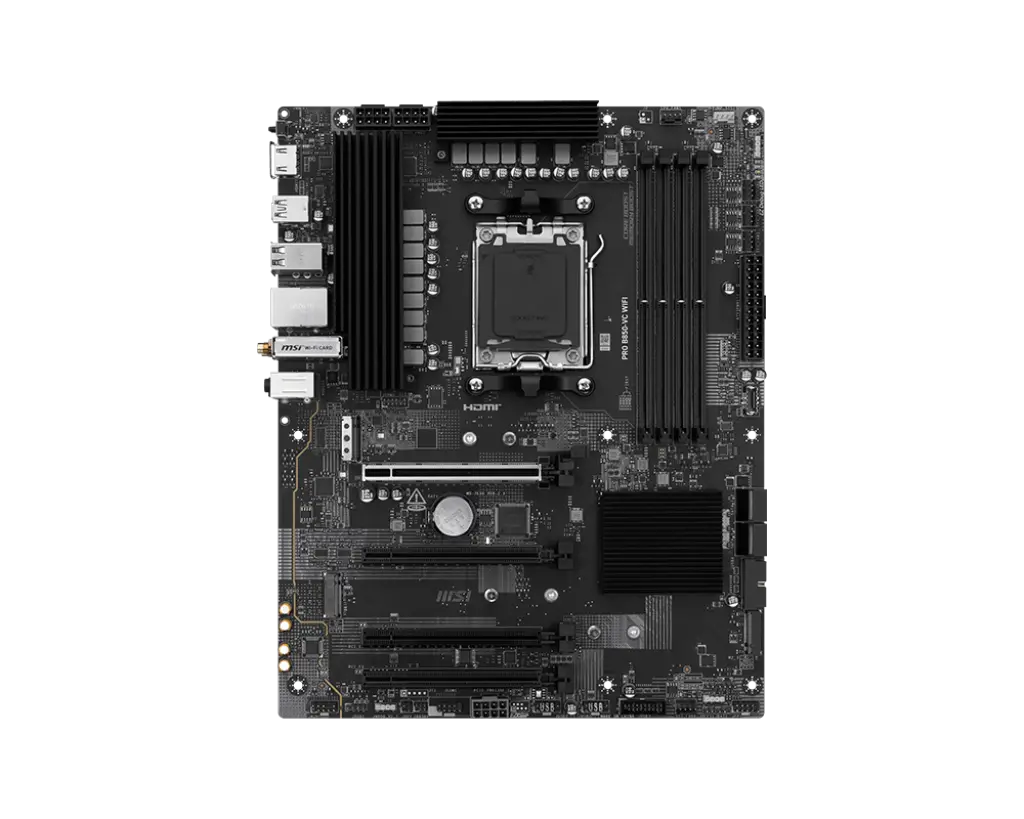

MSI PRO B850-VC WIFI – Precision, Power, and Professional Reliability

The MSI PRO B850-VC WIFI motherboard is designed to deliver exceptional stability, speed, and connectivity for professionals, creators, and gamers alike. Built on the AM5 platform, it supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors, ensuring cutting-edge performance and long-term upgrade potential.

Engineered with DDR5 memory support up to 8200+ MT/s (OC), this board offers ultra-fast data transfer and smoother multitasking, ideal for heavy workloads and creative applications. The 12+2+1 Duet Rail Power System with dual 8-pin CPU power connectors ensures clean, efficient, and reliable power delivery to maximize CPU performance. Combined with Core Boost and Memory Boost technologies, it delivers top-tier efficiency and system stability.

The 6-layer PCB made from 2oz thickened copper and server-grade materials enhances durability, conductivity, and heat management, providing a strong foundation for demanding systems. For expansion, it includes a PCIe 5.0 slot and Lightning Gen 5 x4 M.2, offering blazing-fast speeds for next-generation graphics cards and NVMe SSDs.

Connectivity is future-ready with 5G LAN and Wi-Fi 7, ensuring ultra-fast, secure, and stable data transmission—perfect for professional and multimedia applications. EZ DIY features such as EZ PCIe Clip II and EZ Antenna make assembly and upgrades simple and efficient.

For immersive sound, Audio Boost technology delivers studio-grade audio quality, bringing clarity and richness to every detail whether you’re gaming, editing, or streaming.
