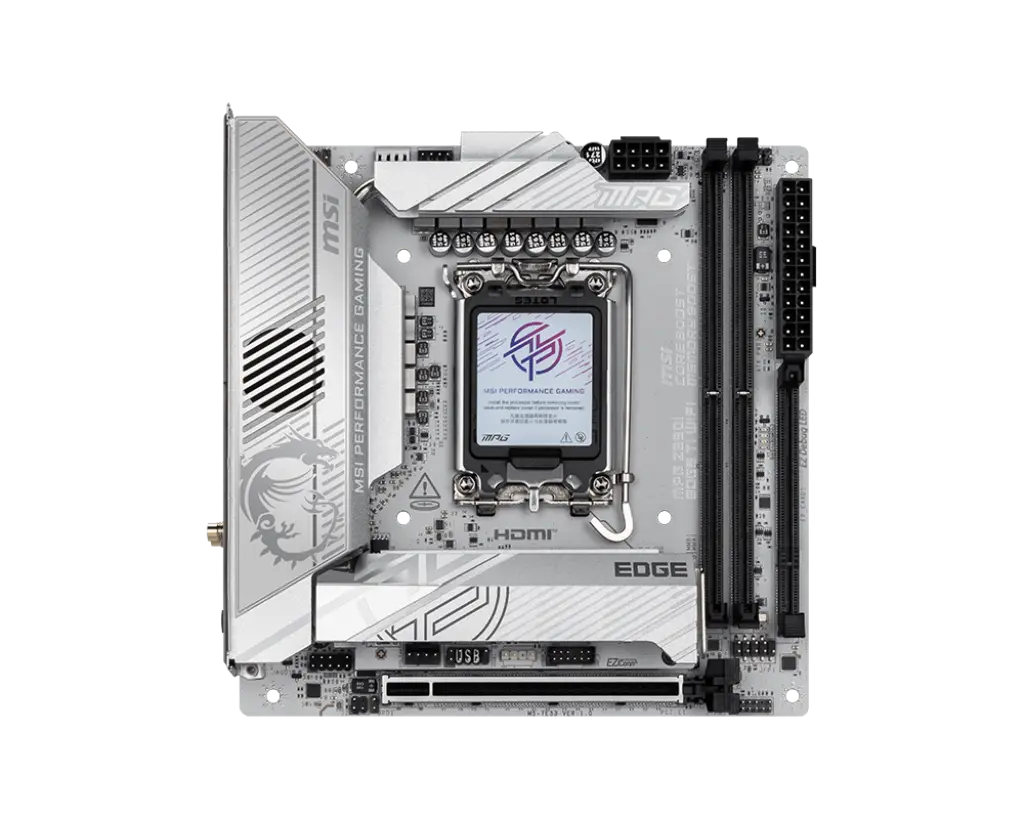

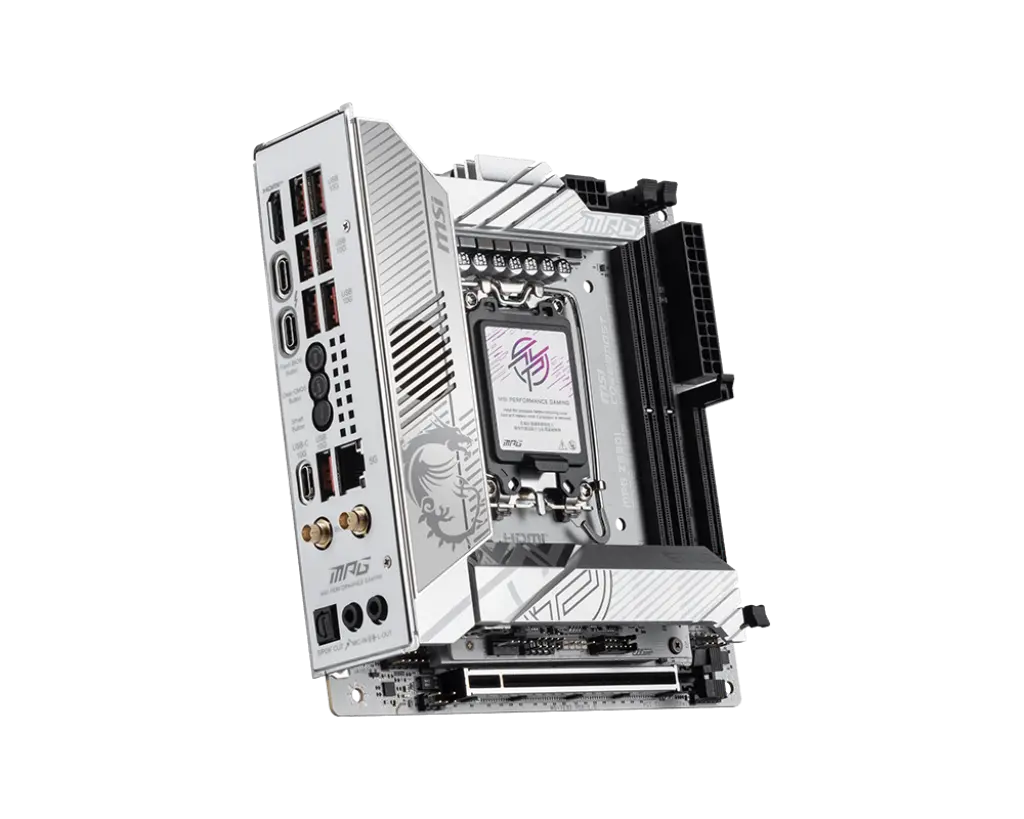

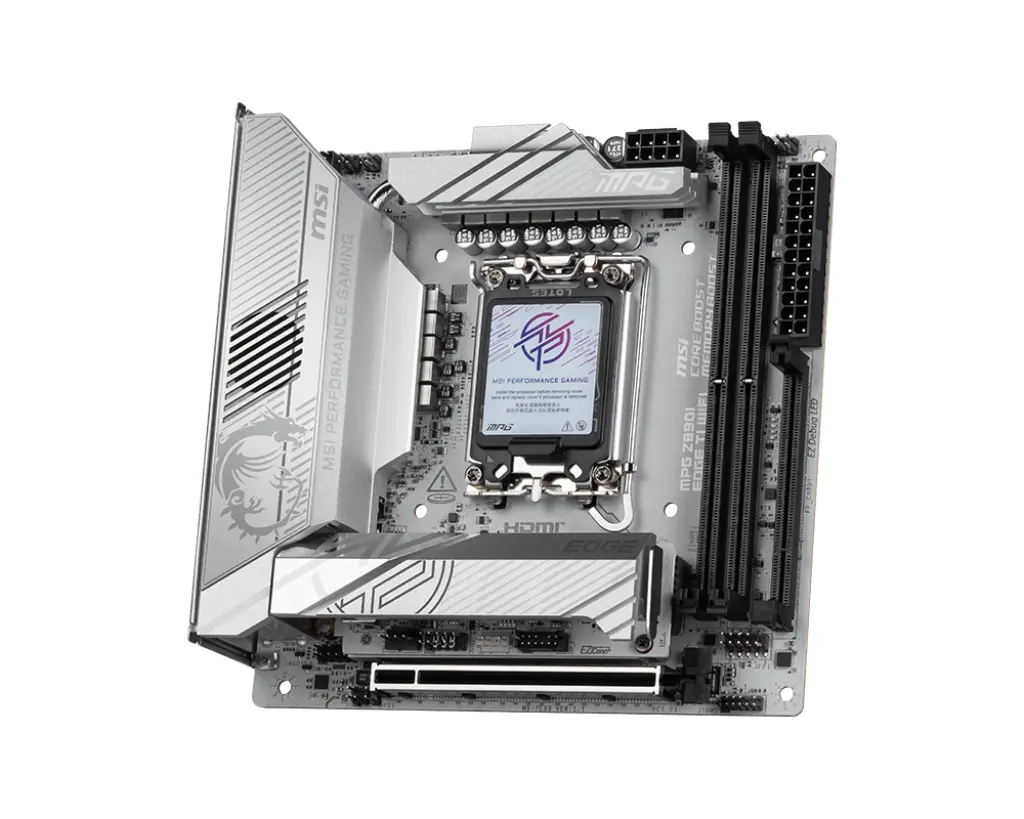

MSI MPG Z890I EDGE TI WIFI

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, up to 8600+ MT/s (OC)
Ultra Performance: 10+1+1+1 Duet Rail Power System, Core Boost, Memory Boost, 14-layer PCB made by 1oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
EZ DIY: EZ M.2 Shield Frozr II, Smart Button and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2

Category: Motherboards Brand: MSI

Sales Enquiry

Specification	Details
Chipset	INTEL Z890
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory
Configuration	2x DDR5, Maximum Memory Capacity 128GB
Memory Support	8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. Overclocking Frequency	– 1DPC 1R Max speed up to 8600+ MT/s – 1DPC 2R Max speed up to 7200+ MT/s
Features	Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Note	– The DIMM slots on this motherboard have single-sided latches. – Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
Ports	1x HDMI™ Supports HDMI™ 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Note	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
PCIe Configuration	1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Notes	– PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
Audio
Configuration	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Storage
M.2 Configuration	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
SATA	2x SATA 6G
Notes	– M.2_4 & 2x SATA are supported by 5-in-1 XPANDER – Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Support	– Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices – Supports RAID 0, RAID 1, Raid 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
Ports	2x Thunderbolt4 ports (Rear)
Performance	Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB
Configuration	2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 7x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
Note	2x 5Gbps Type-A & 1x 20Gbps Type-C are supported by 5-in-1 XPANDER USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN
Ports	1x Intel® Killer™ E5000B 5G LAN
Internal IO
Connectors	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Wireless LAN & Bluetooth
Chipset	Intel® Killer™ BE1750x Wi-Fi 7
Installation	The Wireless module is pre-installed in the M.2 (Key-E) slot
Performance	Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
Notes	* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED Feature
Indicators	4x EZ Debug LED

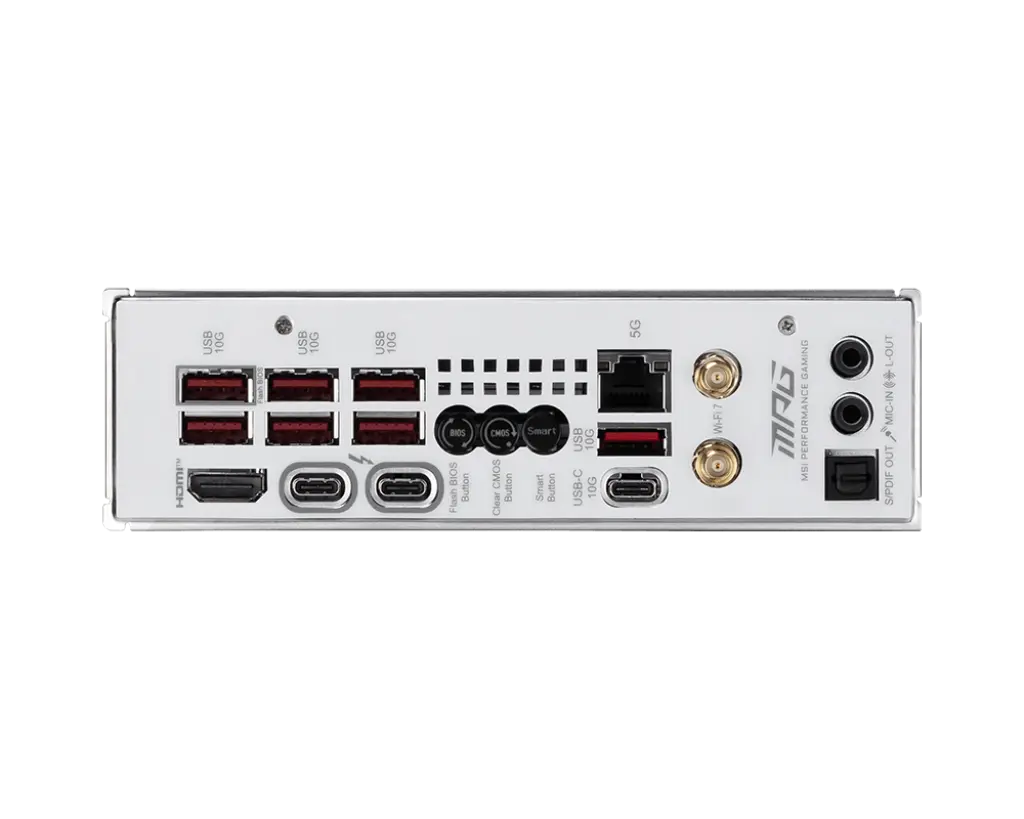

Back Panel Ports
Configuration	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt 4 USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF Out
Operating System
Support	Support for Windows® 11 64-bit
Box Content
INCLUDES
PCB INFO
	Mini-ITX 170mmx170mm

Overview

MSI MPG Z890I EDGE TI WIFI – Compact Size, Titanium Power

The MSI MPG Z890I EDGE TI WIFI is a mini-ITX powerhouse built for gamers and creators who want uncompromised performance in a compact form. Powered by the latest Intel Z890 chipset and LGA 1851 socket, it delivers next-generation speed, stability, and efficiency for Intel Core processors — making it ideal for small yet powerful builds.
PERFORMANCE & THERMAL CONNECTIVITY

Despite its small size, the Z890I EDGE TI WIFI features a robust 12+2+1 phase power delivery system, ensuring consistent and clean power for demanding CPUs. The Frozr AI Cooling technology, enlarged VRM heatsinks, and M.2 Shield Frozr thermal design provide exceptional heat management to maintain top-tier performance under any workload.

Supporting DDR5 memory up to 8400+ MHz (OC) and PCIe 5.0 x16, this motherboard guarantees lightning-fast data processing and ultra-smooth graphics performance. It includes two M.2 slots (one PCIe 5.0 and one PCIe 4.0) for high-speed NVMe storage, ensuring maximum responsiveness and storage flexibility.

Connectivity is cutting-edge with Wi-Fi 7, 2.5G LAN, and multiple USB 4.0 ports for ultra-fast networking, data transfer, and device compatibility. Despite its compact footprint, it retains full premium features such as Audio Boost 5 with an ESS SABRE DAC for immersive, high-fidelity sound.
EZ DIY

The Z890I EDGE TI WIFI boasts a sleek titanium-gray design accented by Mystic Light RGB, delivering a sophisticated look that complements any high-end mini-ITX build. With its space-saving layout, pre-installed I/O shield, and EZ Debug LED, building and maintaining your system is smooth and efficient.

Designed to deliver maximum performance in minimal space, the MSI MPG Z890I EDGE TI WIFI is the perfect foundation for compact gaming rigs and professional mini-PC builds that don’t compromise on power or style.
