MSI MEG X870E GODLIKE X EDITION

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)
  • Anniversary Limited Edition: A highly exclusive release limited to just 1,000 units, each featuring a numbered Golden Nameplate, a premium Collector’s Stand, and the Black Lucky plush.
  • EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
  • M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
  • Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
Category: Brand:
Sales Enquiry
Specification Details
Chipset AMD X870E
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory
Configuration 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 9000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency – 1DPC 1R Max speed up to 8400+ MT/s
– 1DPC 2R Max speed up to 6400+ MT/s
– 2DPC 1R Max speed up to 6400+ MT/s
– 2DPC 2R Max speed up to 6400+ MT/s
Features Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Note * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
Ports 2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
Configuration 2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots – Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)
– Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
– Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E3 slot – Supports up to PCIe 4.0 x4
* PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
Please refer to the PCIe configuration table in the manual for more details.
Audio
Configuration Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage
Storage Devices 7x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_1: – Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
– Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2: – Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
– Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
– The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
M2_4: PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
Notes * Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card.
** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Support Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
**RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB
Configuration 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
5x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
Note * USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors.
LAN
Ports 1x Marvell® AQC113CS 10Gbps LAN
1x Realtek® 8126 5Gbps LAN
Internal IO
Connectors 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
1x Addressable V2 RGB LED connector (JARGB_V2)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Chipset Wi-Fi 7 Solution
Installation The Wireless module is pre-installed in the M.2 (Key-E) slot
Performance Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Notes * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE
Indicators 1x Dynamic Dashboard III
1x EZ Digit Debug LED
1x EZ LED Control switch

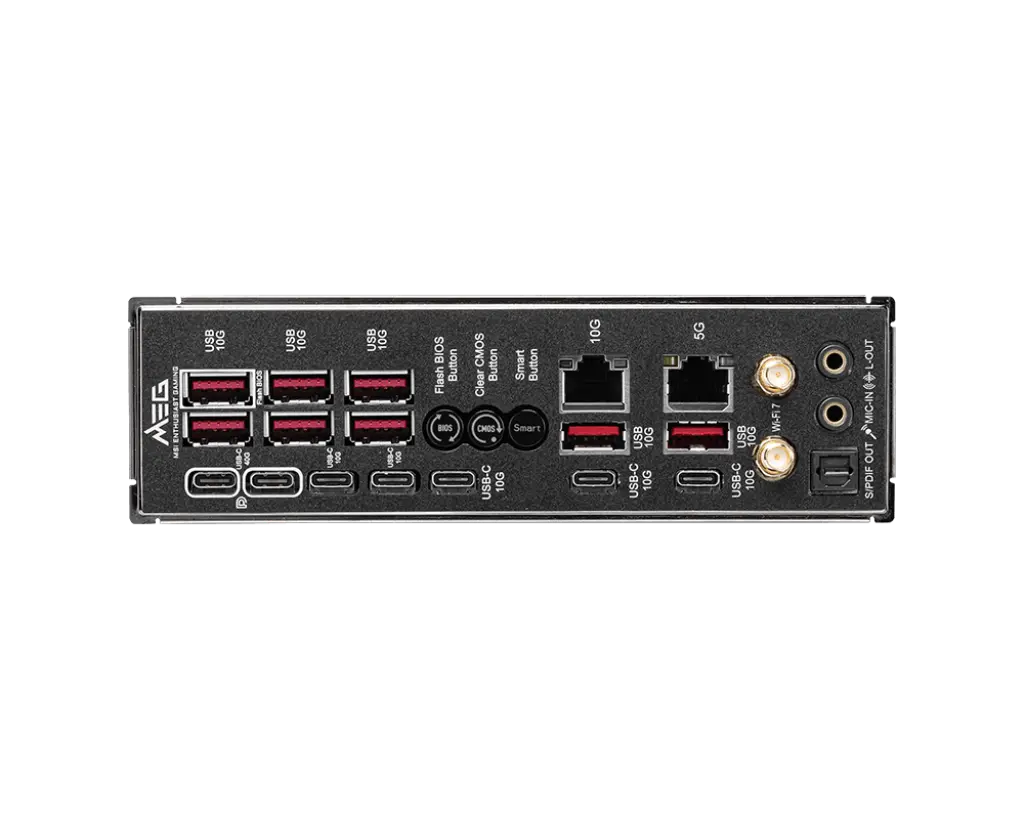

Back Panel Ports
Configuration

  1. USB 10Gbps (Type-A)
  2. Flash BIOS Button
  3. Clear CMOS Button
  4. Smart Button
  5. 10G LAN
  6. 5G LAN
  7. Wi-Fi / Bluetooth
  8. HD Audio Connectors
  9. USB 40Gbps (Type-C)
  10. USB 10Gbps (Type-C)
  11. USB 10Gbps (Type-A)
  12. Optical S/PDIF-Out
Operating System
Support Support for Windows® 11 64-bit

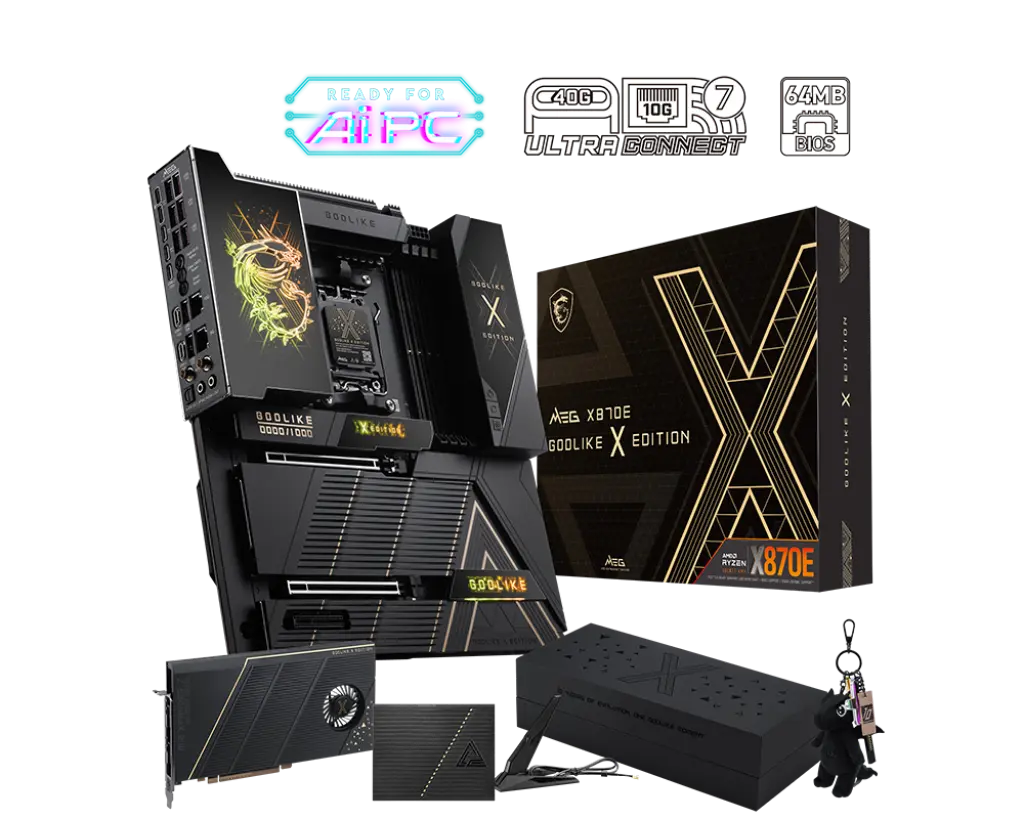

Box Content
INCLUDES
PCB INFO
E-ATX
277mmx304.8mm

Overview

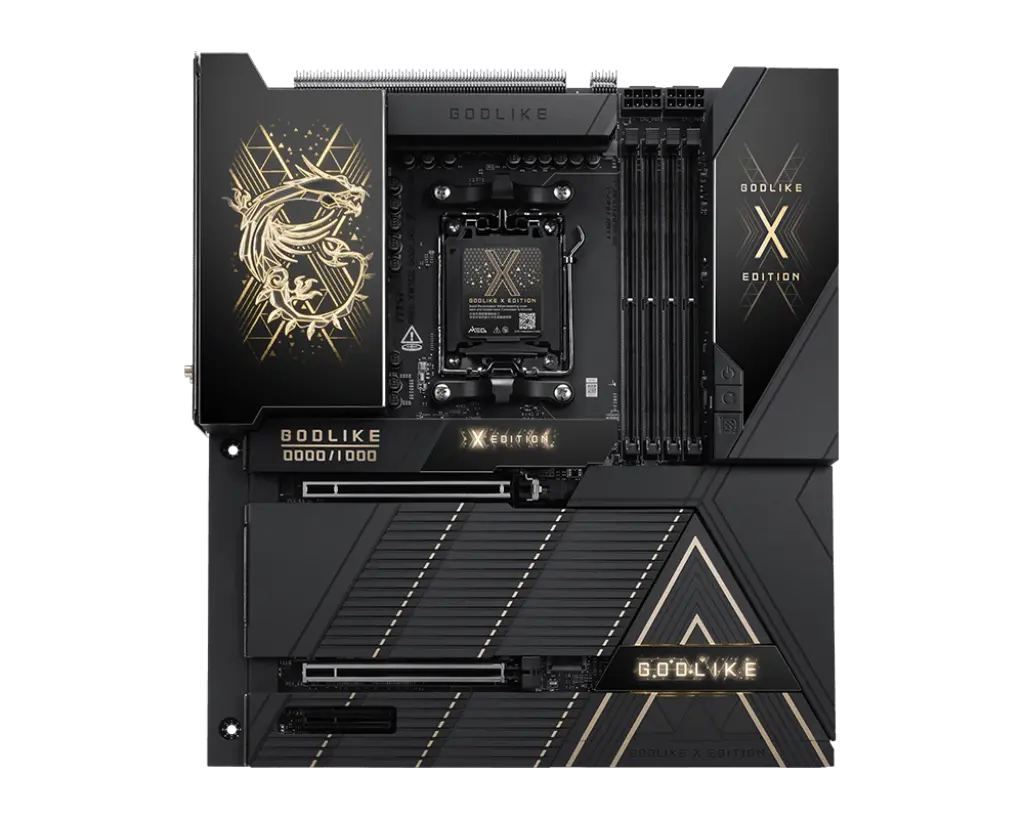

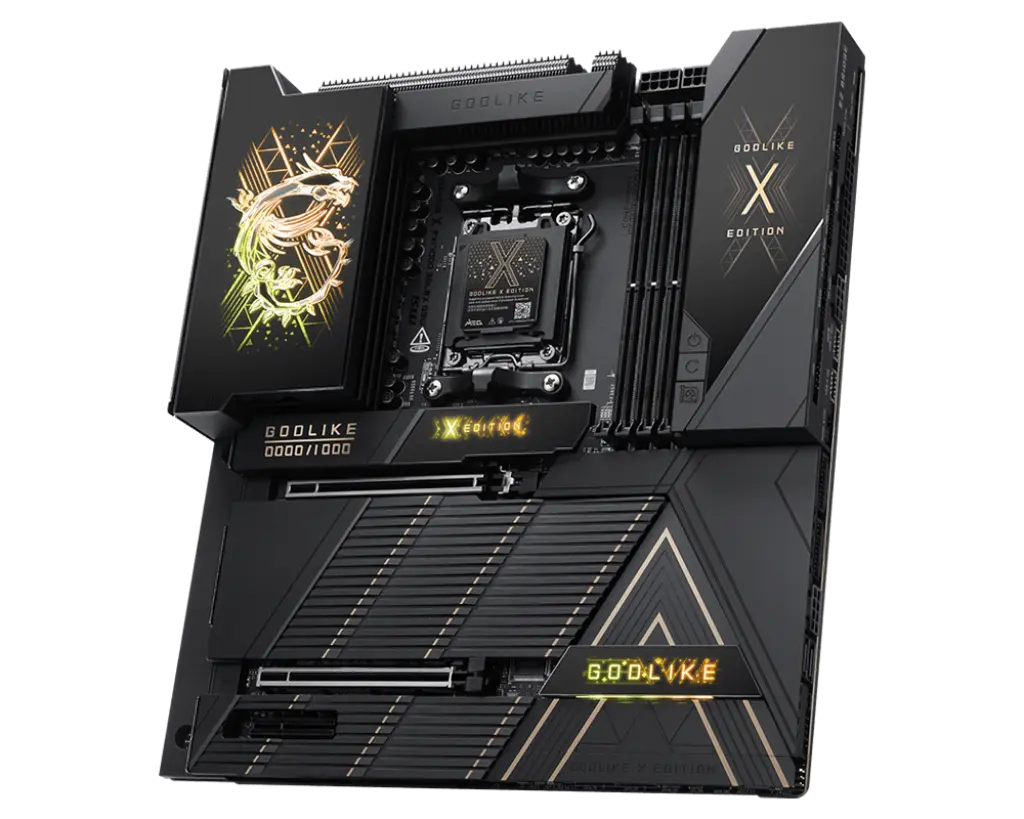

MSI MEG X870E GODLIKE X EDITION

The MSI MEG X870E GODLIKE X EDITION represents the pinnacle of motherboard engineering — designed for extreme enthusiasts, overclockers, and creators who demand nothing short of perfection. Built on the advanced AMD X870E chipset, this flagship motherboard supports the latest AMD Ryzen 9000 Series processors on the AM5 socket, unlocking the full potential of next-generation performance and connectivity.

Crafted with a 24+2 phase direct power design and premium titanium chokes, it delivers unmatched power stability and efficiency, ensuring optimal performance even under the most demanding workloads. The Dual 8-pin CPU power connectors and reinforced VRM heatsinks with active cooling guarantee exceptional thermal control, making it ideal for overclocking and sustained heavy use.

The GODLIKE X EDITION features support for DDR5 memory up to 256 GB, pushing speeds beyond 8000+ MHz (OC) for ultra-fast data throughput. With PCIe 5.0 x16 slots and multiple PCIe 5.0 x4 M.2 slots, users can harness the latest GPUs and SSDs for lightning-fast gaming and content creation. MSI’s M.2 Shield FROZR and Frozr AI Cooling technology keep components cool and efficient under any condition.

Connectivity is future-proof with Dual 10G Super LAN, Wi-Fi 7, and Bluetooth 5.4, providing ultra-low latency and blistering network performance. The board also integrates multiple USB 4.0 Type-C ports, ensuring maximum transfer speeds and compatibility with next-gen peripherals and storage devices.

Visually, the MEG X870E GODLIKE X EDITION is a masterpiece. It features an E-ATX form factor with a sleek, armor-clad design, embedded Mystic Light RGB illumination, and a customizable M-Vision Dashboard 2.0 touchscreen display that provides real-time system monitoring and control directly from the motherboard.

With premium audio powered by ESS SABRE DAC, dual BIOS, reinforced PCIe slots, and comprehensive overclocking tools, this motherboard redefines what’s possible in high-end PC builds.

The MSI MEG X870E GODLIKE X EDITION is more than just a motherboard — it’s a statement of dominance. Built for creators, competitive gamers, and PC enthusiasts who accept no compromises, it stands as the ultimate foundation for the most powerful desktop systems in the world.

Key Features:

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)
  • Anniversary Limited Edition: A highly exclusive release limited to just 1,000 units, each featuring a numbered Golden Nameplate, a premium Collector’s Stand, and the Black Lucky plush.
  • Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
  • M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
  • Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
  • Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
  • Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution, USB4 and 64MB BIOS ROM – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
  • Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery.
