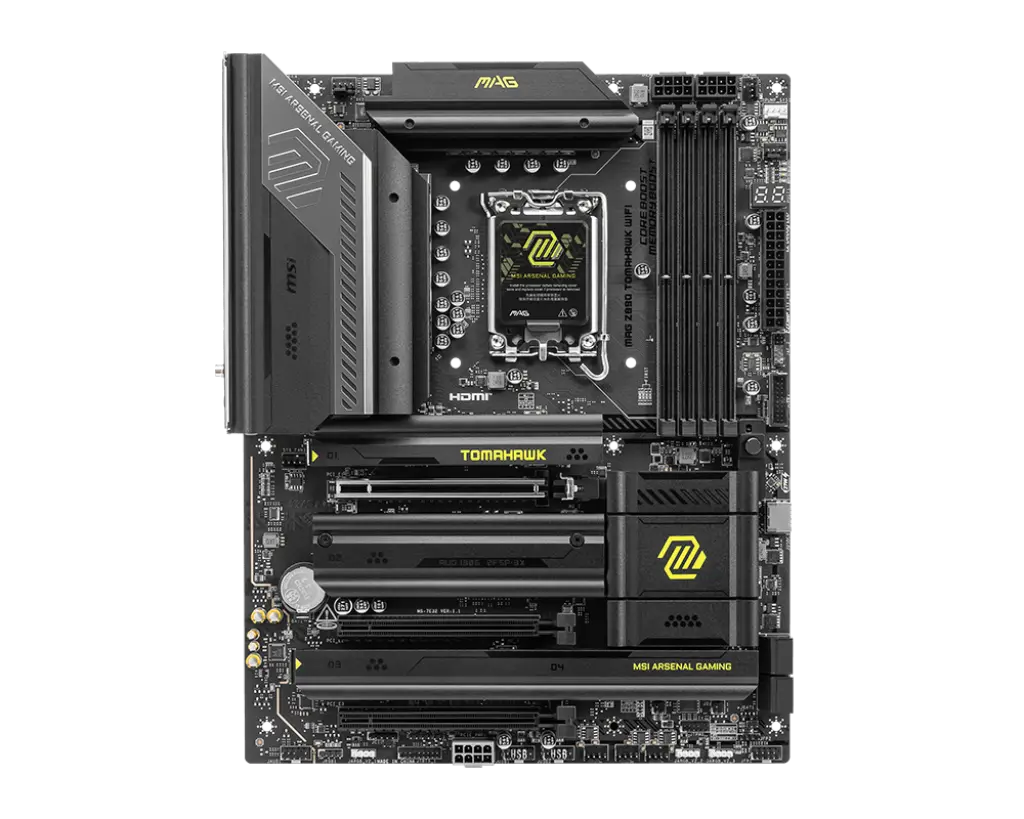

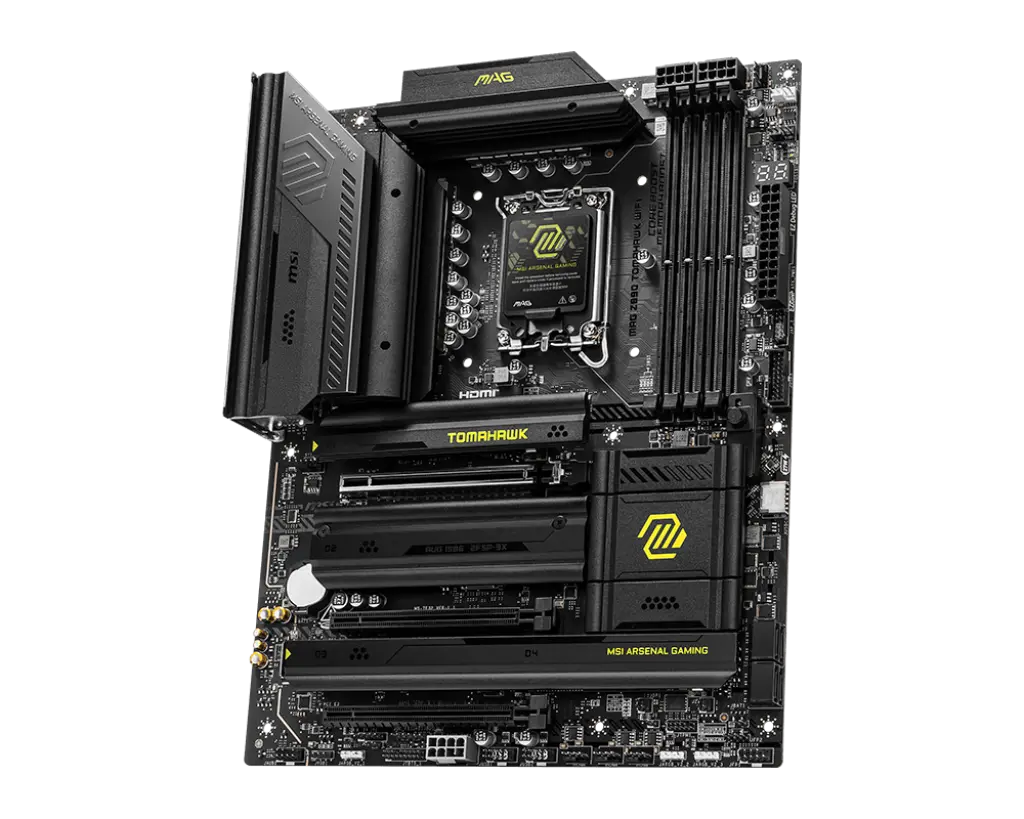

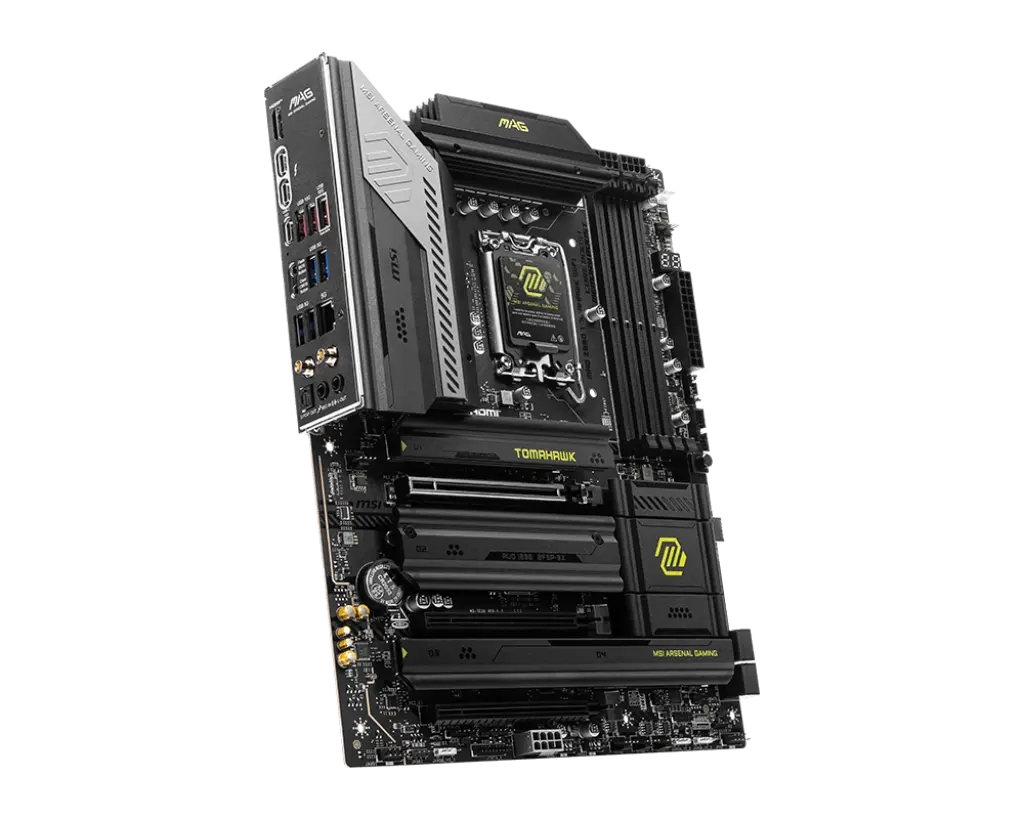

MSI MAG Z890 TOMAHAWK WIFI

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
  • Ultra Performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Category: Brand:
Sales Enquiry
Specification Details
Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory
Configuration 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. Overclocking Frequency – 1DPC 1R Max speed up to 9200+ MT/s
– 1DPC 2R Max speed up to 7200+ MT/s
– 2DPC 1R Max speed up to 6400+ MT/s
– 2DPC 2R Max speed up to 5600+ MT/s
Features Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Note – The DIMM slots on this motherboard only have single-sided latches.
– Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
Ports 1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Note *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
Configuration 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Configuration Realtek® ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage
M.2 Configuration 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA 4x SATA 6G
Note *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Support Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
Ports 2x Thunderbolt4 ports (Rear)
Performance Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB
Configuration 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
Note *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN
Ports Intel® Killer™ E5000 5Gbps LAN
Internal IO
Connectors 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Wireless LAN & Bluetooth
Chipset Intel® Killer™ BE1750x Wi-Fi 7
Installation The Wireless module is pre-installed in the M.2 (Key-E) slot
Performance Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Notes * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED Feature
Indicators 4x EZ Debug LED
1x EZ Digit Debug LED

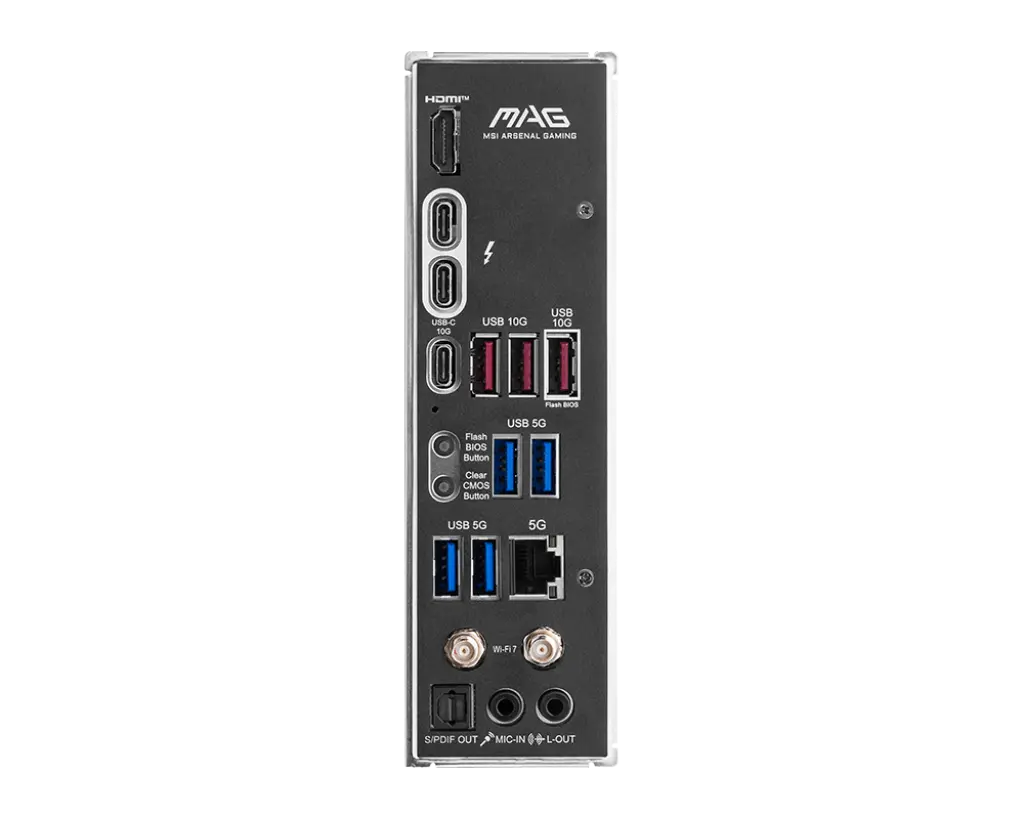

Back Panel Ports
Configuration

  1. USB 10Gbps Type-A
  2. USB 5Gbps Type-A
  3. 5G LAN
  4. Wi-Fi / Bluetooth
  5. Audio Connectors
  6. HDMI™
  7. Thunderbolt™ 4 40Gbps (Type-C)
  8. USB 10Gbps Type-C
  9. Flash BIOS Button
  10. Clear CMOS Button
  11. USB 5Gbps Type-A
  12. S/PDIF-OUT
Operating System
Support Support for Windows® 11 64-bit

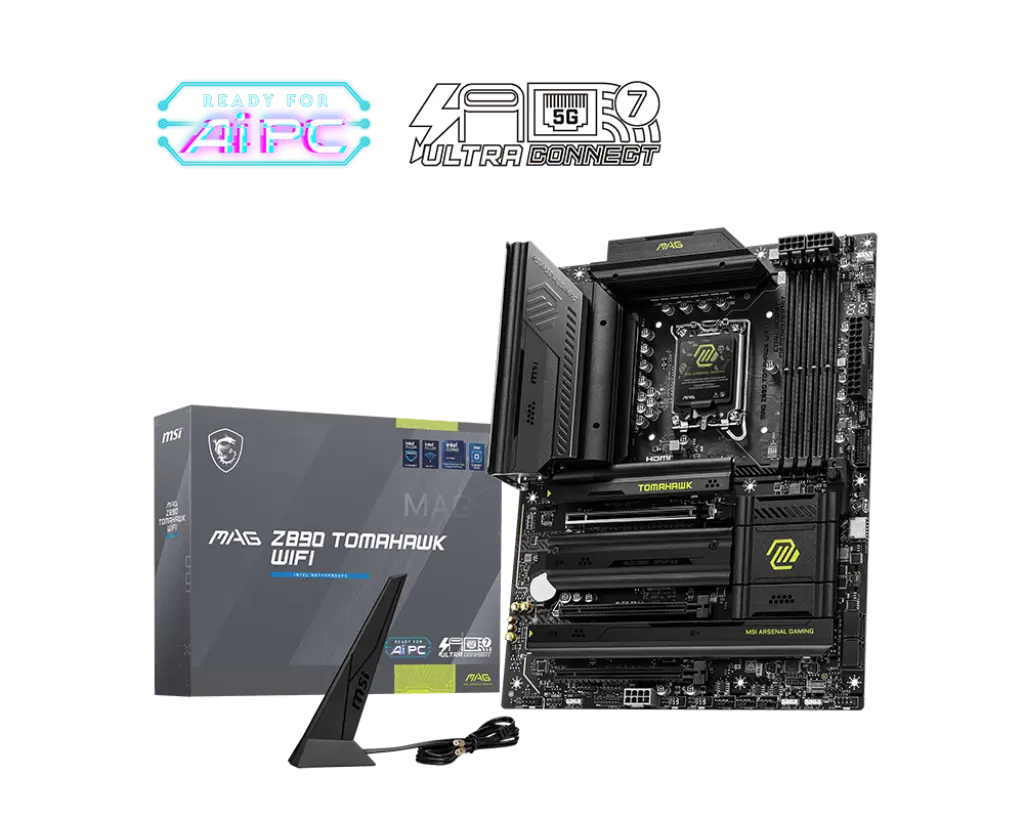

Box Content
INCLUDES
PCB INFO
ATX
243.84mmx304.8mm

Overview

MSI MAG Z890 TOMAHAWK WIFI – Military-Grade Power Meets Modern Performance

The MSI MAG Z890 TOMAHAWK WIFI is built for gamers and PC enthusiasts who demand exceptional stability, power, and reliability. Powered by the latest Intel Z890 chipset and LGA 1851 socket, this motherboard unleashes the full potential of next-generation Intel Core processors, delivering outstanding speed and performance for gaming, content creation, and productivity.
MSI Z890 Tomahake hero Thermal

Equipped with a strong 16+1+1 phase power delivery system and premium DrMOS power stages, the MAG Z890 TOMAHAWK WIFI ensures efficient, stable power for high-performance CPUs. Its Frozr AI Cooling, enlarged heatsinks, and M.2 Shield Frozr technology provide superior thermal performance, keeping your system cool even during extended gaming or overclocking sessions.

Supporting DDR5 memory up to 8400+ MHz (OC) and PCIe 5.0 for next-gen GPUs and NVMe storage, the motherboard delivers ultra-fast data transfer and exceptional responsiveness. With four M.2 slots, including PCIe 5.0 M.2, users can enjoy blazing NVMe speeds and enhanced multitasking performance.

Connectivity is future-ready with Wi-Fi 7, 2.5G LAN, and high-speed USB 4.0 ports, ensuring smooth, low-latency networking and rapid data exchange. The pre-installed I/O shield and EZ Debug LED simplify installation and troubleshooting, while onboard Audio Boost 6 technology ensures rich, high-fidelity sound for immersive gaming and media experiences.

The MAG Z890 TOMAHAWK WIFI stands out with its military-inspired design, durable black heatsinks, and subtle gray accents — embodying power and reliability in every detail.

Designed for gamers who want performance without compromise, the MSI MAG Z890 TOMAHAWK WIFI combines top-tier hardware support, intelligent cooling, and rock-solid durability in a bold, battle-ready design.

Key Features:

  • Supports latest Intel Core processors (LGA 1851, Z890 chipset)

  • 16+1+1 phase VRM power design with premium DrMOS

  • DDR5 memory support up to 8400+ MHz (OC)

  • PCIe 5.0 x16 slot and four M.2 slots (Gen5 supported)

  • Wi-Fi 7 and 2.5G LAN for high-speed connectivity

  • Frozr AI Cooling with enlarged VRM heatsinks and M.2 Shield Frozr

  • Audio Boost 4 for immersive, high-quality sound

  • Military-inspired design with pre-installed I/O shield

  • Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
