| Specification | Details |
|---|---|
| Chipset | Intel B860 |
| CPU | Supports Intel Core Ultra Processors (Series 2) Socket LGA 1851 |
| Memory | |
| Configuration | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support | DDR5 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s |
| Max Overclocking Frequency | 1DPC 1R: Up to 9200+ MT/s 1DPC 2R: Up to 7200+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 5600+ MT/s |
| Features | Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel Mode Supports Non-ECC, Un-buffered Memory Supports CUDIMM |
| Notes | The DIMM slots on this motherboard only have single-sided latches. Memory compatibility and supported speed may vary depending on CPU and memory configuration. For details, refer to the Memory Compatibility List at MSI Support. |
| Onboard Graphics | |
| Ports | 1x HDMI Supports HDMI 2.1 with FRL, maximum resolution 8K 60Hz* 1x DisplayPort Supports DisplayPort 1.4, maximum resolution 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 ports supporting DisplayPort 2.1 (UHBR20) over USB Type-C, maximum resolution 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. **Graphics specifications may vary by CPU. |
| Expansion Slots | |
| Slots | 1x PCI-E x16 Slot 1x PCI-E x4 Slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Notes | * PCI_E3 slot will run at x2 speed when installing a PCIe device in PCI_E2 slot. |
| Audio | |
| Codec | Realtek ALC897 Codec |
| Channels | 7.1-Channel High Definition Audio Supports S/PDIF Output |
| Storage | |
| Configuration | 3x M.2 M.2_1 (From CPU): PCIe 5.0 x4, supports 2280/2260/2242 devices M.2_2 (From Chipset): PCIe 4.0 x4, supports 2280/2260 devices M.2_3 (From Chipset): PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G |
| Notes | * Refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | |
| Support | Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA Storage Devices |
| Onboard Thunderbolt | |
| Resource | CPU |
| Ports | 1x Thunderbolt 4 Port (Rear) |
| Performance | Up to 40Gbps transfer rate with Thunderbolt devices Up to 20Gbps with USB4 devices Up to 10Gbps with USB 3.2 devices Supports 5V/3A (15W) power charging Each port daisy-chains up to three Thunderbolt 4 or five Thunderbolt 3 devices Supports up to 8K display output |
| USB | |
| Configuration | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type-A (Front) 3x USB 10Gbps Type-A (Rear) 1x USB 10Gbps Type-C (Rear) 1x USB 10Gbps Type-C (Front) |
| LAN | |
| Port | Intel Killer E5000 5Gbps LAN |
| Internal I/O | |
| Connectors | 1x Thunderbolt 5 Card Connector (JTBT5, supports RTD3) 1x ATX Power (ATX_PWR) 2x CPU Power (CPU_PWR) 1x PCIe Power (8-pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fans 1x EZ Conn Header (JAF_1) 2x Front Panels (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller Connector (JDASH) 3x Addressable V2 RGB (JARGB_V2) 1x RGB LED (JRGB) 1x TPM Header (Supports TPM 2.0) 4x USB 2.0 Ports 2x USB 5Gbps Type-A Ports 1x USB 10Gbps Type-C Port |
| Wireless LAN & Bluetooth | |
| Type | Intel Killer BE1750x Wi-Fi 7 |
| Module | Pre-installed in the M.2 (Key-E) Slot |
| Performance | Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a / b / g / n / ac / ax / be Supports Bluetooth 5.4**, MLO, 4KQAM |
| Notes | * 6GHz band support may depend on country regulations; Wi-Fi 7 functionality is enabled in Windows 11 SV3. ** Bluetooth 5.4 support availability depends on the Windows 11 update plan; refer to Intel chipset vendor website for details. |
| LED Features | |
| Indicators | 4x EZ Debug LED 1x EZ Memory Detection LED |

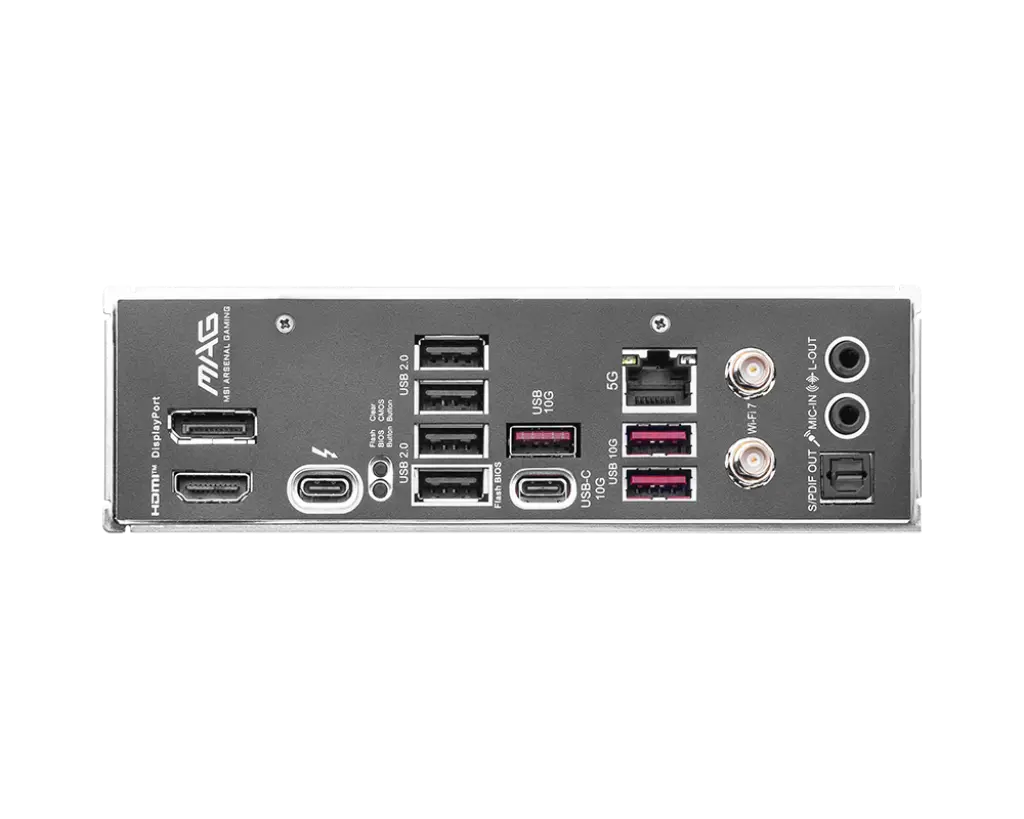

| Back Panel Ports | |
| Configuration |
|
| Operating System | |
| Support | Windows 11 64-bit |
| Box Content | |
| INCLUDES |  |
| PCB INFO | |
| mATX 243.84mmx243.84mm |
|
