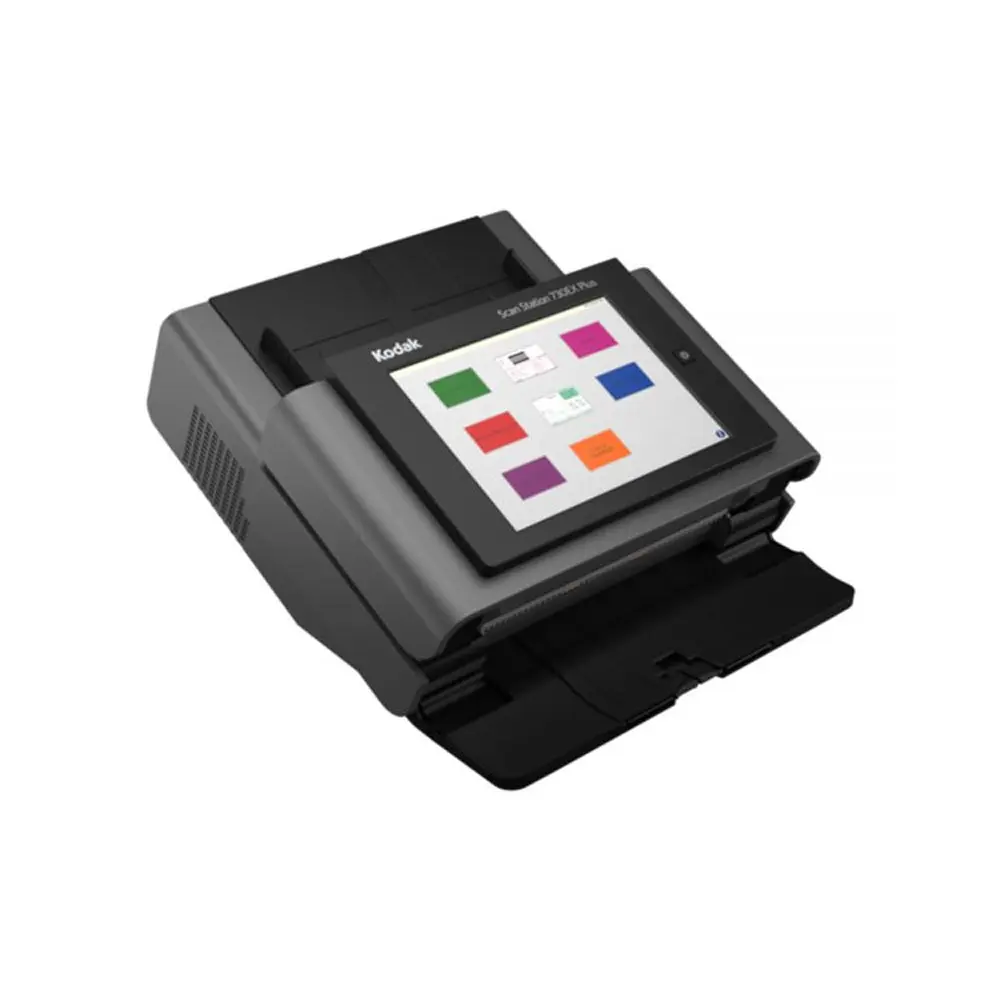

Kodak Scan Station 730EX Plus Scanner

  • RESOLUTION: 600 dpi
  • SPEED: Up to 70 ppm / 140 ipm
  • DAILY VOLUME: Up to 6,000 pages per day
  • CONNECTIVITY: 10/100/1000 Base T, no host PC required

Compatible with optional accessories

Category: Brand:
Sales Enquiry
Specifications Details
Recommended Daily Volume Up to 6,000 pages per day
Connectivity 10/100/1000 Base T, no host PC required
Output Methods Scan to network share, scan to print, scan to e-mail, scan to fax server, scan to portable USB drive, scan to KOFAX Front Office Server, FTP, sFTP, FTPS (anonymous, authenticated, with proxy support), scan to Microsoft SharePoint
Network Protocols TCP/IP, SMB, authenticated SMTP (login, plain text, CRAM, NTLM), DHCP (or static IP), Network domain authentication
Security Features Password-protected PDF output, Secure FTP private key encryption, optional password access, enable/disable scan to USB drive, secure login via LDAP, activity logging by Login ID, IP port blocking
Remote Administration (System Admin only) Secure login with customizable password
Create and manage lists of devices
Group and classify managed devices
Update configuration/software for one, some or all devices
View device status
Remotely access and manage logs
Restart or power off managed devices
File Format Outputs Single & multipage TIFF, JPEG, PDF, text-searchable PDF, PDF/A, Microsoft Word, Microsoft Excel, RTF, encrypted PDF, optional JPEG-compressed TIFF, WAV audio files
Control Panel 9.7 in. (24.6 cm), 1024×768 Touchscreen LCD
Audio Built-in microphone and speaker to record and play back voice attachment messages
Scanning Technology Duplex scanning with dual color quadlinear CCD, 600 dpi optical resolution, capture bit depth: 30 bits (10×3), color output: 24 bits (8×3), grayscale output: 8-bit (256 levels)
Output Resolution 100, 150, 200, 240, 300, 400, 600 dpi
Imaging Features Perfect Page Scanning, deskew, autocrop, content-based blank page removal, automatic orientation, hole fill, edge fill, streak filter, color dropout
Barcode Reading Interleaved 2 of 5, Code 3 of 9, Code 128, Codabar, UPC-A, UPC-E, EAN-13, EAN-8, PDF417
Indexing Create real-time path and filenames using barcodes and OCR information
Throughput Speeds Up to 70 ppm / 140 ipm at 200 dpi (portrait, letter size, black-and-white/grayscale/color)
Multi-feed Detection Ultrasonic technology
Feeder Up to 75 sheets of 20 lb. (80 g/m²) paper
Maximum Document Size 216 mm x 863 mm (8.5 in. x 34 in.) – may be restricted at certain resolutions
Minimum Document Size 50 mm x 63.5 mm (2 in. x 2.5 in.)
Multiple-sheet feeding: 75 mm x 125 mm (3 in. x 5 in.)
Paper Thickness & Weight 413 g/m² (110 lb.) paper and ID cards up to 1.25 mm (0.05 in.) thick
Approvals & Certifications AS/NZS CISPR 22:2009 +A1:2010 (Class B RCM mark)
CAN/CSA-C22.2 No 60950-1-07 +A1:2011 (TUV C mark)
CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B)
China GB4943.1.2011; GB9254:2008 Class B (CCC mark)
EN55022:2010 ITE Emissions (Class B)
EN55024:2010 ITE Immunity (CE mark)
EN60950-1:2006 +A1,+A11,+A12 (TUV GS mark)
IEC60950-1:2005 +A1
Taiwan CNS 13438:2006 (Class B), CNS 14336-1 (BSMI mark)
UL 60950-1:2007 R12.11 (TUV US mark)
CFR 47 Part 15 (FCC Class B)
Argentina S-mark
Dimensions & Weight Weight: 10.5 kg (23 lbs)
Depth: 38.2 cm (15 in.)
Width: 35.6 cm (14.0 in.)
Height: 20.6 cm (8.1 in.)
What’s in the Box Kodak Scan Station 730EX, power cords, User’s Guide, Setup & Documentation CD-ROMs, Installation Guide, scanner administration software
Recommended PC Configuration (for admin software) Intel Core2 Duo 6600 @ 2.4 GHz or equivalent, 4 GB RAM, USB 2.0; Windows XP (SP3), Vista (SP2), 7 (SP1), 8 (32/64-bit), 8.1 (32/64-bit), 10 (32/64-bit)
Accessories Available Portable USB drives, Kodak Scan Station Keyboard & Stand Accessory, Kodak Legal Size Flatbed Accessory, Kodak A3 Size Flatbed Accessory
Consumables Available Feed modules, roller cleaning pads, Staticide Wipes
Environmental Factors EPEAT Registered, ENERGY STAR qualified
Operating Temp: 10-35°C (50-95°F)
Operating Humidity: 10% – 85% RH
Altitude: < 2000 m (6562 ft)
Illumination Dual indirect LED
Power Consumption Off Mode: < 0.3 W
Sleep Mode: 5.26 W
Operating Mode: < 50 W
Operating System Compatibility Windows 7 (SP1), Windows 8, Windows 10

Overview

Powerful features. Unlimited integration options.

It’s not what you put into your scanner, it’s what your scanner puts into your business

Get more valuable information into your business systems faster by capturing your information at the edge of your processes. Kodak Scan Station 730EX Plus Scanners deliver powerful features and integrations for streamlined customization, and scanning by more people in more places. Turn business-critical data into decisions quickly and seamlessly with simple network setup and robust remote management.

Set-up, access, and security simplified

An array of safer, smarter, speedy features make the Kodak Scan Station 730EX Plus ideal for today’s information challenges.

• Powerful security features – such as administration-level password protection – maintain accessibility for ad-hoc users

• Easy integration into the Microsoft ecosystem, plus automatic, ongoing installation of their latest security updates

• Easily port your Windows 10 application to create your own custom scanning kiosk

• Classify, organize, and search content efficiently with improved file naming

• Deliver data to applications automatically with built-in barcode reading

Truly user-friendly features

Get fewer mistakes and faster proficiency without the need for a separate PC.

• Find the functions you need quickly with a bright, easy-to-navigate touchscreen

• Integrated OCR engine lets users convert documents to text-searchable PDFs and deliver them to a variety of configurable destinations – all with a single touch on the scanner

Simple remote management

By networking Scan Stations throughout your business, you spend less time visiting devices individually and more time on other tasks.

• Retain control of available features with administrator managed functionality

• Configure and maintain all of your scanners from one place

Turn abstract information into dynamic data

The Scan Station 730EX Plus converts the information in your documents into a valuable digital resource.

• Improve communication by connecting the scanner to your network and pulling data directly into your business processes quickly and easily

• Effortlessly send digital files to multiple destinations

• Streamline processes with improved paper handling

Protect your investment

Get the best possible performance from your scanners and software with a full range of service and support contracts available to protect your investment and keep productivity at peak levels. Along with the initial warranty, you can put Alaris knowledge to work for you, helping your Kodak Scan Station 730EX Plus Scanners satisfy your changing business process needs for years to come.
