Document Scanner

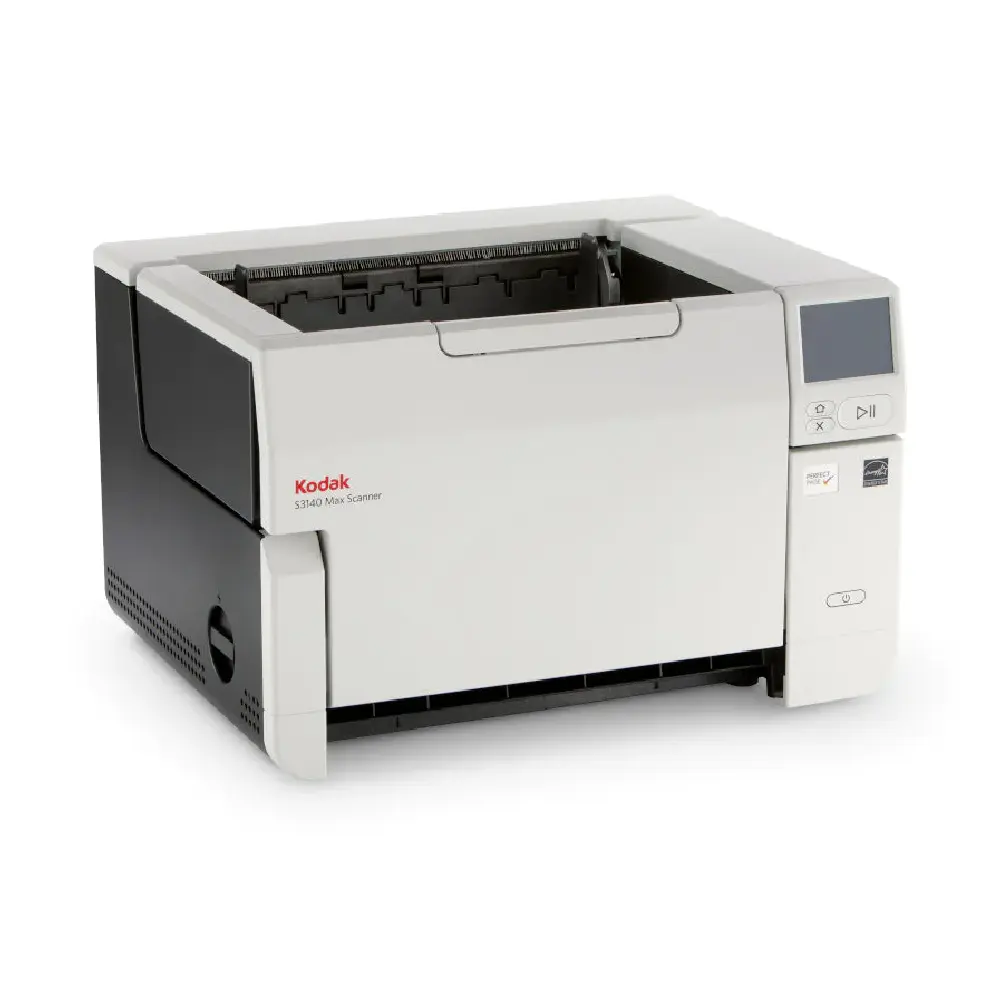

Kodak S3140 Max Scanner

RESOLUTION: 600 dpi
SPEED: 100 ppm / 200 ipm
DAILY VOLUME: Up to 120,000 pages per day
CONNECTIVITY: 10/100/1000 Ethernet, USB 3.2 Gen 1×1 Compatible

Compatible with optional accessories

Category: Document Scanner Brand: Kodak Alaris

Sales Enquiry

Specifications	Details
Product Highlights	Compact A3 scanner with fast scan speed and a straight-through paper path to feed thick or exceptionally long documents
Throughput Speeds *	140 ppm / 280 ipm
Feeder Capacity	Up to 500 sheets of 80 g/m² (20 lb.) paper
Connectivity	10/100/1000 Ethernet USB 3.2 Gen 1×1 Compatible
Maximum Document Size	305 mm x 4.06 m (12 in. x 160 in.)
Minimum Document Size	63.5 mm x 71.1 mm (2.5 in. x 2.8 in.)
Paper Thickness & Weight	34–433 g/m² (9–160 lb.)
Maximum Optical Capture Resolution	600 dpi
Accessories & Consumables	Carrier Sleeves (5 Pack), Document Extenders, Feeder Consumables Kits, KODAK A3 Size Flatbed Accessory, KODAK Enhanced Printer Accessory, Printer Ink Cartridge and Carrier, Rear Exit Tray Accessory
Acoustical Noise	Off/Ready: < 20 dB(A) Scanning: < 65 dB(A)
Approvals and Certifications	Argentina (S mark), Australia/New Zealand (RCM), Canada (cTUVus & ICES-003), China (CCC), EU (CE / GS Mark), India (BIS), Japan (VCCI), Mexico (NOM), Russia/Eurasian Union (EAC), South Korea (KC), Taiwan (BSMI), US (cTUVus & FCC)
Barcode Reading	Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, QR, UPC-A, UPC-E
Bundled Software	Capture Pro Limited Edition, Smart Touch
Data Security	Processes scanned data exclusively through volatile memory ensuring data is erased upon shutdown
Dimensions & Weight	Height: 295 mm / 11.6 in Width: 457.2 mm / 18 in Depth: 370.8 mm / 14.6 in Weight: 16.5 kg / 36.29 lbs
Electrical Requirements	100-240 V (International); 50-60 Hz
Environmental Certification	2008 EuP, ENERGY STAR Qualified, EPEAT Gold
File Format Outputs	BMP, JPEG, Single-page TIFF, Multipage TIFF, PDF, Searchable PDF, Microsoft Excel, Microsoft Word, PNG, RTF
Image Output Resolution Options	Up to 1200 dpi
Network Protocols	DHCP (or static IP), TCP/IP
Operating System Compatibility	Windows 11 (64-bit), Windows 10 (32/64-bit), Windows Server (2012 R2, 2016, 2019, 2022) Ubuntu 20.04/18.04 (64-bit) Open SUSE Leap 15.2 & 13.1 SUSE Enterprise Desktop 15.2 & 12.4 SUSE Linux Enterprise Desktop 12 SP2 (64-bit) Neokylin V7, UOS, Kylin 10 (Available only in China, x86/x64 & MIPS)
Operating Temperature / Humidity	10-35°C (50-95°F) 15% – 80% RH
Operator Control Panel	3.5-inch (89 mm) graphical color touchscreen LCD with control buttons
Optional Software	Capture Pro Software, Info Input Solution
Paper Path Options	Documents exit front tray or rear (straight-through path)
Paper Handling (SurePath)	Controlled stacking, Enhanced jam recovery, Intelligent Document Protection, Interactive OCP, Length multifeed detection, Rear exit, Ultrasonic multifeed
Perfect Page Image Enhancement	Adaptive threshold, Automatic color detection/orientation, Auto brightness/contrast, Deskew, Digital stamping, Dual stream, Noise removal, Cropping, Output compression (CCITT G4, JPEG, Uncompressed), Multi-lingual auto orientation, Snap to Size, Streak filtering, Barcode reading, more
Power Consumption	Running: < 50W Sleep: < 4W Standby: < 0.3W
Recommended Daily Volume	Up to 120,000 pages/day
Recommended PC Configuration	Intel Core i3 @ 3.5GHz or higher, USB 3.0/2.0, 3.43GB RAM or more
Scanning Technology	Dual RGB LED Illumination CIS (CMOS); Grayscale: 8-bit (256 levels); Color: 24-bit; Capture: 48-bit
Standard Software & Drivers	ISIS, TWAIN, WIA, Linux (TWAIN & SANE), Citrix certified, KOFAX certified

Overview

Perfect Page Image Quality

Image quality and accuracy are critical for OCR, searchable PDFs, and successful barcode reading. Perfect Page Technology turns even poor-quality originals into crisp images. Features such as streak removal, background smoothing, and image edge fill automatically enhance image quality. Minimize manual work and make your data ready for RPA (Robotic Process Automation) systems to further streamline repetitive tasks and free up your workforce.

Maximize data readability, OCR accuracy, automation rate, file transportation, and capture speed.
Minimize file size, storage costs, data loss, and total cost of processing.

Smooth Document Handling

Adjustable feeders and a straight-through paper path deliver fast, smooth, and safe document handling.

Benefits include:

Minimal misfeeds reduce the total time spent at the scanner.
Intelligent document protection reduces document damage and lost data.

Built-in Intelligence

The S3000 Max Series Scanners deliver the best possible image quality directly from within in the device, and without any impact on the rated speed of the scanner. Our powerful embedded processor significantly reduces the load requirements on your PC. And, our intelligent barcode reading technology produces the most accurate data extraction results and makes document prep fast and easy.

Share Data at the Touch of a Button

Scanned documents often need to be distributed to individuals, teams, or systems for action, automation, or storage. With other systems, this is a multi-step process of scanning to a PC, finding the file, renaming the file, attaching it to an email, or opening and finding a location in a system.

The KODAK S3000 Max Series Scanners have an intuitive color touchscreen and it’s easy to configure personalized buttons for multiple users. Our Smart Touch technology is included, so you can get your data where it needs to be with the simple push of a button, speeding up your scanning workflows and minimizing the post-scan steps that are required with other solutions.
