| Specifications | Details |
|---|---|
| Recommended Daily Volume | Up to 12,000 pages per day |
| Throughput Speeds* | Black-and-white/grayscale/color: up to 80 ppm / 160 ipm at 200 and 300 dpi |
| Scanning Technology | Dual CIS; Grayscale bit depth: 256 levels (8-bit); Color output: 24-bit (8×3) |
| Processor | Embedded Dual Core Cortex A15 (1.5GHz) with Dual DSP (750 MHz) Image Processors and Multiple Cortex M4 Sub-processors |
| Operator Control Panel | 3.5-inch (89 mm) color touchscreen LCD |
| Optical Resolution | 600 dpi |
| Illumination | Dual RGB LEDs |
| Output Resolution | 75 / 100 / 150 / 200 / 240 / 250 / 300 / 400 / 500 / 600 / 1200 dpi |
| Max/Min Document Size** |
Maximum: 216 mm x 356 mm (8.5 x 14 in.) Minimum: 52 mm x 52 mm (2.08 x 2.05 in.) Long document: 216 mm x 3,000 mm (8.5 x 118 in.) |
| Paper Thickness & Weight | 27–433 g/m² (7.2–160 lb. cover stock); ID card thickness up to 1.4 mm (0.55 in.) |
| Feeder | Up to 80 sheets (20 lb. / 80 g/m²), supports A8, ID cards, embossed hard cards, insurance cards |
| Paper Feeding Detection | Ultrasonic multifeed detection, Intelligent Document Protection |
| Connectivity | USB 3.2 GEN1, Wi-Fi 802.11 b/g/n, 10/100 Ethernet WLAN Security: WEP 64/128, WPA-PSK, WPA2-PSK, MSCHAPv2, EAP-TLS |
| Software Support |
Standard: TWAIN, ISIS, WIA Drivers, Alaris Smart Touch, Alaris Capture Pro LE (download) Optional: Alaris Info Input Solution, Alaris Capture Pro SW, Asset Management Software |
| Imaging Features |
Barcode reading (10 types, up to 6 per side) Perfect Page Scanning iThresholding Adaptive threshold processing Deskew, Autocrop, Relative & Fixed crop Add/remove border Electronic color dropout Dual stream scanning Enhanced color management & adjustment Brightness & contrast control Automatic orientation, auto color detection Background color smoothing Intelligent edge fill Image merge, multiple output Blank page detection & deletion Streak filtering Round/rectangular hole fill Sharpness filter, Auto brightness, Auto white balance All-color dropout, Multicolor dropout Long document scanning (up to 3000 mm) Sleeve scanning (A3 documents) B/W segmentation Automatic photo cropping Image split, Digital stamping (future availability) |
| File Format Outputs | TIFF (single/multipage), JPEG, RTF, BMP, PDF, searchable PDF, TXT, PNG, CSV, Word, Excel |
| Accessories (Optional) | Alaris Carrier Sleeves (5 Pack), S2000 Feed Roller Kit, Stacking Deflector, Passport Flatbed Accessory, Integrated A4/Legal Flatbed, Kodak A3 Flatbed |
| Electrical Requirements | 100–240 V (International), 50/60 Hz |
| Power Consumption | Off: < 0.5 W Sleep: < 5.0 W Operating: < 36 W |
| Environmental Factors | EPEAT Registered, ENERGY STAR Qualified Operating Temp: 10–35 °C (50–95 °F) Humidity: 15%–80% RH |
| Acoustical Noise | Off/Ready: < 20 dB(A) Scanning: < 50 dB(A) |
| Recommended PC Configuration | Intel Core i3 processor or faster, 4 GB RAM or more (Windows) |
| Approvals & Certifications |
AS/NZS CISPR 32 (Class B RCM mark) CAN/CSA-C22.2 No 60950-1 (TUV C) CSA-CISPR 32 / ICES-003 Class B China GB4943.1, GB9254 Class B (CCC) EN55032 ITE Emissions (Class B) EN55024 ITE Immunity (CE) EN60950-1 (TUV GS) IEC60950-1:2005 Taiwan CNS 13438 (Class B), CNS 14336-1 (BSMI) UL 60950-1 (TUV US) CFR 47 Part 15 (FCC Class B) |
| Consumables | S2000 Feed Roller Kit, roller cleaning pads, Staticide Wipes, transport cleaning sheets, Brillianize Wipes, Carrier Sleeves |
| Dimensions & Weight |
Weight: 3.3 kg (7.2 lbs) Depth: 204 mm (8.0 in.), w/o trays Width: 312 mm (12.3 in.) Height: 182.5 mm (7.2 in.), w/o trays Depth with Input Tray: 269 mm (10.6 in.) Height with Input Tray: 231.6 mm (9.1 in.) |
| Operating Systems Supported |
Windows 7 SP1 (32/64-bit) Windows 8 (32/64-bit) Windows 10 (32/64-bit) Windows Server 2012 R2 (64-bit) Windows Server 2016 (64-bit) Linux (Intel/AMD x86/x64) Ubuntu 14.04 (32/64-bit), 18.04 (64-bit) OpenSUSE 11.3 (i586, 32-bit), Leap 15.1 (64-bit) SUSE Linux Enterprise Desktop 12.2 (64-bit), 15 SP1 (64-bit) NeoKylin-NKLD-V7_U2-ZX64-REL-build54 NeoKylin-Live-Desktop-6.0-x86_64-B060-20160822 NeoKylin-Linux-Desktop-6.0-x86_64-B045-20141201 (64-bit) NeoKylin-Linux-Desktop-6.0 i586 (32-bit) Citrix Certified |
| Notes |
* Throughput speeds may vary depending on driver, application software, OS, PC, and image processing features. ** Maximum document size may vary based on resolution and compression used. |

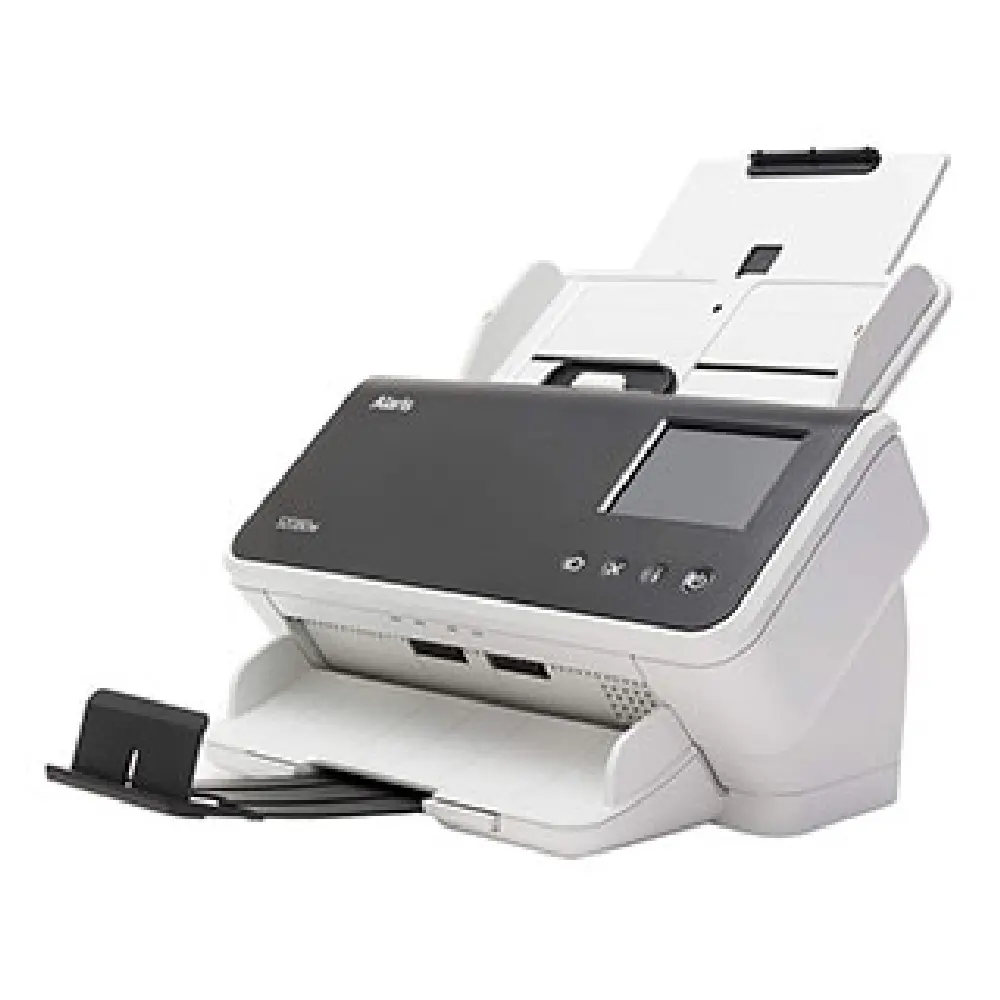

Kodak S2080W Scanner
- RESOLUTION: 600 dpi
- SPEED: 80 ppm | 80 sheets ADF
- DAILY VOLUME: Up to 12,000 pages per day
- CONNECTIVITY: USB 3.2 GEN1, Wi-Fi 802.11 b/g/n, 10/100 Ethernet, WLAN Security: WEP 64/128, WPA-PSK, WPA2-PSK, MSCHAPv2, EAP-TLS
Compatible with optional accessories.
Overview
S2080W A4 Workgroup Document Scanner
Simple information capture to streamline your processes
Digital transformation starts with information capture. Imagine document scanning that speeds and simplifies your business processes. The Alaris S2000 Series Scanners are built to let users capture information anywhere, with superior image quality and data accuracy. Its the perfect solution when you need to get information into your business processes quickly.
Faster, easier scanning leaves more time for business
The Alaris S2000 Series Scanners enhance your productivity by handling more of the work traditionally done by people, computers and mobile devices.
- Embedded Image Processing in the scanner delivers crisp, high-quality images without depending on your computer.
- Active Feed technology aligns the leading edges of pages to avoid misfeeds and multi feeds, and Controlled Output Stacking places paper neatly in the output tray, so your team spends less time dealing with documents and more time on work that matters.
Document and information handling you can trust
Ensure reliable data quality at the point of capture through a combined approach of hardware and software technologies.
- Intelligent Exception Processing1 handles immediate validation of forms so any missing information can be identified and fixed at the point of transaction.
- Intelligent Document Protection and multi-feed sensor technology make scanning virtually jam-free and document-damage-free.
- Industry-standard enterprise security protocols for scanning over networks protect document images and data in transit.
Capture that streamlines your business processes Document capture integrates smoothly and conveniently into your normal workflow.
- Intelligent Barcode Reading produces the most accurate data extraction results and takes the complexity out of document preparation.
- Convenient push and pull scanning options allow users to scan from business applications or send images directly to applications from the scanner.
- Mobile scanning enables your workforce to capture documents from their mobile devices or tablets.
Easy to set up, easy to use
An intuitive color interface and predefined job setups2 simplify the lives of users and network administrators.
- Predefined job setups let users change scanner configuration at the push of a button or by scanning auto-generated QR codes.
- Connect to various applications such as Dropbox, Salesforce, OneDrive, SharePoint, SharePoint Online, Box, Google Drive, and more.
- Network models, including wireless connectivity, enable multiple users to easily share scanners in a distributed environment.
Information capture that evolves with your business
The S2000 Series Scanners are designed to fit seamlessly into your business environment and adapt as your needs change.
- Integrate easily using our Web API, so no device drivers need to be installed on the host computer, tablet, or mobile device.
- Kodak Asset Management Software helps administrators monitor and manage scanners over the network.
