Document Scanner

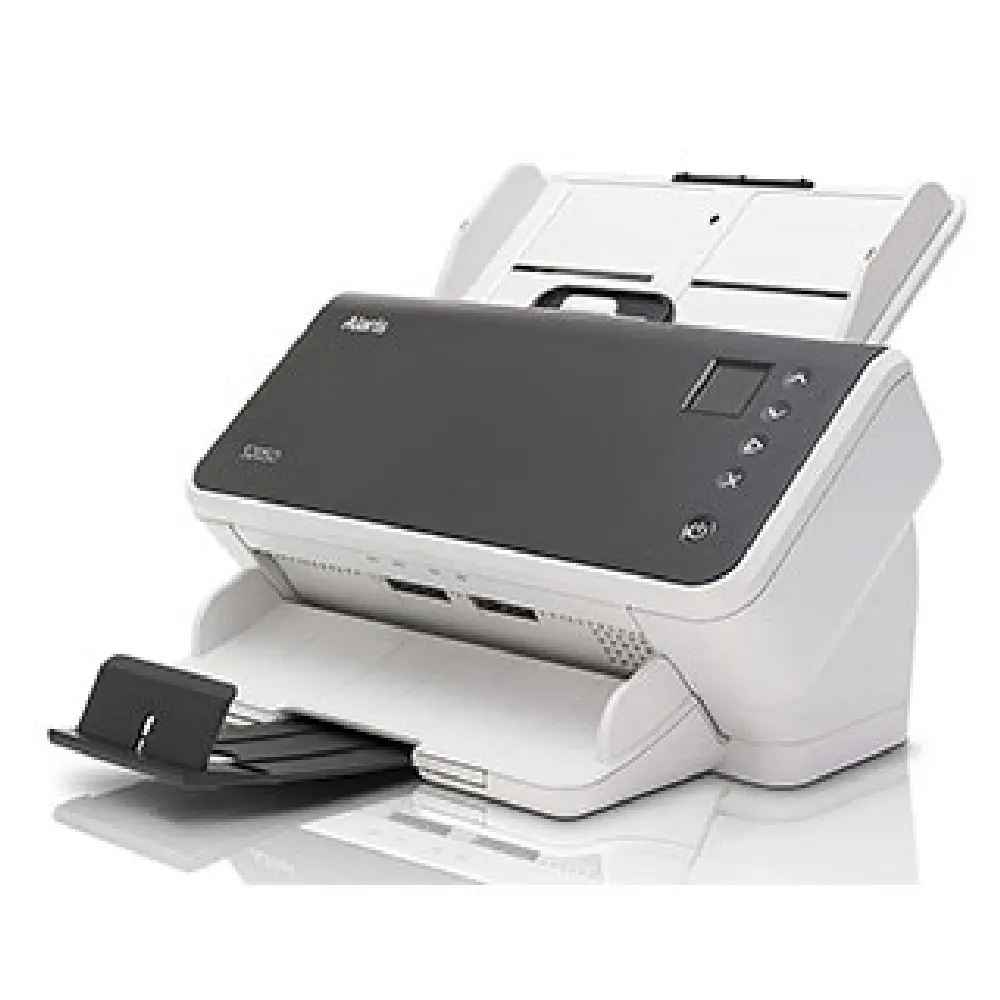

Kodak S2050 Scanner

RESOLUTION: 600 dpi
SPEED: 50 ppm | 80 sheets ADF
DAILY VOLUME: Up to 6,000 pages per day
CONNECTIVITY: USB 3.1 GEN1 (backward compatible with USB 2.0 and 3.0)

Compatible with optional accessories.

Category: Document Scanner Brand: Kodak Alaris

Sales Enquiry

Specifications	Details
Recommended Daily Volume	Up to 6,000 pages per day
Throughput Speeds*	Black-and-white / Grayscale / Color: up to 50 ppm / 100 ipm at 200 and 300 dpi
Scanning Technology	Dual CIS; Grayscale output bit depth: 256 levels (8-bit); Color output bit depth: 24 bits (8 x 3)
Processor	Embedded Single Core Cortex A15 Processor with single DSP Image Processor and multiple Cortex M4 Sub-processors
Operator Control Panel	1.5-inch color LCD
Optical Resolution	600 dpi
Illumination	Dual RGB LEDs
Output Resolution	75 / 100 / 150 / 200 / 240 / 250 / 300 / 400 / 500 / 600 / 1200 dpi
Document Size – Max./Min.**	Maximum: 216 mm x 356 mm (8.5 x 14 in.) Minimum: 52 mm x 52 mm (2.08 x 2.05 in.) Long Document Mode: 216 mm x 3,000 mm (8.5 x 118 in.)
Paper Thickness & Weight	27–433 g/m² (7.2 lb. bond – 160 lb. cover stock); ID cards up to 1.4 mm (0.55 in.) thick
Feeder	Up to 80 sheets (20 lb. / 80 g/m²); handles documents such as A8, ID cards, embossed/hard cards, insurance cards (portrait & landscape)
Paper Feeding Detection	Multifeed detection with ultrasonic technology; Intelligent Document Protection
Connectivity	USB 3.1 GEN1 (backward compatible with USB 2.0 and 3.0)
Software Support	Standard: – Windows TWAIN, ISIS, WIA Drivers – Alaris Smart Touch – Alaris Capture Pro Software Limited Edition (via web download) Optional: – Alaris Info Input Solution – Alaris Capture Pro Software (Windows only) – Asset Management Software
Imaging Features	Barcode reading (10 types, up to 6 per side) Perfect Page Scanning iThresholding, Adaptive threshold Deskew Autocrop, Relative crop, Fixed crop Add/remove border Electronic color dropout Dual stream scanning Enhanced color management & adjustment Brightness/contrast adjustment Automatic orientation Automatic color detection Background color smoothing Intelligent edge fill Image merge Content-based blank page removal Streak filtering Hole fill (round/rectangular) Sharpness filter Auto brightness Auto white balance All-color dropout, Multicolor dropout Long document scanning (to 3000 mm) Sleeve scanning (for A3 docs) Black-and-white segmentation Auto photo cropping Multiple document output Image split Digital stamping
File Format Outputs	TIFF (single & multipage), JPEG, RTF, BMP, PDF, Searchable PDF, TXT, PNG, CSV, Word, Excel
Accessories (Optional)	Alaris Carrier Sleeves (5 Pack) Alaris S2050/2070/2060w/2080w Feed Roller Kit S2000 Series Stacking Deflector Accessory Alaris Integrated A4/Legal Flatbed Alaris Passport Flatbed Accessory Kodak A3 Size Flatbed
Electrical Requirements	100–240 V (International); 50–60 Hz
Power Consumption	Off: < 0.5 W Sleep: < 3.0 W Running: < 36 W
Environmental Factors	EPEAT Registered, ENERGY STAR Qualified Operating Temp: 10–35 °C (50–95 °F) Humidity: 15% – 80% RH
Acoustical Noise	Off/Ready: < 20 dB(A) Scanning: < 50 dB(A)
Recommended PC Configuration	Minimum: Intel Core i3 or faster, 4 GB RAM (Windows)
Approvals & Certifications	AS/NZS CISPR 32 (Class B RCM) CAN/CSA-C22.2 No 60950-1 (TUV C) CSA-CISPR 32 / ICES-003 (Class B) China GB4943.1; GB9254 Class B (CCC) EN55032 (Class B), EN55024 (CE) EN60950-1 (TUV GS), IEC60950-1:2005 Taiwan CNS 13438 (Class B), CNS 14336-1 (BSMI) UL 60950-1 (TUV US) CFR 47 Part 15 (FCC Class B)
Consumables Available	S2050/2070/2060w/2080w Feed Roller Kit, Cleaning Pads, Staticide Wipes, Transport Cleaning Sheets, Brillianize Wipes, Carrier Sleeves
Dimensions & Weight	Weight: 3.3 kg (7.2 lbs) Depth: 204 mm (8.0 in.) (without trays) Width: 312 mm (12.3 in.) Height: 182.5 mm (7.2 in.) (without trays) Depth with Input Tray: 269 mm (10.6 in.) Height with Input Tray: 231.6 mm (9.1 in.)
Operating Systems Supported	Windows 7 SP1 (32/64-bit) Windows 8 (32/64-bit) Windows 8.1 (32/64-bit) Windows 10 (32/64-bit) Windows Server 2012 R2 (64-bit) Windows Server 2016 (64-bit) Linux (Intel/AMD x86/x64) Ubuntu (32/64-bit) OpenSUSE 11.3 (i586, 32-bit), Leap 15.1 (64-bit) SUSE Linux Enterprise Desktop 12.2 (64-bit), 15 SP1 (64-bit) NeoKylin OS builds (NKLD-V7_U2-ZX64, 6.0 i586/x86_64, etc.) Citrix Certified
Notes	* Throughput varies with driver, PC, OS, and image processing. ** Maximum doc size depends on resolution and compression.

Overview

Powerful capture for businesses of any size

Capturing 50 pages per minute with the clarity and accuracy expected from the Alaris family of products, the Alaris S2050 Scanner is the perfect solution for when you need to get information into your business, with fast desktop scanning.

Embedded Image Processing

Save money at all steps in the scanning process, with innovation that takes out overhead costs. Embedded Image Processing delivers crisp, high-quality images at full speed without depending on a super-powered PC. Intelligent features help reduce manual pre- and post-scan tasks.

Intuitive User Display

Start up faster and stay productive with ease-of-use features. Install preconfigured settings in seconds using the award-winning Easy Setup feature. The intuitive color displays make scanning quick and easy. Save up to 20 job setups and destinations with one-touch scanning.

Active Feed Technology

Keep working without worrying about jams, thanks to a paper path built for exceptional reliability. Active Feed automatically jogs pages to avoid misfeeds. Maintain maximum uptime with SurePath Paper Handling. Controlled Output stacking neatly places pages in the output tray.

Optical Character Recognition

Get the right information the first time, with OCR read rates that are 10% more accurate than competitive devices. Perfect Page technology delivers superior image quality with 30+ enhancements automatically for more accurate image extraction.

Advanced Capture Software

Deliver information exactly where it needs to go, in the right format. Your documents can go anywhere you need: local or network folders, FTP, cloud destinations like SharePoint, or other ECM systems. Advanced capture software and our partners can help you extract data from documents and integrate it directly into business processes.

Ready for passports or small delicate documents

The S2000 Series is designed to ‘dock’ on top of the Alaris Passport Flatbed Accessory, offering a quick and easy solution for scanning passports, ID cards and other small, fragile documents. You don’t need another power cord or USB port on your host PC. Thanks to seamless TWAIN and ISIS-driver integration there is no need to use multiple scanner drivers.
