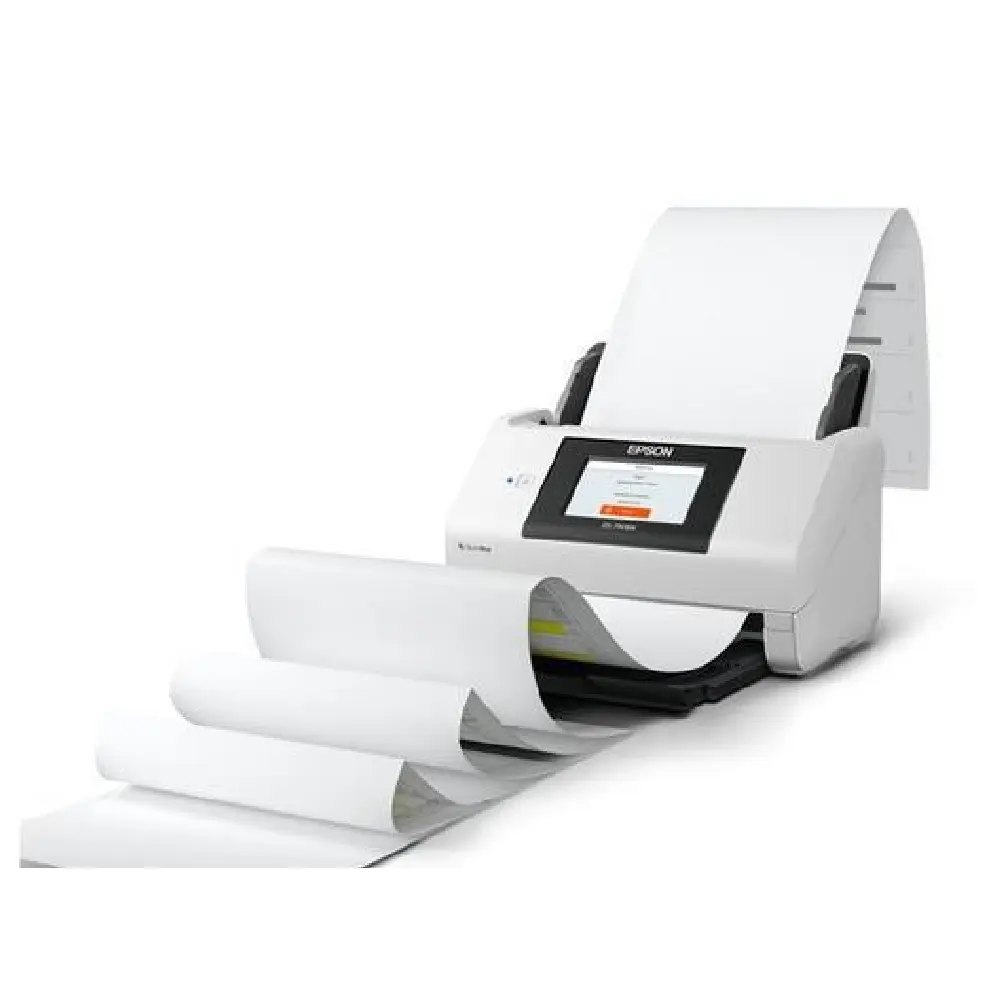

Epson WorkForce DS-790WN network scanner

Epson WorkForce DS-790WN network scanner

Premium network scanner

High-speed network scanner with stand-alone features for efficient digitalisation and distribution of documents in multi-user environments.

Easy-to-use, A4, high-speed, auto-duplex network scanner. Save files directly to a variety of destinations without the need to connect to a PC. System admins can take control of the device remotely and set up and authenticate user accounts using LDAP. The 10.9cm touchscreen allows control panel configuration for increased efficiency.

Category: Document Scanner Brand: Epson

Sales Enquiry

Specification	Details
Scanner Type	Sheetfed Scanner
Optical Resolution	600 DPI x 600 DPI (Horizontal x Vertical)
ADF Minimum Document Size	50.8 mm x 50.8 mm (Horizontal x Vertical)
ADF Maximum Document Size	215.9 mm x 6,096 mm (Horizontal x Vertical)
Paper Formats	A4 (21.0×29.7 cm), A5 (14.8×21.0 cm), A6 (10.5×14.8 cm), A8, B5, B6, Letter, Legal, C6 (Envelope), DL (Envelope), Postcard, Business cards, Plastic cards, User defined, A3 with stitching function
Scanning color depth	Input: 30 Bits Color / 10 Bits Monochrome, Output: 24 Bits Color / 8 Bits Monochrome
Category	Network & Wifi, High Capacity, General Office
Panel	Type: Color, Touchscreen, Diagonal: 10.9 cm
Scanning Speed	45 pages/min (Monochrome, Single-sided, 300 dpi, ADF); 45 ppm (Colour, Single-sided, 300 dpi, ADF); 90 ipm (Monochrome, Double-sided, 300 dpi, ADF); 90 ipm (Colour, Double-sided, 300 dpi, ADF)
Paper Setting Capacity	100 Sheets
Paper weight	Auto loading: 27 – 413 g/m²
Automatic Document Feeder Type	Single pass dual scanning
Reliability Daily Duty Cycle	7,000 pages
Duplex Scan	Yes
Features	Standalone operation, Skip blank page, Automatic de-skew, Auto-rotation, Text enhancement, Barcode Recognition, Full Zonal OCR
Output formats	BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, PNG
Advanced document integration	Scan to Email, Scan to FTP, Scan to Microsoft SharePoint®, Scan to Web folders, Scan to Network folders, Scan to USB
Interfaces	USB 3.0, Wi-Fi Direct, USB host, Ethernet Interface (1000 Base-T/100-Base TX/10-Base-T), Wireless LAN b/g/n 2.5GHz
Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions	296‎ x 169 x 167 mm (Width x Depth x Height)
Product weight	3.7 kg
Drivers	Epson Scan2 (TWAIN), SANE (Linux), WIA (Windows), ICA (Mac), ISIS (Windows)
Included Software	Document Capture Pro 2.0, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2
Compatible Operating Systems	Linux, Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP SP3, Windows Server 2003 SP2 or later, macOS 11 or later
Power consumption	15 Watt, 5.3 Watt (economy), 1.5 Watt (standby)
Supported Humidity	Operation 15% – 80%, Storage 15% – 85%
Supported Temperature	Operation 5° C – 35° C, Storage -25° C – 60° C
What’s in the box	Driver and Utilities (CD), External AC power adapter with power cord, Main unit, Quick Start Guide, USB 3.0 cable
Options	Roller Assembly Kit
Warranty	12 months On-site service

Overview

Advanced authentication

Prevent unauthorised access to the scanner or use of unauthorised features with a range of authentication methods, including ID cards (card reader not included), login credentials or pin codes. For advanced security options make use of Epson’s WebConfig and Document Capture Pro Server – Authentication Edition.

ScanWay – standalone scanning

Route scanned documents directly to the right destination using the 10.9cm colour touchscreen without the need to connect to a PC. Scan direct to network and cloud folders, email addresses, or USB memory stick.

Connectivity

The DS-790WN offers a variety of connectivity options, such as USB 3.0, Wi-Fi, Wi-Fi Direct and Gigabit ethernet. In addition, it supports multiple platforms, including Windows, Mac OS, iOS, Android, Chromebook and Citrix. Scan from a phone or tablet using the Epson Smart Panel app.

Reliability

With a 7000 pages-per-day duty cycle and inbuilt sensors for paper jams, double-feeding, and dirt-on-glass detection, all documents are kept safe and scanned to the highest quality.

Key Features

Advanced authentication features Set-up multiple user accounts locally or remotely (supports LDAP)
ScanWay standalone scanning Scan directly to network, cloud, email, or USB stick – no PC required
Connectivity USB 3.0, Wi-Fi, Wi-Fi Direct, Gigabit Ethernet
High speed Scan both sides at once up to 45ppm / 90ipm with the 100-sheet ADF
Large built-in display 10.9cm colour touchscreen with customisable presets and layout

Product Datasheet
