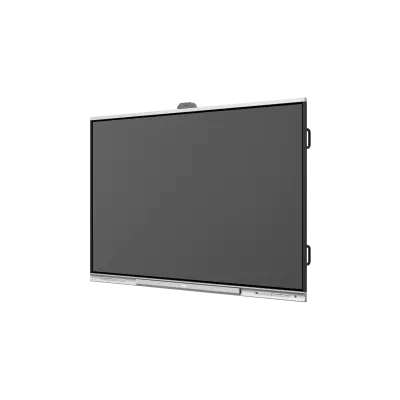

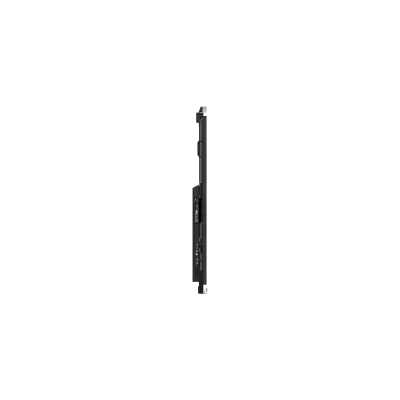

Dahua LPH98-MC470-P

65/75/86/98” DeepHub Pro Smart Interactive Whiteboard

Equiped with Zero Air Gap technology, the 65, 75 and 86 inch 4K DLED display delivers clear images in sharp and vivid colors. The 98-inch display uses full lamination technology.
Built-in AI 4K camera and 8 array microphone that produces excellent quality visual and audio communication.
Wireless screen sharing from multiple devices with an intuitive, easy- to-use system.
Ultra-smooth writing experience with handwriting recognition.
Quick file sharing by scanning a QR code, with easy file encryption for added privacy and security.
Optional OPS module, dual-system switchable.
Fingerprint lock for protection of user information.

Category: Uncategorized Brand: Dahua

Sales Enquiry

Specification	Details
Built-in System	CPU Frequency
	2.2 GHz + 2.0 GHz
GPU	ARM Mali-G52 MP8 (8EE)
Operating System	Android 11.0
CPU	Quad-core A73 + Quad-core A53
RAM	12 GB (System: 8 GB, Camera: 4 GB)
ROM	64 GB
Function
Operating System of External Module	Windows 7/8/10; Android
WiFi	Dual-band 2.4 G/5 G; supports 802.11 a/b/g/n/ac wireless frequency range
Wi-Fi Hotspot	Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time
LCD Panel
Panel Dimensions	65-inch; 75-inch; 86-inch; 98-inch
Backlight	DLED
Aspect Ratio	16:9
Brightness	65-inch: 350 cd/m²; 75-inch: 350 cd/m²; 86-inch: 400 cd/m²; 98-inch: 400 cd/m²
Resolution	3840 (H) × 2160 (V)
Viewing Angle	H: 178°; V: 178°
Lifespan	50,000 h
Display Color	72% NTSC
Refresh Rate	60 Hz
Static Contrast	1200:1
Camera
Pixel	48 MP
Auto Control	Auto flip; Auto white balance
Distortion	–8.6%
Max. Resolution	3840 × 2160@30 fps
Storage	8 GB eMMC
Field of View	H: 87°; V: 49°; D: 99°
Face Detection	Yes
Device Ports
Light Sensor	1
Front Button	1 × power button (right side)
Front Ports	1 × USB 3.0 (left side)
Network Port	1 × RJ-45
Wi-Fi	1 × Wi-Fi; 1 × Hotspot
USB	3 × USB 3.0; 1 × Micro USB
RS-232	1 × RS-232
Video Input	1 × HDMI IN
Video Output	1 × HDMI OUT
Audio Output	1 × 3.5 mm (Line OUT) port
Others	1 × Touch
IrDA	1
Microphone	8 Array
Type-C Port	1 × Type-C
Touchscreen
Touch Technology Type	Infrared touch technology
Response Time	< 10 ms
Touch Points	Supports 20 touch points and drawing up to 20 lines
Valid Touch	2 mm
Touch Accuracy	± 1 mm
Writing Mode	Finger + Pen (attaches magnetically)
Anti-light Interference	Anti-dazzle tempered glass
Surface Hardness	7 on the Mohs scale
Touch Resolution	32767 × 32767
Number of Multi-user Writing Points	10
Speaker
Frequency	150 Hz–20 kHz
Power	Full: 15 W × 3
Built-in Speaker	3
Fingerprint
Fingerprint Capacity	100
Fingerprint Resolution	160 × 160
FAR	0.001%
Microphone
Pick-up Distance	Far-field sound pickup: 6 m–8 m (19.69 ft–26.25 ft)
Number of Microphones	8
AGC	Yes
Echo Cancellation	Yes
Polar Pattern	Omnidirectional
Intelligent Noise Filtering	Yes
General
Power Supply	100–240 VAC, 50/60 Hz
Power Consumption	65-inch: 200 W; 75-inch: 300 W; 86-inch: 400 W; 98-inch: 600 W
Operating Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature	–10 °C to +50 °C (+14 °F to +122 °F)
Operating Humidity	10%–90%
Storage Humidity	10%–90%
Product Material	Metal casing
Protective Glass	Anti-dazzle tempered glass with a hardness of 7 on the Mohs scale
Casing Color (Frame/Rear)	Bottom/top: Silver; left/right: black
Product Dimensions
65-inch	1,485 mm x 967.8 mm x 93.3 mm (58.46″ × 38.10″ × 3.67″)
75-inch	1,707.2 mm x 1,094.47 mm x 93.3 mm (67.21″ × 43.09″ × 3.67″)
86-inch	1,953.2 mm x 1,232.7 mm x 93.3 mm (76.90″ × 48.53″ × 3.67″)
98-inch	2,216.4 mm x 1,381.7 mm x 109.6 mm (87.26″ × 54.40″ × 4.31″)
Packaging Dimensions
Carton	65-inch: 1,587 mm x 1,055 mm x 260 mm 75-inch: 1,810 mm × 1,150 mm × 260 mm 86-inch: 2,055 mm × 1,325 mm × 260 mm 98-inch: 2,337 mm × 1,470 mm × 255 mm
Pallet	65-inch: 1,620 mm x 1,060 mm x 120 mm 75-inch: 1,830 mm × 1,060 mm × 120 mm 86-inch: 2,100 mm × 1,060 mm × 120 mm 98-inch: 2,340 mm × 1,040 mm × 155 mm
Weight
Net Weight	65-inch: 40 kg (88.18 lb); 75-inch: 54 kg (119.05 lb); 86-inch: 67 kg (147.71 lb); 98-inch: 91 kg (200.62 lb)
Gross Weight	65-inch: 50 kg (110.23 lb); 75-inch: 65 kg (143.30 lb); 86-inch: 80 kg (176.37 lb); 98-inch: 107 kg (235.89 lb)
Holes Distance	65-inch: 500 mm× 400 mm; 75-inch: 600 mm× 400 mm; 86-inch: 800 mm × 400 mm; 98-inch: 1000 mm× 400 mm
Installation	Wall mount; mobile bracket
Standby Power Consumption	≤ 0.5 W
Packing List
Smart interactive whiteboard × 1 Power cord × 3 Stylus pen × 2 Quick start guide × 1 Wall mount bracket (already installed on the whiteboard): × 1 Accessory package × 1 Remote control × 1

Overview

Dahua LPH98-MC470-P – 98″ Smart Interactive Whiteboard

The Dahua LPH98-MC470-P is a 98-inch 4K UHD interactive flat panel display designed to elevate collaboration and communication in large-scale environments such as corporate boardrooms, educational institutions, and collaborative workspaces. Combining advanced technology with user-centric features, it offers an immersive and efficient platform for presentations, meetings, and learning sessions.

Key Features & Benefits

Ultra-Clear 4K UHD Display: The expansive 98-inch DLED panel delivers a resolution of 3840×2160, providing sharp, vibrant visuals with 90% NTSC color gamut and accurate color reproduction (ΔE≤1.5), ensuring every detail is crisp and lifelike.
Advanced Touch Technology: Supports up to 20 touch points, allowing multiple users to interact simultaneously. The infrared touch technology ensures a responsive and natural writing experience with low latency and high precision.
AI-Powered Camera & Microphone: Equipped with a 48MP AI camera and an 8-array microphone, the LPH98-MC470-P offers auto-framing, voice tracking, and sound source positioning, delivering clear video and audio for remote collaboration and conferencing.
Built-In DeepHub Meeting Software: The device comes with pre-installed DeepHub Meeting software, enabling cloud-based online conferences and real-time collaboration. It supports screen sharing between the whiteboard and various devices, including phones, computers, and tablets.
Wireless Screen Sharing & Split-Screen Functionality: Facilitates seamless content sharing and multitasking by allowing users to display multiple sources simultaneously, enhancing interactive discussions and presentations.
Intelligent Writing & Annotation: Features handwriting recognition, pen pressure sensitivity, and intelligent pen detection that automatically wakes up the whiteboard for annotations when the pen is lifted, providing a natural and efficient writing experience.
Enhanced Security & User Access: Supports NFC and fingerprint authentication, allowing up to 100 registered users, ensuring secure access and user management.
Comprehensive Connectivity Options: Includes multiple ports such as USB 3.0, HDMI 2.0, RJ-45, RS-232, and a Type-C port supporting 4K input, USB 3.0 host, USB 2.0 touch, and PD charging up to 65W, offering versatile connectivity for various devices.
High-Quality Audio System: Features a 2.1-channel audio system with two mid-high frequency speakers and one low-frequency speaker, delivering a total output of 60W for clear and immersive sound during presentations and meetings.
Durable & User-Friendly Design: The anti-glare tempered glass surface with ≥9H hardness ensures durability and resistance to scratches, while the intuitive interface and front-facing controls provide ease of use for all users.

Ideal Applications

Education: Enhances interactive learning experiences in classrooms and lecture halls, supporting digital lessons and collaborative projects.
Corporate: Facilitates efficient meetings, presentations, and brainstorming sessions in boardrooms and conference rooms.
Collaboration Spaces: Serves as a central hub for team collaboration, enabling seamless communication and content sharing in open office environments.
