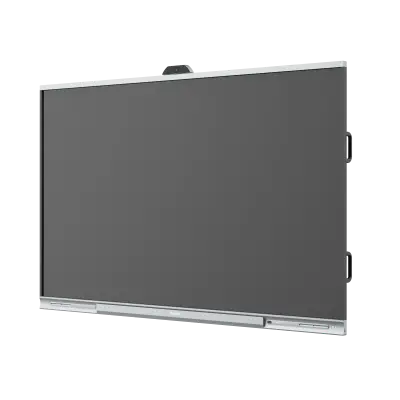

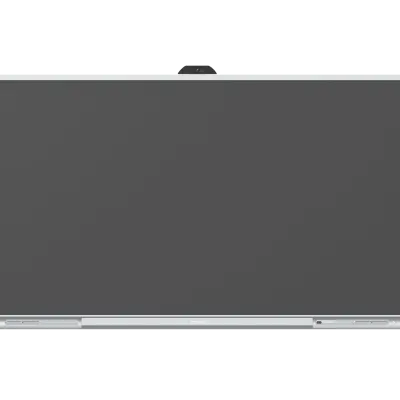

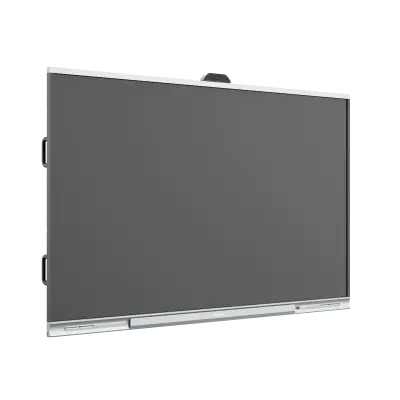

Dahua LPH86-MC470-P-S2

86 inch Smart interactive whiteboard

Built-in DeepHub Meeting software for cloud base online conference and with real-time collaboration function.
The Meeting software installed on the device includes a one-year usage license, after which a renewal fee will be required for continued use.
Displays in 4K Ultra HD and uses 4K UI.
With its 2 built-in mid-high frequency speakers, and 1 low-frequency speaker, the device supports 2.1-channel audio output. The total power is 60 W.
Produces vibrant visuals through its high color coverage (90% NTSC High Gamut Screen) and accurate color reproduction (ΔE≤1.5).
Features split screen, and performs screen sharing between the whiteboard and phones, computers, tablets and more devices.
Microsoft Office and other related software can be installed, and it can play audio and video files in various formats.

Category: Uncategorized Brand: Dahua

Sales Enquiry

Specification	Details
Built-in System	Operating System
	Android 14
CPU	Quad-core A73 + Quad-core A53
CPU Frequency	2.2 GHz + 2.0 GHz
GPU	ARM Mali-G52 MP8 (8EE)
RAM	20 GB (System: 16 GB, Camera: 4 GB）
ROM	128 GB
NFC	Supports quick unlock via NFC
Function
Operating System of External Module	Windows 7/8/10/11
Wi-Fi Hotspot	Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time
LCD Panel
Screen Size	86 inch
Backlight	DLED
Aspect Ratio	16:9
Brightness	450 cd/m² (typ.)
Resolution	3840 (H) × 2160 (V)
Viewing Angle	H (178°) / V (178°)
Lifespan	≥50,000 hr
Display Color	90% NTSC (typ.)
Refresh Rate	60 Hz
Static Contrast Ratio	1200 (typ.)
Response Time	8 ms (typ.)
Camera
Camera	Android: Photo: 52 MP; Video: 8 MP Windows: Photo: 8 MP; Video: 8 MP
Auto Control	Auto flip; Auto white balance
Distortion	–8.6%
Max. Resolution	Photo: 9632 (H) × 5418 (V); Video: 3840 (H) × 2160 (V)
Storage	8GB eMMC
Field of View	H: 87°; V: 49°; D: 99°
Face Detection	Yes
Digital Zoom	Yes, supports up to 9x digital zoom
Device Ports
Light Sensor	1
Front Button	1 × power button (right side)
Front Ports	1 × USB 3.2 Gen1 (left side)
Network Port	1 × RJ-45
Wi-Fi	Yes, 1 × Station, 1 × AP
Wi-Fi Standard	Station: 802.11b/g/n/a/ac AP: 802.11b/g/n/a/ac/ax
Wi-Fi Frequency Range	2400–2483.5 MHz, 5150–5350 MHz, 5470–5725 MHz, 5725–5850 MHz
MAX Power Transmission (Wi-Fi)	≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz; ≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz; ≤14 dBm@5725–5850 MHz
Bluetooth	Yes
Bluetooth Standard	BR/EDR/BLE, BT5.3
Bluetooth Frequency Range	2400–2483.5 MHz
MAX Power Transmission (Bluetooth)	≤20 dBm@2400–2483.5 MHz
RFID Modulation Method	ASK
RFID Frequency Range	13.56 MHz
MAX Power Transmission (RFID)	42dBuA/m @10 m
USB	3 × USB 3.2 Gen1 Type-A; 1 × Micro USB 2.0
RS-232	1 × DB9 port, male connector
Video Input	2 × HDMI 2.0 (4K@60 Hz)
Video Output	1 × HDMI 2.0 (4K@60 Hz)
Audio Output	1 × 3.5 mm Line Out port; 1 × SPDIF port
Others	1 × Touch port
IrDA	1
Microphone	16 arrays
Type-C Port	1 × Type-C IN (DP IN (4K60 fps) + USB 3.2 Gen1 HOST+ USB 2.0 Device (touch) + PD 65 W)
Touchscreen
Response Time	≤3.3 ms
Touch Technology	Infrared
Touch Points	32@Android, 50@windows
Valid Touch	1.5 mm (0.06″) (over 90% touch area)
Writing Mode	Finger + Pen (attaches magnetically)
Anti-light Interference	Anti-dazzle tempered glass
Surface Hardness	≥9H
Touch Resolution	32767 × 32767
Number of Multi-user Writing Points	10 points (over 90% touch area)
Speaker
Number of Cavities	3
Frequency	150 Hz–20 kHz
Power	2.1 channel, front-end 2 × 20 W + rear-end 20 W
Built-in Speaker	3
Fingerprint
Fingerprint Capacity	100
Fingerprint Resolution	160 × 160
FAR	<0.001%
Microphone
Pick-up Distance	Far-field sound pickup: 8 m–12 m (26.25 ft–39.37 ft)
Number of Microphones	16 arrays
AGC	Yes
Echo Cancellation	Yes
Polar Pattern	Omnidirectional
Intelligent Noise Filtering	YES
General
Power Supply	100–240 VAC, 50/60 Hz
Power Consumption	425 W (basic), 500 W (max)
Operating Temperature	0 °C to +40 °C (+32 °F to +104 °F)
Storage Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	10%–90% (RH), non-condensing
Storage Humidity	10%–90% (RH), non-condensing
Product Material	Metal casing
Protective Glass	3.2 mm Anti-dazzle tempered glass
Casing Color (Frame/Rear)	Black on the left and right, Starry Gray on the top and bottom
Product Dimensions	1,955.3 mm × 93.3 mm × 1,232.2 mm (77.00″ × 3.67″ × 48.55″) (L × W × H)
Frame Size	Top border: 28.6 mm (1.13″), left/right: 17.9 mm (0.70″), bottom: 69.6 mm (2.74″)
Packaging Dimensions	2,090 mm × 227 mm × 1,315 mm (82.28″ × 8.94″ × 51.77″) (L × W × H)
Net Weight	73 kg (160.94 lb)
Gross Weight	86.5 kg (191.80 lb)
Holes Distance	800 mm × 400 mm (31.50″ × 15.75″)
Installation	Wall mount; mobile bracket
Standby Power Consumption	≤0.5 W
Packing List
1 × Smart interactive whiteboard 1 × Power cord 2 × Stylus pen 1 × Quick start guide 1 × Wall mount bracket 1 × Remote control 1 × Legal and Regulatory Information 1 × Wall-mount screw pack
Glass Thickness	3.2 mm (0.13″)

Overview

Dahua LPH86-MC470-P-S2 – 86″ 4K UHD Interactive Flat Panel

Dahua LPH86-MC470-P-S2 is a high-performance 86-inch 4K UHD interactive flat panel display built to enhance collaboration, communication, and presentation experiences in professional, educational, and enterprise environments. Designed with advanced technology and premium build quality, it offers seamless interaction, superior visuals, and smart functionality for modern workspaces.

Featuring an ultra-high-definition 3840×2160 (4K UHD) resolution, the LPH86-MC470-P-S2 delivers exceptional image clarity, vivid colors, and detailed visuals that make every presentation or lesson more engaging. The expansive 86-inch screen ensures excellent visibility even in large meeting rooms or classrooms.

With 40-point multi-touch capability, users can interact simultaneously—writing, drawing, and annotating with precision and minimal delay. This makes it ideal for team brainstorming sessions, lectures, or business presentations.

Powered by a built-in Android operating system with support for an optional Windows OPS module, the display offers flexible dual-system performance. It allows users to run productivity applications, access cloud content, or mirror devices wirelessly for effortless collaboration.

The display is equipped with an 8MP integrated camera, array microphone, and high-fidelity speakers, making it perfect for remote meetings and video conferencing. Its anti-glare tempered glass ensures durability and clear visibility under various lighting conditions, while its slim bezel and sleek design provide a modern aesthetic for any setting.

Key Features:

86-inch 4K UHD interactive display (3840×2160 resolution)
40-point responsive multi-touch technology
Built-in Android OS with optional OPS module for dual-system operation
Wireless screen sharing and collaboration support
Integrated 8MP camera, array microphone, and dual speakers for conferencing
Anti-glare tempered glass for clear, comfortable viewing
Sleek, durable design suitable for corporate, educational, and project use

Additional Features:

Offers a smooth writing experience through handwriting recognition, pen writing, the fast writing response speed, and pen pressure recognition for a real writing experience.
Support AI recognition of text and drawings.
Intelligent pen detection that automatically wakes up the whiteboard for annotations when the pen is lifted.
Built-in AI 52M camera and 16 array microphone that produces excellent quality visual and audio communication. Supports auto-framing and voice tracking.
Features sound source positioning.
NFC and Fingerprint unlock for protection of user information.
Includes a full-featured Type-C IN port and supports charging through USB PD up to 65 W.

The Dahua LPH86-MC470-P-S2 combines cutting-edge touch interaction, intelligent system integration, and exceptional audiovisual performance—making it an ideal choice for modern collaborative environments that demand clarity, reliability, and innovation.
