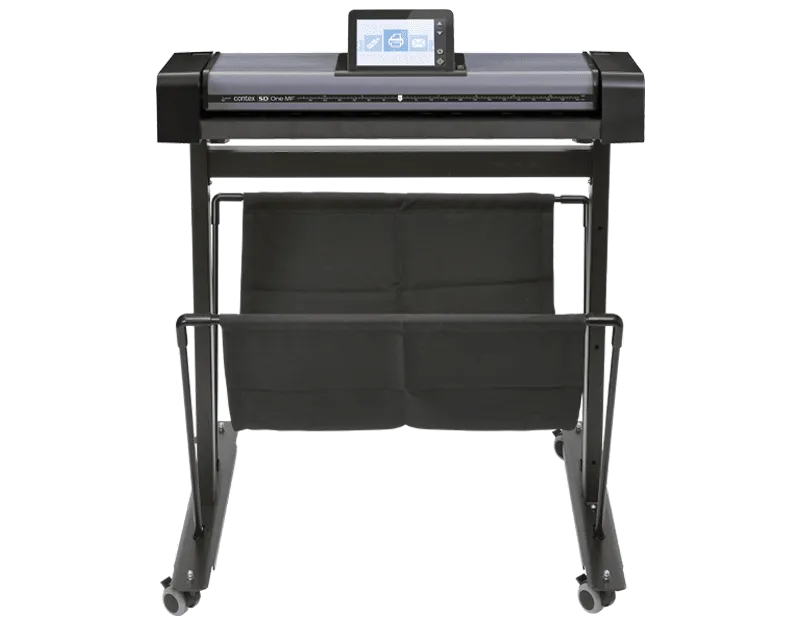

Contex SD One MF 36

Scan, copy, share and personalize

CIS- technology
3.8 ips in 150 dpi RGB Color
600 dpi
$

Category: Document Scanner Brand: Contex

Specification	Details
Technology	CIS Contex CleanScan
Maximum Resolution (interpolated)	9600 dpi
Optical Resolution	600 dpi
Data Capture (linier 4 channels RBGK 48 bit/ K(mono) 16 bit)	48-bit
Maximum Scan Width	36 inch (914 mm)
Maximum Scan Length	50 inches (1270 mm)
Maximum Media Width	38 inch (965 mm)
Maximum Media Thickness	0.75 mm
Accuracy	0.1% +/- 1 pixel
Color Space	sRGB
File formats	PDF, PDF/A, TIF and JPG
Touch panel / screen	7” multi-touch screen. 800 x 480 pixels
Weight and dimensions (LxWxH)	12.3 Kg – 45.6 x 8.9 x 4.9 inch / 1163 x 227 x 125 mm
Energy Star Compliant	Yes
Country of origin	Designed in Denmark. Manufactured in China
Embedded controller: Memory (RAM/flash)	8 GB/16 GB
Embedded controller: Destinations	Network PCs, copy, email and USB drive
Power Consumption	Ready/Power Save/Scanning: 26/3.6/31 W
Power requirements	External power supply: 100 V / 230 V / 240 V, 60/50 Hz
Included software (download)	Contex LINK networking and cloud access utility, Nextimage free trial (incl. TWAIN driver, excl. licence)
Optional software	Nextimage Scan & Archive, Nextimage Repro (requires PC, not included)
Language versions	English, French, German, Italian, Korean, Chinese (simplified), Japanese, Russian
Processor	Atom Quad-Core
Environmental	ENERGY STAR© Certified, EuP (EU), WEEE (EU), RoHS (EU) and REACH (EU)
150 dpi	3.8 ips
300 dpi	1.9 ips
600 dpi	1.0 ips
Scan to USB key	Yes. USB 3.0
Scanner stand (optional)	Low and high stand available
High stand printer heights	From 850 to 1200 mm in 50 mm increments (33.5 to 47.3 inches in about 2 inch increments)
Low stand working heights	From 810 to 860 mm in 25 mm increments (31.9 to 33.9 inches in about 1 inch increments)
Connectivity	WIFI, Ethernet

Contex SD One MF 36

Overview
The Contex SD One MF 36 is a multifunction large-format scanning solution that integrates scanning, copying, and file routing in a single unit. Designed to complement existing wide-format printers, it enables walk-up scanning and copying workflows without needing a separate workstation — ideal for offices and teams needing occasional large-format capabilities.

Key Features & Benefits

Multifunction Capability
Acts as a scan + copy + distribution station. You can scan directly to printer, USB, network folders, email, or cloud — all from the same unit.
Built-in Touchscreen Control
The integrated touch display allows users to preview, crop, annotate, and manage scanning jobs without a PC — making operation intuitive.
Color Scanning & Universal File Output
Supports full-color scanning, outputting into common formats like PDF, TIFF, JPEG, ensuring compatibility with standard workflows.
Personalized Workflow Profiles
Each operator can save their settings and scan presets, so routine tasks can be executed with a single touch.
Printer Integration
Designed to pair with most popular wide-format printers. Scanned documents can be routed immediately to printing or archiving.
Workgroup-Optimized Design
Suited for offices or small teams that occasionally need wide-format scanning without investing in a dedicated scanner station.
Smart Connectivity & Workflow Compatibility
Supports wired Ethernet and optional wireless modules, and works with advanced image management software for processing or archival workflows.
Energy-Efficient & Simple to Maintain
Features LED lighting, embedded controller, and low-maintenance design to reduce downtime and operating costs.

Ideal Use Cases & Target Users

Architecture, engineering, and construction firms needing occasional large-format scanning
Corporate departments digitizing plans, maps, or posters as needed
Reprographic shops or print services supplementing existing printer workflows
Offices wanting scanning, copying, and distribution of large documents in a compact package
Institutions or organizations seeking a multifunction scanner for large documents without separate workstations
