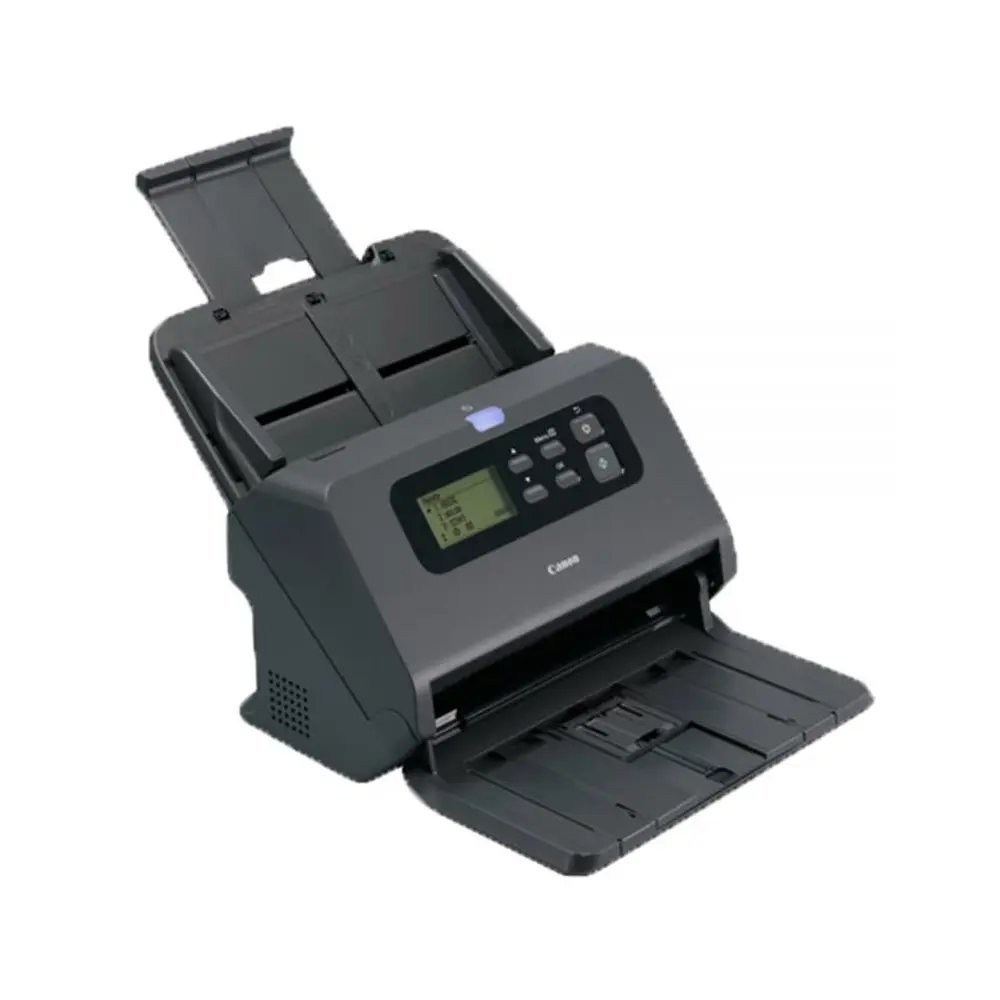

Canon imageFORMULA DR-M260 Document Scanner

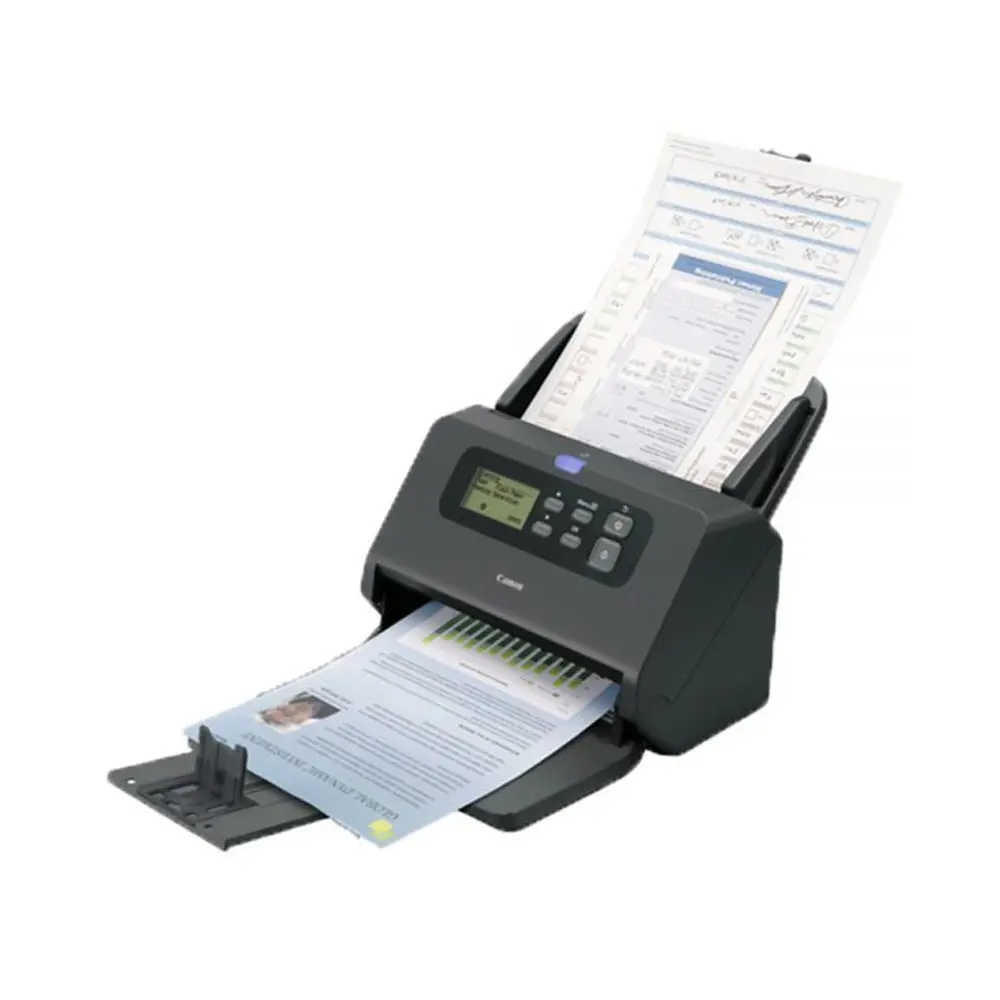

Canon imageFORMULA DR-M260 Document Scanner - Image 2

Canon imageFORMULA DR-M260 Document Scanner

60 ppm | 80 sheets ADF
ADF
Max paper Size: A4

Specifications	Details
Type	Desktop Type Sheet Fed Scanner
Scanning Sensor Unit	CMOS CIS 1 Line Sensor
Optical Resolution	600 dpi
Light Source	RGB LED
Scanning Side	Front / Back / Duplex
Interface	USB 3.1 Gen1
Dimensions (W × D × H)	Trays Closed: 285 x 180 x 178 mm Trays Opened: 285 x 254 x 231 mm
Weight	Approx. 3.6 kg
Power Requirements	AC 100-240V (50/60Hz)
Power Consumption	Scanning: 23W or less Sleep Mode: 1.4W or less Power Turned Off: 0.1W or less
Black and White Speed	60 ppm / 120 ipm
Colour Speed	60 ppm / 120 ipm
Output Resolution	150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Output Mode	Black & White, Error Diffusion, Advanced Text Enhancement I & II, 8-bit Greyscale (256-Level), 24-bit Colour
Suggested Daily Duty Cycle	Approx. 7,500 scans
Long Document Mode	Up to 5,588 mm
Business Card Scanning	Size: 50 x 91 mm, Thickness: Less than 0.45 mm
Postcard Scanning	Size: 89 x 152 mm, Thickness: Less than 0.45 mm
Plastic Card Scanning	Size: 54 x 86 mm, Thickness: Less than 1.4 mm
Passport Scanning	Up to 6 mm thick (via carrier sheet)
Paper Separation	Retard Roller Method
Feeder Capacity	90 sheets (A4, 80 g/m²)
Width	50 – 216 mm
Length	54 – 356 mm
Thickness	27 – 413 g/m² (0.04 – 0.49 mm)
Windows	ISIS / TWAIN Driver (Windows 7 / 8.1 / 10 / Server 2008 R2 SP1 / Server 2012 R2 / Server 2016), CaptureOnTouch Pro, CapturePerfect, Kofax VRS, eCopy PDF Pro Office

Overview

Productivity-boosting, elegantly designed desktop scanner

The compact imageFORMULA DR-M260 has a small frame yet produces a big performance. This dependable scanner is packed with innovative features and delivers outstanding image quality, with capture speeds of up to 60 ppm/120 ipm.

Slender, modern design

With its contemporary, compact body, the imageFORMULA DR-M260 integrates seamlessly into a wide variety of customer-facing environments.

Fast scanning speeds

The new on-board processing chip takes the strain away from PCs, unlocking scanning speeds of up to 60 ppm in black and white, and 60 ppm in full colour.

Virtuoso versatility

The DR-M260 tackles media from 27 g/m2 up to 413 g/m2, and furthers its flexible credentials by accepting credit cards, passports, and long-form documents.

Quality and reliability

Intelligent image-refining tools are partnered with reliability-boosting features such as ultrasonic double-feed detection and a double feed release button.

Simplified scanning

Support for multiple file formats is complemented by network and SharePoint integration. Kofax VRS, and CaptureOnTouch tools are also included.
