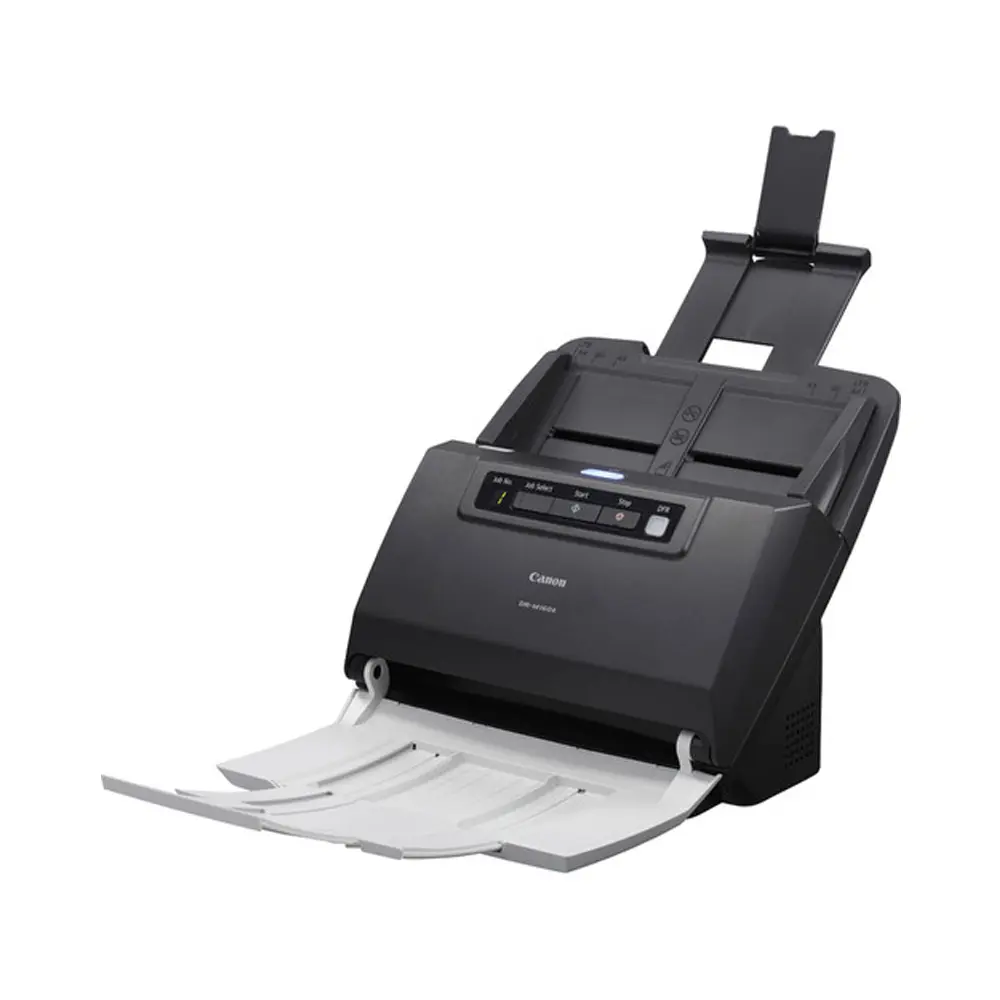

Canon imageFORMULA DR-M160II Document Scanner

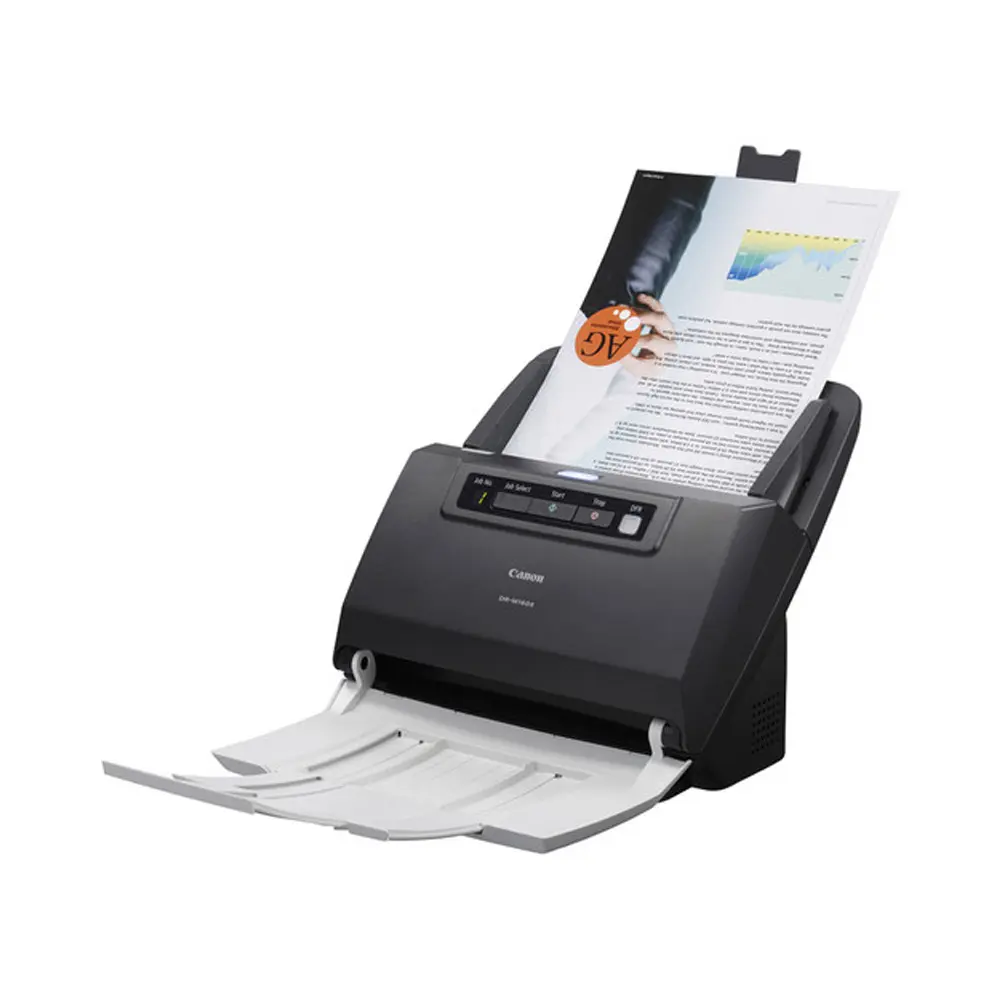

Canon imageFORMULA DR-M160II Document Scanner - Image 2

Canon imageFORMULA DR-M160II Document Scanner

Operates in grayscale, black and white, and full-color modes
Uses one-line CMOS Contact Image Sensor (CIS)
RGB LED light source
PDF/A output format
Other features include auto color detection, auto page size detection, auto resolution setting, background smoothing, character emphasis, color dropout/enhance color, deskew, double-feed release, feeding retry, folio mode, image rotation, long document mode, multistream, pre-scan, prevent bleed-through/remove background, separation retry, shadow cropping, skip blank page, text enhancement, text orientation recognition, ultrasonic double-feed detection, user preferences
ISIS/TWAIN drivers are included
CaptureOnTouch for Windows or Mac, Capture Perfect for Windows, Nuance eCopyPDF Pro Office for Windows, and Kofax VRS with AIPE software for Windows is bundled with this scanner
Works with both Windows and Mac computers
ENERGY STAR, Eu RoHS, and WEEE compliant

Specifications	Details
Maximum Resolution	600 dpi (Optical)
Color Depth	24-Bit (External)
Grayscale Depth	8-Bit (Internal)
Light Source	LED
Scan Speed – Simplex	60 ppm (Color/Grayscale)
Scan Speed – Duplex	120 ipm (Color/Grayscale)
Maximum Media Thickness	11.8 mil / 0.3 mm
Media Handling	Automatic Document Feeder (ADF)
Sheet Capacity	60 Sheets
Media Weight	7 to 56 lb
Interface	PDF
File Formats	PDF
Operating System Support	Windows, macOS / OS X
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	27 W (Maximum)
Certifications	ENERGY STAR, RoHS, WEEE, as per Manufacturer
Weight	7.1 lb / 3.2 kg
Maximum Scan Size	Width: 8.5″ x Length: 14″ (21.6 x 35.6 cm)
Dimensions (W x D x H)	11″ x 9.8″ x 9.1″ (28 x 25 x 23 cm) with trays closed

Overview

Convert your documents and business cards into easily manageable digital files with the imageFORMULA DR-M160II Office Document Scanner from Canon. Featuring an optical resolution of 600 dpi and a scan speed of up to 60 ppm, or 120 ipm in duplex mode, it is capable of rapidly converting your documents. It also has a color bit-depth of 24-bit and has full-duplex capabilities through the use of a 60-sheet automatic document feeder.

The DR-M160II can handle documents as small as 2.0 x 2.1″ or as large as 8.5 x 14″ There is also a mode for long documents up to 118.1″ in length. Another useful feature of this scanner is Folio scanning, allowing you to scan both sides of a folded document up to 11 x 17″ and have the scanner automatically combine the images into a single file. Additionally, it has a USB 2.0 connection.
