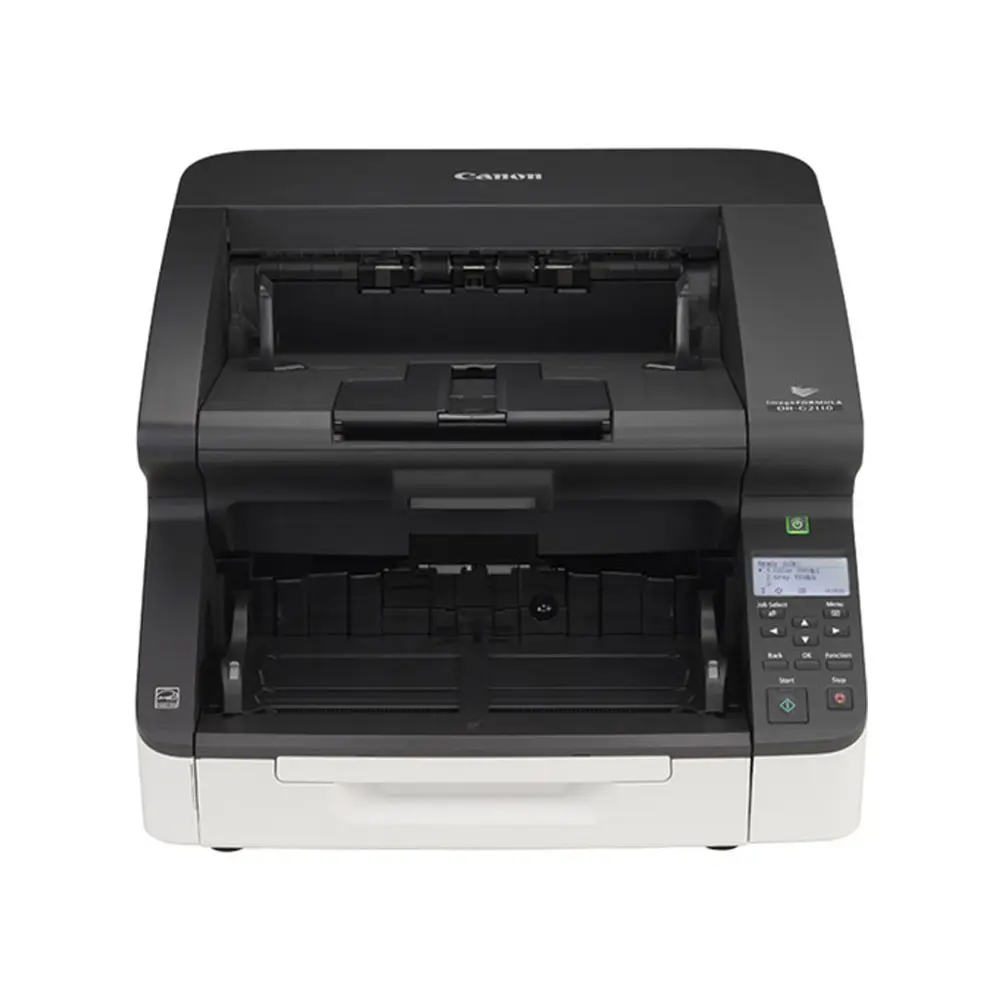

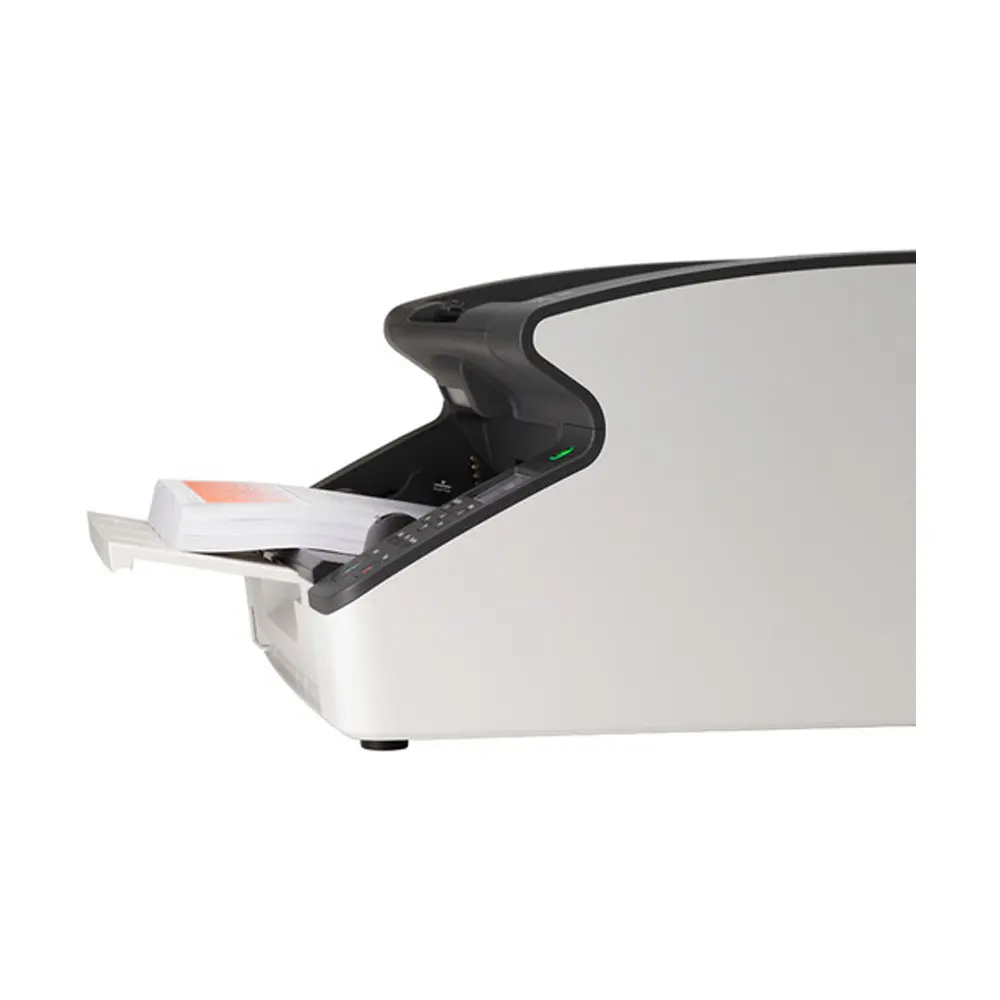

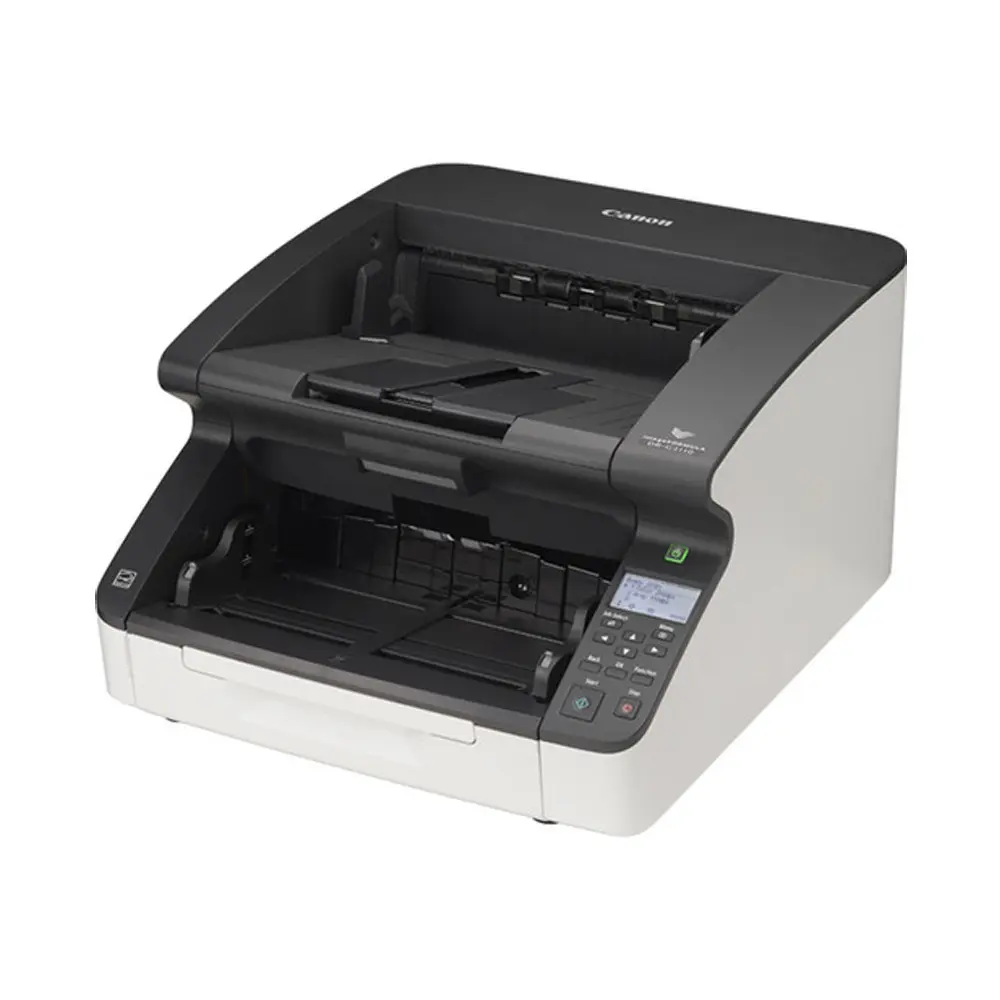

Canon imageFORMULA DR-G2090 Document Scanner

Canon imageFORMULA DR-G2090 Document Scanner

90 ppm | 300 sheets ADF
ADF
Max paper size: A3

Specifications	Details
Type	A3 Desktop Type Sheet Fed Scanner
Scanning Sensor Unit	CIS
Optical Resolution	600 dpi
Light Source	RGB LED
Scanning Side	Simplex, Duplex, Skip Blank Pages
Interface	USB 3.1
Dimensions (W × D × H)	Tray Closed: 480 × 569 × 315 mm Tray Opened: 480 × 723 × 390 mm
Weight	Approx. 25.0 kg
Power Requirements	AC 220-240V (50/60Hz)
Power Consumption	Scanning: 66.5 W Sleep Mode: 3.5 W or less
Operating Environment	10 – 35 °C (50 – 95 °F) Humidity: 20 – 80% RH
Noise	54 dB
Environmental Compliance	EPEAT Gold certified
Black and White Speed	100 ppm / 200 ipm (A4, Landscape, 200 dpi/300 dpi)
Colour Speed	100 ppm / 200 ipm (A4, Landscape, 200 dpi/300 dpi)
Output Resolution	150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Output Mode	Detect Automatically, Black and White, Error Diffusion, Active Threshold, Advanced Text Enhancement I & II, 256-level Grayscale, 24-bit Colour
Suggested Daily Duty Cycle	30,000 scans/day
Width	50.8 – 305 mm
Length	70 – 432 mm
Thickness	Continuous Feeding: 20 – 209 g/m² (0.04 – 0.25 mm) Non-Separation Mode: 20 – 255 g/m² (0.04 – 0.03 mm)
Long Document Mode	Up to 3000 mm
Paper Separation	Retard Roller and Pre-separation method
Feeder Capacity	300 sheets
Others	Barcode Recognition, 2D Code, Patch Code, Job Function, Ultrasonic Double-Feed Detection, Staple Detection, Dropout and Color Enhancement, Auto Page Size Detection, 3-D Color Correction, Image Rotation, Skip Blank Page, Edge Emphasis, Moiré Removal, Prevent Bleed Through / Remove Background, Contrast Adjustment, Shading Correction, Brightness Adjustment, Deskew, Border Removal, Scanning Side Selection, Scan Area Settings, Addon Settings, Text Orientation Recognition, Punch Hole Removal, Folio Scan, Unnecessary Dots Removal, Notch Removal, Background Smoothing, Character Emphasis, Rapid Recovery System, MultiStream™
Windows	ISIS Driver, TWAIN Driver (32/64 bit), WIA Driver, Kofax VRS Driver, CaptureOnTouch Pro, Driver Setting Tool
Consumables	Exchange Roller Kit, Separation Pad, Ink Cartridges (Red, Blue)
Options	Imprinter Unit, Flatbed Scanner Unit 102, Flatbed Scanner Unit 201, White Platen Roller

Overview

Fast A3 scanner capable of capturing up to 200 images per minute. With 300 sheet ADF

Ultra-fast model takes A3 production scanning to the next level

Optimized for customers who demand exceptional high-speed productivity, superior image quality and dependable feeding performance, this A3 scanner is robust, simple to use and performs quietly

Productivity

Ultra-efficient scanner outputs up to 200 images per minute

Image quality

Advanced image-processing tools deliver consistently crisp, clear, high-quality images

Reliability

Robust, durable paper-feed and transport rollers – delivers up to 30,000 scans per day

Product Datasheet
