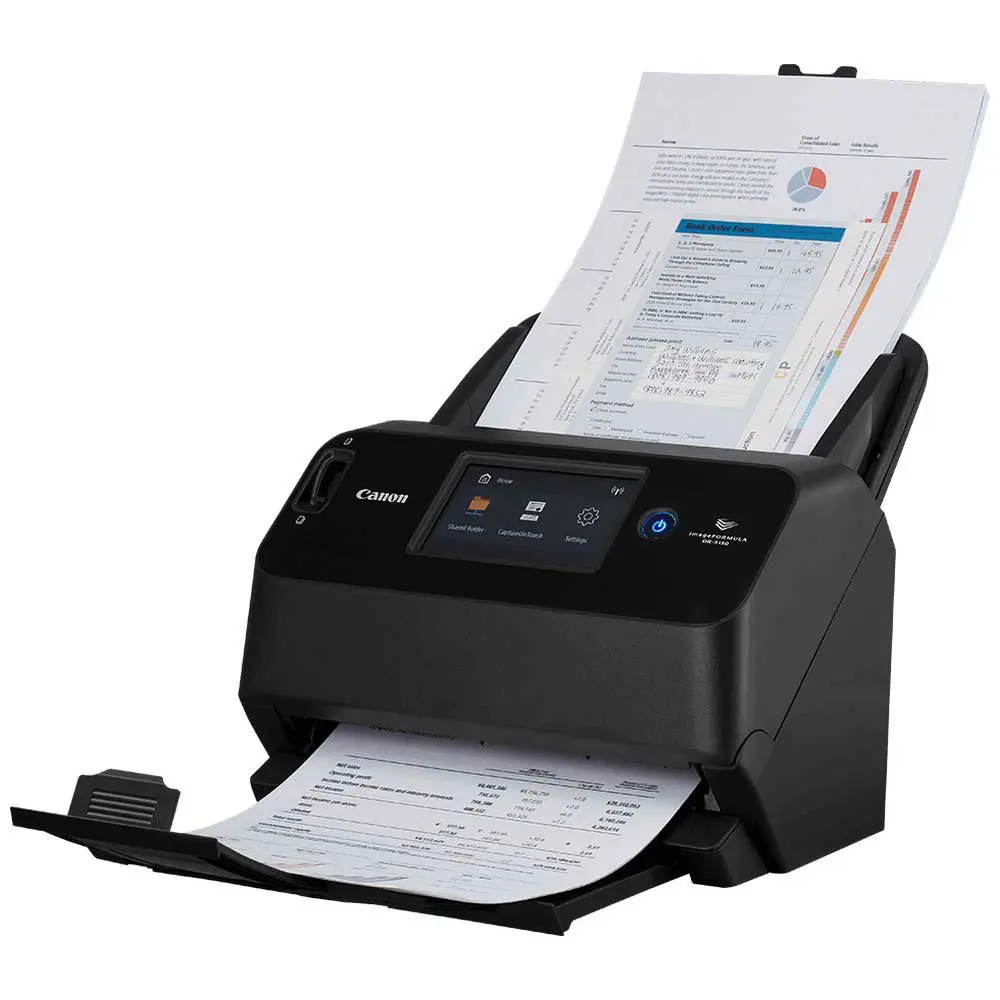

CANON DR-S150

This professional scanner produces high-resolution images of any document, photo or plastic card. Seamlessly integrate into any business environment with an intuitive interface and flexible connectivity options.

Category: Brand:
Sales Enquiry

Specifications Details
Type Desktop Type Sheet Fed Scanner
Scanning Sensor Unit CMOS CIS 1 Line Sensor
Optical Resolution 600 dpi
Light Source RGB LED
Scanning Side Front / Back / Duplex
Interface USB 3.2 Gen1x1 / USB 2.0
IEEE802.11b/g/n
10Base-T / 100Base-TX / 1000Base-T
Dimensions (W × D × H) Trays Closed: 291 x 247 x 242 mm
Trays Opened: 291 x 600 x 378 mm
Weight Approx. 3.3 kg
Power Requirements AC 100-240V (50/60Hz)
Power Consumption Scanning: 22.5 W or less
Sleep Mode: 3.4 W or less
Power Off: 0.1 W or less
Operating Environment 10 – 32.5 °C
Humidity: 20 – 80% RH
Black and White Speed 45 ppm / 90 ipm
Colour Speed 45 ppm / 90 ipm
Output Resolution 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi,
300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Output Mode Monochrome (Active Threshold, Black & White, Error Diffusion, Advanced Text Enhancement, Advanced Text Enhancement II), 8-bit Greyscale (256-Level), 24-bit Colour
Suggested Daily Duty Cycle 3,500 to 6,000 scans/day
Accepted Width 50.8 – 216 mm
Accepted Length 54 – 356 mm
Accepted Thickness 20 – 209 g/m² (0.04 – 0.25 mm)
Long Document Mode 3,000 mm Max
Business Card Scanning Size: 50 x 85 mm or larger
Thickness: Less than 0.45 mm
Plastic Card Scanning Size: 54 x 86 mm
Thickness: Less than 1.4 mm (Embossed Card is supported)
Passport Scanning Up to 4 mm thick (via carrier sheet)
Paper Separation Retard Roller Method
Feeder Capacity 60 sheets (80 g/m²)
Special Features Barcode Module (Windows only), 2D Code Module (Windows only), Automatic Page Size Detection, Deskew, 3D Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Auto Colour Detection, Shadow Cropping, MultiStream, Adjustable gamma settings, Skip Blank Page, Folio Mode, Scan Area Setting, Batch Separation (white blank sheet or patchcode, Windows only), Moiré Reduction, Prevent Bleed Through/Remove Background, Contrast Arrangement, Background Smoothing, Auto Resolution Setting, Double Feed Release, Double Feed Detection (Ultrasonic Sensor, Length)
Windows ISIS/TWAIN Driver (Windows 11, 10, 8.1, 8, 7, Server 2022, 2019, 2016, 2012 R2)
Kofax VRS Ready
CaptureOnTouch Pro
CaptureOnTouch JobTool
Wireless Connection Setup Tool
CaptureOnTouch Admin Server (download only)
CaptureOnTouch Admin Administrator Tool (download only)
Mac Mac TWAIN Driver (Mac OS 12, OS 11, OS 10.15)
CaptureOnTouch
CaptureOnTouch Job Tool
Wireless Connection Setup Tool
Consumables Exchange Roller Kit, Passport Carrier Sheet, A4 Carrier Sheet
Accessories Flatbed Scanner Unit 102 (USB only; not supported with Wi-Fi/LAN)
NFC Feeder Tray

Robust and reliable high-quality scanning

Discover fast, reliable and intuitive scanning, with straightforward operation via a large colour touch screen and one-touch configurations. LAN, WiFi or USB options allow flexible connectivity, for ease and convenience across all types of scanning application and environment.

High performance

Consistently accurate colour image processing of up to 45ppm/90ipm streamlines production.

Maximised productivity

Save valuable time with simple operation via a large 4.3” LCD colour touch screen and one-touch configurations.

Advanced security

Centralised scanner user management enhances document security with various, customisable authentication methods.

Flexible connectivity

USB, LAN and WiFi connection options allow for smooth integration into any office environment, seamlessly connecting departments via the most convenient networks.

  • Productivity

    Speed up document workflows with 45ppm/90ipm high speed colour scanning and 60 sheet ADF

  • Easy operation

    Large colour touch screen with one-touch configurations and direct Network PUSH scan function

  • Automatic processing

    Advanced intelligent processing with OCR, and Barcode /2D Code recognition

  • Reduced IT and operational costs

    Centralised scanner and user profile management with built-in CaptureOnTouch Admin scanner management software

  • Connection options

    Choose the connection option that suits your environment from LAN, WiFi or USB

  • Robust design

    A professional scanner that can handle heavy workloads up to 6,000 scans per day

  • Paper handling

    Heavy duty rollers for reliable feeding of wide range documents, including passports and ID cards

  • Added security

    Simple 4-PIN code access, and with CaptureOnTouch Admin software supporting various methods for user log-on authentication, including NFC option
